PLANET Ultra PoE Splitter, 802.3bt Input, 12/19/24 V DC Output up to 60 W, Gigabit Data Out, Metal Fanless Housing

Brand:
Planet
Planet POE-172S / IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3
PLANET Ultra PoE Splitter, 802.3bt Input, 12/19/24 V DC Output up to 60 W, Gigabit Data Out, Metal Fanless Housing
€122.65 inc. VAT
Buy
POE-172S
€103.07
€122.65 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:256303
EAN Code
4711605283168
Manufacturer
Planet

Quick Specs

Type
Ultra PoE splitter (802.3bt)
Connectors/Interface
RJ45 PoE in · RJ45 data out · DC jack
Key spec
12/19/24 V DC · up to 60 W out
Compatibility
802.3bt/at/af or UPOE source
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

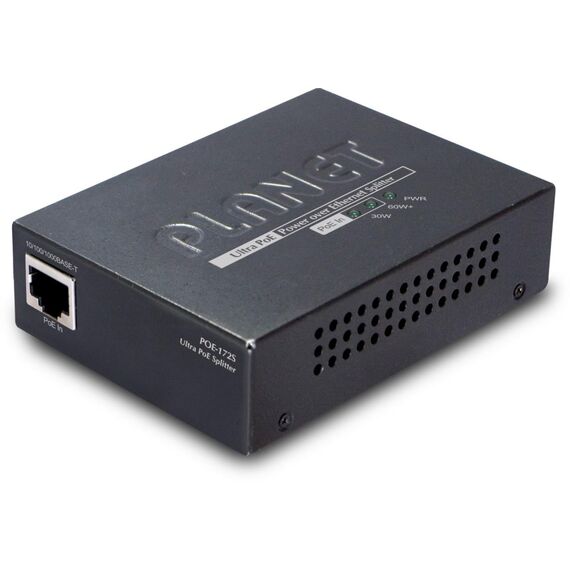

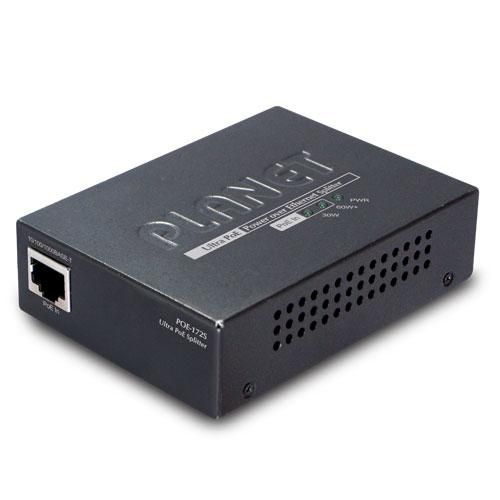

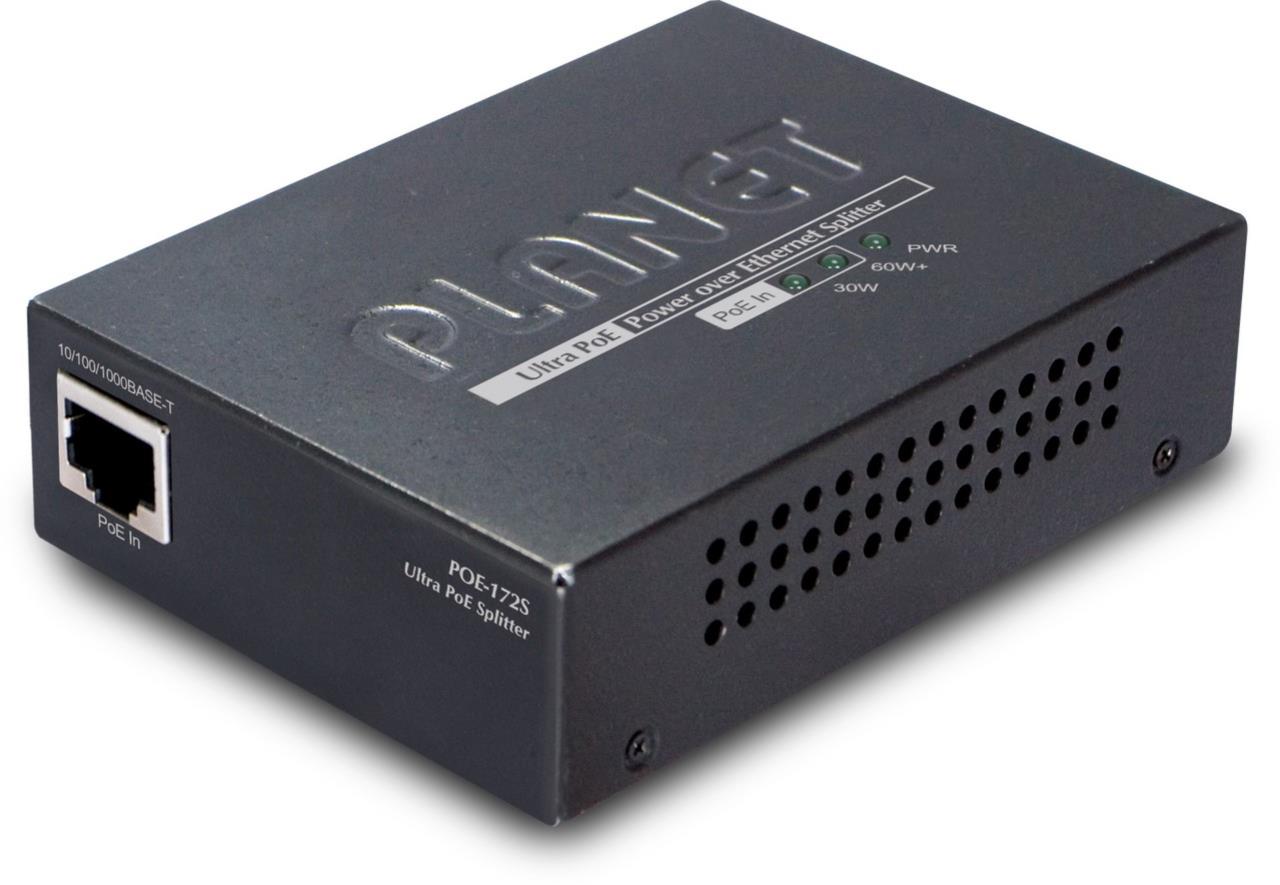

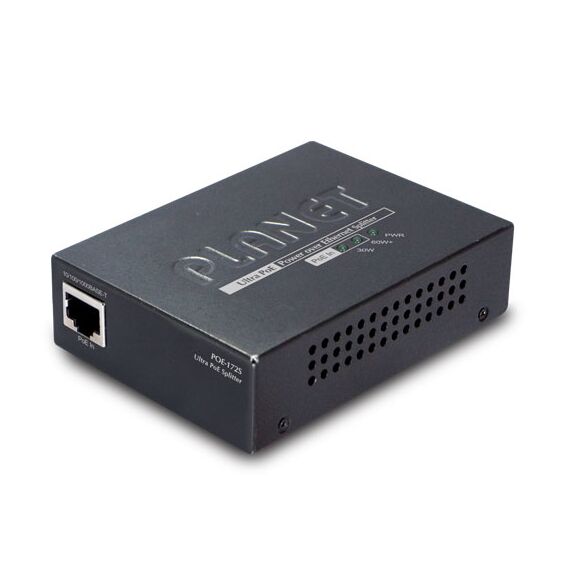

PLANET POE-172S — Single-Port Gigabit Ultra PoE Splitter (12/19/24 V DC)

802.3bt input12/19/24 V DC outGigabitMetal, fanless

The PLANET POE-172S is a Gigabit Ultra PoE splitter that takes up to 802.3bt power from a PoE switch or injector and turns it into a selectable 12 V, 19 V or 24 V DC output for a non-PoE device, while passing Gigabit data on a separate RJ45 port — power a mini PC, small laptop, router or camera with one network cable.

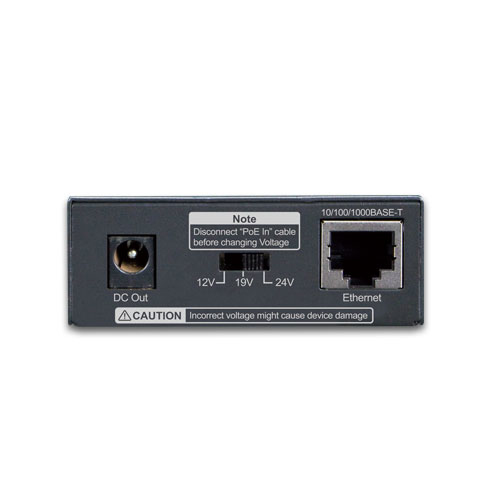

A DIP switch sets the output voltage; with an 802.3bt source it delivers 12 V/5 A, 19 V/3.15 A or 24 V/2.5 A. It is backward compatible with 802.3at/af and Cisco UPOE sources, at reduced power.

Before you order: Full output (around 60 W) needs an 802.3bt (Type 3/4) or UPOE source over 4-pair cable. On an 802.3at (30 W) port the available output drops to about 25 W; on 802.3af it is lower still. Always set the voltage your device expects before connecting.

What's in the Box

  • 1x PLANET POE-172S Ultra PoE splitter
  • 1x 15 cm UTP cable
  • 1x DC cable 5.5/2.5 mm to 5.5/2.5 mm
  • 1x DC cable 5.5/2.5 mm to 5.5/2.1 mm

What It Means in Practice

  • Runs a non-PoE device from a single Ethernet cable — no local power outlet needed.
  • Selectable 12, 19 or 24 V covers routers, cameras, mini PCs and many small laptops (19 V).
  • Two DC cables cover both common 5.5 mm barrel sizes (2.5 and 2.1 mm).
  • Gigabit data out — no bottleneck for the connected device.
  • Compact metal fanless case for desktop or wall mounting.

What Will Not Work

  • Does not output 5 V or 48 V.
  • Full power only from 802.3bt/UPOE — an 802.3at port gives about 25 W.
  • Not industrial: 0–50 °C operation, indoor use.
  • Not an injector — it needs a PoE source.

Key Features


802.3bt input
Type 3/Type 4, backward compatible with 802.3at/af and Cisco UPOE.

3 output voltages
12 V/5 A, 19 V/3.15 A, 24 V/2.5 A via DIP switch.

Gigabit data
10/100/1000 Mbps on the data-out port.

Cables included
15 cm UTP plus two DC barrel cables.

Technical Specifications

Identification
Part Number POE-172S
Brand PLANET
Product type Gigabit Ultra PoE splitter
PoE & Network

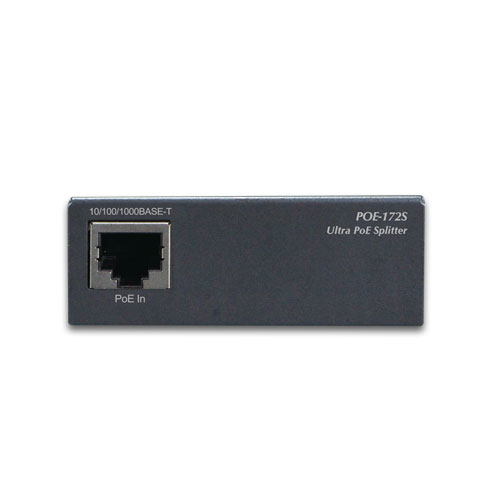

Ports 1x RJ45 PoE in, 1x RJ45 data out, 1x DC output jack (2.5 mm)
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt Type 3/4
PoE input 50–56 V DC
Data rate 10/100/1000 Mbps
Cable 4-pair Cat5/5e/6 for 60 W+, up to 100 m
DC Output
Output (802.3bt source) 12 V/5 A, 19 V/3.15 A or 24 V/2.5 A
Selection DIP switch
Own consumption 3.7 W without load

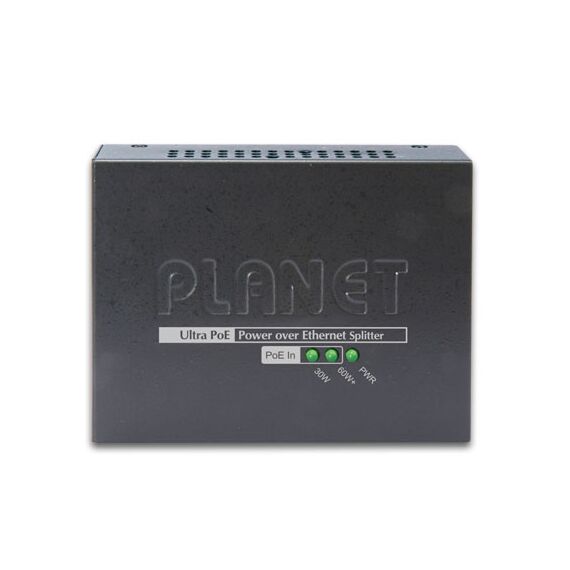

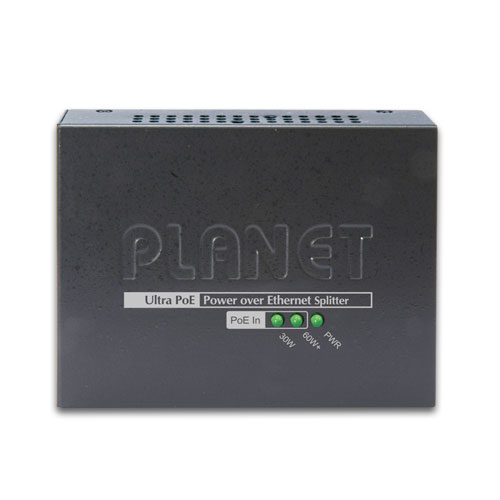

LEDs Power, PoE-in-use (x2)
Physical & Environment
Housing Metal, fanless
Mounting Desktop or wall
Dimensions 94 x 70.3 x 26.2 mm
Weight 300 g
Operating temperature 0 to 50 °C
Storage temperature −10 to 70 °C
Humidity 5–90%, non-condensing
Certifications FCC, CE
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Manufacturer warranty term not published for this model — claims handled through Singular

Frequently Asked Questions

Can I power a laptop with it?
Small laptops that take 19 V on a 5.5 mm barrel and draw up to about 60 W, yes — check the connector and wattage first. USB-C laptops need a different solution.
What if my switch is only 802.3at?
It works, but the available output is limited to roughly 25 W.
Which barrel size does it use?
Its jack is 5.5/2.5 mm; the two included cables output 5.5/2.5 mm or 5.5/2.1 mm.
Singular Expert Insight · Buyer's Guide
The POE-172S is handy wherever a device needs DC power but only a network cable reaches it — kiosks, ceiling-mounted routers, mini PCs. Pair it with an 802.3bt switch or injector for full power. See our switches for PoE++ sources.
✓ Buy it if you need 12, 19 or 24 V DC for a non-PoE device from an 802.3bt or 802.3at port.
✕ Skip it if you need 5 V/48 V or industrial temperature range.
→ Also consider PLANET IPOE-162S — industrial 12/24 V PoE+ splitter for harsh environments.
Not sure your device will run from it? Send us its model or power adapter rating and we will check before you order.
