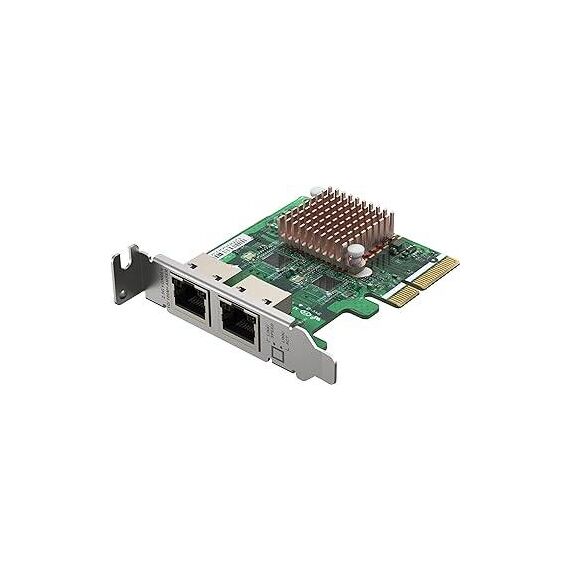

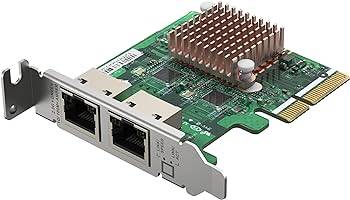

QNAP QXG-2G2T-I225 / Network adapter / PCIe 2.0 x2 low profile / 2.5GBase-T x 2 / for QNAP QGD-1600, TS-1232, 1253, 251, 253, 432, 453, 653, 832, 853, h1283, h977, TVS-672, 872 | QXG-2G2T-I225

Description
Features

Special Features

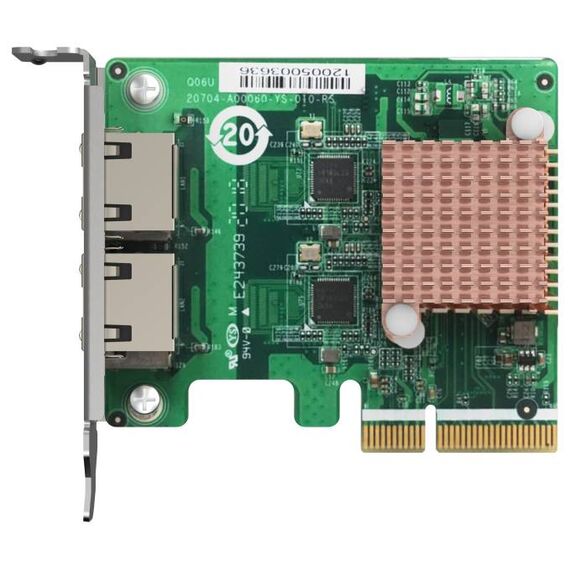

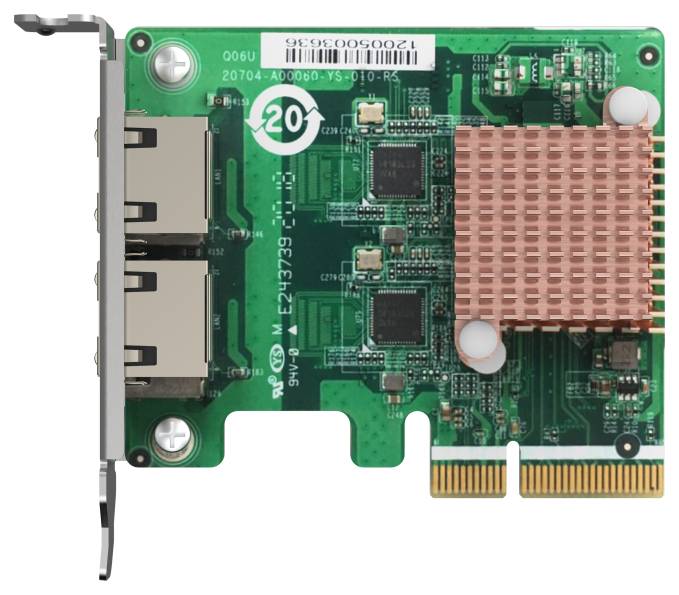

Dual-port 2.5 GbE network expansion card
Controller: Intel Ethernet controller I225-LM
Connector: RJ45
PCIe interface: PCIe Gen2 x2
Transmission rates: 2.5Gbps/1Gbps/100Mbps/10Mbps
Supported operating systems: QTS 4.4.2 or later (recommend an upgrade to the latest version); Windows 10 (1809 or later); Linux Stable Kernel 4.20/5.x; Windows Server 2019 (driver required)
Supported QNAP NAS: models with PCIe slot(s) (1 free slot required)
Port and cable: RJ-45; over CAT-5 class cable
Supported functions: PXE, Wake-On-LAN (WoL), 9k jumbo frame, 802.1AS-rev/1588, 802.1Qav/802.1Qbv, Time Sensitive Networking (TSN), RSS+MSI-X, Teaming & VLAN support, Intel AMT

Product Specification

Device Type	Network adapter
Form Factor	Plug-in card - low profile
Interface (Bus) Type	PCI Express 2.0 x2
Networking	Networking
Ports	2.5GBase-T x 2
Connectivity Technology	Wired
Cabling Type	Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Data Transfer Rate	2.5 Gbps
Features	VLAN support, wake on LAN (WOL), teaming support, PXE support, Receive Side Scaling (RSS), Extended Message-Signaled Interrupts (MSI-X), 9 KB Jumbo Frame
Compliant Standards	IEEE 802.1as, IEEE 802.1Qav, IEEE 802.1Qbv
Processor / Memory	Processor / Memory
Processor	1 x Intel I225-LM
Expansion / Connectivity	Expansion / Connectivity
Interfaces	2 x 2.5Gb Ethernet - RJ-45
Miscellaneous	Miscellaneous
Included Accessories	Full-height bracket, QNAP NAS bracket
Software / System Requirements	Software / System Requirements
OS Required	Ubuntu, Windows 10, Microsoft Windows Server 2016, Microsoft Windows Server 2019, QNAP QTS 4.4.2 or later
Compatibility Information	Compatibility Information
Designed For	QNAP QGD-1600, QGD-1600P, TDS-16489U R2, TDS-16489U-SA1, TDS-16489U-SA2, TDS-16489U-SB2, TDS-16489U-SB3, TDS-16489U-SD3, TDS-16489U-SE1, TDS-16489U-SE1-R2, TDS-16489U-SE2, TDS-16489U-SE2-R2, TDS-16489U-SF2, TDS-16489U-SF3, TDS-16489U-SF3-R2, TES-1885U, TES-3085U, TS-1231XU, TS-1232PXU-RP, TS-1232XU, TS-1232XU-RP, TS-1253BU, TS-1253BU-RP, TS-1253DU-RP, TS-1263U, TS-1263U-RP, TS-1273U, TS-1273U-RP, TS-1277, TS-1277XU-RP, TS-1283XU-RP, TS-1635, TS-1635AX, TS-1673U, TS-1673U-RP, TS-1677X, TS-1677XU-RP, TS-1683XU-RP, TS-1685, TS-2477XU-RP, TS-2483XU-RP, TS-251B, TS-251D, TS-253B, TS-253Be, TS-253D, TS-2888X, TS-431X, TS-431XU, TS-432PXU, TS-432PXU-RP, TS-432XU, TS-432XU-RP, TS-453B, TS-453Be, TS-453BT3, TS-453BU, TS-453BU-RP, TS-453D, TS-453DU, TS-453DU-RP, TS-463U, TS-463U-RP, TS-473, TS-531P, TS-531X, TS-563, TS-563 Turbo NAS, TS-653B, TS-653D, TS-673, TS-677, TS-831X, TS-831XU, TS-832PXU, TS-832X, TS-832XU, TS-832XU-RP, TS-853BU, TS-853BU-RP, TS-853DU-RP, TS-863U, TS-863U-RP, TS-873, TS-873U, TS-873U-RP, TS-877, TS-877XU-RP, TS-883XU, TS-977XU-RP, TS-983XU, TS-983XU-RP, TS-EC1080 Pro Turbo NAS, TS-EC1280U, TS-EC1280U-R2, TS-EC1680U, TS-EC1680U-R2, TS-EC2480U-R2, TS-EC880U-R2, TS-h1283XU-RP, TS-h977XU-RP, TVS-1271U-RP, TVS-1272XU-RP, TVS-1282, TVS-1282T, TVS-1282T3, TVS-1582TU, TVS-1672XU-RP, TVS-2472XU-RP, TVS-463, TVS-463 Turbo NAS, TVS-471, TVS-471U, TVS-471U-RP, TVS-472XT, TVS-473, TVS-473e, TVS-663, TVS-663 Turbo NAS, TVS-671, TVS-672N, TVS-672XT, TVS-673, TVS-673e, TVS-682, TVS-682T, TVS-863, TVS-863 Turbo NAS, TVS-863+, TVS-863+ Turbo NAS, TVS-871, TVS-871T, TVS-871U-RP, TVS-872N, TVS-872XT, TVS-872XU, TVS-873, TVS-873e, TVS-882, TVS-882BR, TVS-882BRT3, TVS-882ST2, TVS-882ST3, TVS-882T, TVS-972XU, TVS-972XU-RP, TVS-EC1280U-SAS-RP, TVS-EC1280U-SAS-RP R2, TVS-EC1580MU-SAS-RP, TVS-EC1580MU-SAS-RP R2, TVS-EC1680U-SAS-RP, TVS-EC1680U-SAS-RP R2, TVS-EC2480U-SAS-RP, TVS-EC2480U-SAS-RP R2, TVS-EC880
