Rackmount.IT FortiRack RM-FR-T22 — Duo 2U Rack Mount for FortiGate 80F-PoE, 80F-DSL and FortiWiFi 80F
2U · 19"2 appliances side by sideFront keystone portsWhite

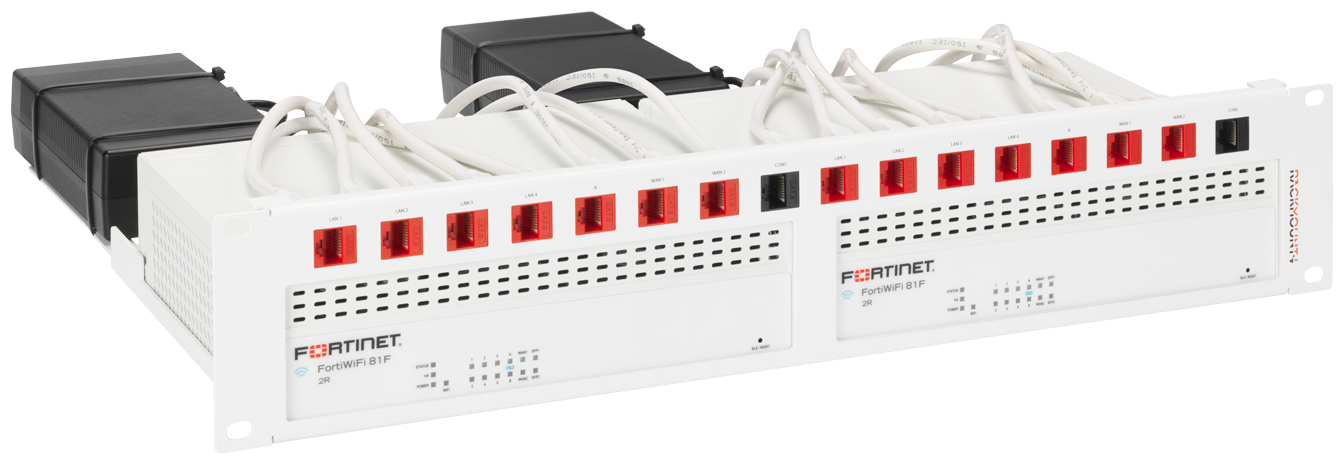

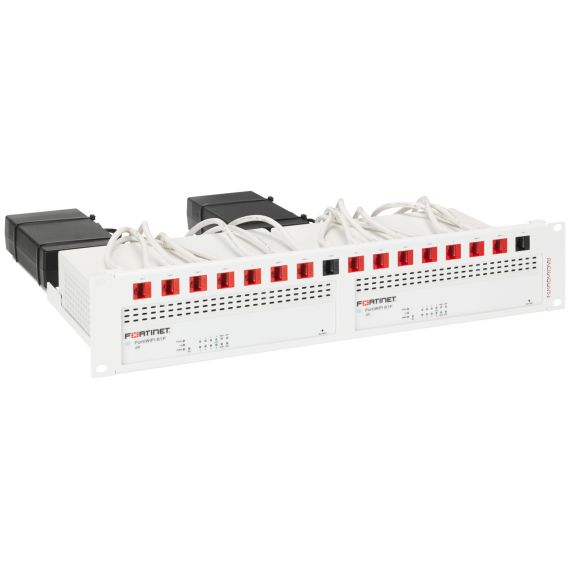

The Rackmount.IT FortiRack RM-FR-T22 is a 2U, 19-inch rack mount kit that holds two Fortinet FortiGate 80F-PoE, 80F-DSL or FortiWiFi 80F-series appliances side by side, built for IT teams who want desktop firewalls to sit properly in a rack instead of on a shelf.

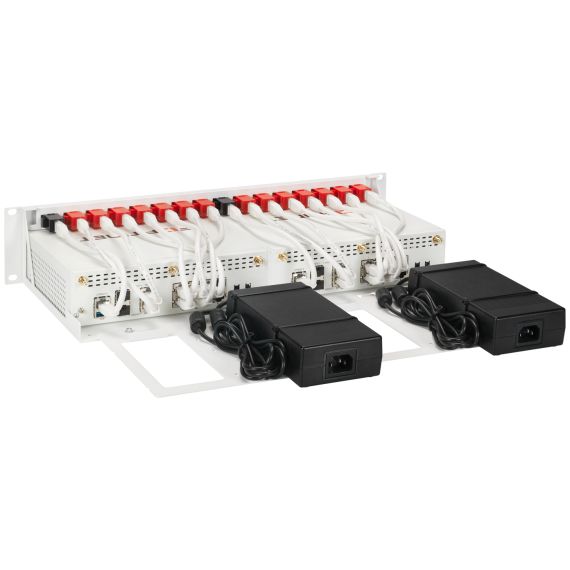

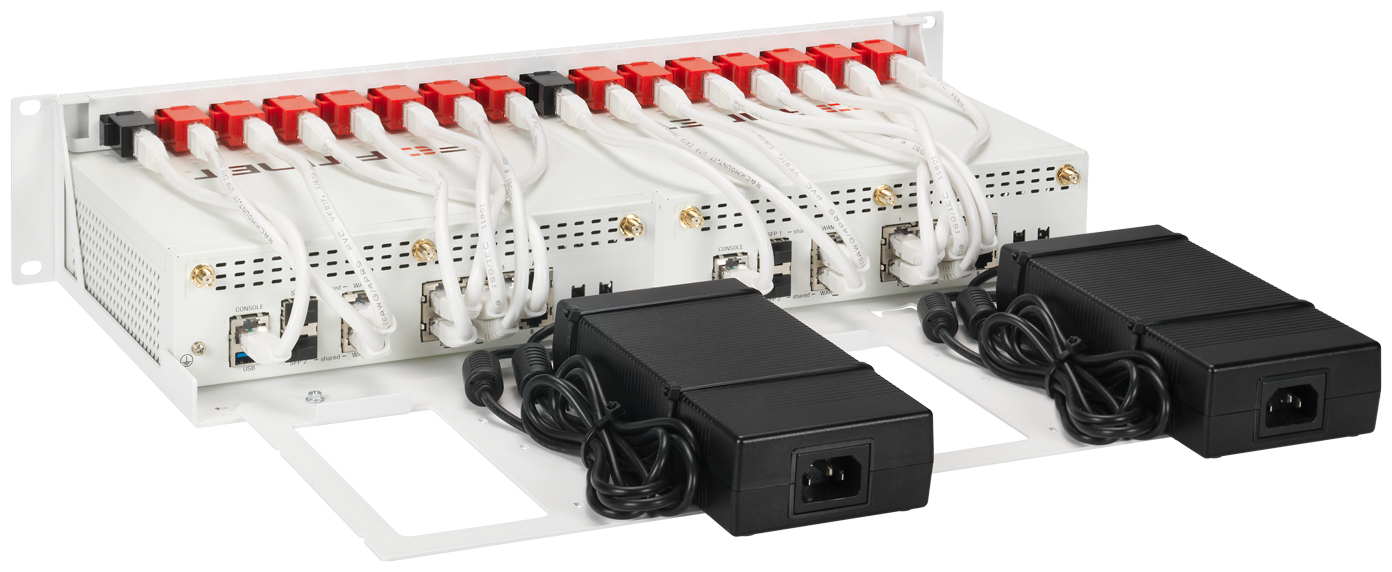

Each appliance slides into its own bay and is fixed with two bolts. The network connections are brought to the front panel through keystones, and the external power supplies are strapped to extension plates inside the kit, so the rack front stays tidy and the adapters are not left hanging loose behind the unit.
Before you order: This kit is for the PoE, DSL and FortiWiFi versions of the 80F/81F family only. The plain FortiGate 80F, 81F and 80F-BYPASS have a different chassis and use the FortiRack RM-FR-T15 instead. Send us your exact Fortinet model code if you are unsure.
What's in the Box
- 1 × FortiRack RM-FR-T22 rack mount (2U, 19")
- 2 × extension plates for the appliance power supplies
- 4 × M3 bolts
- 8 × large and 4 × medium zip ties
- 16 × keystone patch cables
- 4 × SFP (fibre) keystones
- The FortiGate/FortiWiFi appliances and their power adapters are not included
What It Means in Practice
- Two branch firewalls, or a firewall plus a spare, occupy 2U of rack space with one clean front panel.

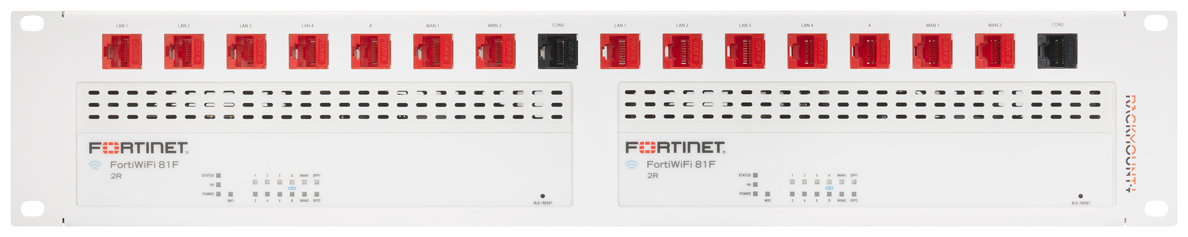

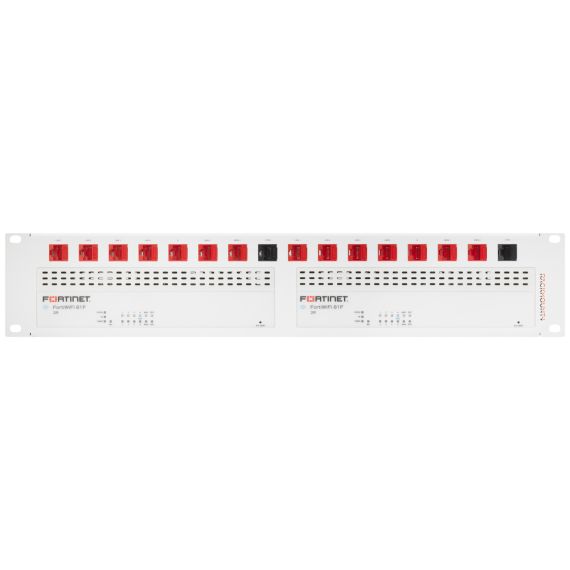

- Front keystones mean patching is done from the front of the rack, which helps in shallow wall cabinets where the rear is hard to reach.
- The appliance power bricks are secured on the plates, so they do not stress the DC plugs or block airflow.
- Installation takes a few minutes per appliance: slide in, fix with two bolts, connect the internal patch leads.
What Will Not Work
- It will not fit the standard FortiGate 80F, 81F or 80F-BYPASS (non-PoE) — order RM-FR-T15 for those.
- It is not a shelf for other brands of firewall or router; the bays are cut for the 80F-PoE/DSL/FortiWiFi chassis.
- It does not include a power supply or PDU — each appliance keeps its own Fortinet adapter.
- It does not add cooling fans; ventilation relies on the appliances themselves and the rack airflow.
Key Features
Duo layout
Two appliances in one 2U unit, each in its own bay fixed with two bolts.
Front-side connectivity
Copper and SFP connections are extended to front keystones for easy patching.
Managed power adapters
Up to two power supplies per extension plate, secured with the supplied zip ties.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Rackmount.IT kits are the tidy way to rack Fortinet desktop models, but the chassis differs between the PoE/DSL/WiFi versions and the plain 80F, so matching the exact model code matters more than anything else here. For shelves, blanking panels and other rack hardware see our rack accessories range.
✓ Buy it if you run one or two FortiGate 80F-PoE, 80F-DSL or FortiWiFi 80F/81F units and want them racked with front-side patching.
✕ Skip it if your firewall is a plain FortiGate 80F/81F or another model — that needs a different FortiRack kit.
→ Also consider Rackmount.IT RM-FR-T15 for the non-PoE FortiGate 80F/81F.
Not sure which FortiRack fits? Send us the exact model code printed on your Fortinet appliance and we will check it before you order.
Features - Rackmount - RM-FR-T22
Colour
white
More Details
Product Code
04:521500
EAN Code
8720297441486
Manufacturer
Rackmount
