ICY BOX IB-2538StS — 2.5″ to 3.5″ SATA Drive Converter
Takes 5–15 mm drivesSATA III 6 Gbit/sHot-swap readyScrew set included

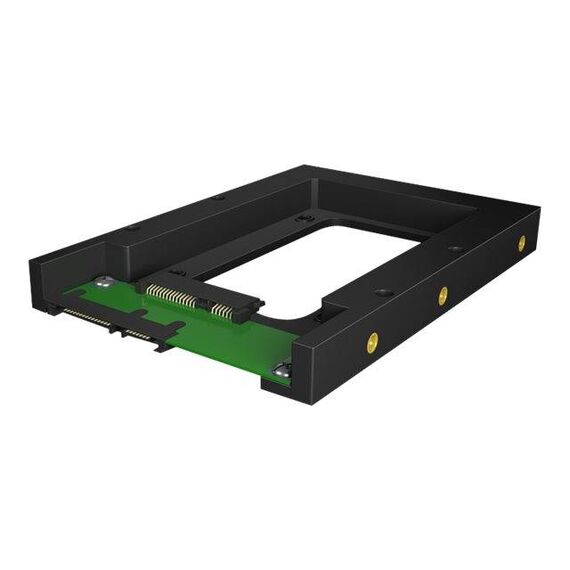

The ICY BOX IB-2538StS from RaidSonic (article 60077) is a mounting frame that lets one 2.5-inch SATA hard disk or SSD occupy a 3.5-inch drive bay. It is a purely mechanical adapter: the drive’s own SATA data and power connectors are simply held in the position a 3.5-inch drive would put them, so the host sees the drive exactly as it is and the full SATA III rate of up to 6 Gbit/s is available. The specification that separates it from cheaper brackets is drive height — RaidSonic rates it for anything from 5 mm up to 15 mm, which covers thin consumer SSDs and thick enterprise 2.5-inch drives alike. A screw set is supplied, and the mounting threads are recessed brass rather than tapped plastic, so the frame survives being taken apart and reused.
Compatibility — check before buying:
This is a mechanical adapter, not an interface converter. It carries a 2.5-inch SATA drive into a 3.5-inch SATA bay; it will not make an M.2, U.2, SAS or IDE drive work in a SATA port, and it adds no controller of its own. Drive height must be between 5 mm and 15 mm — a 2.5-inch drive thicker than 15 mm is outside specification. Because the connectors end up where a 3.5-inch drive would put them, it also works in a 3.5-inch hot-swap backplane. No SATA data or power cable is in the box — you get the frame, a screw set and the manual, so if you are wiring into a bare bay rather than a backplane you will need the cables separately. Send us your case or server model and we will confirm the bay type before you order.
Best For
✓ Putting a 2.5-inch SSD into a desktop case with only 3.5-inch bays
✓ Filling a 3.5-inch hot-swap backplane bay with a 2.5-inch drive
✓ Thick 15 mm enterprise 2.5-inch drives that thinner brackets reject
✓ NAS and server chassis with fixed 3.5-inch trays
✓ Swapping a failed 3.5-inch disk for a 2.5-inch SSD in place
✓ Workshop and test benches where drives are constantly re-mounted
Key Features
Five to fifteen millimetres
Most 2.5-to-3.5 brackets quietly assume a 7 mm or 9.5 mm drive. RaidSonic rates this one from 5 mm all the way to 15 mm, which is the height class used by high-capacity 2.5-inch enterprise HDDs and by some 4 TB portable drives. If you have a thick drive that would not close in a plastic caddy, this is the frame that takes it.
Full speed, because nothing is in the way
There is no bridge chip and no re-wiring. The drive keeps its own 7-pin data and 15-pin power connectors and the frame only holds them in the 3.5-inch position, so the interface stays SATA III at up to 6 Gbit/s and the host reports the drive by its real model name. Hot-swap works exactly as it does for a bare drive.
Brass threads, not tapped plastic
The screw points are recessed brass inserts moulded into the body. Plastic threads strip after a few rebuilds; brass ones do not. That matters in a workshop or a test rig where the same frame is used over and over, and it is the reason this bracket costs a little more than the thinnest ones on the shelf.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The reason to pick this over the cheapest bracket in the box is the 15 mm rating and the brass threads — two details that only matter once, but matter a lot when they do. A 15 mm 2.5-inch enterprise HDD in a 3.5-inch server bay is exactly the case that defeats a 9.5 mm plastic caddy, and a workshop frame that loses its threads after four rebuilds is a frame you buy twice. If you are moving to solid state in an old desktop, our internal SSDs range is the other half of the job, and if the bay you are filling is in a NAS rather than a PC, check the NAS and RAID appliances section first — several models take 2.5-inch drives natively and need no adapter at all.
Buyer’s Guide
Buy it if
You have a 3.5-inch bay or backplane and a 2.5-inch SATA drive; the drive is anywhere from 5 mm to 15 mm thick; and you want a frame that can be unscrewed and reused rather than a one-shot plastic caddy.
Skip it if
Your drive is M.2, U.2, SAS or IDE — this frame changes shape, not interface. Your case already has 2.5-inch mounting points. Or you need cables in the box, because none are supplied here.
Also consider
A 2.5-inch to 3.5-inch converter with a metal body if the drive runs hot, or a dual-drive bracket if you want two 2.5-inch drives in one 3.5-inch bay. For an M.2 SSD, an M.2-to-2.5-inch converter has to come first.
