RaidSonic ICY BOX IB-PCI208-HS / Interface adapter / M.2 / NVMe PCIe / PCIe 4.0 x4 / black | IB-PCI208-HS
RaidSonic ICY BOX IB-PCI208-HS / Interface adapter / M.2 / NVMe PCIe / PCIe 4.0 x4 / black | IB-PCI208-HS
€17.96 inc. VAT
IB-PCI208-HS
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Ignite the data turbo
If you want to give your M.2 SSD the turbo boost, then connect it with the super-fast PCIe 4.0 expansion card! This allows the data to reach transfer speeds of up to 64 Gbit/s - waiting was yesterday! - Always stays cool

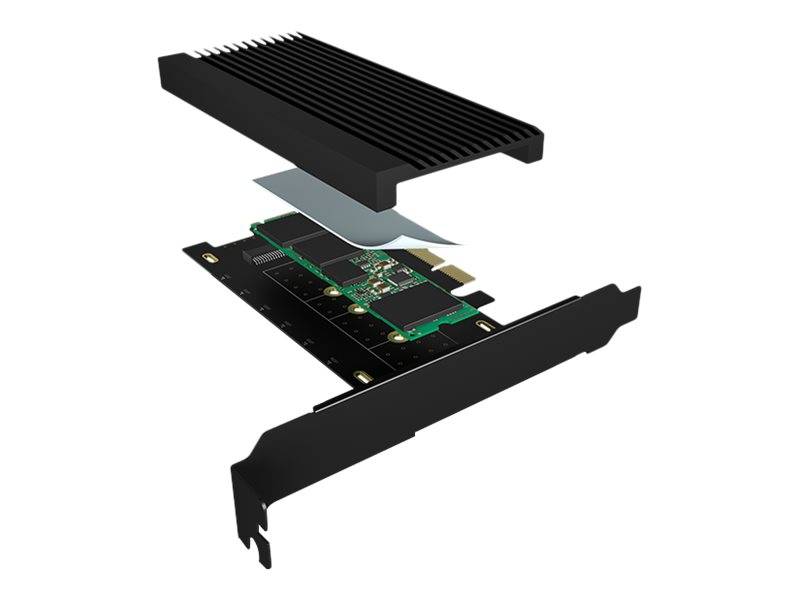

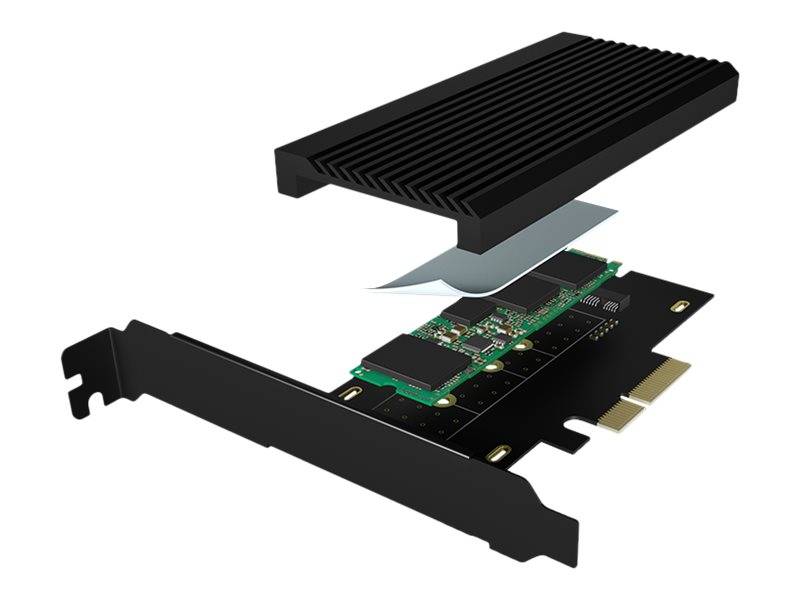

Even with the highest demands, your SSD always stays cool. The large, solid aluminum heat sink in the innovative cooling fin design ensures sufficient heat dissipation to keep your SSD running stably and efficiently. In addition, the expansion card comes with thermal pads that are applied to the M.2 SSD. - Quite adaptable

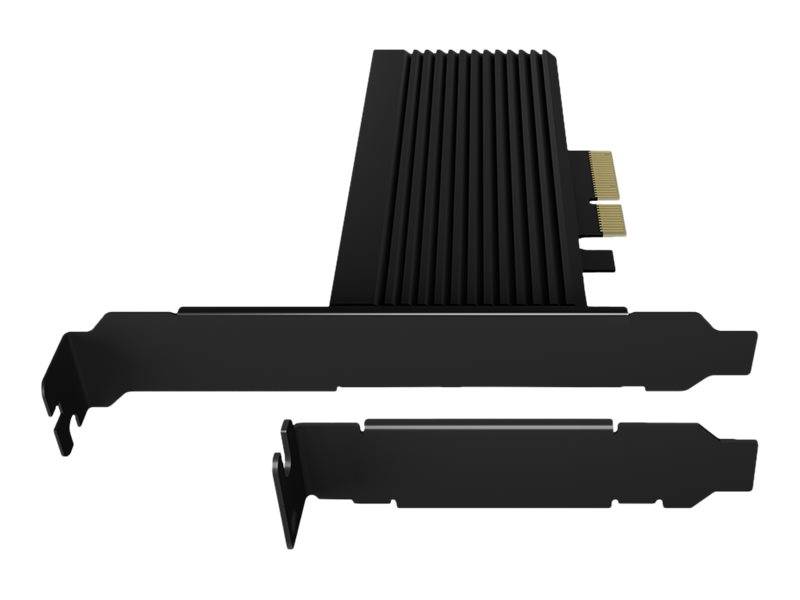

The perfect carrier for your M.2 SSD is called IB-PCI208-HS. In the variants with a full or half-profile bracket, it integrates perfectly into a free slot of your PC. The inserted M.2 NVMe is to be connected via an M-Key socket.
Special Features
- M.2 PCIe NVMe to PCIe 4.0 x4
- Data transfer rates of up to 64 Gbit/s
- Supports M.2 22x 30/42/60/80 NVMe SSDs
- Heat sink made of aluminum including thermal pads
- Use of double-sided SSDs possible
- Low- and full-profile bracket
Product Specification
| Device Type | Interface adapter - plug-in card |
| Hard Drive Form Factor Compatibility | M.2 |
| Host Bus | PCIe 4.0 x4 |
| Product Material | Plastic, aluminium |
| Colour | Black |
| Storage Controller | Storage Controller |
| Interface | NVMe PCIe |
| Data Transfer Rate | 64 Gbit/s |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 x internal - M.2 2230/2242/2260/2280 (double-sided) |
| Interfaces | 1 x M.2 Card - M.2 M key |
| Connections | 1 x PCIe 4.0 x4 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket, screwdriver, screws, full-profile bracket, thin thermal pad (70mm), thick thermal pad (70 mm) |
| Features | Bus powered, passive cooling |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows |
| Dimensions & Weight | Dimensions & Weight |
| Width | 2 cm |
| Weight | 22 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 20 cm |
| Shipping Depth | 15.5 cm |
| Shipping Height | 2.7 cm |
| Shipping Weight | 212 g |
Features - RaidSonic - IB-PCI208-HS
More Details
Product Code
04:375593
EAN Code
4250078171669
Manufacturer
RaidSonic
