Rittal DK 7140.535 19-inch 1U Brush Cable Entry Panel, 390 × 20 mm Cut-Out, Grey RAL 7035
Brand:
Rittal
Rittal DK 7140.535 19-inch 1U Brush Cable Entry Panel, 390 × 20 mm Cut-Out, Grey RAL 7035
€53.5 inc. VAT
7140535
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Pass cables through a 19-inch mounting plane
19-inch / 1U390 × 20 mmBrush StripRAL 7035

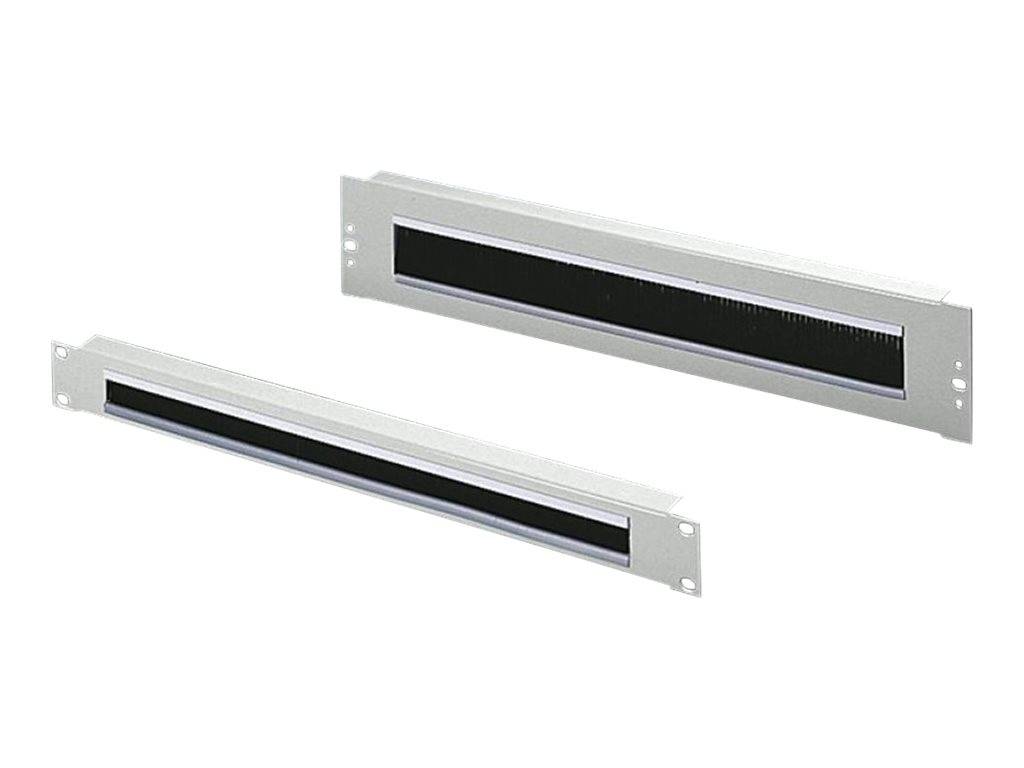

The Rittal DK 7140.535 panel provides a brush-lined cable passage between areas divided by a 19-inch mounting plane, such as the front and rear of a rack. It occupies 1U and combines a painted steel panel with a plastic UL 94-HB brush strip. The light-grey RAL 7035 finish identifies this exact model.
Compatibility — check before buying:
This SKU is one 1U panel with a specified 390 × 20 mm cut-out. The manufacturer's family illustration also shows a 2U version; it does not indicate a two-panel bundle. Check the 19-inch mounting format and the space needed for your cable route before ordering.
Key Features
1U rack cable passage
The 482.6 mm mounting width matches the 19-inch format. The panel routes cables through the mounting plane rather than organising them in projecting rings.
Brush-lined cut-out
The specified opening is 390 × 20 mm. A brush insert provides the manufacturer's stated dust-protection function without a published IP rating.
Painted steel construction
Sheet steel with a painted RAL 7035 finish provides a light-grey panel for matching the cabinet arrangement.
Technical Specifications
What's in the Box
1 Rittal DK 7140.535 1U cable entry panel with brush strip
Frequently Asked Questions
Singular Expert Insight
Choose a brush entry panel when cables must pass through a free 1U position rather than run across the rack front. Rittal lists a phase-out date of 31 December 2023 for this model, so consider current alternatives for future matching installations. Compare rack accessories by width, height and routing format. Compare rack cable-routing accessories
Buyer’s Guide
Buy it if
You need a single light-grey RAL 7035 brush cable entry panel for a 19-inch, 1U position.
Skip it if
You need a 2U panel, front cable-guide rings or a sealed cable-gland entry.
Also consider
A current brush-panel model for future expansion, checking the required cut-out and mounting dimensions independently.
Features - Rittal - 7140535
Colour
grey
More Details
Product Code
04:211388
EAN Code
4028177166608
Manufacturer
Rittal
