Rittal DK 7200.215 IEC C14 to C13 Extension Cable for CMC III Power Packs, 1.8 m, 1 mm², 230 V, PVC
Brand:
Rittal
Rittal DK 7200.215 IEC C14 to C13 Extension Cable for CMC III Power Packs, 1.8 m, 1 mm², 230 V, PVC
€13.7 inc. VAT
7200215
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Rittal DK 7200.215 — IEC C14 to C13 Extension Cable, 1.8 m, for CMC III
C14 → C131.8 m1 mm² · 3-pole230 V

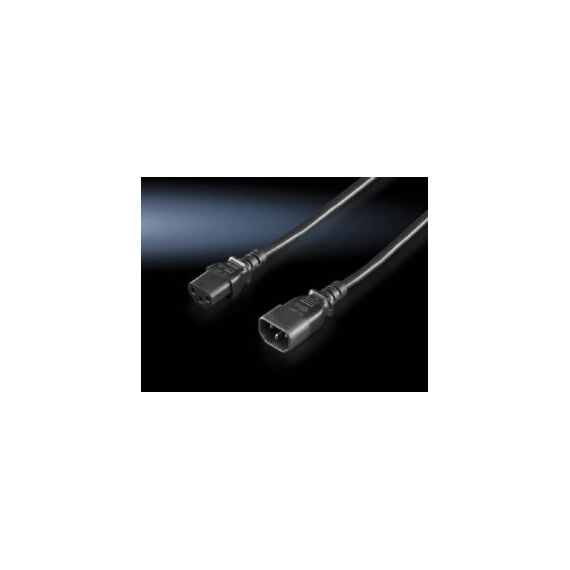

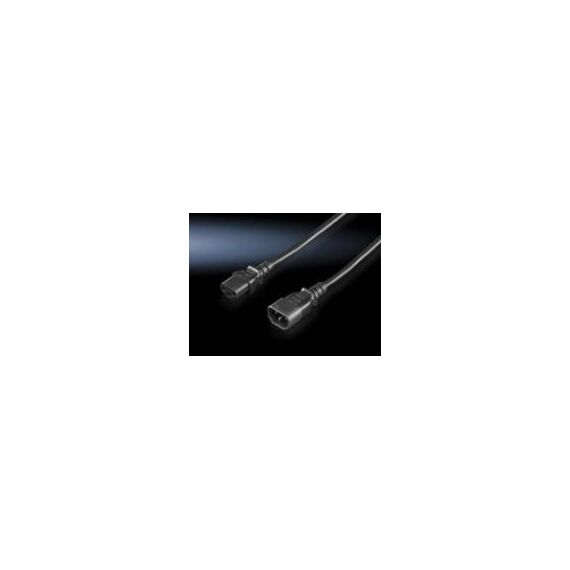

The Rittal DK 7200.215 is a 1.8 m IEC extension cable with a C14 plug on one end and a C13 socket on the other, made by Rittal for its CMC III monitoring power packs and equally at home as a power jumper inside a 19" rack. It uses 3 × 1 mm² conductors in a PVC sheath and is rated 230 V (110 V DC).
Inside a rack, C14-to-C13 leads are the standard way to connect a device’s IEC inlet to a PDU or UPS outlet. Rittal lists this part as the extension cable for the CMC III system, so it is the correct lead when a CMC III power pack has to reach an IEC outlet further away.
The C14 end is a plug, not a wall plug: it goes into a C13-style outlet such as a rack PDU or UPS. It cannot be plugged into a Schuko wall socket.
Before you order: The C14 end fits C13 outlets on PDUs and UPS units, not wall sockets. For a Schuko wall socket you need the Rittal DK 7200.210 instead.
What's in the Box
- 1 × Rittal DK 7200.215 IEC C14–C13 extension cable, 1.8 m
- Packaging unit: 1 piece
What It Means in Practice
- Typical use: from a rack PDU (C13 outlet) to a CMC III power pack or any device with a C14 inlet.
- 1.8 m reaches from a vertical PDU at the back of a 42U cabinet to most devices in the same rack.
- It also extends an existing C13 power cord where the original lead is too short.
- Keep spare length coiled loosely and away from the air intake of servers and switches.
What Will Not Work
- It does not plug into a wall socket (Schuko / type F) — use the 7200.210 for that.
- It does not fit C19/C20 inlets used by large UPS units and high-power servers.
- It is not a surge protector or PDU — it is a plain cable.
- Rittal does not publish a rated current for this part, so do not use it for loads above what a standard 1 mm² C13 lead is intended for.
Key Features
IEC C14 to C13
Standard rack power connectors: the C14 plug goes into a PDU/UPS outlet, the C13 socket into the device.
1.8 m length
Long enough to cross a rack from a vertical PDU to equipment on the front rails.
1 mm² three-core
Three-pole cable with 1 mm² conductors in a PVC sheath.
Made for CMC III
Listed by Rittal as the extension cable for its CMC III monitoring power packs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
In racks, the wrong plug type is the most common reason a power lead does not fit on the day of installation. Count your PDU outlets and device inlets first: C14-to-C13 like this one is for PDU-to-device links, while Schuko-to-C13 is for wall sockets. Browse our rack accessories for PDUs, shelves and cable management.
✓ Buy it if you need a 1.8 m C14–C13 lead from a PDU or UPS to a CMC III power pack or any IEC device.
✕ Skip it if you need to plug into a wall socket (take 7200.210) or into a C19 outlet.
→ Also consider Rittal DK 7200.210 (Schuko to C13, 1.8 m).
Tell us your PDU and device models and we will confirm the right power lead before you order.
Features - Rittal - 7200215
More Details
Product Code
04:238916
EAN Code
4028177305519
Manufacturer
Rittal
