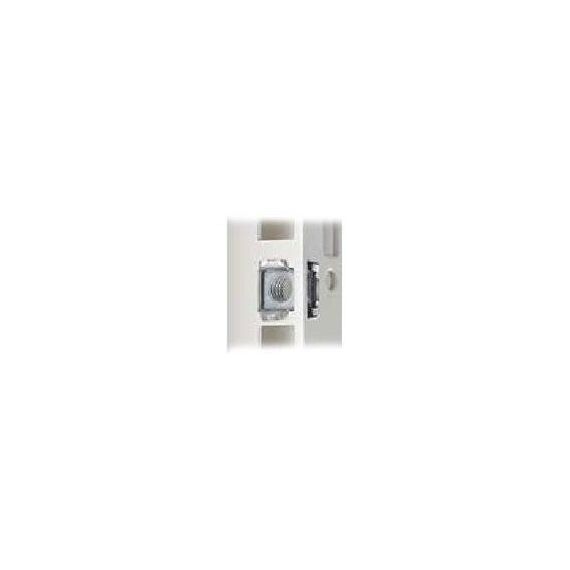

Rittal 2092200 M6 Captive Nuts without Contact for 19 Inch Mounting Angles, 0.8 to 2.5 mm, Pack of 50
Brand:
Rittal
Rittal 2092200 M6 Captive Nuts without Contact for 19 Inch Mounting Angles, 0.8 to 2.5 mm, Pack of 50
€23.74 inc. VAT
2092200
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Rittal 2092200 — M6 Captive Nuts without Contact, Pack of 50
M6 threadWithout contact0.8–2.5 mm sheet50 pcs
The Rittal 2092200 is a pack of 50 M6 captive nuts without contact for fastening 482.6 mm (19") equipment and blanking plates to 19" mounting angles and profile rails, for sheet thicknesses from 0.8 to 2.5 mm. Rittal lists it as an EL series accessory ("EL 2092.200") for rack-mounted electronic equipment in cabinets and racks.
The "without contact" design does not create an electrical contact between the installed equipment and the 19" section — the choice when you do not want the fastening point to bond the device to the frame.
Before you order: Rittal makes these nuts in several versions that look almost identical: M5 or M6 thread, with or without contact. This is M6 without contact. For M6 with contact order Rittal 2094200; for M5 with contact order 2094500. Check the thread of your screws and whether you need contact before ordering.
What's in the Box
- 50 x Rittal M6 captive nuts without contact
What It Means in Practice
- Use them wherever a 19" device, shelf or blanking plate is fastened to square-hole mounting angles with M6 screws.
- The 0.8–2.5 mm clamping range covers the typical sheet thickness of 19" mounting angles and profile rails.
- Fifty pieces are enough for around a dozen 1U devices at four fixing points each, or for re-equipping a small cabinet.
- Without contact: the nut does not bond the device to the 19" section.
What Will Not Work
- Screws are not included — you need matching M6 screws.
- M5 screws will not fit these M6 nuts.
- They are not for round or threaded-hole rails: they clip into square holes of mounting angles.
- Rittal does not publish the square-hole size or material finish for this pack — if your rails are non-standard, ask us before ordering.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Captive nuts are the part that most often runs out when a cabinet is re-equipped, and ordering the wrong thread or contact type is a common mistake. Match the thread of your existing screws, decide on contact, and pick up the rest of what you need from our Rack Accessories range.
✓ Buy it if you need M6 captive nuts without contact for 19" square-hole mounting angles.
✕ Skip it if your screws are M5 or you need the device bonded to the frame.
→ Also consider For M6 with contact order Rittal 2094200; for M5 with contact order 2094500.
Not sure which nut you need? Send us the model of your rack and the screws you use and we will check thread and contact type.
Features - Rittal - 2092200
More Details
Product Code
04:211613
EAN Code
4028177014114
Manufacturer
Rittal
