Rittal DK 7979.534 PDU Metered Plus 0U Three-Phase Rack PDU 24x Schuko CEE 32 A 22 kW with Metering and Network
Brand:
Rittal
Rittal DK 7979.534 PDU Metered Plus 0U Three-Phase Rack PDU 24x Schuko CEE 32 A 22 kW with Metering and Network
€2731 inc. VAT
7979534
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Rittal DK 7979.534 PDU Metered Plus — 24 × Schuko, 3-Phase 32 A, Networked Metering
24 × Schuko3-phase CEE 32 APer-slot metering2 × Gbit LAN

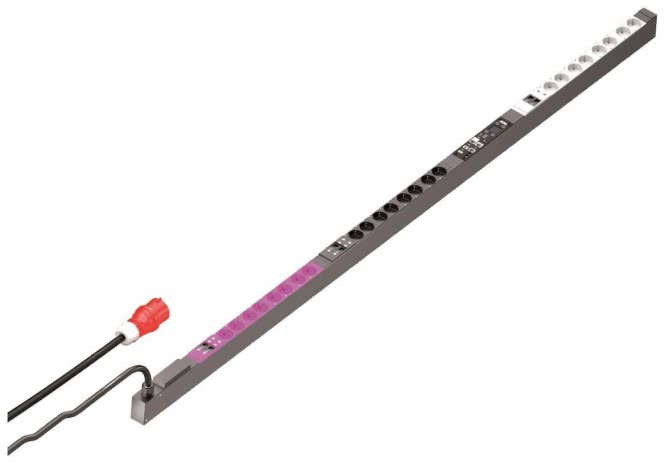

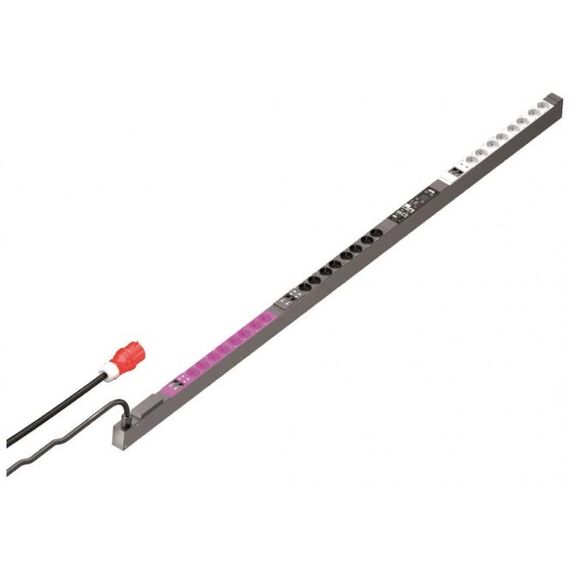

The Rittal DK 7979.534 PDU metered plus is a vertical 0U power distribution unit for VX IT and TS IT racks, with 24 Schuko (CEE 7/3) sockets fed from a three-phase 400 V / 32 A supply through a CEE 32 A five-pin plug on a 3 m cable. It distributes up to 22 kW: eight sockets per phase, four per fuse, protected by six hydraulic-magnetic 16 A circuit breakers.
Every output slot is metered — voltage, current, frequency, active and apparent power, energy, power factor and phase angle — with ±1% energy accuracy to EN 62053-21. Readings appear on a backlit 128 × 128 TFT colour display and over two redundant Gigabit Ethernet ports, with HTTP/HTTPS, SSH, SNMP v1/v2c/v3, Modbus/TCP and OPC-UA support.
Before you order: this PDU needs a three-phase 400 V CEE 32 A supply — not a Schuko or single-phase socket. It meters but does not switch outlets: for remote per-outlet switching, a managed PDU such as the Rittal DK 7979.440 is the right choice.
What's in the Box
- 1 × Rittal DK 7979.534 PDU metered plus with 3 m cable and CEE 32 A plug
- Assembly parts (universal holder, plug & play fastening)
What It Means in Practice
- Power a full rack of Schuko-plug equipment from one 32 A three-phase feed, balanced across phases.
- See consumption per output slot to plan capacity and allocate energy costs.
- Integrate readings into DCIM, BMS or monitoring via SNMP, Modbus/TCP or OPC-UA.
- Add up to 16 sensors (temperature, humidity, access) on the CAN bus.
What Will Not Work
- No remote switching of individual outlets — metering only.
- No IEC C13/C19 outlets.
- Not for single-phase or 16 A supplies.
- Not a surge protector or UPS (Rittal offers Type 3 surge protection as an option).
Key Features
Per-slot metering
V, A, Hz, kW, kVA, kWh, power factor and phase angle per output slot, ±1% kWh.
Redundant networking
2 × RJ45 10/100/1000 with HTTP, HTTPS, SSH, SNMP v1/v2c/v3, Modbus/TCP, OPC-UA.
TFT display
Backlit 128 × 128 RGB display on the unit.
Sensor bus
CAN bus port for up to 16 sensors.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Per-slot metering on a 22 kW three-phase PDU gives you real data for capacity planning and energy billing in a server room. It is a measurement tool, not a remote switch. More rack power and mounting parts are in our rack accessories.
✓ Buy it if you need 24 Schuko outlets with per-slot energy metering from a 32 A three-phase feed in a 42U+ rack.
✕ Skip it if you need remote outlet switching, IEC outlets or a single-phase supply.
→ Also consider the Rittal DK 7979.440 managed PDU with switchable C13/C19 outlets.
Not sure it fits your rack and supply? Send us the rack model and supply details and we will check before you order.
Features - Rittal - 7979534
Colour
black
Length
3m
More Details
Product Code
04:436743
EAN Code
4028177948402
Manufacturer
Rittal
