Rittal SK 3110.000 — Enclosure Internal Thermostat, 5–60 °C
5–60 °CSPDT contact24–230 V ACDIN rail

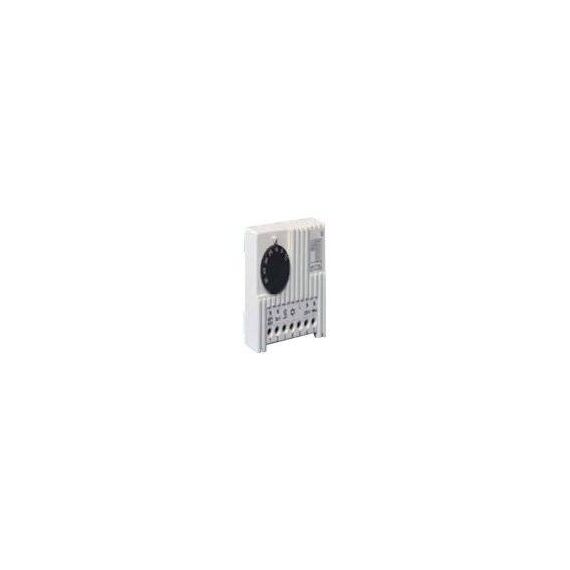

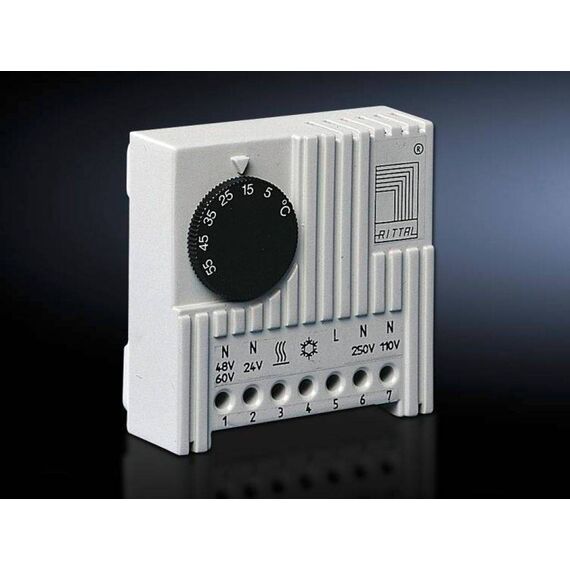

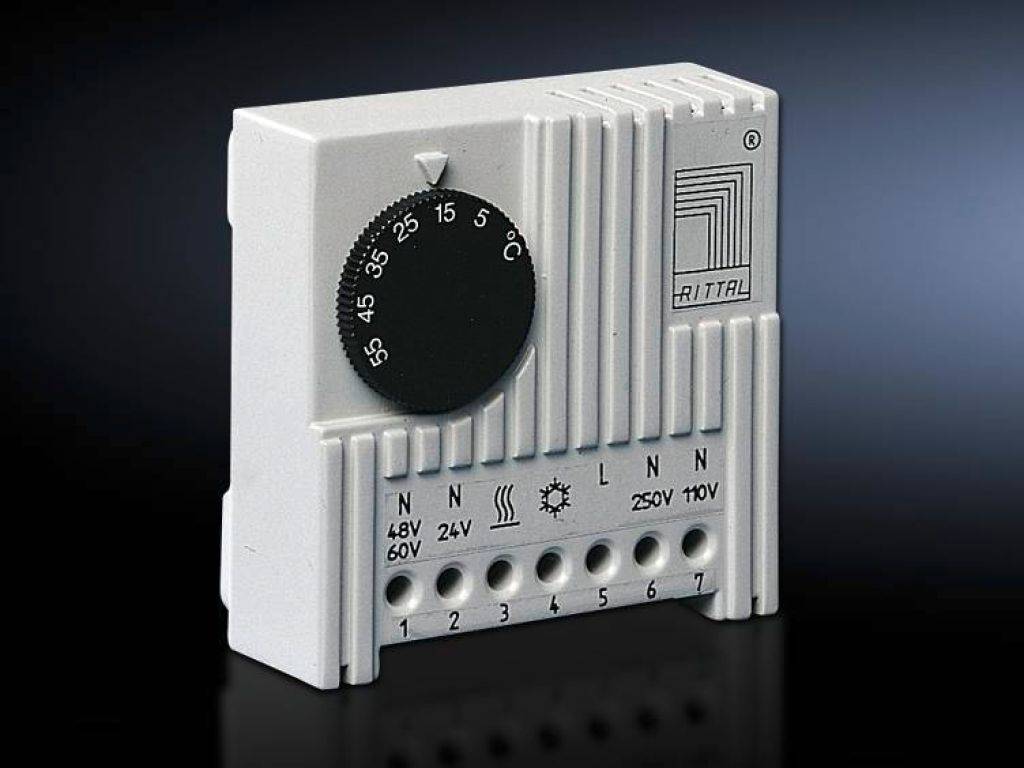

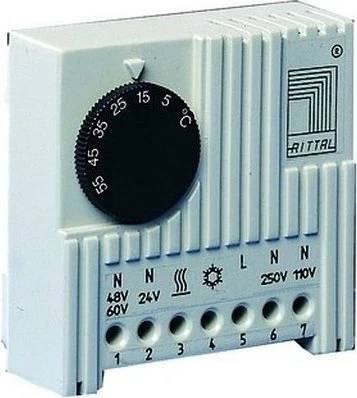

The Rittal SK 3110.000 is a compact bi-metal enclosure thermostat with a 5–60 °C setting range and a single-pole change-over contact that switches fans, heaters or heat exchangers inside a network, server or control cabinet. It can also be used as a signal generator to report the internal temperature to a monitoring system.
Mounted on a 35 mm DIN rail, or with the supplied adaptor in the enclosure frame or on the mounting plate, it keeps the cabinet climate in range without any software: when the set temperature is crossed, the contact switches the connected fan or heater.
Before you order: Load limits are AC 10 (4) A for heating and AC 5 (4) A for cooling (inductive, cos φ 0.6), max. 30 W DC. Installation must be carried out by a qualified electrician.
What's in the Box
- 1 x Rittal SK 3110.000 thermostat
- Mounting adaptor for enclosure section or mounting plate (per Rittal "supplied adaptor")
What It Means in Practice
- Switches a cabinet fan on when the temperature rises above the set point.
- Or switches a heater on in cold or humid locations to prevent condensation.
- Change-over contact works for either heating or cooling duty.
- Can feed a temperature alarm input on a UPS, PLC or monitoring unit.
What Will Not Work
- No display, network interface or remote monitoring — it is a mechanical thermostat.
- Not for loads above the rated contact current; use a relay or contactor for larger fans or heaters.
- Does not include the fan or heater it controls.
- Not a humidity controller (hygrostat).
Key Features
Bi-metal with thermal feedback
Accurate switching with approx. 1 K switching difference.
SPDT change-over
Controls heating or cooling devices.
Wide voltage range
24–230 V AC and 24–60 V DC.
UL / VDE approved
Certified for use in industrial and IT enclosures.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
A simple thermostat is the most reliable way to make a cabinet fan run only when needed, saving noise and wear. The SK 3110.000 is a proven Rittal part with a wide voltage range and UL/VDE approvals. Pair it with a roof fan unit and have it wired by an electrician. More cabinet accessories are in our rack accessories range.
✓ Buy it if you need temperature-controlled switching of a fan or heater inside an enclosure.
✕ Skip it if you need remote temperature monitoring or alarms over the network.
→ Also consider A rack fan unit or roof fan to be controlled by the thermostat.
Not sure which thermostat or fan suits your cabinet? Send us the enclosure model and heat load and we will advise before you order.
Features - Rittal - 3110000
Colour
grey
More Details
Product Code
04:217019
EAN Code
4028177036598
Manufacturer
Rittal
