Shuttle X50N White: a fanless touchscreen platform for POS and kiosks

15.6-inch single-touchIntel N150Fanless2.5GbE + Wi-Fi 5

The white Shuttle XPC all-in-one X50N brings a 15.6-inch resistive touchscreen and Intel N150 processor into one fanless barebone. Included Wi-Fi 5, Bluetooth 4.2, 2.5GbE networking, a Full HD webcam, microphone and stereo speakers provide the core connections for POS, information terminals and kiosk applications. Choose and install DDR5 memory, an SSD or HDD and a supported operating system to complete your configuration.

Compatibility — check before buying:

This barebone does not include RAM, a storage drive or an operating system. It accepts one DDR5 SO-DIMM up to 16GB; desktop DIMMs and DDR4 are unsuitable. The built-in display is 1366 × 768 and single-touch, not Full HD or multitouch. IP54 applies only to the front panel. Check the supplied Schuko mains plug against your local socket arrangement.

Best For

✓ POS and reception counters

✓ Information terminals and touch kiosks

✓ Indoor digital signage

✓ Quiet installations requiring an integrated display

Key Features

Touch operation with a clear screen specification

The 15.6-inch LED-backlit panel uses five-wire resistive single-touch input with a fingertip or the included stylus. Its native 1366 × 768 resolution suits touch control and information interfaces. The separate built-in webcam captures Full HD 1920 × 1080 video; that camera resolution does not change the screen resolution.

Passive cooling for planned continuous use

A heatpipe thermal system works without a cooling fan. Shuttle approves 24/7 operation with free airflow, clear vents and a continuously rated HDD if one is fitted. For continuous operation under load, observe 5–40°C and 10–80% non-condensing humidity. The IP54 front panel tolerates dust and splashes in suitable indoor applications.

Network and display flexibility

An Intel 2.5GbE port and included Wi-Fi 5/Bluetooth 4.2 connect the system to networks and peripherals. HDMI 2.0b and VGA allow two extra screens, making three simultaneous displays including the integrated panel. HDMI supports up to 3840 × 2160 at 60Hz; the six external USB ports provide two 10Gb/s and four 5Gb/s connections.

Configure storage, mounting and serial connections

Fit one M.2 2280 NVMe or SATA SSD and a 2.5-inch SATA drive up to 9.5mm high as needed. VESA 100 × 100mm holes become accessible after removing the rear stand; the VESA mount is separate. Two PCP11 adapters add two RS232 COM ports, while WLN-M12 upgrades wireless networking. These optional accessories are purchased separately.

Technical Specifications

Identity and supplied configuration
Brand / model	Shuttle XPC all-in-one X50N White
Catalog SKU	X50N WHITE
Manufacturer UPC / GTIN-12	887993008622
Product type / colour	Fanless All-in-One touchscreen barebone; white
Supplied configuration	N150 processor, display, Wi-Fi/Bluetooth, camera, microphone and speakers included; no RAM, drive or OS
Processor and memory
Processor	Intel Processor N150, Twin Lake, Intel 7 process
Cores / threads / Turbo	4 cores / 4 threads; Turbo up to 3.6GHz
Cache / processor base power	6MB Intel Smart Cache; 6W processor base power, not total system consumption
CPU installation	Soldered FCBGA1264 SoC; processor is not socket-replaceable
Memory slot / channel	1 × 262-pin DDR5 SO-DIMM; single-channel memory
Memory specification	DDR5-4800 (PC5-38400), 1.1V, unbuffered non-ECC; higher-rated modules supported within platform limits
Maximum / included memory	Up to 16GB in one module; memory purchased separately
Touchscreen, graphics and multimedia
Integrated display	15.6-inch / 39.6cm LCD, 16:9 aspect ratio
Native resolution	1366 × 768 pixels
Backlight / brightness / glass	LED backlight; 220cd/m² luminance; 3.2mm glass thickness
Touch technology	5-wire resistive single-touch; fingertip or supplied stylus input
Integrated graphics	Intel Graphics, 24 execution units; dynamic frequency up to 1GHz
Graphics APIs	DirectX 12.1, OpenGL 4.6, OpenCL 3.0
External video outputs	1 × HDMI 2.0b digital audio/video; 1 × VGA D-Sub 15-pin analogue video
External output limits	HDMI: up to 3840 × 2160 at 60Hz; VGA: up to 1920 × 1080 at 60Hz
Multi-display modes	Up to 3 simultaneous displays including the built-in panel; clone mode at 1366 × 768, extended mode with independent content
Webcam	Integrated Full HD 1920 × 1080 webcam, USB interface
Microphone / speakers	Integrated electret condenser microphone; 2 × 2W stereo speakers
Audio codec / connections	Realtek ALC888S HD Audio; separate 3.5mm line-out/headphone and microphone jacks; digital audio via HDMI
Storage and expansion
2.5-inch drive bay	1 × SATA HDD/SSD, up to 9.5mm high; SATA III 6Gb/s; SATA data/power cable pre-installed
M.2 SSD slot	1 × M.2 2280 M-key (22 × 80mm); PCIe 3.0 x2 NVMe M-key or SATA B+M-key SSD
Storage supplied	No SSD or HDD; compatible drives purchased separately
Internal USB expansion	1 × USB 2.0 Type-A for an internal USB stick up to 100mm long
WLAN expansion slot	M.2 2230 Key A+E; PCIe 3.0 x1 / USB 2.0 / CNVi; occupied by included wireless card
Optional wireless upgrade	Shuttle WLN-M12: Intel AX210, 802.11ax 2T2R and two external antennas; kit sold separately
Optional serial expansion	Two internal serial headers, each 2 × 5-pin / 2mm pitch; two PCP11 adapters provide two external RS232 COM ports
Antenna mounting provision	Four chassis perforations for optional external antennas; antennas and installation hardware purchased separately
Networking, USB and controls
Wired LAN	1 × RJ45, Intel i226LM; 100 / 1000 / 2500Mb/s
Network management	Wake-on-LAN and PXE network boot; WOL from S3/S4 explicitly listed in LAN specifications
Included Wi-Fi	Realtek RTL8821CE, Wi-Fi 5; IEEE 802.11b/g/n/ac, 2.4/5GHz, 1T1R; two internal antennas
Wireless channel widths / security	20 / 40 / 80MHz channels; WPA/WPA2 support
Included Bluetooth	Bluetooth 4.2, 2.4GHz
External USB ports	Left: 2 × USB 3.2 Gen 2, up to 10Gb/s, red; bottom: 4 × USB 3.2 Gen 1, up to 5Gb/s, blue

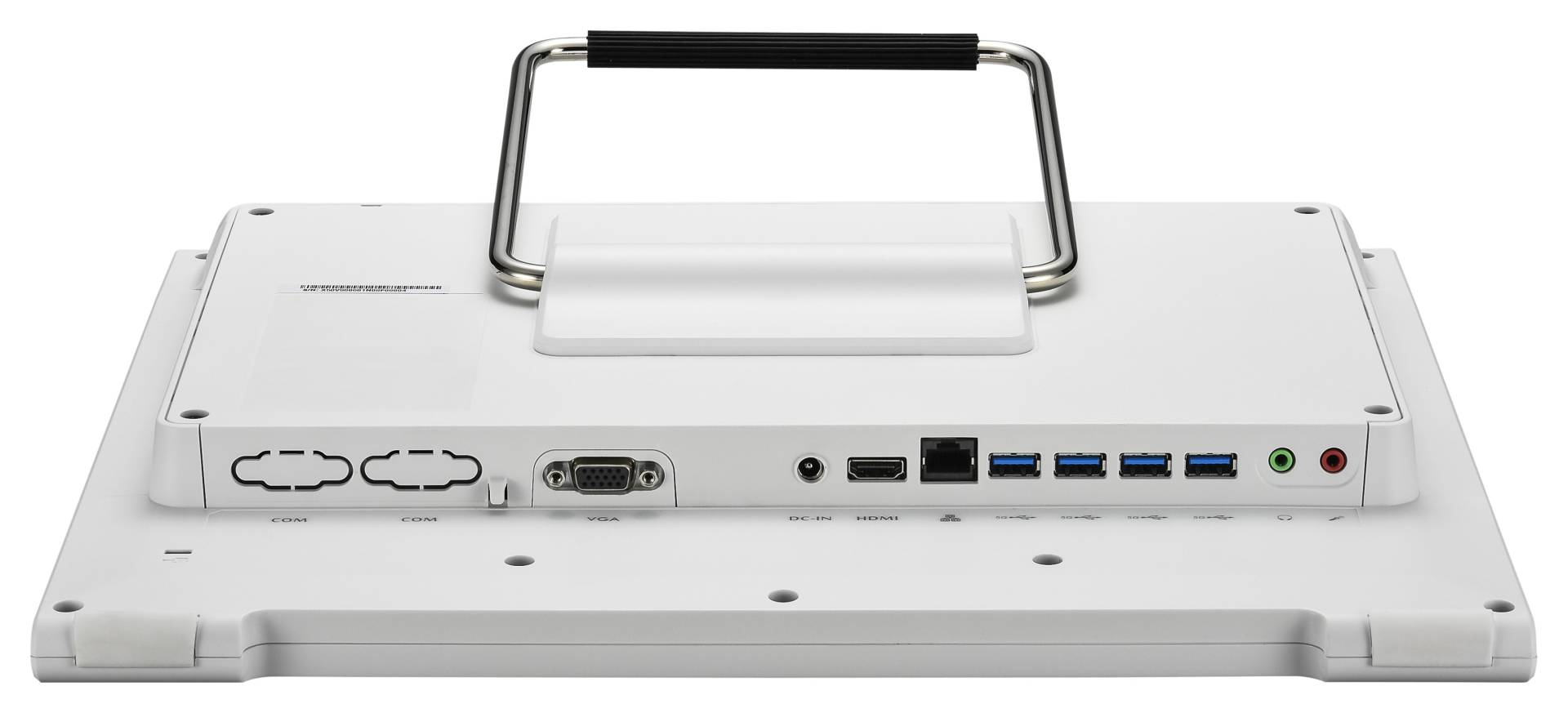

Other bottom connectors	HDMI, VGA, RJ45, line-out, microphone input and DC-in; two COM ports optional
Power / reset controls	Side power button; hidden power and Clear CMOS microswitches; visible power button can be disabled through jumper configuration
Status indicators	Blue power LED; orange drive activity LED
Firmware and operating systems
BIOS	AMI BIOS, 32MB SPI EEPROM
Firmware functions	Power-fail resume / always-on, hardware monitoring, watchdog and firmware TPM 2.0
Operating system support	Windows 11 64-bit and Linux 64-bit; no OS or licence included
Power supply
Included power adapter	Fanless external 65W AC/DC adapter; 19V DC, up to 3.42A
Adapter mains input	100–240V AC, 50–60Hz, up to 1.5A; IEC C6 inlet
System DC input	12V ±5% or 19V ±5%; barrel connector 5.5mm outer / 2.5mm inner diameter
Included mains lead	Earthed Schuko plug to IEC C5; check local socket suitability
Power cable lengths	Approximately 170cm AC lead and 170cm DC lead
Physical details and operating conditions
Dimensions	391 × 327 × 42mm (W × H × D)
Weight	3.26kg net; 4.5kg gross package weight

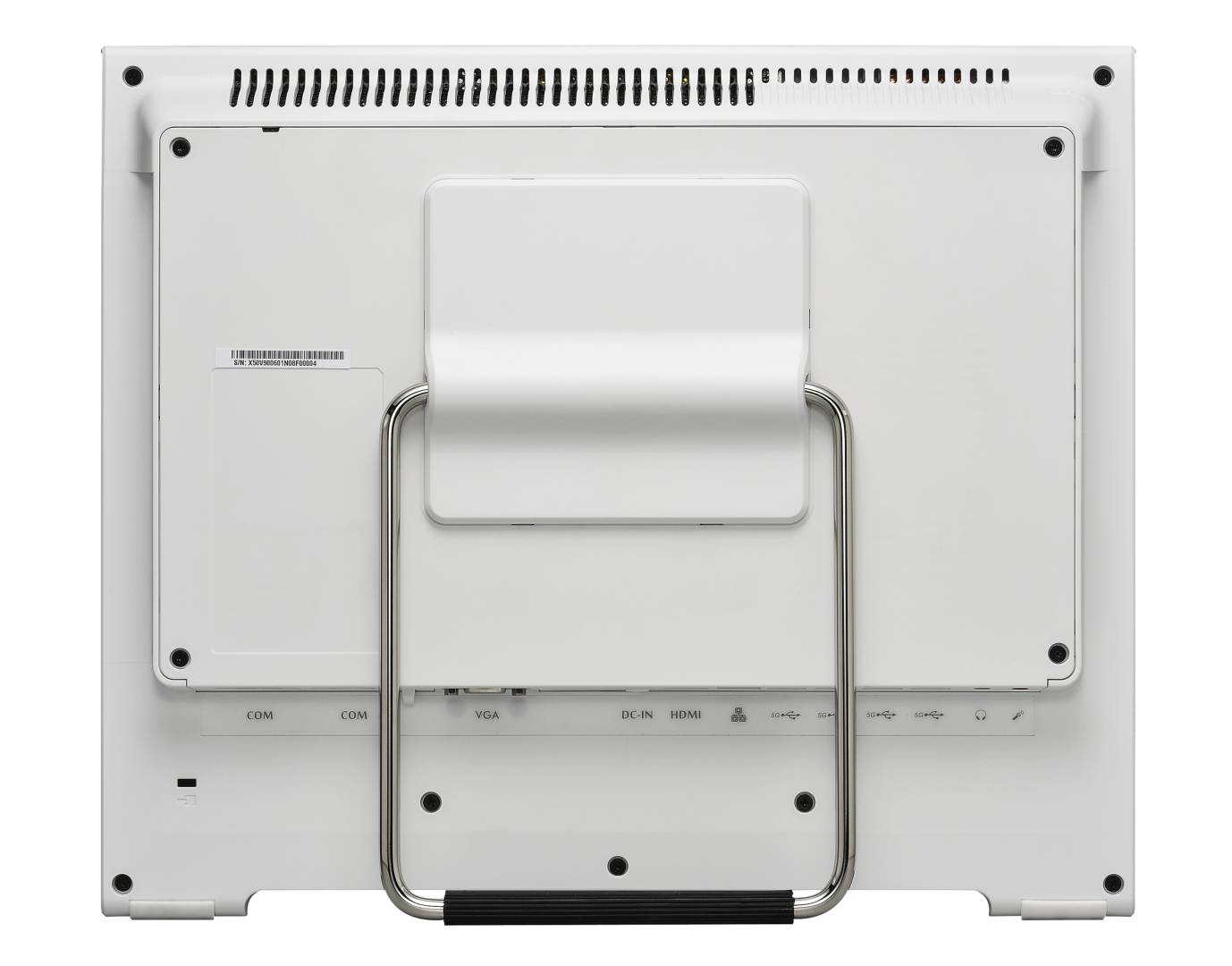

Mounting / security	Removable rear stand; VESA 100 × 100mm mounting holes; Kensington lock opening; separate VESA mount required
Cooling	Passive heatpipe cooling; no cooling fan
Protection rating	IP54 front panel only: dust-protected and splash-resistant; indoor use
General operating limits	0–40°C; 10–90% relative humidity, non-condensing
24/7 operating conditions	Manufacturer approved; under load 5–40°C and 10–80% non-condensing humidity, clear vents and free airflow; any installed HDD must be rated for continuous operation
Optional mounting accessory	Shuttle POV21 dual VESA stand, sold separately
EMI / safety compliance	CE, UKCA, FCC, BSMI, RCM, VCCI; CB (IEC 60950/62368), cTUVus (UL 62368), BSMI; Class B ITE
Other manufacturer-listed compliance	RoHS, ErP Lot3, Energy Star v8.0
Included accessories	Stylus, rear stand, 65W adapter, earthed AC lead, Quick Guide, Windows 11 driver DVD, drive mounting screws and M.2 SSD thermal pad

What's in the Box

Shuttle X50N White barebone with N150, 15.6-inch display and integrated wireless/multimedia

Rear stand and touchscreen stylus

External 65W / 19V adapter and earthed Schuko-to-C5 mains lead

Multilingual Quick Guide and Windows 11 driver DVD

One M.2 SSD screw, four 2.5-inch drive screws and an M.2 SSD thermal pad

What Will Not Work

The system cannot operate as a completed PC until suitable RAM, storage and an OS are installed.

The single memory slot does not accept two modules, desktop DIMMs or DDR4 SO-DIMMs.

The panel does not provide Full HD resolution or multitouch gestures.

IP54 front protection does not make the entire computer waterproof or suitable for immersion.

Serial COM ports, an external VESA mount and the Wi-Fi 6 upgrade are not supplied.

Frequently Asked Questions

Does this include 8GB RAM, an SSD or Windows?

No. This is the X50N barebone, distinct from configured POS systems. Add one compatible DDR5 SO-DIMM up to 16GB, suitable storage and Windows 11 64-bit or Linux 64-bit. The processor, screen, wireless card and multimedia components are included.

Can I attach two external screens?

Yes. The built-in screen plus HDMI and VGA support three simultaneous displays. Extended mode shows independent content. Clone mode uses 1366 × 768 across the displays. HDMI supports up to 4K at 60Hz and VGA up to 1920 × 1080 at 60Hz.

What should I check before a POS or kiosk installation?

Check your application, single-touch requirements, RAM and storage, airflow, operating environment and mains plug. Serial equipment needs the optional PCP11 adapters. VESA mounting requires a separate compatible mount; the front panel protection does not cover the whole chassis.

Singular Expert Insight

Choose this configuration when touch control, passive cooling and a built-in display matter more than a high-resolution desktop workspace. Its included wireless and wired networking reduce extra components, but RAM, storage and software still belong in the budget. Confirm your POS peripherals, serial requirements and mounting arrangement before ordering. Ask Singular about memory, storage and POS setup Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

You need an indoor fanless touchscreen platform for POS, information or kiosk software and will complete the RAM, storage and OS configuration.

Skip it if

You need a ready-to-use Windows PC, a Full HD multitouch panel or serial ports fitted as standard.

Also consider

A configured All-in-One system for immediate deployment, or suitable DDR5 memory, SSD storage and the verified optional Shuttle mounting/COM accessories.
