Shuttle XPC nano NE10N Fanless Barebone Mini PC Intel N100 DDR4 M.2 Slot VESA Kit No RAM No SSD No OS

Brand:
Shuttle
Shuttle BB NE10N, N100, fanless, DDR4, Intel N100 NE10N
Shuttle XPC nano NE10N Fanless Barebone Mini PC Intel N100 DDR4 M.2 Slot VESA Kit No RAM No SSD No OS
€260.4 inc. VAT
Buy
PFB-NE10N101
€218.82
€260.40 inc. VAT
Ships from EU stock: 19 item(s)
+ −
Add to wish list Ask a question
CPU Type
Intel Celeron
Product Code
CO77740
EAN Code
0887993007779
Manufacturer
Shuttle

Quick Specs

Type
Barebone: no RAM, no SSD, no OS
Processor
Intel N100, 4 cores, 6W, fanless
Expansion
1 x DDR4 SO-DIMM (max 16GB), 1 x M.2 2280
Included
65W PSU, VESA bracket, TPM 2.0
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Shuttle XPC nano NE10N — A Fanless 0.6-Litre Barebone You Finish Yourself

Barebone: no RAM, no SSD, no OSCompletely fanless Intel N100dTPM 2.0 on boardVESA bracket and 65W PSU included

The Shuttle XPC nano NE10N, ordered here under code PFB-NE10N101, is a barebone: a complete fanless 0.6-litre chassis and mainboard with a soldered Intel N100 processor, a 65W external power supply and a VESA bracket in the box, but deliberately without memory, storage or an operating system so you fit exactly what the job needs. It gives you one DDR4-3200 SO-DIMM slot up to 16GB, one M.2 2280 slot that takes either a PCIe 3.0 NVMe or a SATA SSD, a second M.2 slot for a wireless card, six USB ports of which four run at 10Gbps, and HDMI 2.0 plus full-size DisplayPort 1.4 for two independent 4K screens at 60 Hz. An Infineon dTPM 2.0 chip is fitted, so a Windows 11 install is straightforward. It measures 135 x 115 x 39 mm and Shuttle rates it for 24/7 operation. Typically in stock with fast delivery across Cyprus.

Compatibility — check before buying:
This is a barebone. You must add a DDR4-3200 SO-DIMM (one slot, 16GB maximum, non-ECC), an M.2 2280 SSD (PCIe 3.0 NVMe or SATA — Shuttle validates up to 1TB) and an operating system before it will do anything. There is no Wi-Fi or Bluetooth: the M.2 2230 E-key slot is empty and takes a standard module such as an Intel AX200, AX210 or AX211, which is not supplied. Shuttle’s own WLN-M1 wireless kit exists but the NE10N is not on its published compatibility list, so ask us before ordering that specific kit. Also note: the memory is DDR4, not DDR5, and it is a single slot, so there is no dual-channel option. There is no 2.5 inch bay, no eMMC and no serial/COM port option. The operating temperature range is 0 to 40 degrees C — this is an office-grade fanless machine, not a wide-range industrial one, so do not specify it for an unheated or hot enclosure.

Best For

✓ Silent office and reception workstations
✓ Digital signage and kiosk deployments
✓ Thin clients and remote-desktop endpoints
✓ Integrators who want to choose their own RAM, SSD and OS

Key Features


Fanless, including the power supply
The chassis cools passively and the external 65W adapter has no fan either, so there is no moving part in the whole system. Shuttle rates the NE10N for continuous 24/7 operation, which is what a signage or kiosk installation actually needs.

Six USB ports, four of them 10Gbps
Two USB 3.2 Gen 2 Type-A on the front alongside headphone and microphone jacks, plus two more Gen 2 and two USB 2.0 on the back. Peripherals do not have to fight over a hub, and the fast ports are where your hands are.

Two independent 4K screens
HDMI 2.0 and a full-size DisplayPort 1.4 each drive up to 4096 x 2160 at 60 Hz, for two independent displays. Note that the port is a full-size DisplayPort, not the mini DisplayPort some distributor listings claim.

Build it your way, mount it anywhere
One DDR4-3200 SO-DIMM slot, one M.2 2280 slot that accepts NVMe or SATA, and a second M.2 slot for wireless. The VESA bracket, screws and an M.2 thermal pad pack are all in the box, so it goes behind a monitor or on a wall with nothing else to buy.

Technical Specifications

Identification
Brand Shuttle (Shuttle Computer Handels GmbH, Germany)
Model XPC nano Barebone NE10N
Part Number / MPN NE10N. Ordered under distributor code PFB-NE10N101
EAN / GTIN 0887993007779
Type Barebone — supplied without memory, storage and operating system
Launched July 2025. Current product, not end of life
Processor and Graphics
Processor Intel Processor N100 (Alder Lake-N, Intel 7), soldered
Cores / Threads 4 / 4
Frequency Up to 3.40 GHz maximum turbo. Neither Shuttle nor Intel publishes a base frequency for the N100, so treat 3.40 GHz as the peak rather than a sustained clock
Cache 6MB
TDP 6W
Graphics Intel UHD Graphics, integrated
CPU upgrade Not possible — the processor is soldered
Memory and Storage (not included)
Memory type DDR4-3200 (PC4-25600U) SO-DIMM, 1.2 V, non-ECC
Memory slots 1 x 260-pin SO-DIMM, single channel
Maximum memory 16GB
Memory note It is DDR4, not DDR5. One distributor lists DDR4-2400; Shuttle specifies DDR4-3200
Storage slot 1 x M.2 2280 M-key, supports PCIe 3.0 NVMe or SATA. Shuttle validates capacities up to 1TB
Wireless slot 1 x M.2 2230 E-key for a WLAN card, supplied empty
Drive bays / eMMC None
Ports and Display

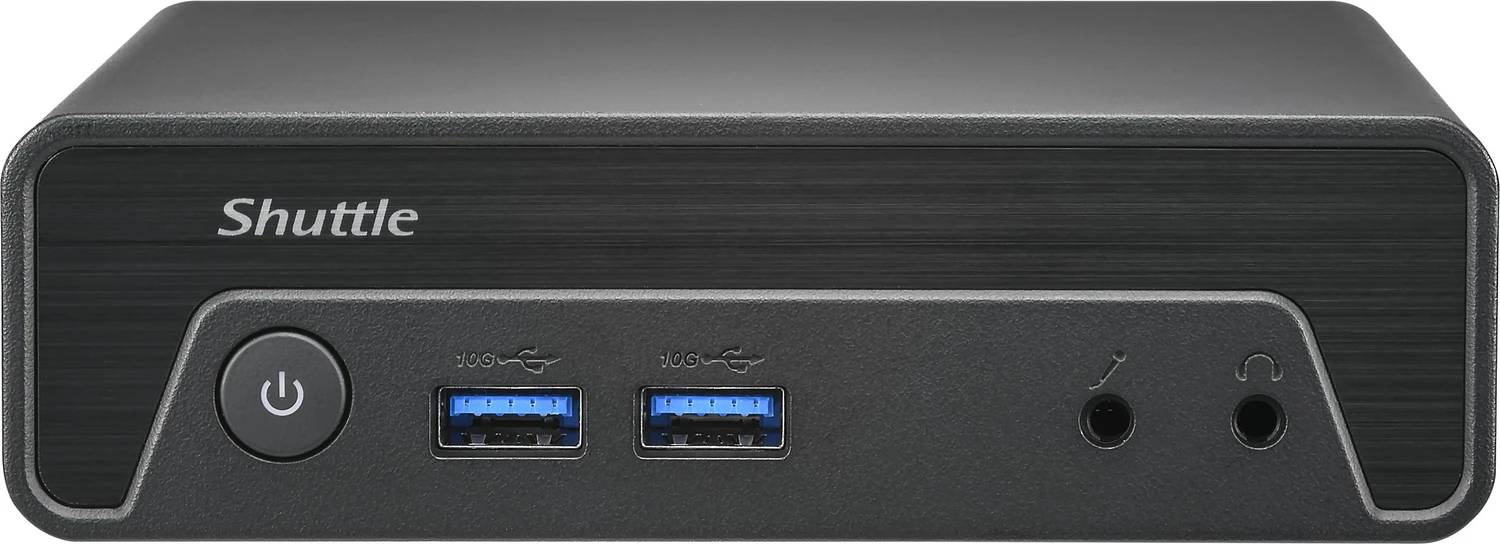

Front 2 x USB 3.2 Gen 2 Type-A (10Gbps), 1 x headphone / line-out 3.5 mm, 1 x microphone in 3.5 mm, power button with LED

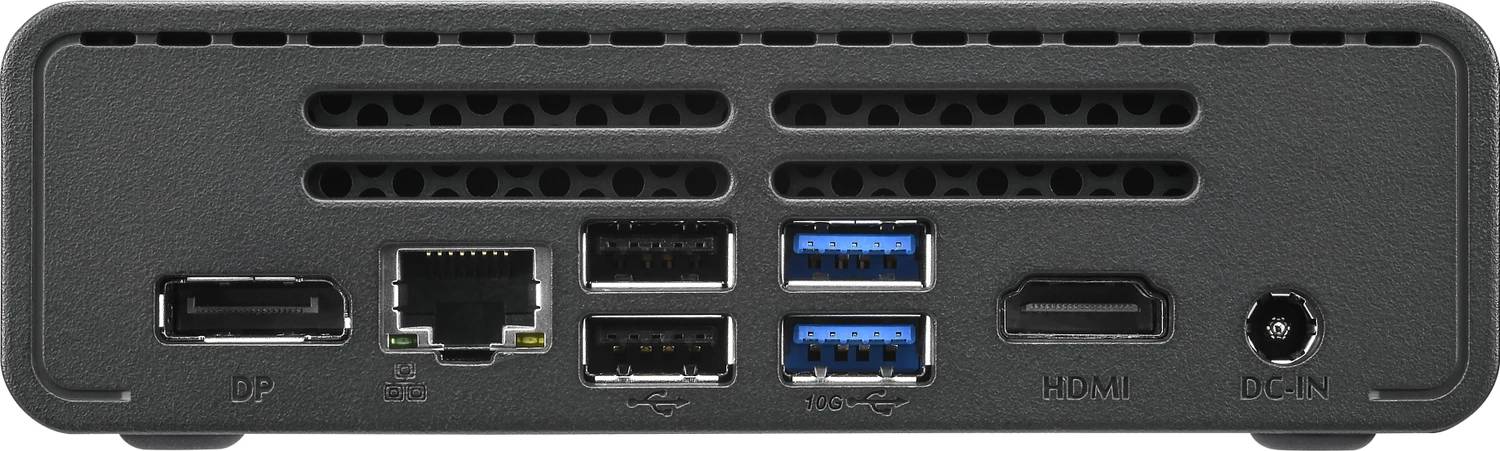

Rear 2 x USB 3.2 Gen 2 Type-A (10Gbps), 2 x USB 2.0 Type-A, 1 x HDMI 2.0, 1 x DisplayPort 1.4 full size, 1 x Gigabit RJ-45, DC-in 19 V, Kensington lock slot
Total USB 6 (4 x 10Gbps, 2 x USB 2.0)
Maximum resolution 4096 x 2160 at 60 Hz
Simultaneous displays 2 independent 4K displays at 60 Hz
Audio codec Senary SN6140-CNZR
Networking
Ethernet 1 x Gigabit LAN (10/100/1000), Motorcomm YT6801 controller, Wake-on-LAN supported
Wi-Fi / Bluetooth Not included. The M.2 2230 E-key slot accepts a standard module such as an Intel AX200, AX210 or AX211, or a Realtek AW-XB547NF. Shuttle’s WLN-M1 kit is not listed as validated for the NE10N — ask us to confirm before ordering it
Cooling, Power and Security
Cooling Completely fanless, passive
Noise Shuttle describes it as virtually noiseless and publishes no decibel figure, because there is no fan to measure
Power supply External 65W adapter, 19 V / 3.42 A, 100-240 V input. Included in the barebone, and fanless
TPM Infineon SLB9670 discrete TPM 2.0, can be disabled in BIOS
Operating systems Windows 11 64-bit and Linux 64-bit are validated by Shuttle. Specific Linux distributions are not named
Continuous operation Rated for 24/7 use
Physical
Dimensions 135 x 115 x 39 mm (41.3 mm including feet), approx. 0.6 litres
Weight 0.6 kg net, 1.5 kg gross
Colour Black
Mounting VESA 75 x 75 mm and 100 x 100 mm. Bracket and screws included
Operating temperature 0 to 40 degrees C, non-condensing. This is not a wide-range industrial specification
Humidity 10 to 90 percent, non-condensing
In the box NE10N barebone with mainboard, 65W power adapter and cord, VESA bracket and screws, M.2 SSD thermal pad pack, quick user guide. No RAM, SSD, wireless module or operating system
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Shuttle’s own European shop publishes a 3-year warranty on this model: 2 years pick-up and return followed by 1 year bring-in service. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration

Frequently Asked Questions

What do I need to buy alongside it?
At minimum one DDR4-3200 SO-DIMM of up to 16GB, one M.2 2280 SSD (PCIe 3.0 NVMe or SATA) and a Windows 11 or Linux licence. If the machine needs wireless, add an M.2 2230 E-key Wi-Fi card as well — the slot is there but the card is not. The power supply and the VESA bracket are already in the box, so those two are not extra costs.
Is there any Wi-Fi built in?
No. The NE10N ships with an empty M.2 2230 E-key slot for a wireless card. Standard modules such as the Intel AX200, AX210 and AX211 fit, and Shuttle names the Realtek AW-XB547NF as another example. Shuttle’s own WLN-M1 wireless kit exists but the NE10N does not appear on its published compatibility list, so check with us before ordering that particular kit.
Can I fit 32GB of memory or two sticks?
No. There is a single SO-DIMM slot and Shuttle specifies a 16GB maximum, so the machine runs single channel by design. It is also DDR4, not DDR5 — a common assumption with this processor generation. For a signage, kiosk or thin-client role 8GB or 16GB is comfortably enough.
Will it run Windows 11?
Yes. A discrete Infineon TPM 2.0 chip is fitted on the board, which satisfies the main sticking point for Windows 11, and Shuttle validates both Windows 11 64-bit and Linux 64-bit for this model. Remember that no operating system or licence is supplied with a barebone — you install your own.
Singular Expert Insight
A barebone is the right buy when you already know what memory, storage and licence you want, or when you are deploying several identical machines and would rather standardise the parts yourself than accept whatever a prebuilt ships with. The NE10N earns its place by being genuinely fanless including the power brick, 24/7 rated, and complete in the ways that usually cost extra — the VESA bracket, the screws, the M.2 thermal pad and the PSU are all in the box. Watch the three fixed limits before you commit: a single DDR4 slot capped at 16GB, one drive slot with no 2.5 inch fallback, and an 0 to 40 degrees C operating range that rules out hot cabinets. Pick the memory from our Memory RAM range and the drive from Internal SSDs and it is a very tidy silent machine.

Buyer’s Guide

Buy it if

You want to choose your own memory, SSD and operating system in a completely fanless, VESA-mountable 0.6-litre chassis with TPM 2.0 and a 65W power supply already included.

Skip it if

You want a ready-to-use PC out of the box, you need more than 16GB of memory or a second drive, or you need built-in Wi-Fi — none of those apply to this barebone.

Also consider

A ready-configured mini PC if you would rather not source parts, or a higher-tier Shuttle XPC nano such as the NC40U3 with a Core i3-1215U if the N100 is not enough processor for the job.
