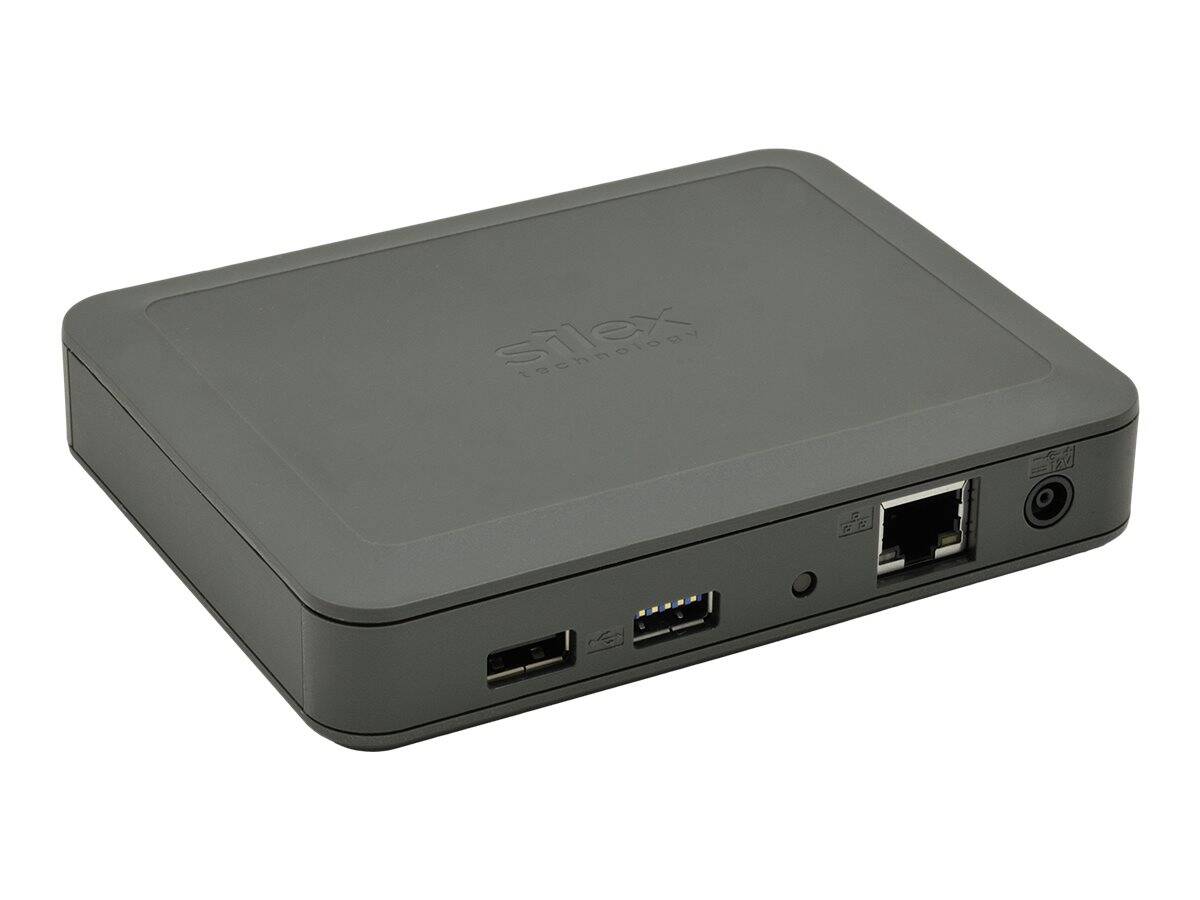

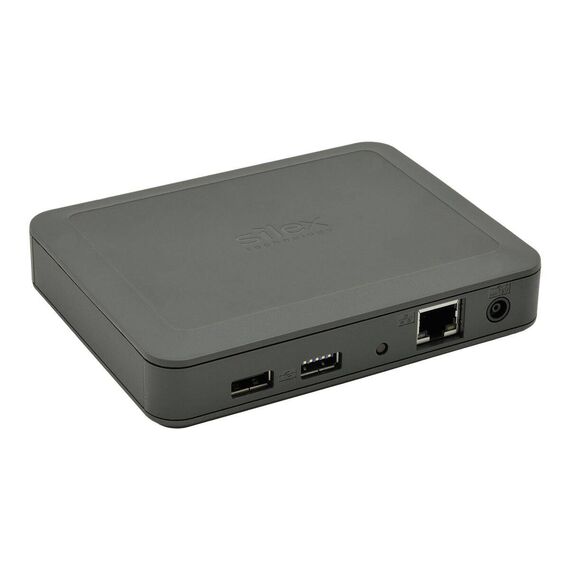

Silex DS-600 - Device server - 2 ports - GigE, USB 2.0, USB 3.0 | E1335

Product Features

High-speed support
USB 3.0 SuperSpeed is supported. DS-600 can transmit data faster than preceding models. Even devices that handle large data, such as scanners can transmit data quickly with USB 3.0 and the DS-600, allowing you to improve work efficiency.
Robust security
Office network security have been advanced and the number of authentication to prevent illegal access to the internal network and needs of route encryption to keep data secrecy are increased.

Special Fetures

Product Specification

Device Type	Device server
Width	13 cm
Depth	10 cm
Height	2.55 cm
Weight	145 g
Networking
Form Factor	External
Ports Qty	2
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, USB 2.0, USB 3.0
Network / Transport Protocol	TCP/IP, LPR/LPD, RAW
Remote Management Protocol	Telnet, HTTP
Status Indicators	Power, link/activity
Features	Print server, NAS support
Encryption Algorithm	AES, TLS, PEAP, TTLS
Authentication Method	Extensible Authentication Protocol (EAP)
Compliant Standards	IEEE 802.1x, USB 2.0, USB 3.0
Expansion / Connectivity
Interfaces	1 x USB 2.0 - Type A ¦ 1 x USB 3.0 - Type A ¦ 1 x 1000Base-T - RJ-45
Miscellaneous
Compliant Standards	FCC Class B certified, VCCI Class B ITE, RoHS
Power
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	4.8 Watt
Software / System Requirements
Software Included	Silex SX Virtual Link
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	20 - 95% (non-condensing)
