Star IFBD-HE07 Ethernet Interface Card for Star Receipt Printers
10/100 EthernetRJ45Web configTSP800II · TSP700II · TSP650II · TUP500

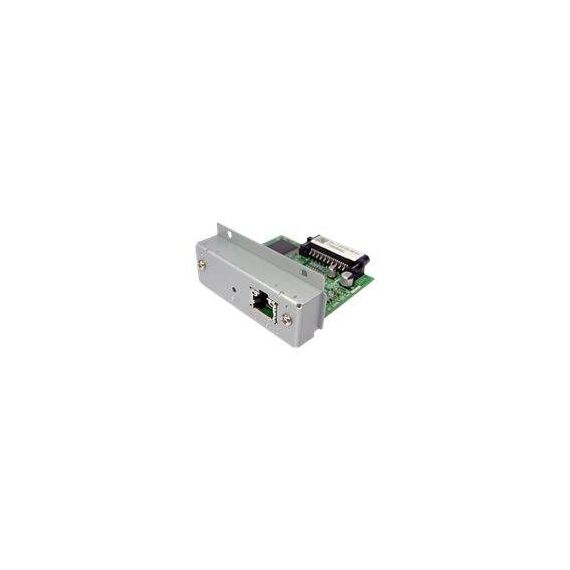

The Star IFBD-HE07 (Star code 39607804) is the Ethernet interface board for Star printers with an exchangeable interface, including the TSP800II wide-format receipt printer, TSP700II, TSP650II and the TUP500 kiosk printer. It replaces the printer’s current interface card (for example serial or parallel) and turns it into a 10/100 network printer with an RJ45 port.
It is the standard way to move an existing Star printer from a local cable to the network, so several POS terminals, kitchen screens or a server can print to it.
Before you order: The IFBD-HE07 fits Star models with a removable interface board only. Fixed-interface printers such as the TSP100 series cannot take it, and the TSP1000, SP700, SP500 and HSP7000 use the sister card IFBD-HE08. Some printers need a minimum firmware version — send us the model and we will check.
What's in the Box
- 1 × Star IFBD-HE07 Ethernet interface board (39607804)
- Star does not publish a detailed packing list for this board
What It Means in Practice
- The board takes power from the printer (5 V, max. 500 mA) — no extra adapter.
- After installing, power the printer on while holding FEED to print a self-test with the network settings, then set the IP by DHCP/BOOTP, static address or ARP/Ping.
- Printing works over LPR (port 515) and raw TCP port 9100, with status on port 9101; up to 8 sessions are possible with multi-session enabled.
- Setup is done in a browser (HTTP, HTTPS from firmware 4.0.0) or via Telnet/FTP; holding the board’s push switch restores the default network settings.
What Will Not Work
- No USB port and no Wi-Fi on this board.
- IPv4 only — no IPv6.
- Not for TSP100, mC-Print or other fixed-interface Star printers.
- Not for TSP1000, SP700, SP500 or HSP7000 — use IFBD-HE08.
Key Features
10/100 auto-negotiation
IEEE 802.3/802.3u, Cat5 UTP up to 100 m.
Standard print protocols
LPR, raw port 9100 and status port 9101.
Browser setup
Built-in web configuration, HTTPS from firmware 4.0.0.
Powered by the printer
No separate power supply needed.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Swapping the interface card is often cheaper and faster than replacing a well-working TSP800II or TSP700II when you move to network printing. If you are replacing printers anyway, compare our POS receipt printers with built-in LAN.
✓ Buy it if you have a Star TSP800II, TSP700II, TSP650II or TUP500 and want it on the wired network.
✕ Skip it if your printer is a TSP100/mC-Print model, or you need Wi-Fi or USB on the same card.
→ Also consider Star IFBD-HE08 for TSP1000, SP700, SP500 and HSP7000 printers.
Not sure it fits your printer? Send us the full model from the printer label and we will check the card and firmware before you order.
Features - STAR MICRONICS EUROP - 39607804
More Details
Product Code
Y182213
EAN Code
4951319195597
Manufacturer
STAR MICRONICS EUROP
