StarTech.com JD094BST HPE JD094B Compatible SFP+ Transceiver 10GBASE-LR 1310 nm LC Single-Mode up to 10 km DDM

Brand:
StarTech.com
StarTech.com HP JD094B Compatible SFP+ Module JD094BST
StarTech.com JD094BST HPE JD094B Compatible SFP+ Transceiver 10GBASE-LR 1310 nm LC Single-Mode up to 10 km DDM
€109.91 inc. VAT
Buy
JD094BST
€92.36
€109.91 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
V933906
EAN Code
0065030868501
Manufacturer
StarTech.com

Quick Specs

Standard
10GBASE-LR · 10 Gbps
Fibre & Reach
Single-mode · up to 10 km
Coded For
HPE JD094B (Comware)
Diagnostics
DDM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

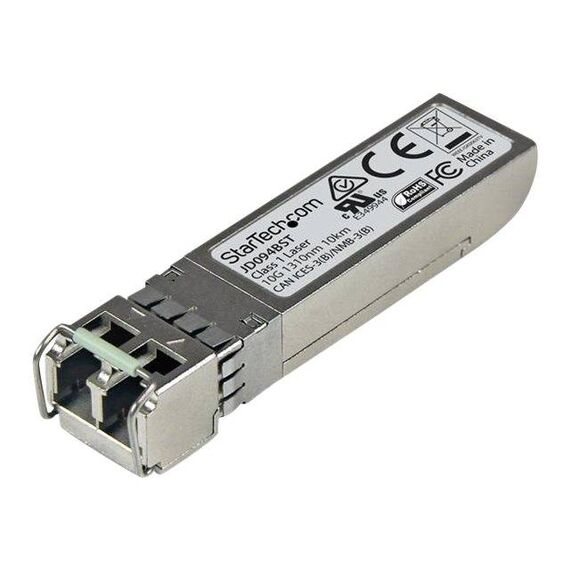

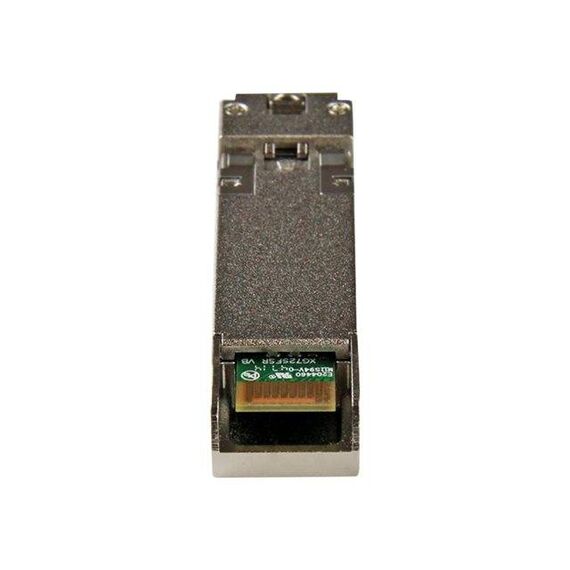

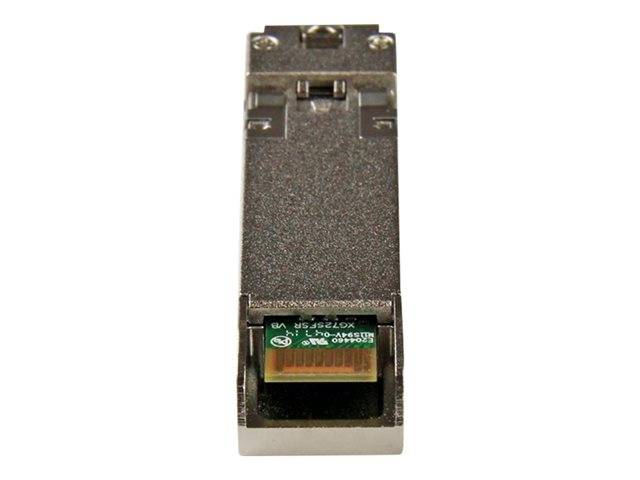

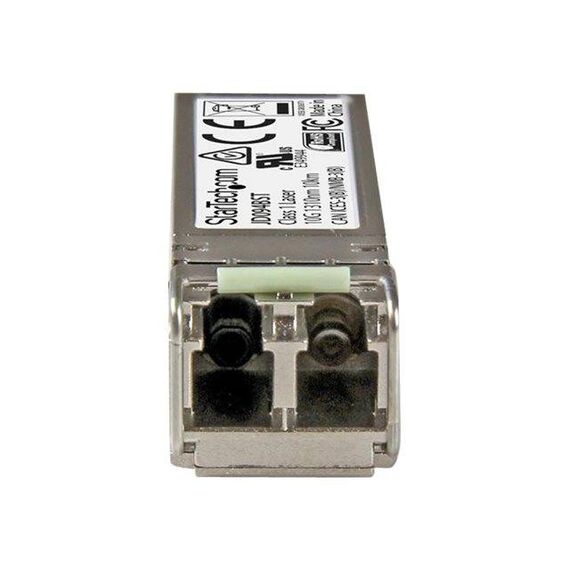

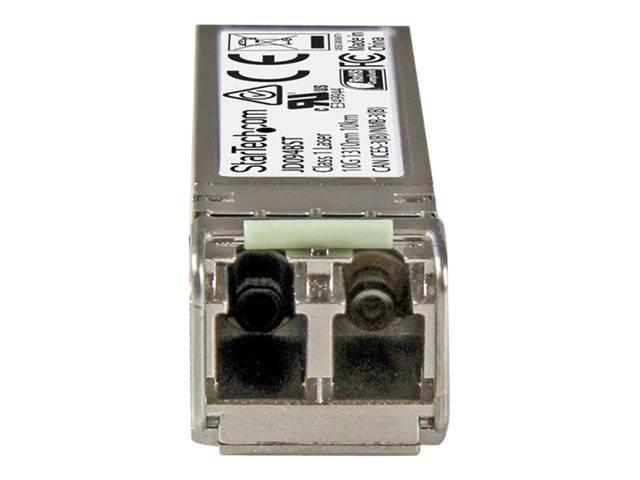

StarTech.com JD094BST — HPE JD094B-Compatible 10G LR SFP+

10 Gbps10GBASE-LRHPE JD094B codedUp to 10 km

The StarTech.com JD094BST is a 10 Gbit SFP+ transceiver for single-mode fibre, reaching up to 10 km at 1310 nm over an LC duplex connection, with digital diagnostics. It is programmed to identify as an HPE JD094B, the long-reach optic of HPE’s Comware switch families such as the 5900, 5500 and 12500, and it is a lower-cost way to add 10G uplinks between buildings on those switches. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.

Compatibility — check before buying:
It is coded as an HPE JD094B, the part used by HPE Comware switches (FlexNetwork / FlexFabric, formerly H3C). It is not the right coding for ArubaOS-Switch (ProCurve) or Aruba CX switches, which use J9151-series optics — for those see J9151A-ST. It is 10G only and will not link in a 1G-only SFP port, and it needs single-mode fibre. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ 10G uplinks on HPE Comware switches
✓ HPE 5900, 5500 and 12500 SFP+ ports
✓ Links between buildings up to 10 km
✓ Replacing HPE JD094B modules
✓ Spare optics at a lower cost
✓ Single-mode campus backbones

Key Features


Coded for HPE Comware
Programmed to identify as an HPE JD094B, so Comware-based HPE switches that check optics accept it.

Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.

Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.

Hot-swappable
Modules and cables plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch or pull tab to remove it.

Technical Specifications

Identification
Brand StarTech.com
Model HPE JD094B Compatible SFP+ Module, 10GBASE-LR, 10GbE Single Mode Fiber
Part Number JD094BST
EAN / GTIN 0065030868501
Pack Size Single unit
OEM Part Coded HPE JD094B
Interface
Form Factor SFP+
Standard 10GBASE-LR (IEEE 802.3ae)
Data Rate 10 Gbps
Connector LC duplex
Optics & Reach
Wavelength 1310 nm
Fibre Single-mode
Reach Up to 10 km
Tx Power / Rx Sensitivity Not published by StarTech.com
Environment & Power
Operating Temperature 0 to 70 °C
Power Consumption Under 1.2 W
Diagnostics (DDM) Yes
MTBF 2,104,865 hours
Compatibility
Designed For switches from the OEM brand this module is coded for — coded for HPE JD094B; StarTech.com lists the HPE 5900, 12500, 5500, 5820 and 5120 switch families
Link Partner Another 10GBASE-LR module on single-mode fibre, of any brand
In the Box
Included 1 module
Not Included Fibre patch cords, the far-end module and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term StarTech.com publishes a lifetime warranty on this transceiver (it covers the module, not the switch), plus free lifetime technical support. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Will it work in an Aruba 2930 or CX switch?
It is coded for the HPE Comware part JD094B. Aruba and ProCurve switches use J9151-series optics, so choose a module coded for those. Send us the switch model and we confirm.
What is the difference to SFP10GBLRST?
Same 10GBASE-LR optics and reach. The SFP10GBLRST is uncoded for switches that accept standard MSA modules; the JD094BST carries the HPE JD094B code for Comware switches.
Are fibre patch cords included?
No. You get 1 module. The patch cord for the LC duplex connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
StarTech.com codes this module for one OEM brand and states it also works in switches that accept uncoded MSA modules, such as Ubiquiti, D-Link, NETGEAR, Supermicro and TP-Link. Switches that lock out third-party optics may refuse it — send us the model and we check it.
Singular Expert Insight
We offer the JD094BST for customers who still run HPE Comware switches and want a 10G LR optic the switch accepts, at a lower price than the HPE original and with a lifetime module warranty. Check the software family first: if the switch runs ArubaOS or AOS-CX, the J9151A-ST coding fits; for 850 nm multimode runs inside a building, StarTech’s JD092BST is the SR sibling. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need 10G single-mode up to 10 km on an HPE Comware switch that uses JD094B optics.

Skip it if

Your switch is Aruba/ProCurve or CX, your fibre is multimode, or the port is 1G-only.

Also consider

StarTech.com JD092BST for multimode, or SFP10GBLRST uncoded.
