StarTech.com MPOSMAPCGNCOUPLER MPO/MTP Fiber Coupler Male to Female Green

Brand:
StarTech.com
StarTech.com MPO/MTP Fiber Coupler Male to Female Green
StarTech.com MPOSMAPCGNCOUPLER MPO/MTP Fiber Coupler Male to Female Green
€15.96 inc. VAT
Buy
MPOSMAPCGNCOUPLER
€13.41
€15.96 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
CR72302
EAN Code
0065030925211
Manufacturer
StarTech.com
Quick Specs
Type
MPO/MTP fibre coupler
Connectors
MPO/MTP male ↔ female
Key spec
0.2 dB IL · 8/12/24 fibre
Compatibility
OS2 · OM3/OM4 · APC/UPC
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

StarTech.com MPOSMAPCGNCOUPLER — MPO/MTP Fiber Coupler, Male to Female, Green

MPO/MTP 8/12/24 fibre0.2 dB insertion lossSingle-mode & multimodeGreen

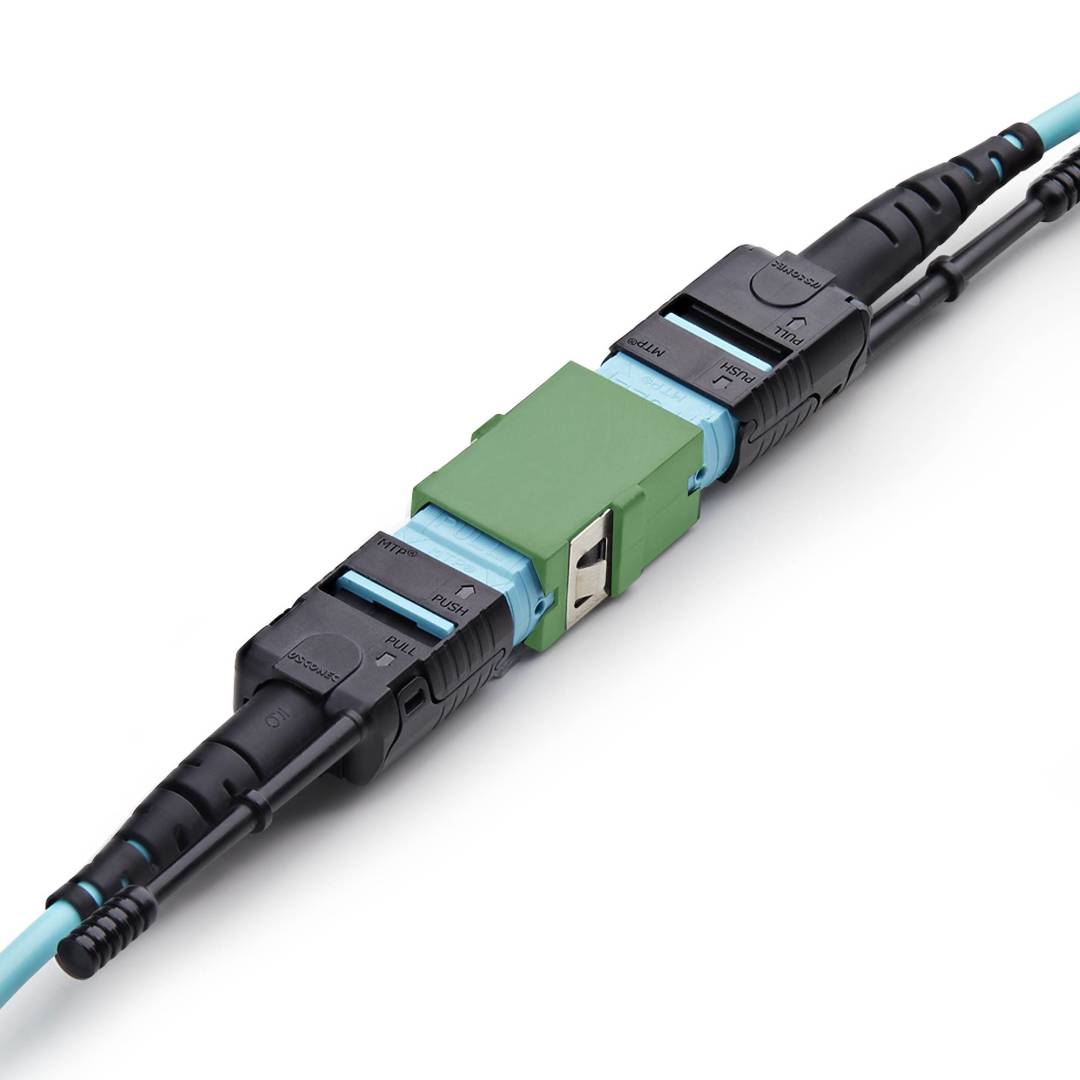

The StarTech.com MPOSMAPCGNCOUPLER is a passive green MPO/MTP coupler that joins two multi-fibre trunk or breakout cables, or holds an MPO connection in a fibre distribution panel. Part number MPOSMAPCGNCOUPLER supports 8, 12 and 24-fibre MPO/MTP connectors on OS2 single-mode or OM3/OM4 multimode links, with low 0.2 dB insertion loss for 1/10/40/100 Gbps runs and metal mounting tabs for tool-free panel installation.

Compatibility note: The coupler connects one keyed male (pinned) connector to one un-keyed female (unpinned) connector only; two males or two females cannot be mated. 16-fibre MPO/MTP connectors are not supported.

Technical Specifications

Identification
Part Number MPOSMAPCGNCOUPLER
EAN / GTIN 0065030925211
MPN MPOSMAPCGNCOUPLER
Brand StarTech.com
Compatibility
Connectors 1 × MPO/MTP to 1 × MPO/MTP — keyed male to un-keyed female
Fibre count 8, 12 and 24-fibre MPO/MTP (not 16-fibre)
Fibre type Single-mode (OS2) and multimode (OM3/OM4)
Polish APC or UPC
Performance
Insertion loss 0.2 dB
Data rates 1 / 10 / 40 / 100 Gbps
Standard Exceeds TIA-568.3-D
Type Passive, straight
Physical
Colour Green
Dimensions 44.5 × 14.5 × 9.3 mm
Weight 4 g
Mounting Metal mounting tabs for panels
Operating temperature -40 °C to 85 °C
Warranty 1 year (StarTech.com)

Frequently Asked Questions

Is there any technical difference between the MPOSMAPCGNCOUPLER and the MPOSMAPCAQCOUPLER?
No. Both carry the same specifications and support single-mode and multimode MPO/MTP links; only the housing colour differs (green vs aqua), which helps identify link types in a patch panel.
Can I use the MPOSMAPCGNCOUPLER with 16-fibre MPO cables for 400G SR8?
No. StarTech.com lists support for 8, 12 and 24-fibre MPO/MTP connectors only; 16-fibre connectors use a different ferrule layout.
Singular Expert Insight
The MPOSMAPCGNCOUPLER is a simple, low-loss way to extend an MPO trunk or land it in a panel, as long as you check the gender of both cable ends before ordering. Choose the green version to match your colour scheme — green is commonly used for APC-polished links.
✓ Buy it if you need to join a male and a female MPO/MTP cable or mount an MPO link in a panel.
✕ Skip it if both of your cable ends are the same gender, or you use 16-fibre MPO.
→ Also consider the MPOSMAPCAQCOUPLER (aqua) for colour-coding.
