StarTech.com SIMPLEXSCAPCF SC to SC Fiber Optic Coupler 10 Pack OS2 Single Mode SC/APC Simplex Adapter with Flange Green

Brand:
StarTech.com
StarTech SIMPLEXSCAPCF SC/APC Fiber Coupler 10 Pack OS2
StarTech.com SIMPLEXSCAPCF SC to SC Fiber Optic Coupler 10 Pack OS2 Single Mode SC/APC Simplex Adapter with Flange Green
€21.3 inc. VAT
Buy
SIMPLEXSCAPCF
€17.90
€21.30 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
CR21969
EAN Code
0065030937504
Manufacturer
StarTech.com

Quick Specs

Connector
SC/APC simplex
Fiber
Single-mode OS1/OS2
Pack
10 couplers
Insertion Loss
0.2 dB
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

StarTech.com SC/APC to SC/APC Fiber Coupler, OS2 Single Mode — 10 Pack (SIMPLEXSCAPCF)

SC/APC simplexOS1/OS2 single-mode10 packScrew flange

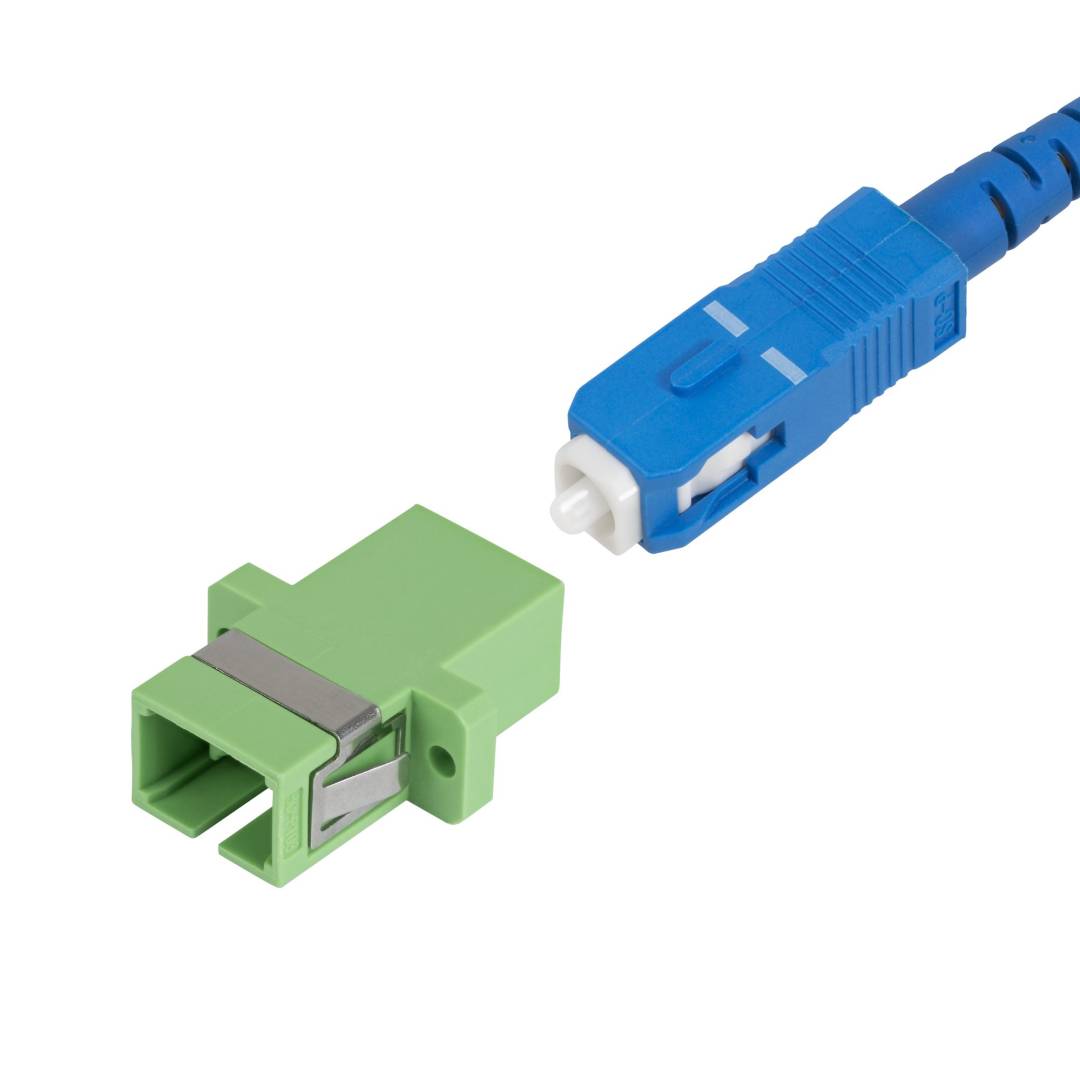

The StarTech.com SIMPLEXSCAPCF is a pack of ten SC to SC simplex fiber optic couplers for single-mode OS1/OS2 fiber with an APC (angled physical contact) polish: small green adapters that join two SC/APC patch cables end to end, or add an SC/APC port to a fiber patch panel, cassette or wall box. Each has a ceramic alignment sleeve for low loss (0.2 dB insertion loss), a PBT housing and a screw-in flange for panel mounting, and supports links from 1 to 100 Gbps across 1260–1625 nm. In practice they are the building blocks for extending, repairing and terminating single-mode runs such as FTTH, PON and data-centre links.

Compatibility — check before buying:
APC only — do not mix with UPC. These couplers are for SC/APC connectors (normally green). Mating a UPC connector (normally blue) into an APC system, or the reverse, causes high loss and can damage the angled end-faces. They are for single-mode OS1/OS2 fiber, not multimode OM1–OM5. The pack contains couplers only — no mounting screws, dust caps or cables are listed. Tell us your connector type and we check it before you order.

Best For

✓ FTTH and GPON/PON installations
✓ Extending single-mode patch cables
✓ Fiber patch panels and cassettes
✓ Wall boxes and terminations
✓ Repairing damaged runs
✓ Telecom and data-centre links

Key Features


APC polish, single-mode
Built for SC/APC connectors on OS1/OS2 single-mode fiber from 1260 to 1625 nm.

Low loss
A ceramic sleeve aligns the fibers precisely for 0.2 dB insertion loss.

Panel mountable
A screw-in flange fixes each coupler into panels, cassettes and wall boxes.

Ten per pack
Enough couplers to fit out a small panel or keep spares in the toolbox.

Technical Specifications

Identification
Brand StarTech.com
Product SC to SC Coupler 10 Pack, OS2 Single Mode, SC/APC Simplex
Part Number SIMPLEXSCAPCF
EAN / UPC 0065030937504
Colour Green
Optical
Connectors SC/APC to SC/APC, simplex
Fiber Type Single-mode 9/125 µm, OS1/OS2
Wavelength 1260–1625 nm
Insertion Loss 0.2 dB
Supported Speeds 1, 10, 40 and 100 Gbps
Standard Exceeds TIA-568 B.3
Physical
Housing PBT with ceramic sleeve
Mounting Screw-in flange
Dimensions (each) 27.5 × 22.2 × 9.3 mm
Weight (each) 4 g
Environment
Operating Temperature −40 to 85 °C
Humidity 0–90%
In the Box
Included 10 × SC/APC fiber couplers
Not Included Mounting screws, dust caps, patch cables
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term StarTech.com publishes a lifetime warranty on this product. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Can I use it with blue SC/UPC connectors?
No. These are APC couplers for green SC/APC connectors. Mixing APC and UPC connectors causes high loss and can damage the end-faces. Tell us which connectors your cables have.
Does it work with multimode fiber?
It is made for single-mode OS1/OS2 fiber. For multimode OM3/OM4 links, use a multimode coupler.
How are they mounted?
Each coupler has a screw-in flange for panels, cassettes and wall boxes. Screws are not listed in the box, so use those supplied with your panel.
Are these simplex or duplex?
Simplex — each coupler joins one fiber. For a duplex link you use two couplers, or a duplex coupler.
Singular Expert Insight
We suggest the SIMPLEXSCAPCF for installers working on SC/APC single-mode networks such as FTTH and PON: ten couplers cover a small panel with spares. Check the connector colour before ordering — green APC is the whole point. See our fiber optic cables and network switches.

Buyer’s Guide

Buy it if

You join or panel-mount SC/APC single-mode connectors and want ten low-loss couplers.

Skip it if

Your connectors are SC/UPC (blue), LC, or multimode.

Also consider

StarTech.com SC/UPC simplex couplers for blue UPC connectors.
