StarTech.com VDSL-LAN-EXTENDER-EU VDSL2 Ethernet Extender Kit over Single Pair, up to 1 km, 300 Mbps

Brand:
StarTech.com
StarTech.com VDSL2 Ethernet Extender Kit 1km 300Mbps
StarTech.com VDSL-LAN-EXTENDER-EU VDSL2 Ethernet Extender Kit over Single Pair, up to 1 km, 300 Mbps
€649.38 inc. VAT
Buy
VDSL-LAN-EXTENDER-EU
€545.70
€649.38 inc. VAT
Ships from EU stock: 6 item(s)
+ −
Add to wish list Ask a question
Product Code
CQ92434
EAN Code
0065030916936
Manufacturer
StarTech.com
Quick Specs
Type
VDSL2 Ethernet extender kit (2 units)
Range
Up to 1 km (26 AWG UTP)
Speed
Up to 300 Mbps (150/150)
Media
Single pair · phone line or Cat5e/6
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Network extender · VDSL2

StarTech.com VDSL-LAN-EXTENDER-EU VDSL2 Ethernet Extender Kit

Two-unit kit that carries Ethernet up to 1 km over a single twisted pair — phone line or Cat5e/6.
Up to 1 kmUp to 300 MbpsSingle pair wiringVDSL2 35b + G.Vectoring

The StarTech.com VDSL-LAN-EXTENDER-EU is a two-unit VDSL2 Ethernet extender kit that carries a network connection up to 1 km over a single pair of wires — existing telephone cabling or Cat5e/Cat6 — with up to 300 Mbps aggregate throughput at shorter distances. Part number VDSL-LAN-EXTENDER-EU supports VDSL2 profiles 35b/30a/17a with G.Vectoring and G.INP, and replaces the earlier 110VDSLEXTEU.

It is the practical way to reach a gatehouse, warehouse, outbuilding or old building wing where only telephone pairs exist and new Ethernet or fibre is impractical.

Compatibility note
Throughput falls with distance and cable quality: 300 Mbps is only reached on short runs, and the 1 km figure was measured on 26 AWG UTP. One unit must be set to Master and the other to Remote via the DIP switches. The units are powered by their own adapters and do not supply PoE to cameras or access points.

Key Features


VDSL2 with vectoring
VDSL2 profiles 35b/30a/17a, ITU-T G.993.5 G.Vectoring and G.998.4 G.INP give stable, noise-resistant links over old telephone copper or a spare Cat5e/6 pair.

8 DIP-switch profiles
Choose Master or Remote, Symmetric or Asymmetric bandwidth, G.INP or Interleave, and High or Low SNR to trade speed for stability on each installation.

Ready for the field

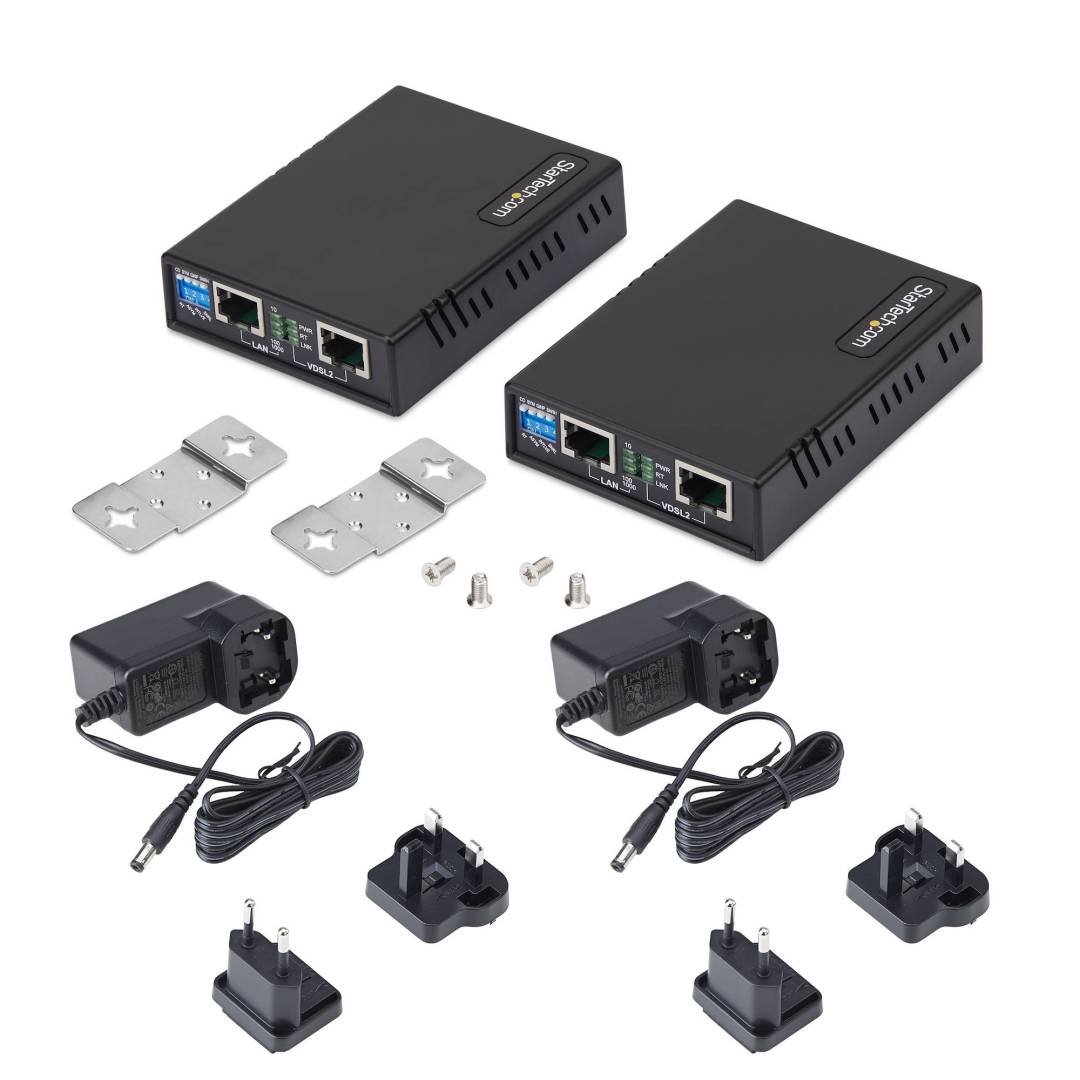

Four status LEDs (LAN speed, link, power, Master/Remote), on-board surge protection, wall-mount hardware, 802.1Q VLAN transparency and one power adapter per unit included.

Technical Specifications

Identification
Part Number VDSL-LAN-EXTENDER-EU
EAN / GTIN 0065030916936
MPN VDSL-LAN-EXTENDER-EU
Brand StarTech.com
Performance
Technology VDSL2 — profiles 35b / 30a / 17a
Max data rate 300 Mbps (150 upstream / 150 downstream)
Max distance 1 km (0.6 mi), measured with 26 AWG UTP
Line media Single twisted pair — phone line, Cat5e UTP or better
Standards IEEE 802.3, 802.3u, 802.3z, 802.1Q; ITU-T G.993.1 / G.993.2 / G.993.5 / G.997.1 / G.998.4 (G.INP)
Auto-MDIX Yes
Jumbo frames No
Chipset Realtek RTL8685FB
Connectivity & Power
Ports RJ-45 connectors — StarTech.com lists 2 host-side and 2 line-side RJ-45 across the kit
Power 2 AC adapters included — 100–240 V AC in, 12 V DC / 1 A out, centre positive
Power consumption 3.8 W
Protection On-board surge protection
MTBF 50,000 hours
Physical & Warranty
Dimensions (per unit) 97 x 72.5 x 23 mm
Weight (per unit) 110 g
Housing Plastic, black
Mounting Wall mount (hardware included) or desktop/shelf
Operating temperature 0 °C to 45 °C
Compliance TAA compliant
Warranty 2 years

Frequently Asked Questions

Can the VDSL-LAN-EXTENDER-EU use my building's existing telephone wiring?
Yes. It is designed for a single pair of wires, so a spare telephone pair or one pair of an old Cat5e/Cat6 run is enough to connect the two units.
Does it work with an ISP or third-party VDSL2 equipment?
StarTech.com states it works with third-party VDSL2 IP DSLAMs when set to CPE (Remote) mode; for a simple point-to-point link use the two units of this kit together.
Will it carry VLAN-tagged traffic to a remote switch or camera?
Yes. 802.1Q VLAN tags pass transparently across the link, which suits video surveillance, digital signage and remote office switches.

Singular Expert Insight

VDSL2 extenders are the budget answer when a remote building only has copper phone pairs: expect roughly 100–300 Mbps depending on distance, which is plenty for cameras, signage or a small office. If you can pull fibre, fibre media converters give more speed and headroom. Plan the in-building cabling with our network cables.
✓ Buy it if you must extend a LAN up to 1 km over existing phone or single-pair copper.
✕ Skip it if you need gigabit speeds or PoE at the far end.
→ Also consider fibre media converters for longer or faster links.
