D-Link DGS-1530-28S/E 24 SFP +4 SFP+ Managed Switch

Brand:
D-Link

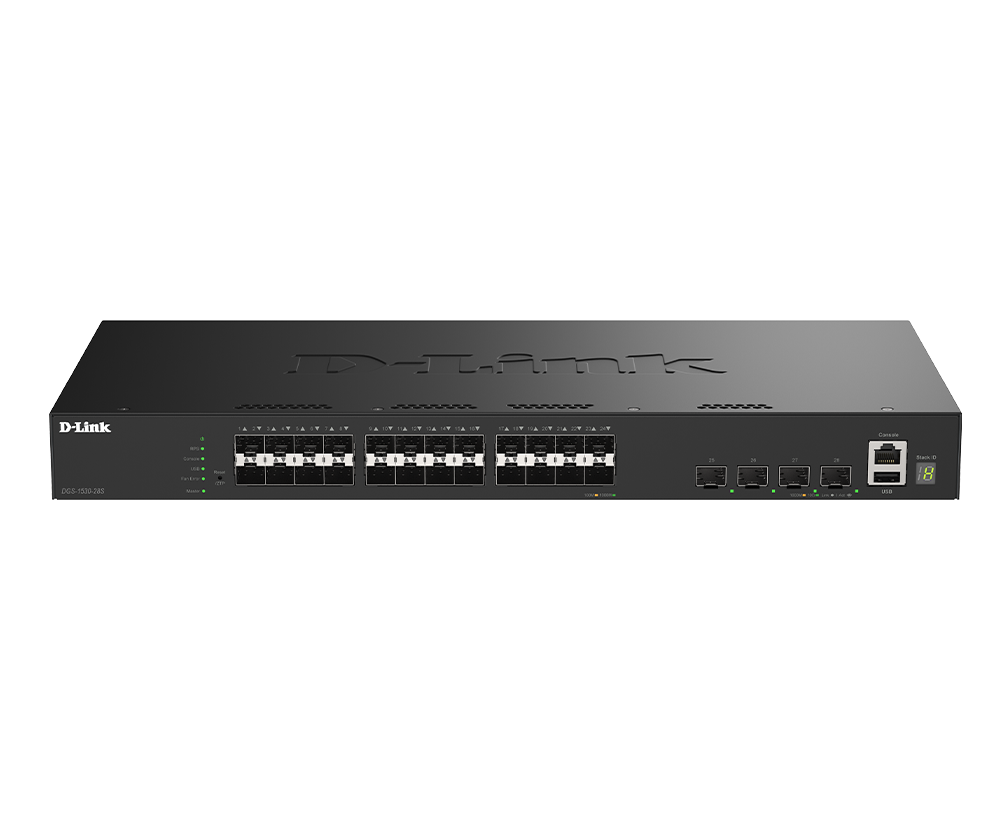

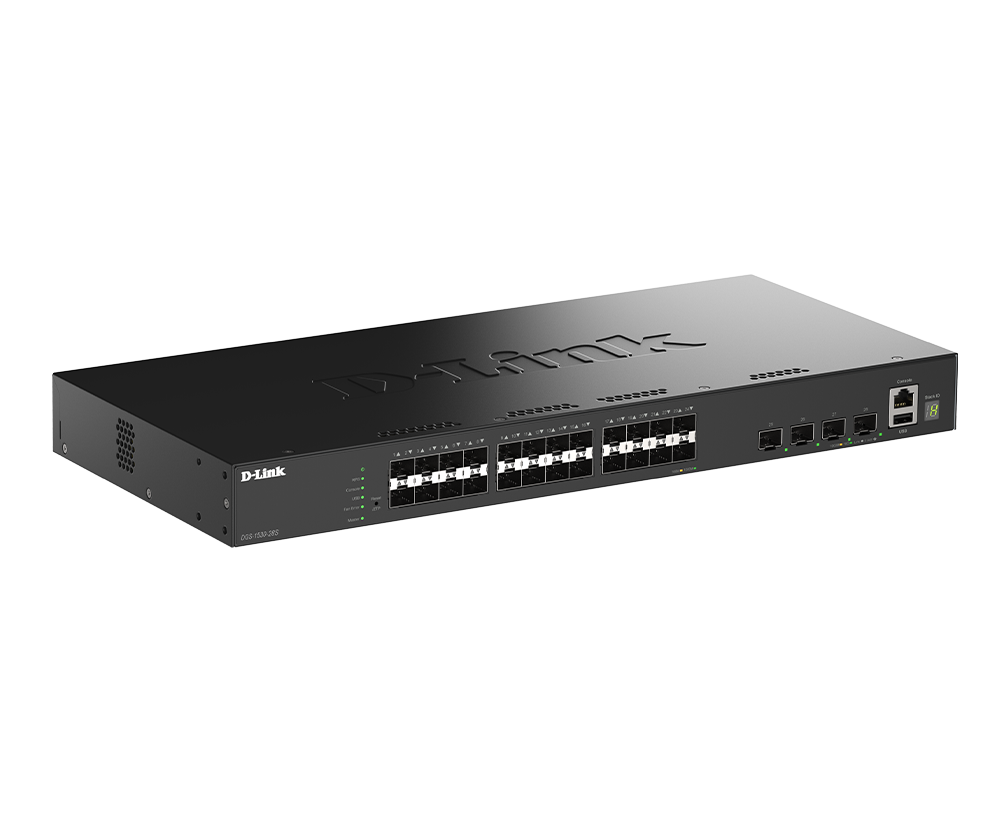

Black D-Link DGS-1530-28S fibre switch, angled and front views of24SFP and fourSFPplus slots with RJ45console and USB
D-Link DGS-1530-28S/E 24 SFP +4 SFP+ Managed Switch
€1290.35 inc. VAT
Buy
DGS-1530-28S/E
€1,084.33 €1,204.81
€1,290.35 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:586060
EAN Code
0790069474446
Manufacturer
D-Link
Quick Specs
Access
24×Gigabit SFP
Uplinks
4×10G SFP+
Management
VLAN /stacking /static routes
Power / cooling
Internal AC /two smart fan
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Managed Gigabit fibre with10G uplinks and stacking

24×Gigabit SFP4×10G SFP+128Gbps fabricNon-PoE /two smart fans

The D-Link DGS-1530-28S/E is a Smart Managed fibre switch with24 Gigabit SFP slots and four10G SFP+ slots. VLANs, link aggregation, security controls and static routing support configured business networks. Physical stacking supports compatible multi-switch deployments. The non-PoE chassis has an internal AC supply and two smart fans.

Best For: Managed fibre aggregation and campus networks needing24 Gigabit SFP links,10G uplinks and an administrator-defined VLAN or stack design.
Before you order: This S model has24 SFP slots, not24 copper RJ45 ports. Its RJ45 connector is console management only. There is no PoE output. Buy compatible transceivers, fibre and DAC/stack cables separately and match speed, fibre type and link distance. Stacking consumes10G ports. Optional DPS-500A redundant power and its appropriate connection cable are separate. Two fans mean this is not a silent fanless desk switch.

What's in the Box

  • DGS-1530 series switch, AC power cord and power-cord retainer set.
  • RJ45-to-RS232 console cable, four adhesive rubber feet and mounting kit with two brackets and screws.
  • Quick Installation Guide. Transceivers, fiber, DAC/stack cables, external redundant supply and network patch leads are separate.

What It Means in Practice

  • Fit compatible Gigabit SFP modules for the24 downlinks;use the fourSFP+ slots for supported10G uplinks or stacking.
  • Configure VLANs, LACP, spanning-tree, ACLs and QoS according to the actual network topology.
  • Use web management, CLI or supported SNMP tools with an appropriate administrator configuration.
  • Plan physical stacks with compatible models, firmware and cabling;ports allocated to stacking are unavailable for ordinary uplinks.
  • Install on a desktop with the supplied feet or in a19-inch rack, allowing fan airflow and cable access.

What Will Not Work

  • No copper RJ45 network data ports are built in. The RJ45console is not a normal Ethernet client port.
  • No PoE output;the DGS-1530-28P is a different model.
  • Static IPv4/IPv6 routing is supported;this does not establish a full dynamic-routing feature set.
  • Fabric and forwarding figures are manufacturer switching specifications, not a guaranteed end-to-end application throughput.

Key Features


Fibre access and uplinks
24 Gigabit SFP slots plus four10G SFP+ slots;choose compatible modules and cabling separately.

Managed segmentation
802.1Q VLANs, LACP, spanning-tree, QoS and access controls support configured network policies.

Stacking options
Up to nine physical members and up to80Gbps per-device stacking bandwidth with a suitable port/cabling configuration.

Rack-ready hardware
Internal AC supply, two smart fan and supplied19-inch mounting brackets, with optional external redundant power.

Technical Specifications

Exact regional SKU / EAN DGS-1530-28S/E /0790069474446
Downlink slots 24×1G SFP;transceivers separate
Uplink slots 4×10G SFP+;modules/cables separate
Total network ports 28
PoE Not supported on this model
Switching / forwarding 128Gbps /95.24Mpps for64-byte packets
Packet buffer / MAC table 1.5MB /16K entries
Jumbo frame Up to10,240bytes
Physical stacking Up to9 members, up to80Gbps per device;configuration dependent
VLAN / aggregation 802.1Q up to4094VLANs, LACP;32groups up to8ports each
Static routing Up to64IPv4 and32IPv6static routes per EUdatasheet
Management / local interfaces Web, CLI, SNMPv1/v2c/v3;RJ45console andUSB2.0TypeA
Cooling / acoustic reference Two smart fan /52.4dB(A) manufacturer figure
Power input / maximum Internal AC100–240V50/60Hz /45.2W
Redundant supply Optional DPS-500A with compatible connection cable, separate
Dimensions / weight 440×210×44mm per EUdatasheet /3.10kg
Installation Desktop or19-inch1Urackmount
Operating environment −5 to50°C,0–95%RH non-condensing
Condition New

Frequently Asked Questions

Does this switch power cameras or access points?
No. This non-PoE model provides data connectivity. Use a separate suitable power method for connected devices.
Are there RJ45 network ports?
No. This model provides24 Gigabit SFP and four10G SFP+ slots. The RJ45connector is console management only.
Are transceivers included?
They are not listed in the supplied package. Select compatible optics or DACs separately.
Is it fanless?
No. This exact28S model has two smart fans.
Does stacking leave every10G slot free?
No. Physical stacking consumes configured10G ports. Plan remaining uplink capacity and compatible cabling.
Singular Expert Insight

Count both access and uplink needs before ordering. Stacking and ordinary10G links draw from the same SFP+ port pool, and non-PoE access ports do not power attached equipment. Confirm the optics, firmware, network policies and rack location with the installer before rollout.

Buyer’s Guide

✓ Buy it if You need a managed24-Gigabit SFP fibre switch with four10G SFP+ slots and supported stacking.
✕ Skip it if You need PoE output, all-copper10G, fanless operation or included optics and stack cables.
→ Also consider SFP+/DAC compatibility, stack topology, remaining uplink ports, device power, fan noise and optional redundancy.
