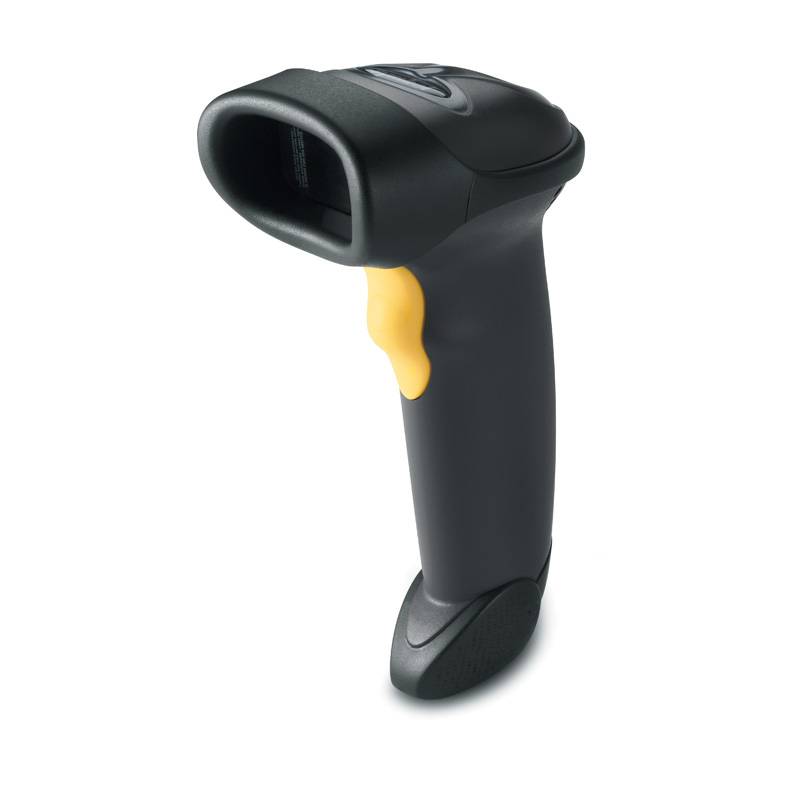

Symbol LS2208 Barcode scanner handheld decoded keyboard wedge, RS-232, USB, wand / Includes 7' straight USB cable. Stand sold separately. Color: Black
Motorola LS2208-7AZU0100ZR Symbol LS2208 - Barcode scanner - handheld - decoded - USB / RS-232 / keyboard wedge / wand black LS2208-7AZU0100ZR
Symbol LS2208 - Barcode scanner - handheld - decoded - USB / RS-232 / keyboard wedge / wand black LS2208-7AZU0100ZR
The affordable LS2208 handheld bar code scanner provides fast, reliable scanning in an ergonomic, lightweight form. The wide working range from near-contact to 17 inches makes this device ideal for retail, hospital, education or government settings. Multiple on-board interfaces ensure integration with a variety of host systemsDurable, single-board construction
Meets stringent 5-ft drop tests.
Scratch-resistant tempered glass exit window
Is designed for continuous use.
Accurate first-time capture of 1D bar codes
Increased productivity, resulting in shorter check-out lines and better customer service.
Wide working range
Delivers optimal performance from contact to 17 in 43 cm.
Multiple on-board interfaces
Simplify installation and integration and ensures future compatibility.
Plug-and-play, with universal cable
Means rapid deployment, with a single cable connecting to any computing environment.
Intuitive design
Minimizes setup and training time.
Ergonomic, lightweight design
Reduces user fatigue with sleek, balanced form for maximum comfort and productivity.
Hands-free Intellistand
Enables presentation scanning and easy switching between hands-free and handheld modes.
Advanced Data Formatting ADF
Enables users to modify data prior to sending to host computer, reducing costly modifications to the host software.
Feature list
Scan type: | Laser |
Scan speed: | 100 sec/page |
Light source: | 650nm |
Decoding standards: | UPC/EANUPC/EAN SupplementalsUCC/EAN 128Code 39Code 39 Full ASCIICode 39 TriOpticCode 128Code 128 Full ASCIICodabarInterleaved 2/5Discrete 2/5Code 93MSICode 11IATAGS1 DataBarChinese 2/5 |
Yaw reading angle: | -60 - 60 ° |
Pitch reading angle: | -65 - 65 ° |
Tilt reading angle: | -30 - 30 ° |
Interface: | USB |
Input voltage: | 5 V |
Current consumption: | 130 mA |
Dimensions W x D x H: | 63 x 84 x 152 mm |
Weight: | 146 g |
Colour of product: | Black |
Safety: | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
Electromagnetic emissions: | FCC Part 15 Class B, ICES 003 Class B |
Operating relative humidity range: | 5 - 95 % |
Storage temperature range T-T: | -40 - 70 °C |
Operating temperature range T-T: | 0 - 50 °C |
