TP-Link Omada Beam Bridge 5 UR KIT 5GHz 867Mbps Outdoor Point-to-Point Bridge Pair, 23dBi, up to 15km, IP65

Brand:
TP-LINK

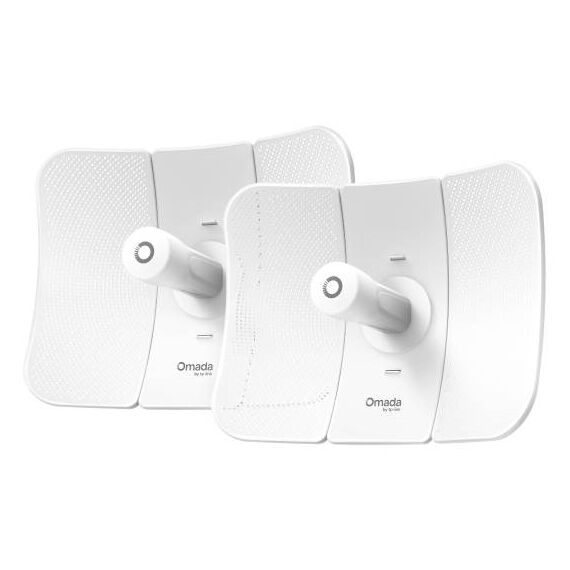

TP-Link Omada Beam Bridge 5 UR KIT outdoor 5GHz bridge pair
TP-Link Omada Beam Bridge 5 UR KIT 5GHz 867Mbps Outdoor Point-to-Point Bridge Pair, 23dBi, up to 15km, IP65
€334.33 inc. VAT
Buy
BEAM BRIDGE 5 UR KIT
€280.95 €312.17
€334.33 inc. VAT
Ships from EU stock: 3 item(s)
+ −
Add to wish list Ask a question
Product Code
CQ45178
EAN Code
1210002603782
Manufacturer
TP-LINK

Quick Specs

Wireless link
5 GHz · 867 Mbps PHY
Antenna
23 dBi · 2×2 MIMO
Reference reach
Up to 15 km*
Outdoor protection
IP65 · −40–70°C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

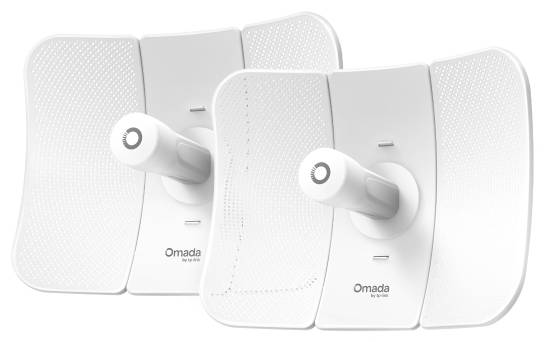

TP-Link Omada Beam Bridge 5 UR KIT 5GHz Bridge Pair

5 GHz · 867 Mbps PHY23 dBi · 2×2 MIMOUp to 15 km*

Link two outdoor locations without a long inter-site Ethernet cable using a pair of directional 5GHz bridges. The Beam Bridge 5 UR KIT combines 23dBi antennas, Gigabit Ethernet and automatic pairing, with LED/app alignment tools and an IP65 enclosure for exposed installations.

Compatibility — check before buying:
*15km is a manufacturer lab reference, not a guaranteed site range. Clear line of sight, alignment, interference and local radio rules matter; 867Mbps is a PHY rate.

Key Features


Directional long-distance link
The narrow 9° horizontal / 7° vertical beam needs careful aiming; app alignment and LED signal indicators help installation.

Flexible PoE power
Accepts 802.3af or specified 24/48V passive PoE; a 24V passive supply is included.

Standalone or centrally managed
Use local web/app setup for a pair, or a compatible Omada controller for centralized and remote operation.

Technical Specifications

Identification
Brand TP-Link Omada
Model / MPN BEAM BRIDGE 5 UR KIT
EAN / GTIN 1210002603782
Hardware Features
Interface 1 × 10/100/1000Mbps RJ45 Ethernet port; PoE input
Button 1 × Reset; 1 × system-mode selection
DIP Switch Role Switch
Power Supply 802.3af PoE on pins 1,2 / 3,6; 24V or 48V passive PoE on +4,5 / −7,8; passive PoE adapter included
Max. Power Consumption 15.8W
Dimensions ( W x D x H ) 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
Antenna External 2×2 dual-polarised directional MIMO; 23dBi at 5GHz
Antenna Beamwidth Horizontal: 9°, Vertical: 7°
Weatherproof Enclosure IP65
Bandwidth 5 GHz: 20 MHz/40 MHz/80 MHz
Mounting Pole Mounting (Kits Included)
Management Features
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management Omada Central (Cloud-Based); Omada Hardware Controller; Omada Software Controller
Cloud Access Yes. Require the use of an Omada Controller.
Email Alerts Yes
LED ON/OFF Control Yes
SNMP Yes
SSH Yes
Web-based Management Yes
Zero-Touch Provisioning Yes
Wireless Features
PtP Yes
Transmission Distance 15 km (9.3 mi)
Wireless Standards IEEE 802.11 a/n/ac
Frequency 5 GHz
Signal Rate 5 GHz: Up to 867 Mbps
Wireless Functions MU-MIMO: 5G 2x2 MU-MIMO DL ; Maximum number of associated STAs: 8; Speed Test; Channel Optimization; Antenna Alignment; ACS (Automatic Channel Selection); Rate Limit; Guest Network
Wireless Security VLAN; Rogue AP Detection; Maximum number of MAC Filter: 4,000; Wireless Encryption
Transmission Power CE EIRP: below 23dBm in U-NII-1/2A; below 30dBm in U-NII-1/2C. FCC: below 27dBm in U-NII-1 and U-NII-3
Others
Certification CE, FCC
Lightning Protection Ethernet Ports: ±6 kV
Environment Operating/storage temperature −40–70°C; operating RH 10–90%; storage RH 5–90%; non-condensing
Weight 1.1 kg (2.43 lb)
Link conditions and kit configuration
Kit devices 2 wireless bridges; auto-pairing
Included PoE supply 24V passive PoE adapter
Throughput conditions 867Mbps is the physical wireless signal rate, not guaranteed payload throughput; environment, interference, traffic and clients affect results
Range conditions 15km manufacturer laboratory reference; actual coverage depends on antennas, clients, environment and clear aligned line of sight
Surge protection conditions Proper setup, grounding and shielded cabling required
Regional radio limits Use locally permitted channels/power; CE/FCC figures refer to respective regulatory regions
Physical values Dimensions, weight and maximum consumption stated per bridge

What's in the Box

2 × Beam Bridge 5 UR wireless bridge units
Supplied pole-mount kits and passive PoE power accessories
Power cord and installation documentation

What Will Not Work

Not a guaranteed 15km connection through obstacles. Passive PoE voltage/pin assignment must match; proper grounding and shielded cabling are needed for protection.

Frequently Asked Questions

Is this one bridge or a pair?
This KIT listing contains two bridge units designed for automatic pairing.
Will the link always reach 15km?
No. The figure is a lab reference; line of sight, alignment, antenna setup and interference determine real coverage.
Can an ordinary PoE switch power it?
It supports 802.3af PoE on the documented input pins. Passive PoE must use the specified voltage and pin assignment.
Singular Expert Insight
Survey line of sight and power availability before choosing a bridge by distance. The linked ES220GMP supports IEEE 802.3af/at PoE, offering a standards-based power option within its port and total budget. See the Omada PoE+ switch

Buyer’s Guide

Buy it if

You need a directional outdoor link between aligned locations.

Skip it if

You need broad indoor Wi-Fi coverage or a link obstructed by buildings.

Also consider

See the linked PoE switch for the wired network and power plan.
