TP-Link Omada ISM311LS Industrial SFP Module, 1000BASE-LX, Duplex LC, Single-Mode, 20km

Brand:
TP-LINK

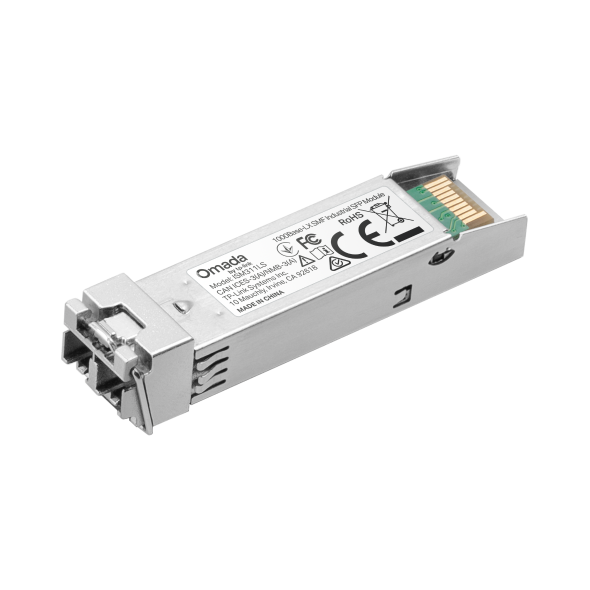

TP-Link Omada ISM311LS industrial duplex LC single-mode SFP transceiver
TP-Link Omada ISM311LS Industrial SFP Module, 1000BASE-LX, Duplex LC, Single-Mode, 20km
€37.38 inc. VAT
Buy
ISM311LS(UN)
€31.41
€37.38 inc. VAT
Ships from EU stock: 16 item(s)
+ −
Add to wish list Ask a question
Product Code
04:557339
EAN Code
1210002601955
Manufacturer
TP-LINK
Quick Specs
Ethernet
1Gbps
Optics
1310nm, single-mode
Connection / reach
Duplex LC/UPC, up to 20km
Temperature
-40 to 85°C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Omada ISM311LS · Industrial Gigabit Fibre · Up to 20km

1000BASE-LX1310nm single-modeDuplex LC/UPC-40 to 85°C

The TP-Link Omada ISM311LS is an industrial SFP transceiver for extending a supported Gigabit Ethernet connection over single-mode fibre. It uses 1310nm optics and a duplex LC/UPC connection for a link of up to 20km, with Digital Diagnostic Monitoring and a wide operating temperature range.

Best For: Industrial network links where compatible SFP hosts need Gigabit connectivity over 9/125µm single-mode fibre.
Before you order: Check the host's SFP compatibility list and use a matching transceiver at the other end. This is a duplex-fibre module, not a single-fibre BiDi unit. The 20km figure is a maximum reach under a suitable optical link budget; fibre and the far-end module are separate requirements.

What's in the Box

  • One ISM311LS industrial SFP module

What It Means in Practice

  • Install the module in a supported Gigabit SFP slot and connect the duplex fibre link.
  • DDM can expose optical operating information when supported by the host.
  • The industrial temperature rating applies to the module; the rest of the installation must meet its own environmental limits.

What Will Not Work

  • Not a 10Gbps SFP+ module and not a copper RJ45 adapter.
  • Requires single-mode fibre and duplex LC/UPC connections; multimode ISM311LM is a different product.
  • SFP-MSA form-factor compliance does not guarantee acceptance by every third-party switch.

Key Features


Longer single-mode links
Connect supported hosts over single-mode fibre for distances up to the stated 20km maximum.

Industrial temperature range
Specified for operation from -40 to 85°C.

Diagnostic support
DDM provides module monitoring capability through a compatible host.

Pluggable SFP format
Hot-pluggable design and SFP-MSA compatibility support serviceable network installation.

Technical Specifications

Model ISM311LS, industrial, UN version
Ethernet application 1000BASE-LX / Gigabit Ethernet
Transceiver data rate 1.25Gbps line rate
Form factor SFP, SFP-MSA compatible
Fibre 9/125µm single-mode
Wavelength 1310nm
Optical connector Duplex LC/UPC
Maximum reach 20km, subject to optical link budget
Monitoring Digital Diagnostic Monitoring (DDM)
Supply 3.3V from host
Hot swapping Supported with suitable host
Operating temperature -40 to 85°C
Operating humidity 5–85% RH, non-condensing
Dimensions 56.4 × 13.4 × 10.97mm
Laser class Class 1
Condition New

Frequently Asked Questions

Are the two LC openings two network ports?
No. They form the transmit and receive sides of one duplex optical link.
Is it 1Gbps or 1.25Gbps?
It serves Gigabit Ethernet; 1.25Gbps is the optical transceiver line rate listed in the datasheet.
Will it work in every SFP switch?
Check the host compatibility list. TP-Link warns that third-party devices may not accept every module.
Does it include the other end of the link?
This listing is for one module. A matching far-end module and suitable fibre are required separately.
Singular Expert Insight

Match the fibre type, connector and host support before considering distance. A 20km label does not replace an optical budget check, especially when patch panels and splices add loss.

Buyer’s Guide

✓ Buy it if you need an industrial-temperature Gigabit single-mode module for a supported SFP host.
✕ Skip it if your link needs 10Gbps, multimode fibre or a single-fibre BiDi pair.
→ Also consider matching optics for the far end and duplex LC/UPC single-mode cabling.
