TP-Link Omada SM311LS Gigabit SFP Module 1000BASE-LX Single-mode 9/125µm 1310nm LC Duplex DDM

Brand:
TP-LINK
TP-LINK-TLSM311LS-Networking
TP-Link Omada SM311LS Gigabit SFP Module 1000BASE-LX Single-mode 9/125µm 1310nm LC Duplex DDM
€29.62 inc. VAT
Buy
SM311LS(UN)
€24.89
€29.62 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:572635
EAN Code
1210002612043
Manufacturer
TP-LINK

Quick Specs

Type
SFP 1000BASE-LX
Interface
Duplex LC, 1310 nm
Reach
10 km (V5.x: 20 km)
Compatibility
TP-Link/Omada switches
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

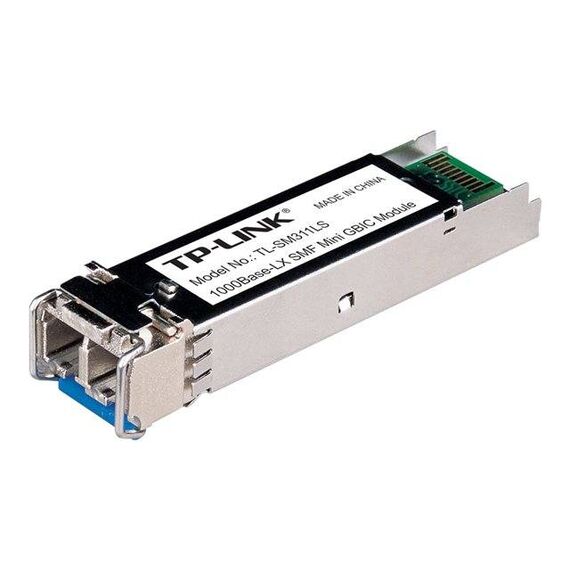

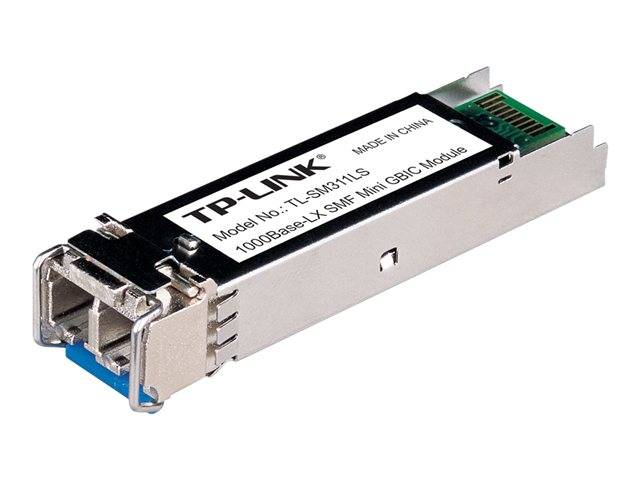

TP-Link Omada SM311LS 1000BASE-LX Single-mode Gigabit SFP Module

1000BASE-LXSingle-mode 9/125 µm1310 nm · LC duplexDDM

The TP-Link SM311LS (TL-SM311LS) is a 1000BASE-LX Gigabit SFP (mini-GBIC) module for single-mode 9/125 µm fibre at 1310 nm, with a duplex LC port, made to extend Gigabit links from TP-Link and Omada managed or smart switches across buildings and campuses.

It is hot-pluggable, compatible with the SFP Multi-Source Agreement and supports Digital Diagnostic Monitoring (DDM), so the switch can show the module's temperature, voltage and optical power.

Before you order: Reach depends on the hardware version: TP-Link rates the current V5.20 module at up to 20 km on 9/125 µm SMF, while earlier versions were listed at 10 km. Plan for 10 km unless the label on your unit shows V5.x. Both ends need a 1000BASE-LX (1310 nm) single-mode module.

What's in the Box

  • 1 × TP-Link SM311LS SFP module
  • Installation guide

What It Means in Practice

  • Typical use: a Gigabit uplink between two buildings, or between a core switch and a remote cabinet, over single-mode fibre.
  • Connect it with an OS2 single-mode duplex LC patch cable (UPC); a pair of SM311LS modules, one at each end, makes a complete link.
  • DDM shows received optical power in the switch interface, which helps confirm the link budget after installation.
  • Commercial temperature range 0–70 °C: for indoor racks and cabinets, not for unheated outdoor enclosures in extreme climates.

What Will Not Work

  • Multimode fibre (OM1–OM5) — this is a single-mode LX module.
  • 10 Gigabit (SFP+) links — it runs at 1.25 Gbps.
  • Far-end modules at 850 nm (SX) or BiDi single-fibre modules.
  • Switches that only accept their own vendor-coded SFPs — TP-Link designs it for its managed/smart switches.

Key Features


1000BASE-LX
IEEE 802.3z Gigabit over single-mode fibre at 1310 nm.

DDM
Monitor temperature, voltage and optical power from the switch.

Hot-pluggable
Swap modules without powering down the switch.

SFP-MSA
Standard mini-GBIC form factor.

Technical Specifications

Identification
Part Number SM311LS (TL-SM311LS)
EAN / GTIN 1210002612043
Brand TP-Link (Omada)
Optical
Standard IEEE 802.3z, 1000BASE-LX
Data rate 1.25 Gbps
Wavelength 1310 nm
Fibre 9/125 µm single-mode
Connector LC duplex
Reach Up to 20 km (V5.20); 10 km on earlier versions
Max. laser output 0.501 mW (-3 dBm)
Diagnostics DDM supported
Physical
Form factor SFP (mini-GBIC), hot-pluggable
Compliance SFP-MSA, FCC, CE
Power supply 3.3 V
Dimensions 55.4 × 13.7 × 12.9 mm
Operating temperature 0 to 70 °C
Storage temperature -40 to 85 °C
Humidity 10–90 % operating, 5–90 % storage, non-condensing
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Not published by the manufacturer — warranty claims handled through Singular

Frequently Asked Questions

Will it work in a non-TP-Link switch?
It follows the SFP-MSA standard, but TP-Link designs and supports it for its own managed and smart switches. Send us your switch model and we will tell you what we know.
How far can I go?
Plan on 10 km; TP-Link rates the current V5.20 hardware at up to 20 km on single-mode fibre.
What cable do I need?
An OS2 single-mode duplex LC patch cable with UPC (blue) connectors.
Singular Expert Insight · Buyer's Guide
The SM311LS is the standard single-mode Gigabit optic for TP-Link and Omada switches: 1310 nm LX over 9/125 µm fibre with DDM. Use one at each end with OS2 LC/UPC cabling, and confirm the switch is TP-Link or accepts MSA modules. See our switches with SFP/SFP+ ports.
✓ Buy it if you run TP-Link/Omada switches and need a Gigabit single-mode link of up to 10 km.
✕ Skip it if your fibre is multimode, you need 10G, or your switch accepts only vendor-coded optics.
→ Also consider a multimode SX SFP for short runs on OM3/OM4 fibre.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
