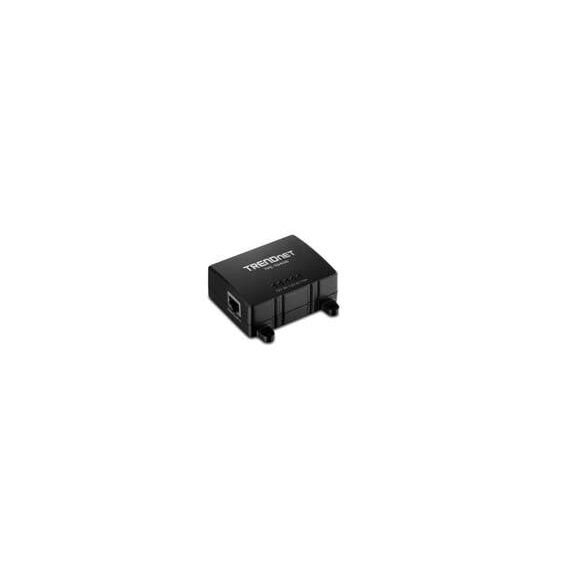

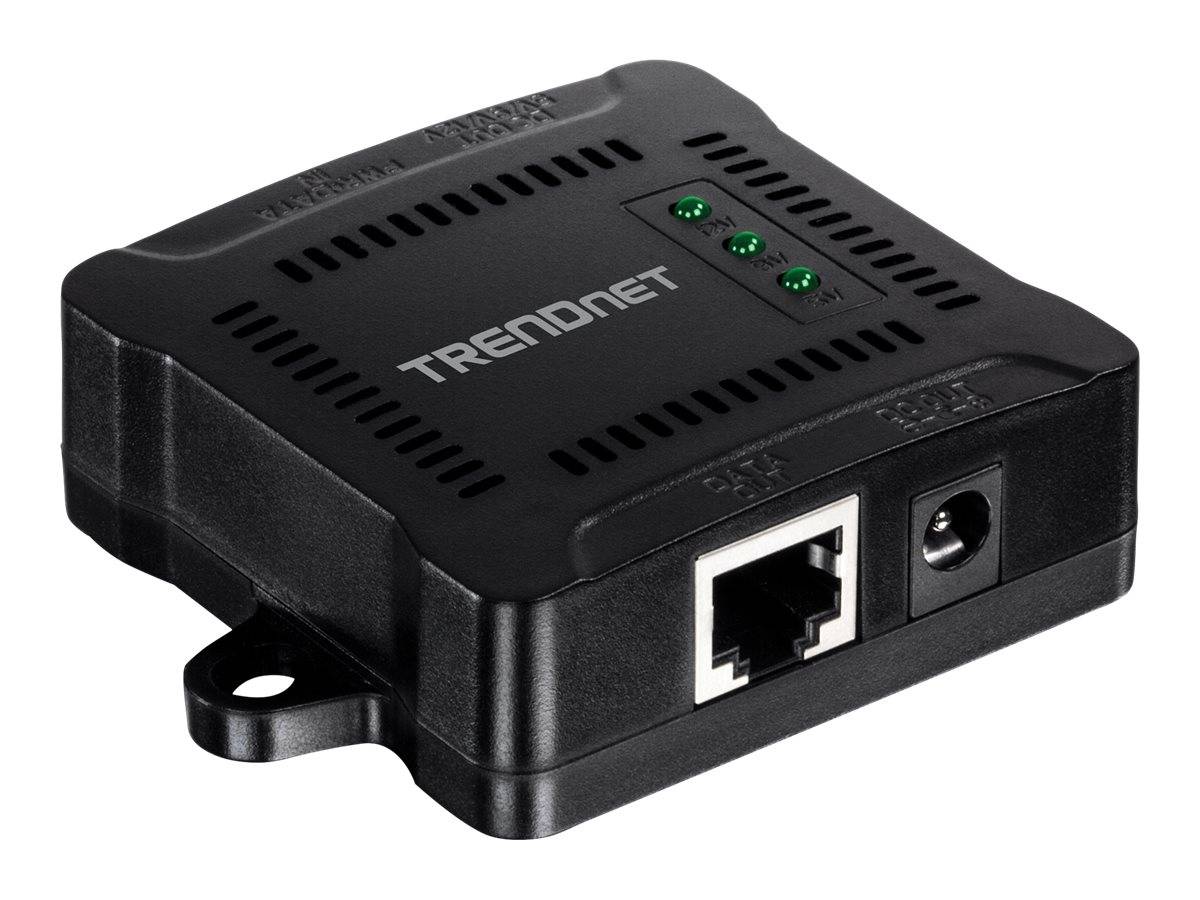

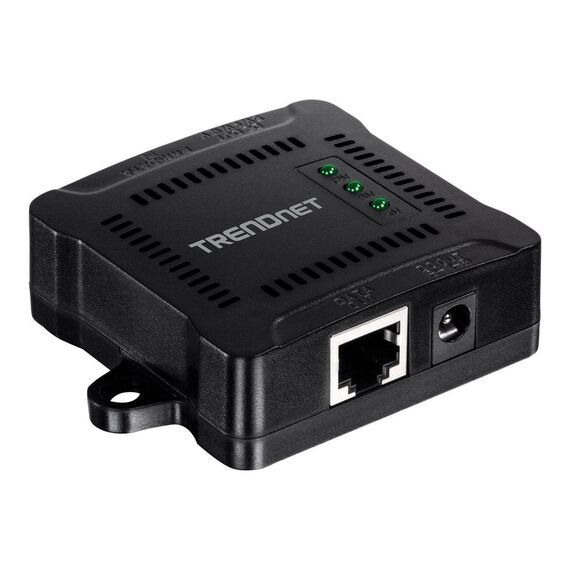

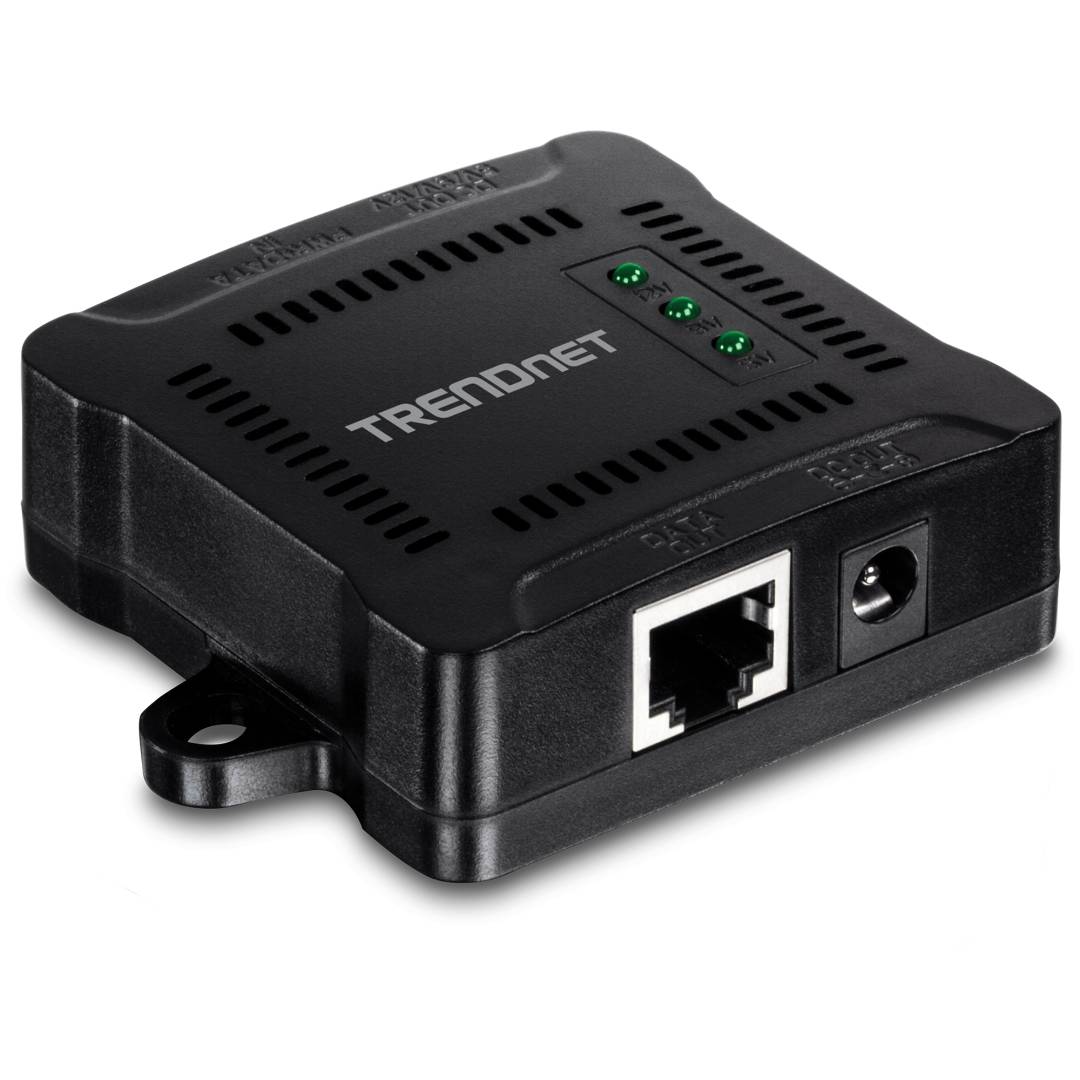

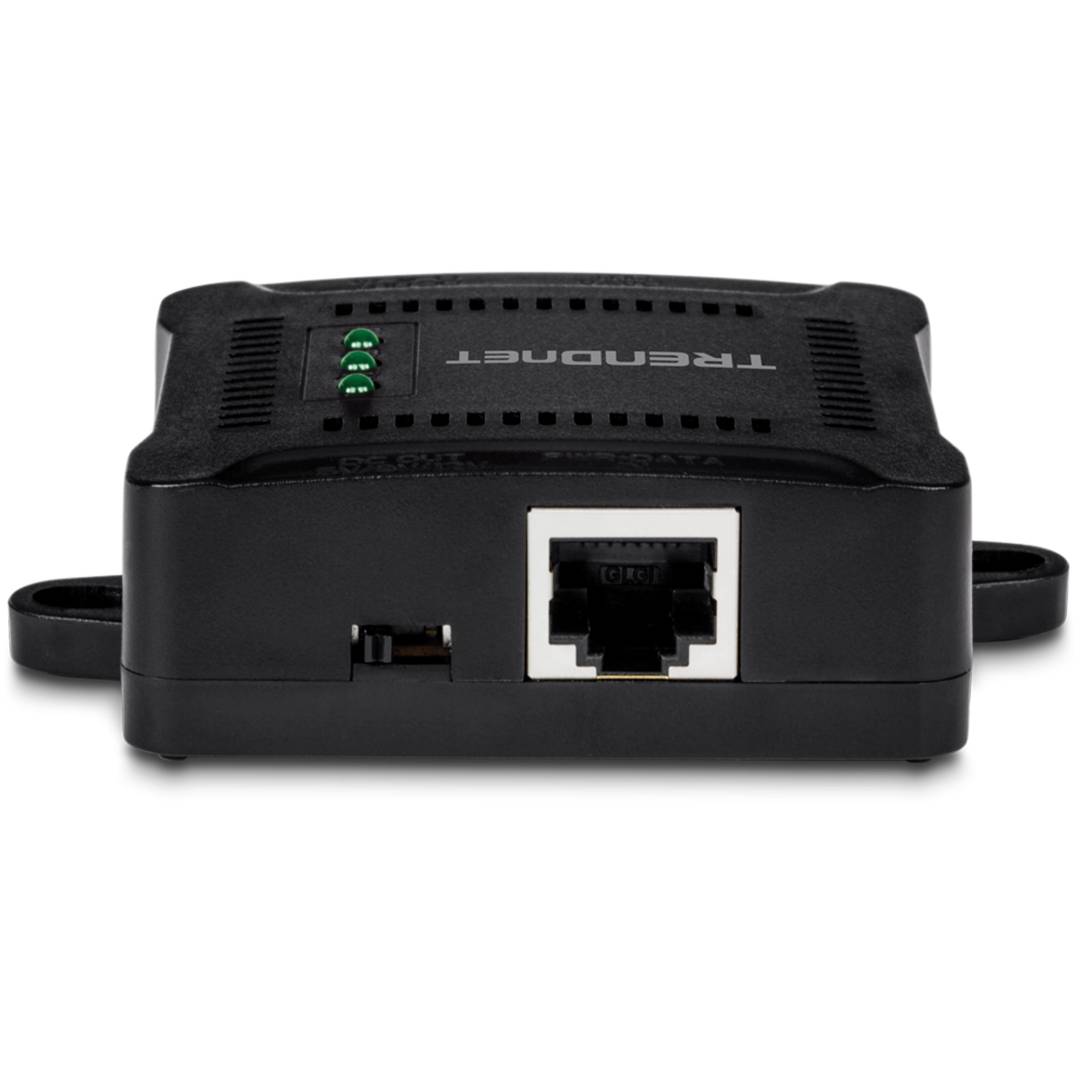

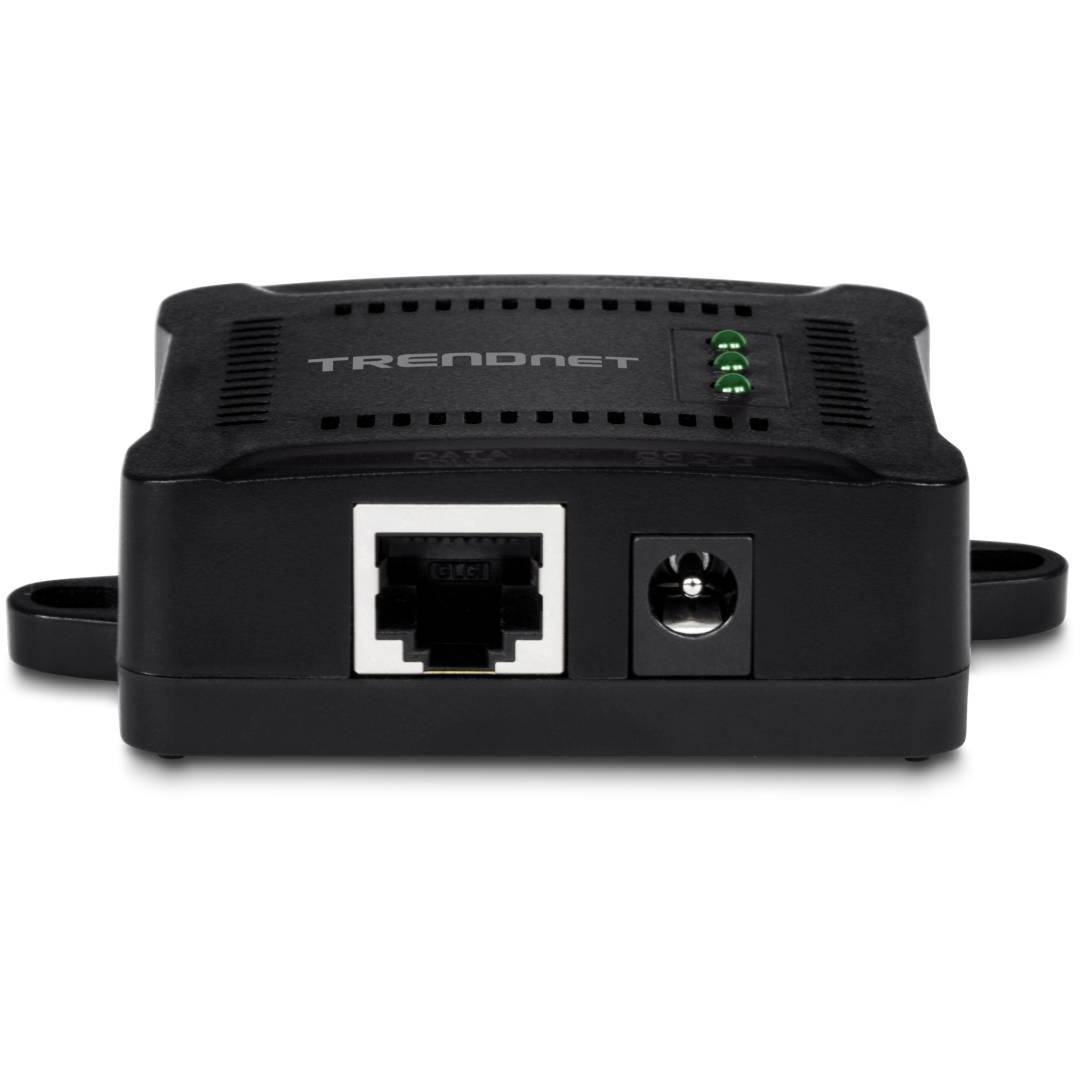

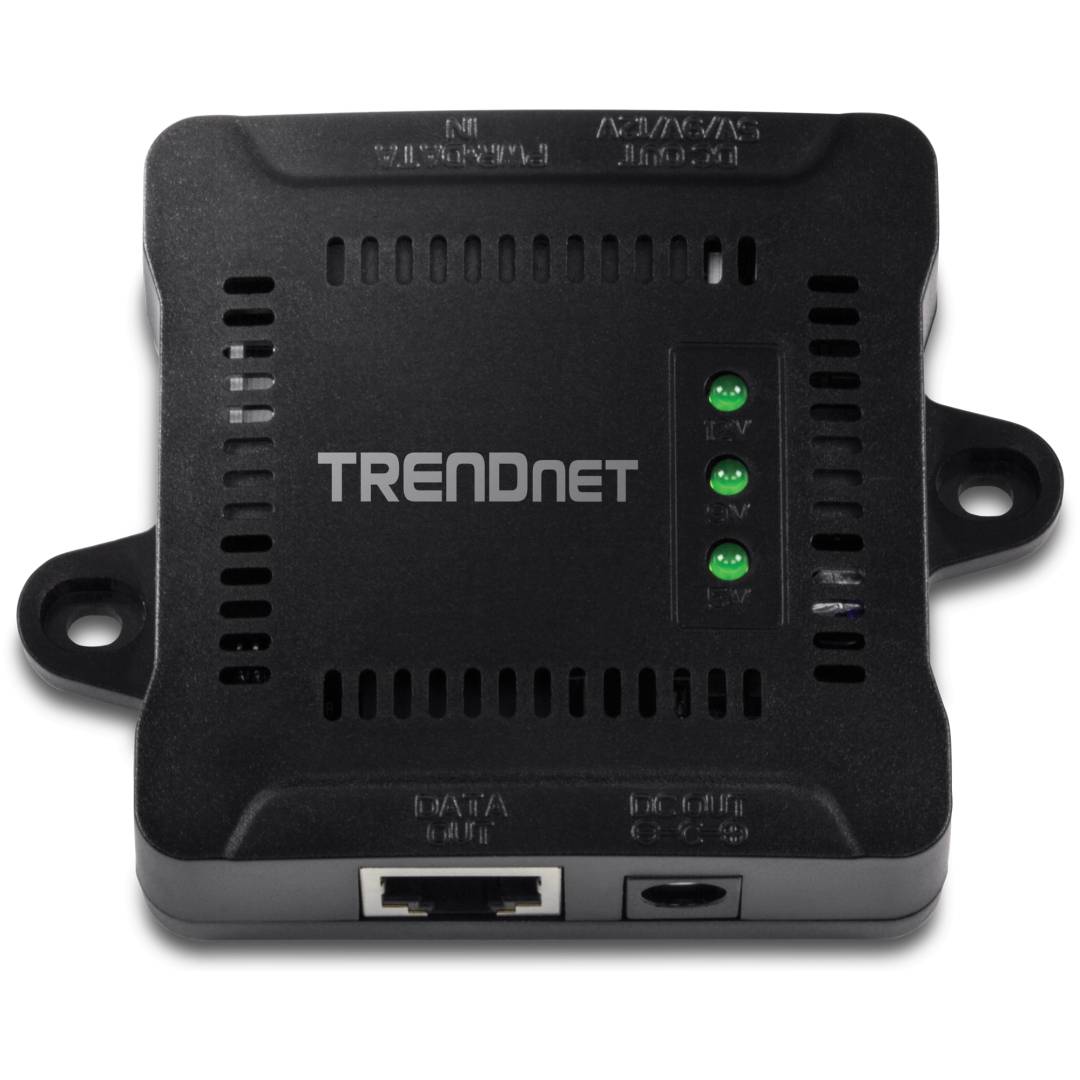

TRENDnet TPE-104GS Gigabit PoE Splitter IEEE 802.3af 5V 9V 12V DIP-Selectable DC Output up to 100 m Wall-Mountable

Brand:
Trendnet
TRENDnet TPE-104GS Gigabit PoE Splitter 802.3af 5/9/12V
TRENDnet TPE-104GS Gigabit PoE Splitter IEEE 802.3af 5V 9V 12V DIP-Selectable DC Output up to 100 m Wall-Mountable
€20.92 inc. VAT
Buy
TPE-104GS
€17.58
€20.92 inc. VAT
Ships from EU stock: 25 item(s)
+ −
Add to wish list Ask a question
Product Code
04:190409
EAN Code
0710931160178
Manufacturer
Trendnet

Quick Specs

Input
IEEE 802.3af PoE
DC output
5 V 2 A / 9 V 2 A / 12 V 1.5 A
Data
Gigabit, up to 100 m
Size / weight
84 x 63 x 22 mm, 64 g
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TPE-104GS — Gigabit data and DC power from one PoE cable

802.3afGigabit5 / 9 / 12 VWall-mountable

The TRENDnet TPE-104GS Gigabit PoE Splitter separates Gigabit data and DC power from a single PoE cable, so a device without PoE can run up to 100 m from a PoE switch or injector. A DIP switch sets the DC output to 5 V (2 A), 9 V (2 A) or 12 V (1.5 A), LEDs show the status, and the compact 84 x 63 x 22 mm, 64 g housing can be wall-mounted. TRENDnet’s current hardware version is V2, which is what this page describes.

Compatibility — check before buying:
The TPE-104GS needs an IEEE 802.3af PoE source upstream — it does not generate power. TRENDnet lists 802.3af only, not PoE+ (802.3at), so for devices that need more power choose the TPE-114GS. Output is limited to 5, 9 or 12 V; set the DIP switch before connecting. DC jumper cables are included, but check that one fits your device’s power socket. Tell us the exact model you have and we check compatibility before you order.

Best For

✓ Non-PoE IP cameras
✓ Wireless bridges and small APs
✓ Devices far from a power socket
✓ Ceiling and cabinet installs
✓ Offices with PoE switches
✓ Retrofits without new power lines

Key Features


Selectable voltage
DIP switch for 5 V 2 A, 9 V 2 A or 12 V 1.5 A.

Gigabit data
Full Gigabit on the data ports, up to 2000 Mbps full duplex.

Up to 100 m
Install the device up to 100 m from the PoE source.

Compact and mountable
84 x 63 x 22 mm, 64 g, with wall-mount option and LEDs.

Technical Specifications

Identification
Brand TRENDnet
Product TPE-104GS Gigabit PoE Splitter (V2)
Part Number TPE-104GS
EAN / GTIN 0710931160178
Type Gigabit PoE splitter
Hardware version V2 (current)
Ports
PoE In 1x Gigabit port (data + power)
Data Out 1x Gigabit port
Power Out 1x DC output
Power
Standard IEEE 802.3af
DC output 5 V 2 A / 9 V 2 A / 12 V 1.5 A (DIP switch)
Consumption 0.5 W max
Physical & Environment
Dimensions 84 x 63 x 22 mm
Weight 64 g
Distance Up to 100 m
Operating temperature 0 to 40 °C
Certifications CE, FCC
In the Box

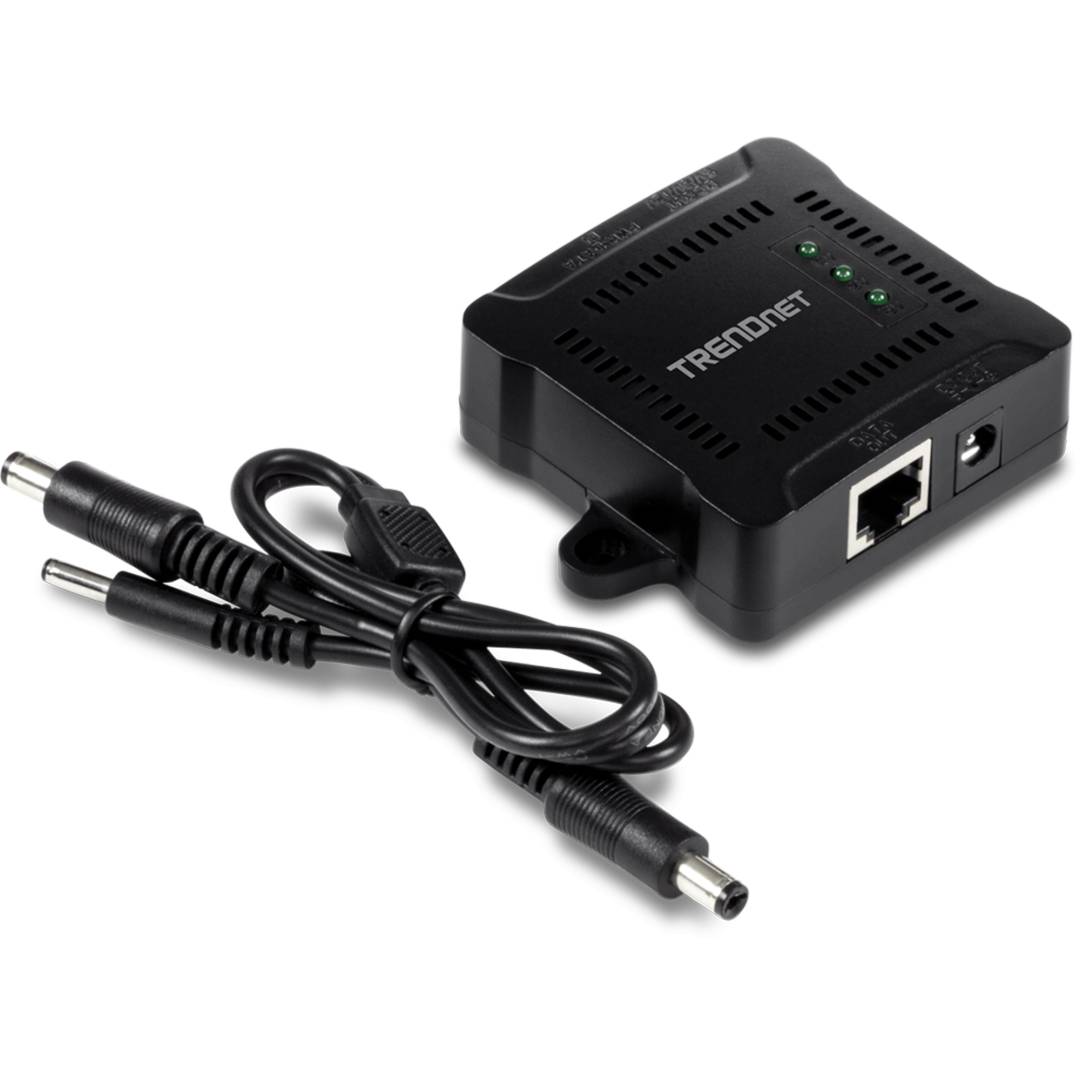

Included TPE-104GS, DC jumper cables, quick installation guide
Not Included PoE switch or injector, network cables, power adapter
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term TRENDnet publishes a 3-year limited warranty on this model. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it support PoE+?
TRENDnet lists IEEE 802.3af only. For higher-power devices look at the TPE-114GS.
Which voltages can it output?
5 V (2 A), 9 V (2 A) or 12 V (1.5 A), set by DIP switch.
Do I need a power adapter?
No. It takes power from the PoE switch or injector.
Is it Gigabit?
Yes, the data ports are Gigabit.
Singular Expert Insight
The TPE-104GS is a tidy way to feed a non-PoE camera or radio from a PoE switch. Set the DIP switch first and check the DC plug with the supplied jumpers. For devices that need more than 12 V or more than about 18 W, use a PoE+ splitter. PoE switches are in our PoE switches and more power parts in our networking accessories.

Buyer’s Guide

Buy it if

you need to run a 5, 9 or 12 V device from an 802.3af PoE port at Gigabit speed.

Skip it if

your device needs PoE+ power or 24/48 V.

Also consider

TRENDnet TPE-114GS (PoE+ splitter).
