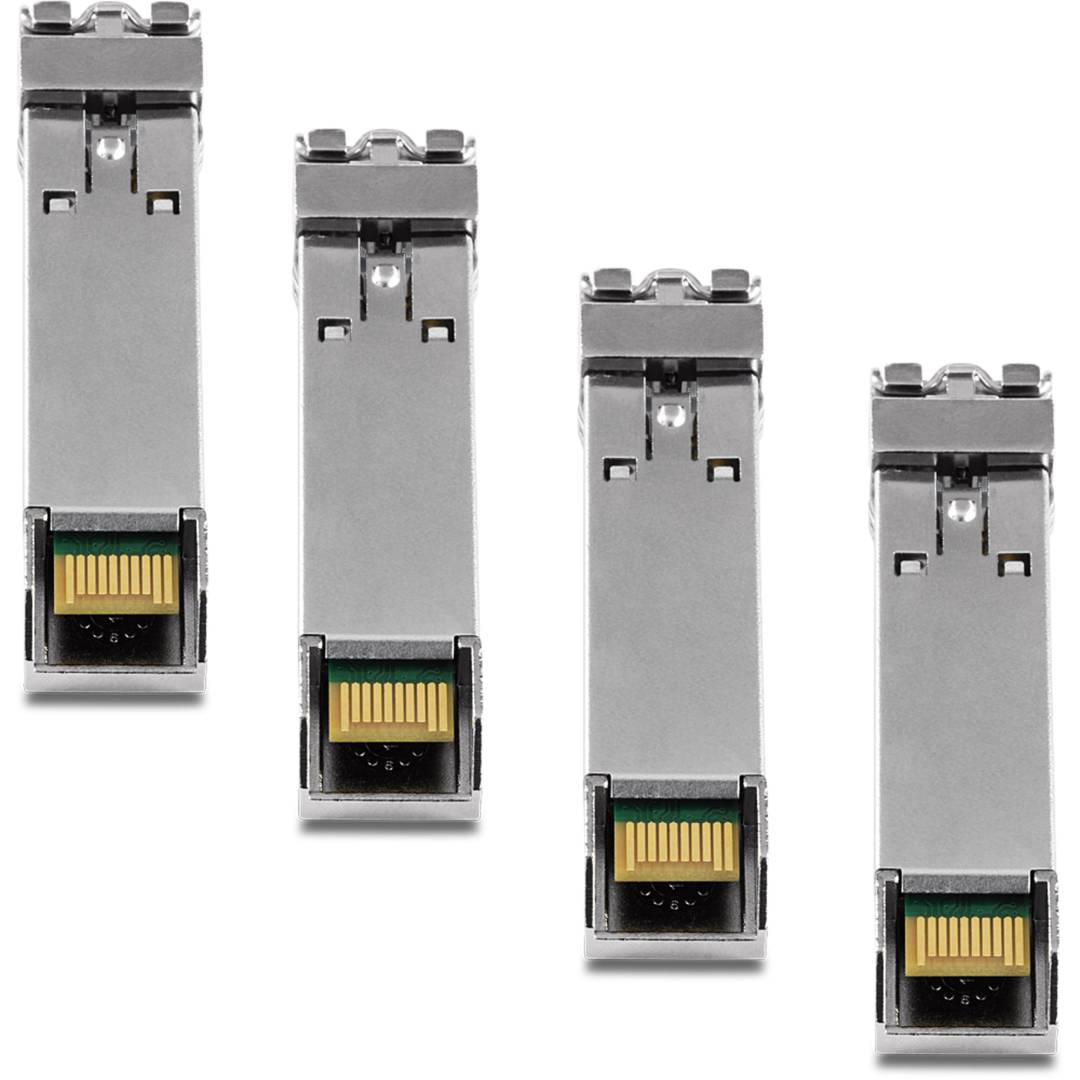

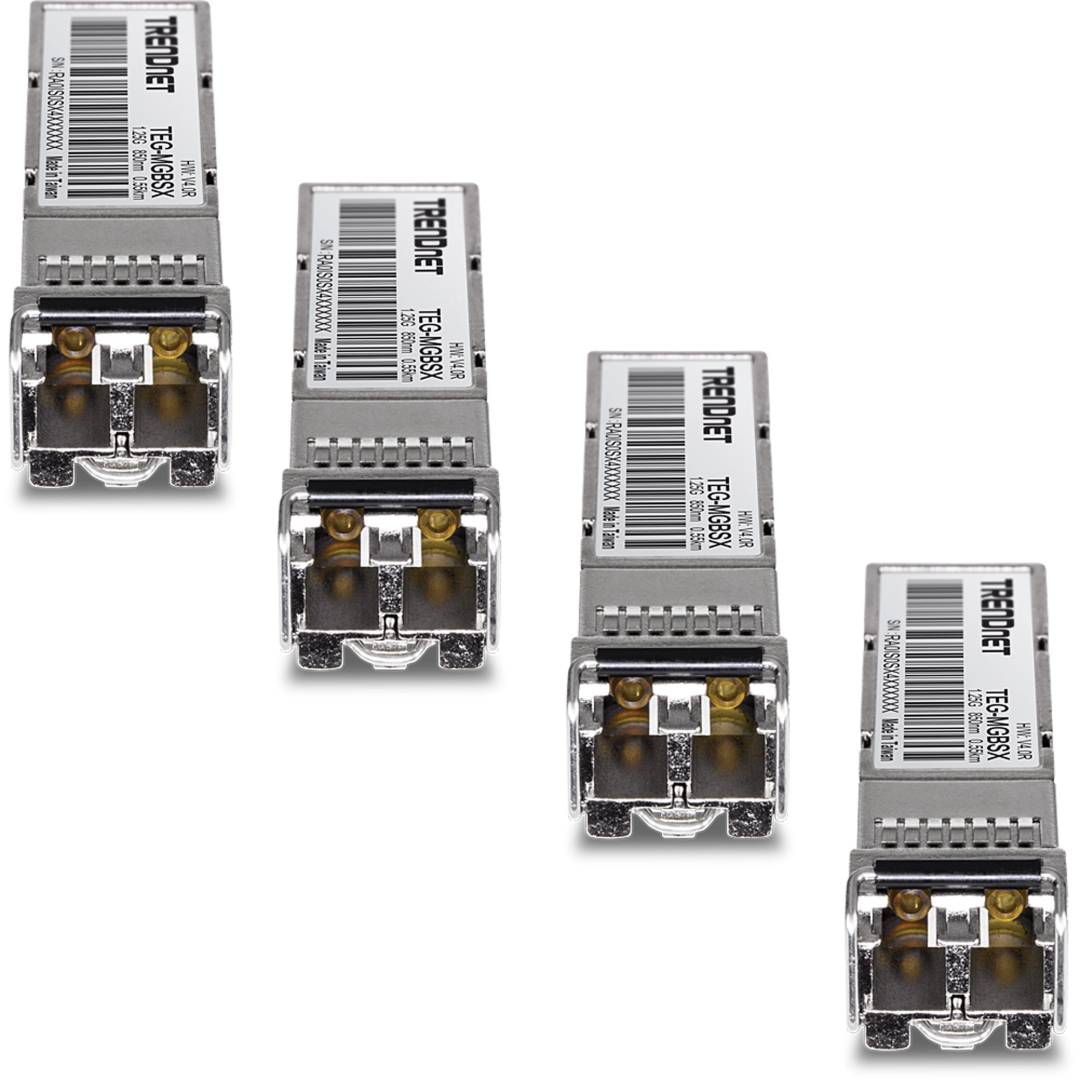

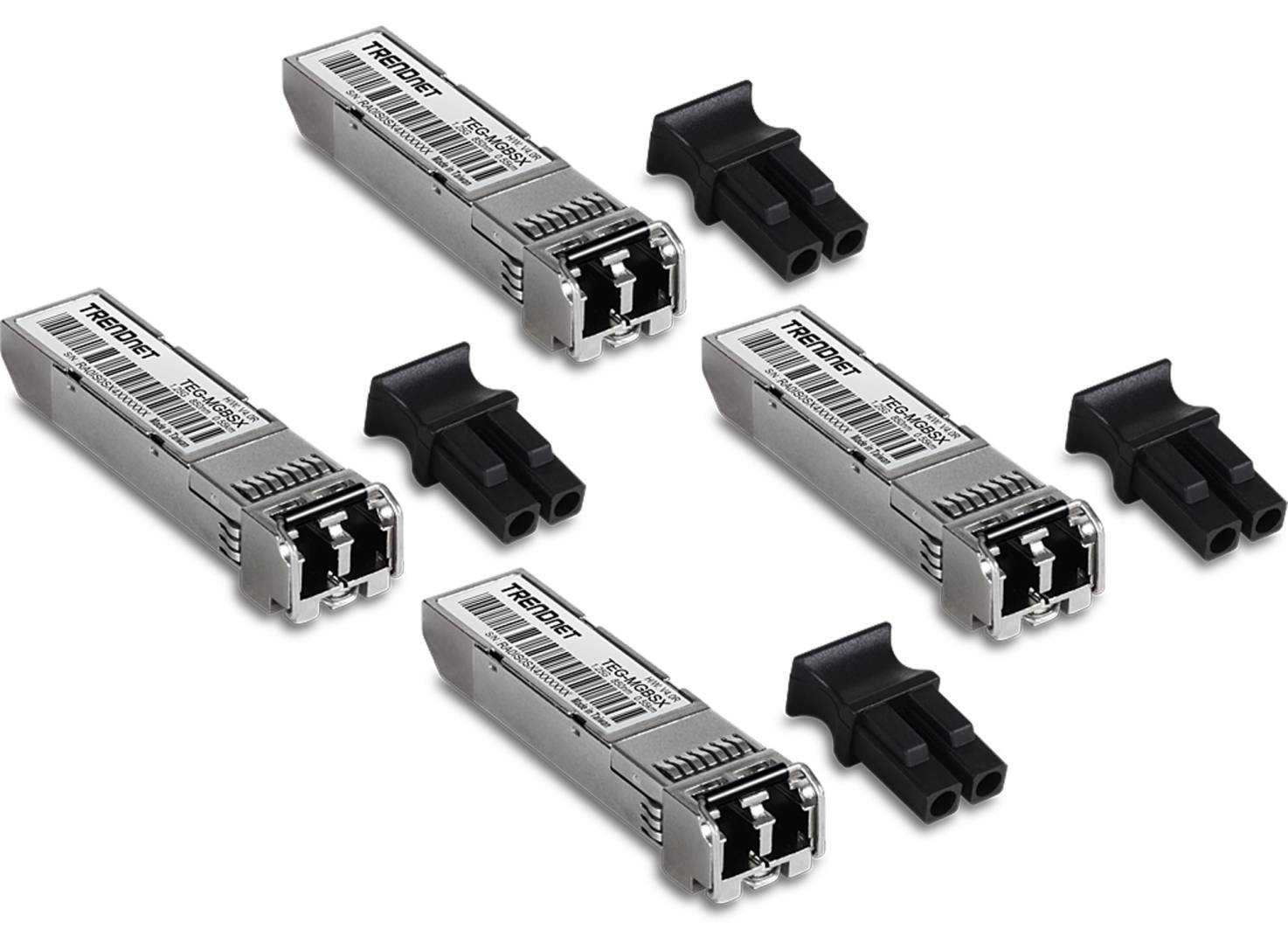

TRENDnet 4-Pack SFP Multi-Mode LC Module 1000BASE-SX, 850nm, up to 550m, Hot-Pluggable Mini-GBIC Transceivers

Brand:
Trendnet

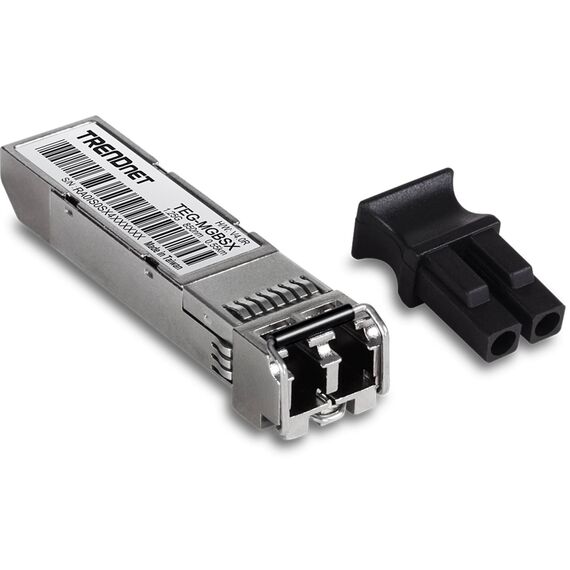

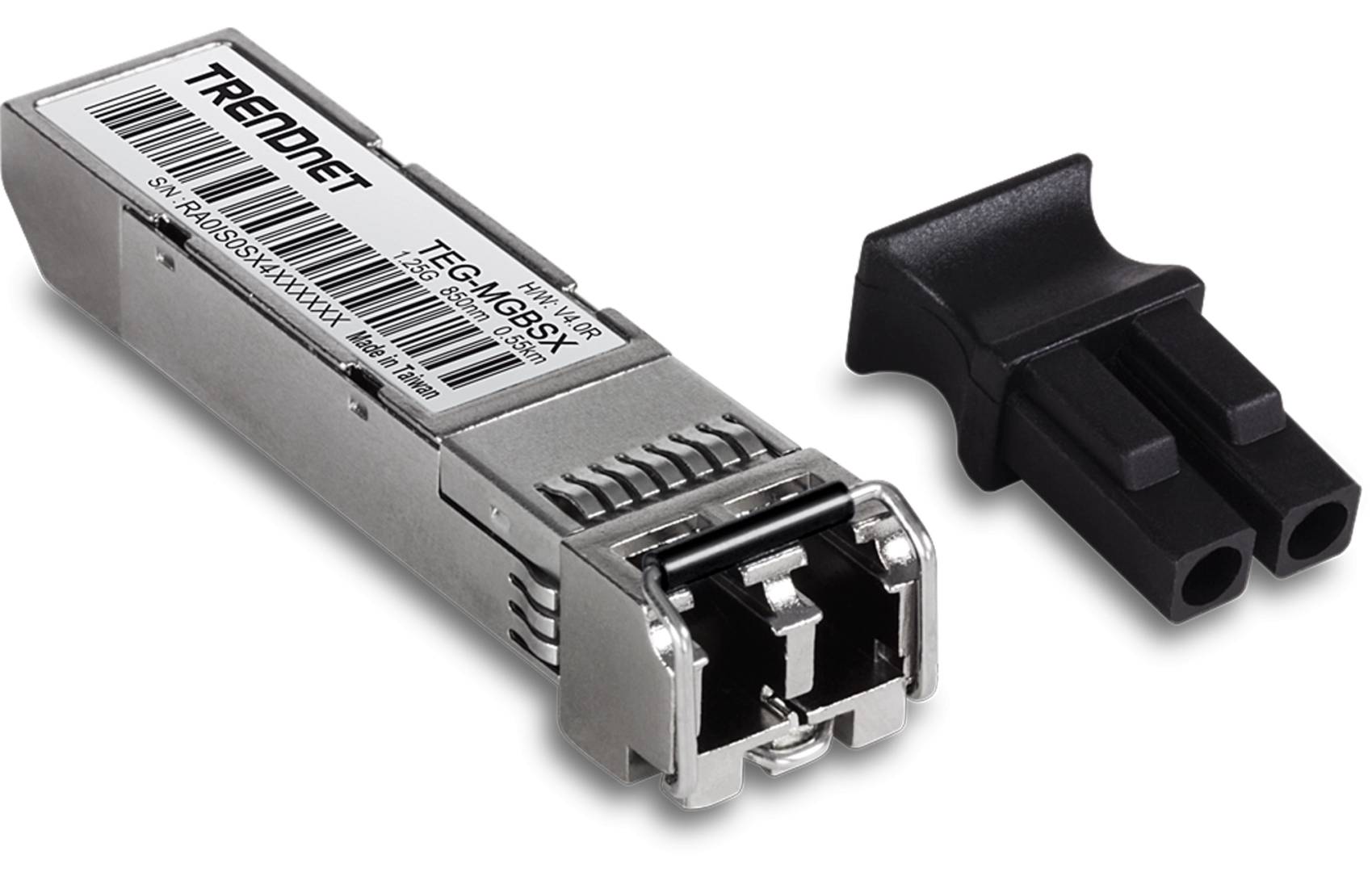

TRENDnet TEG-MGBSX/4 SFP 1000BASE-SX LC 4-Pack
TRENDnet 4-Pack SFP Multi-Mode LC Module 1000BASE-SX, 850nm, up to 550m, Hot-Pluggable Mini-GBIC Transceivers
€93.7 inc. VAT
Buy
TEG-MGBSX/4
€78.74
€93.70 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:603856
EAN Code
0710931140637
Manufacturer
Trendnet

Quick Specs

Type
SFP transceiver 1000BASE-SX, pack of 4
Connectors/Interface
Duplex LC/UPC, multimode 850nm
Key spec
1.25 Gbps, up to 550 m
Compatibility
MSA-compliant Gigabit SFP slots
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TEG-MGBSX/4 — 4-Pack SFP Multi-Mode LC Modules, 1000BASE-SX, up to 550 m

4 × SFP 1000BASE-SX850 nm multimodeDuplex LCUp to 550 m

The TRENDnet TEG-MGBSX/4 is a pack of four 1000BASE-SX SFP (mini-GBIC) transceivers with duplex LC connectors, for Gigabit fibre links over multimode fibre at 850 nm up to 550 metres. Four modules cover two complete fibre links — one module at each end — between switches, buildings on the same site or floors of an office.

Each module is hot-pluggable, compliant with IEEE 802.3z and the SFP MSA, and housed in a metal enclosure. Buying the 4-pack is the practical way to equip a pair of uplinks or a small fibre backbone with identical optics.

Before you order: Gigabit (1G) multimode only. The switch must accept third-party MSA SFPs — some brands (e.g. Cisco, HPE/Aruba, Juniper) restrict non-branded optics; send us the switch model and we will check.

What's in the Box

  • 4 × TRENDnet TEG-MGBSX SFP multimode LC modules
  • Quick installation guide

What It Means in Practice

  • Connect two switches over multimode fibre up to 550 m — enough for most buildings and small campuses.
  • Four modules equip two complete links, e.g. two uplinks from access switches to a core switch.
  • Hot-pluggable: insert or replace a module without powering down the switch.
  • Both ends of a link must be 1000BASE-SX at 850 nm — pair these modules with each other.

What Will Not Work

  • Singlemode (OS1/OS2, yellow) fibre — use a 1000BASE-LX module instead.
  • 10G SFP+ links — these are 1 Gbps modules; they do not run at 10G and do not support 100 Mbps.
  • RJ45 copper connections — these are fibre modules.
  • Switches that lock out non-branded optics.

Key Features


1000BASE-SX at 850 nm
IEEE 802.3z Gigabit over multimode fibre, up to 550 m.

Duplex LC
Standard LC/UPC duplex interface for multimode LC-LC patch cords.

Hot-pluggable
Swap modules live without rebooting the switch.

Metal housing
Robust metal enclosure, MSA form factor for standard SFP slots.

Technical Specifications

Identification
Part Number TEG-MGBSX/4
EAN / GTIN 0710931140637
Brand TRENDnet
Product type SFP transceiver, 4-pack
Optical
Standard IEEE 802.3z 1000BASE-SX, ANSI Fibre Channel
Fibre Multimode
Wavelength 850 nm
Connector Duplex LC/UPC
Max distance 550 m
Data rate Up to 1.25 Gbps
Tx power -9 to -3 dBm
Rx sensitivity -20 dBm
Physical & environment
Form factor SFP (mini-GBIC), MSA compliant, hot-pluggable
Power consumption 0.8 W max per module
Dimensions 57 × 13 × 12 mm per module
Weight 18 g per module
Operating temperature 0 to 70 °C
Humidity Max 85 % non-condensing
Certifications CE, FCC
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Lifetime warranty per TRENDnet — claims handled through Singular

Frequently Asked Questions

How many links does a 4-pack cover?
Two complete links — each link needs one module at each end.
Which patch cable do I need?
A multimode duplex LC-LC patch cord (OM2, OM3 or OM4) at 50/125 µm or 62.5/125 µm, matching your installed fibre.
Will they work in a TRENDnet switch?
Yes — TRENDnet SFP switches accept them. For other brands, check that the switch allows third-party MSA optics.
Singular Expert Insight · Buyer's Guide
For short Gigabit fibre runs inside a building, 1000BASE-SX over multimode is still the lowest-cost, most compatible choice — just make sure both ends match and the switch accepts MSA optics. Browse our switches with SFP ports.
✓ Buy it if you need four identical Gigabit multimode SFPs for two fibre links up to 550 m.
✕ Skip it if your fibre is singlemode, the link must run at 10G, or your switch only accepts branded optics.
→ Also consider TRENDnet TEG-MGBS10 (1000BASE-LX singlemode) for longer runs, or 10G SFP+ SR modules for 10G multimode links.
Not sure your switch accepts third-party SFPs? Send us the switch model and we will check before you order.
