TRENDnet TI-BEP200 2-Port Industrial Outdoor Gigabit PoE+ Extender Active and Passive 24/48V Output IP67 PoE++ Input Adds 100 m

Brand:
Trendnet
TRENDnet TI-BEP200 Outdoor Gigabit PoE+ Extender IP67
TRENDnet TI-BEP200 2-Port Industrial Outdoor Gigabit PoE+ Extender Active and Passive 24/48V Output IP67 PoE++ Input Adds 100 m
€249.8 inc. VAT
Buy
TI-BEP200
€209.92
€249.80 inc. VAT
Ships from EU stock: 1 item(s)
+ −
Add to wish list Ask a question
Product Code
04:450080
EAN Code
0710931162400
Manufacturer
Trendnet

Quick Specs

Outputs
1 × PoE+ 802.3at, 1 × passive 24/48 V
Input
PoE++ 60–90 W (auto-detects af/at)
Reach
+100 m, up to 4 cascaded
Housing
IP67, −40 to 75 °C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

TRENDnet TI-BEP200 Outdoor PoE+ Extender

IP67GigabitActive + passive PoE−40 to 75 °C

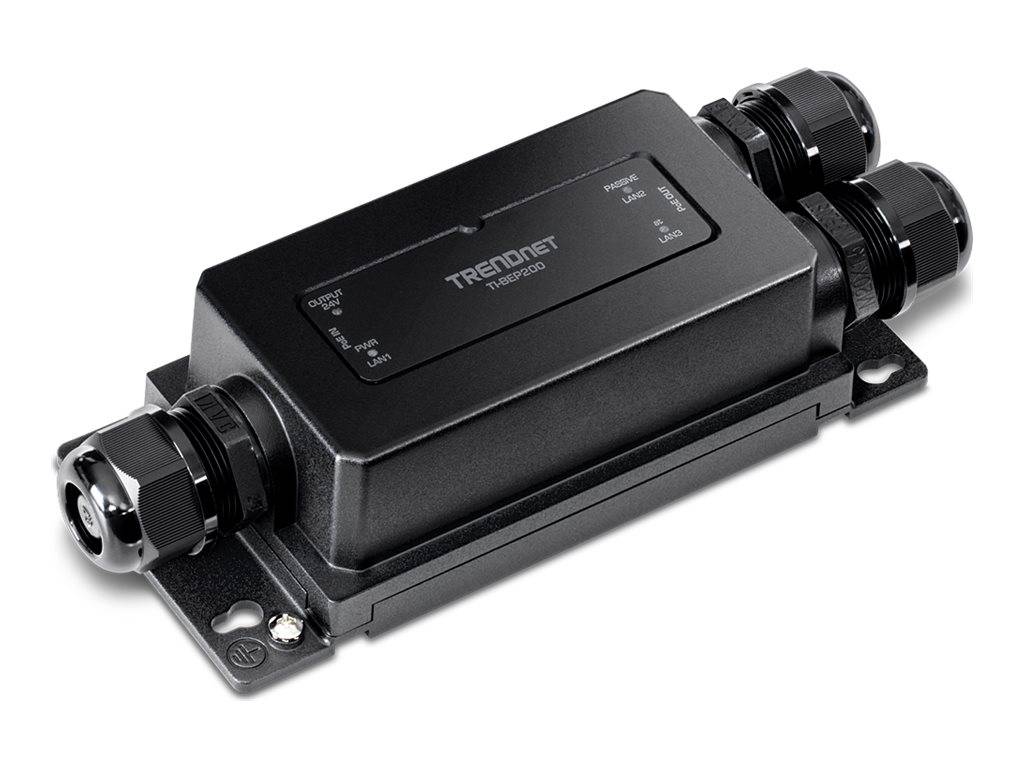

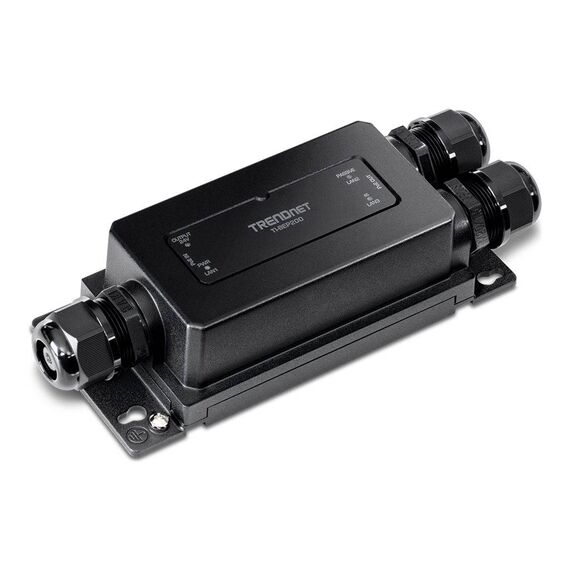

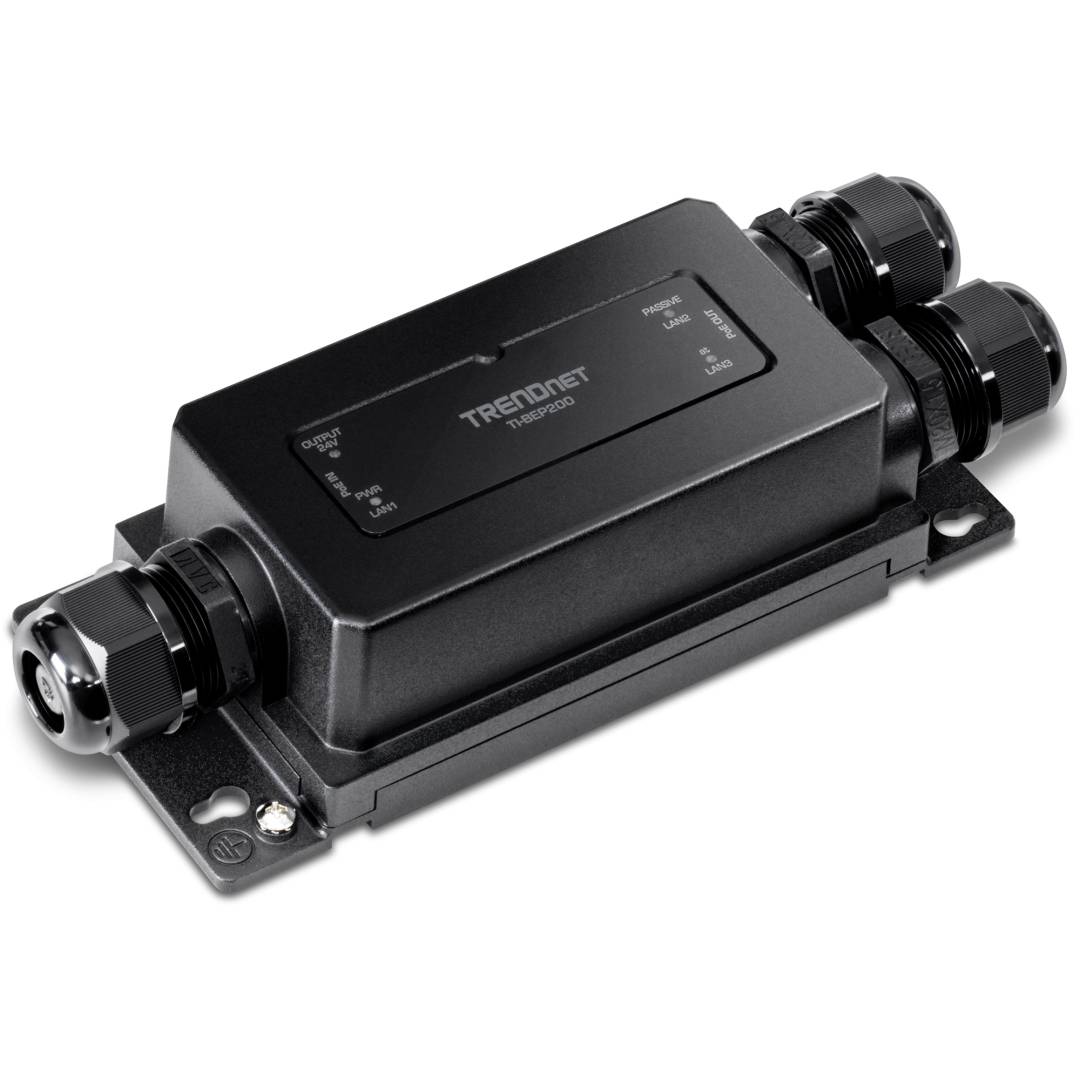

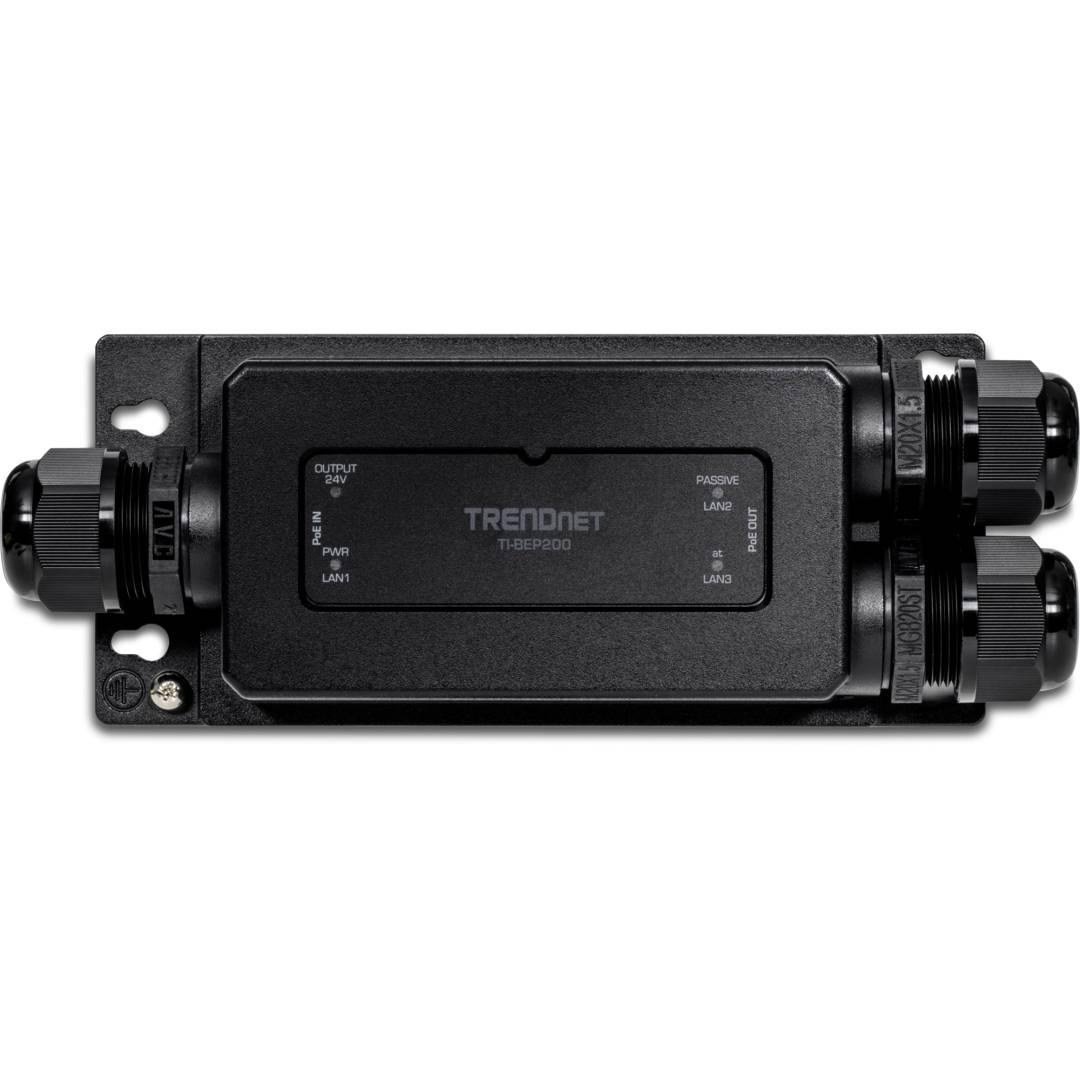

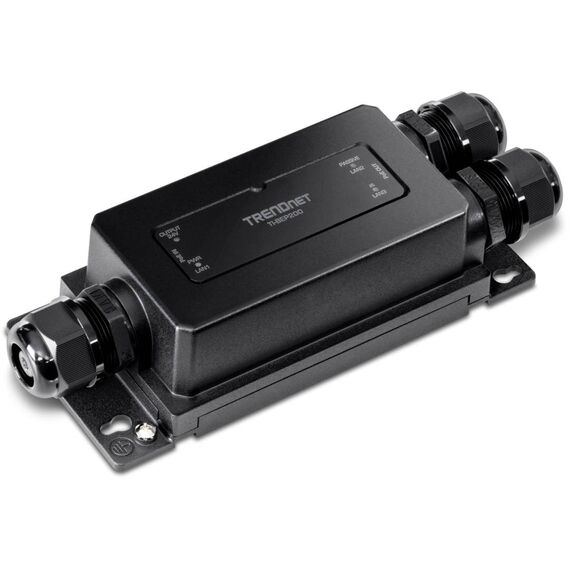

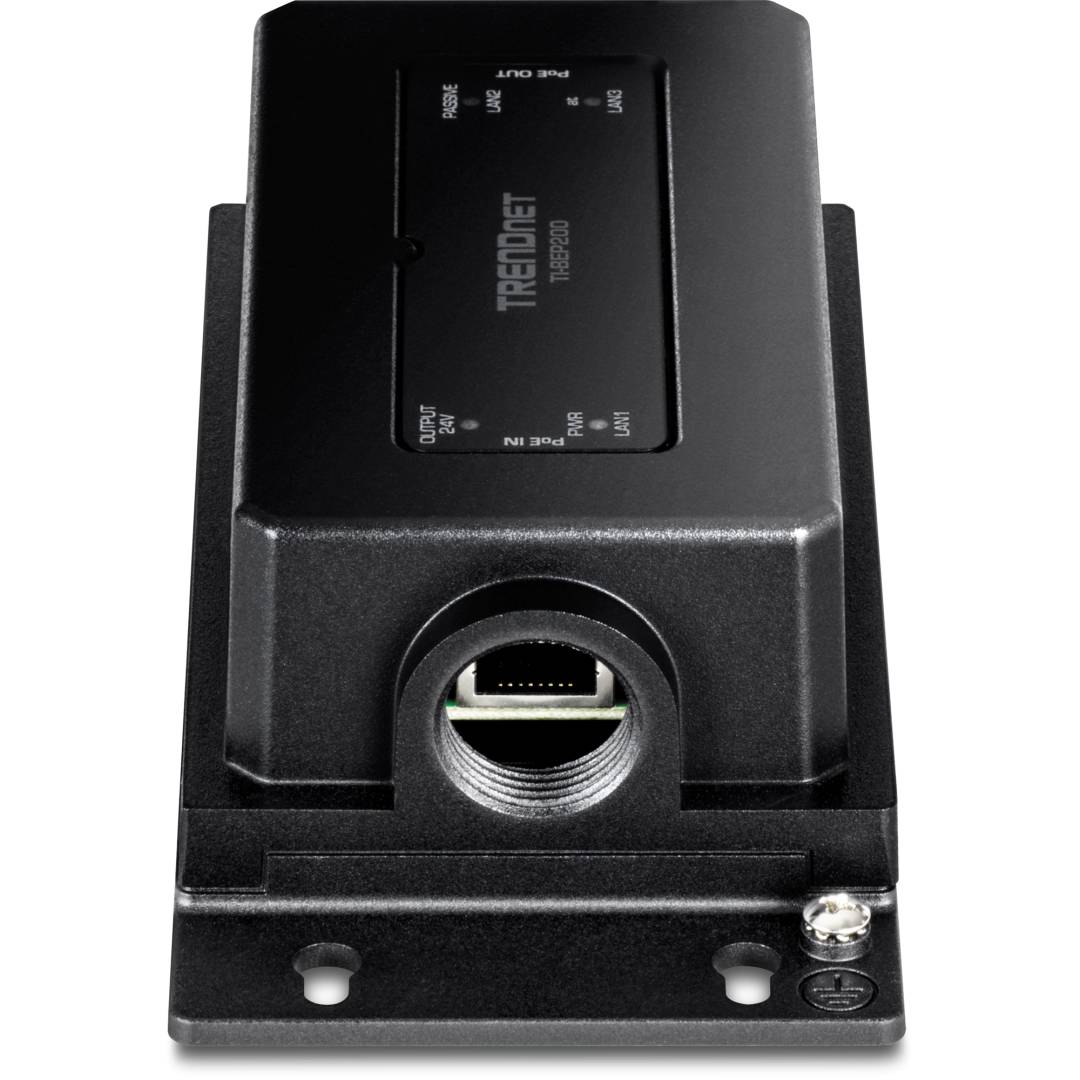

The TRENDnet TI-BEP200 is a 2-port industrial outdoor Gigabit PoE extender. It takes one PoE++ feed, adds another 100 m to the cable run, and splits it into two powered outputs: one standard IEEE 802.3at PoE+ port and one passive PoE port at 24 V or 48 V, selected with a DIP switch (48 V by default). The unit itself runs on the incoming PoE, needs no power adapter, and has 4 kV surge protection. It sits in an IP67 housing for −40 to 75 °C, measures 167 × 74 × 44 mm and ships with cable glands and wall-mount screws. In practice it brings two cameras or a camera plus a radio to a pole up to 200 m from the switch.

Compatibility — check before buying:
The output depends on the input. TRENDnet publishes 25 W out from a 30 W PoE+ source, 30 W out from 60 W, and 60 W total across both ports only from a 90 W PoE++ source; the PoE+ port is 30 W maximum in every case. The passive port puts 24 or 48 V on the cable — set the voltage to match your device before connecting. TRENDnet also sells the TI-BE200, which has two PoE++ outputs and no passive port. Not sure? Tell us your model and we check it for you.

Best For

✓ Outdoor poles and masts
✓ Two cameras from one cable
✓ Passive-PoE radios and bridges
✓ Car parks and perimeters
✓ Industrial yards
✓ Runs up to 200 m

Key Features


Active and passive PoE
802.3at PoE+ port plus 24/48 V passive port.

Adds 100 m
200 m in total; up to 4 units cascaded.

No power adapter
Runs on the incoming PoE++.

IP67 industrial
−40 to 75 °C, 4 kV surge protection.

Technical Specifications

Identification
Brand TRENDnet
Product 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender (v1.0R)
Part Number TI-BEP200
EAN / GTIN 0710931162400
Model TI-BEP200
Hardware version v1.0R
Product Type Outdoor PoE extender, 1 in / 2 out
Ports & Data
Input 1 × Gigabit PoE++ in
Outputs 1 × Gigabit PoE+ out, 1 × Gigabit 24/48 V passive PoE out
Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3af, 802.3at, 802.3bt
Switching capacity 2 Gbps full duplex
Passive voltage 24 or 48 V DC by DIP switch (default 48 V)
Power Budget
30 W input 25 W output
60 W input 30 W output
90 W PoE++ input 60 W total across both outputs
PoE+ port 30 W maximum
Own consumption Max. 3.9 W with no device connected
Distance
Extension +100 m (200 m total from the source)
Cascading Up to 4 units, 500 m total
Physical & Environment
Dimensions 167 × 74 × 44 mm
Weight 266 g
Housing IP67
Operating temperature −40 to 75 °C
Surge protection 4 kV
Mounting Wall mount
Certifications CE, FCC
Before You Order
PoE source 90 W PoE++ for full 60 W output
Passive device Set 24 V or 48 V correctly
Glands 3 IP67 glands in the box
In the Box

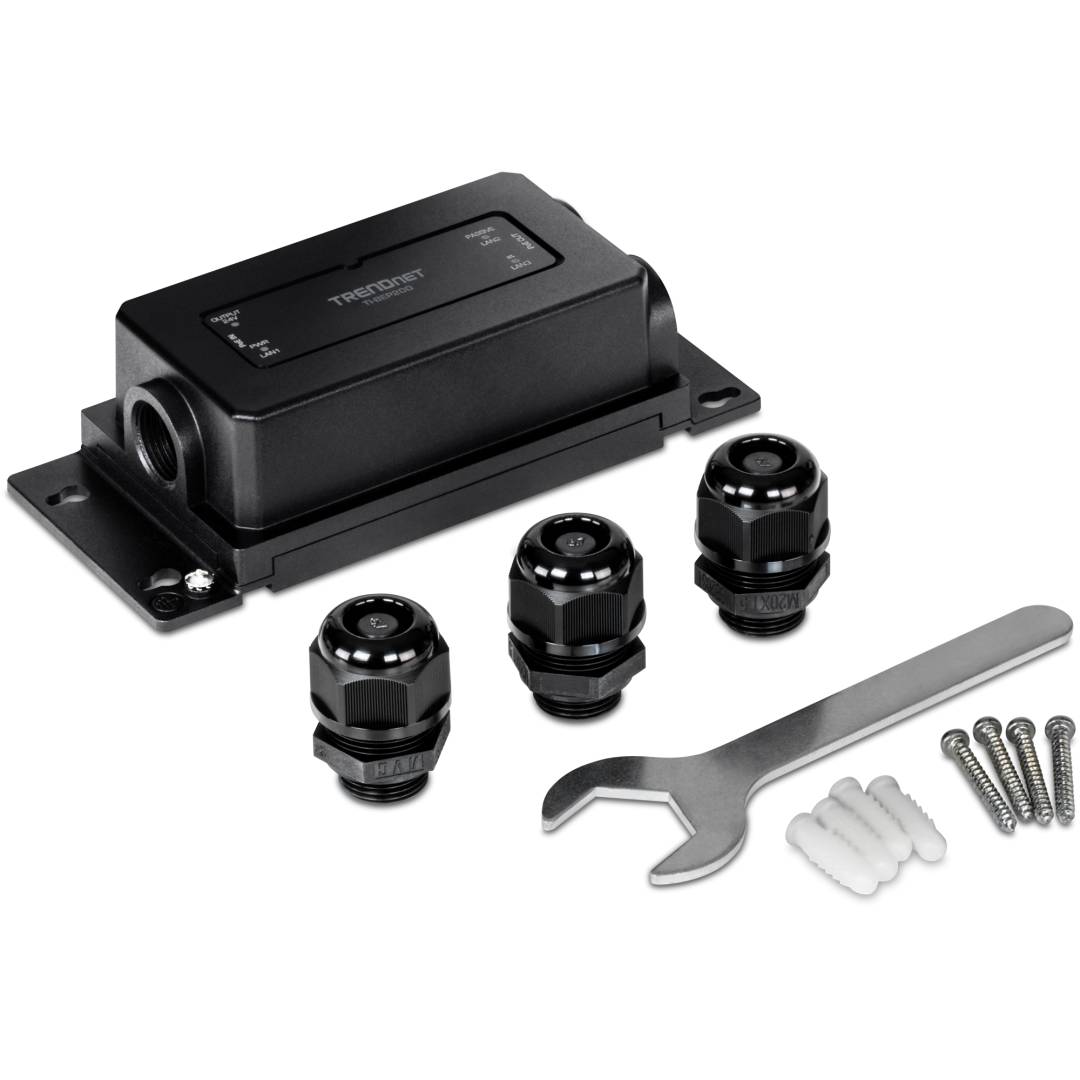

Included TI-BEP200, 3 × IP67 cable glands, wrench, wall-mount screws, quick installation guide
Not Included PoE++ switch or injector; network cables
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term TRENDnet publishes a 3-year warranty for this model on its German product page; terms vary by region. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Does it need a power supply?
No, it runs on the incoming PoE.
How much power reaches my devices?
Up to 60 W total with a 90 W PoE++ source; less with PoE+ or 60 W sources.
What is the passive port for?
Devices that use 24 V or 48 V passive PoE, set by DIP switch.
Can it be mounted outdoors?
Yes, it is IP67 rated for −40 to 75 °C.
Singular Expert Insight
Feed it from a 90 W PoE++ port and you can run a camera and a wireless bridge from one cable on a pole. Always check the passive voltage before plugging in a radio. For PoE++ sources, see our PoE switches.

Buyer’s Guide

Buy it if

You need to power two outdoor devices at up to 200 m from one PoE++ cable.

Skip it if

Your PoE source is only 802.3af/at and you need full power on both ports.

Also consider

TRENDnet TI-BE200 — two PoE++ outputs, no passive port.
