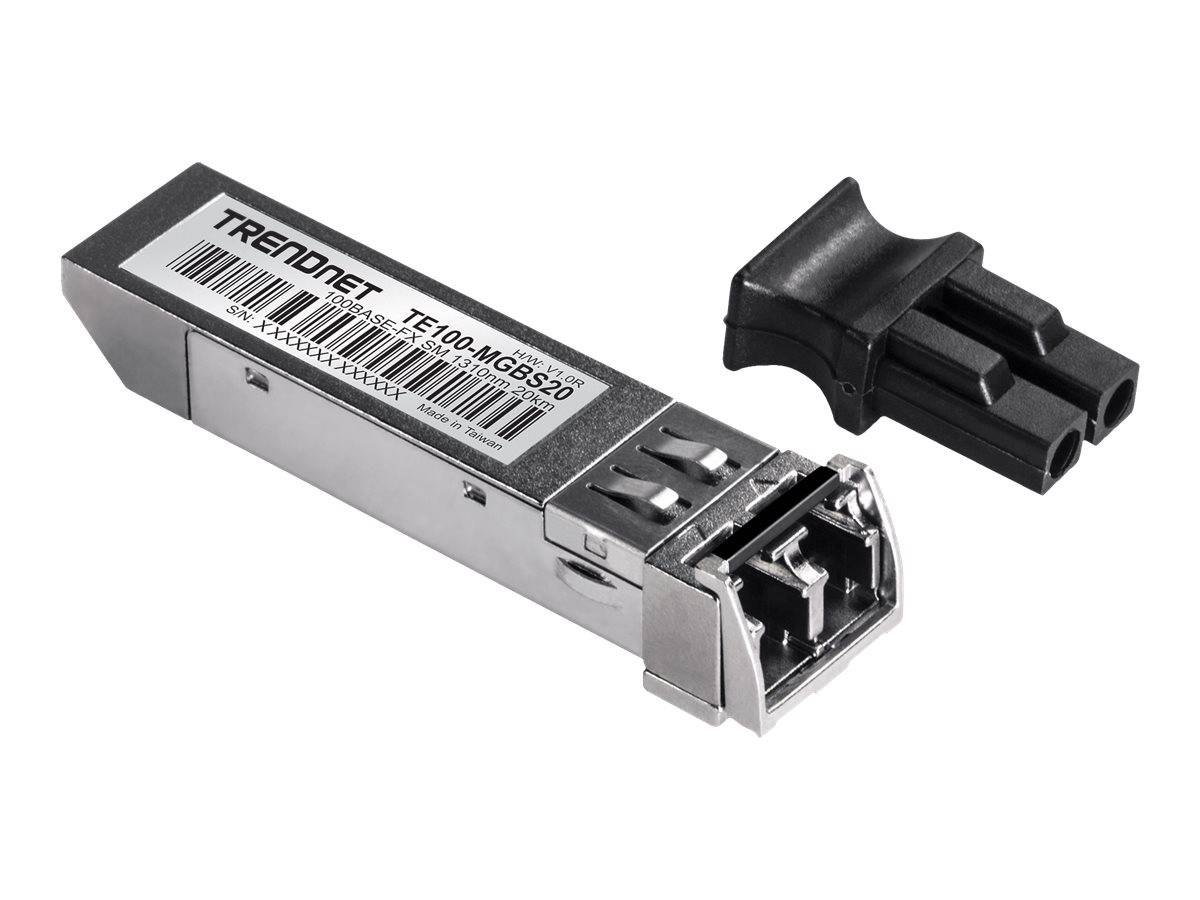

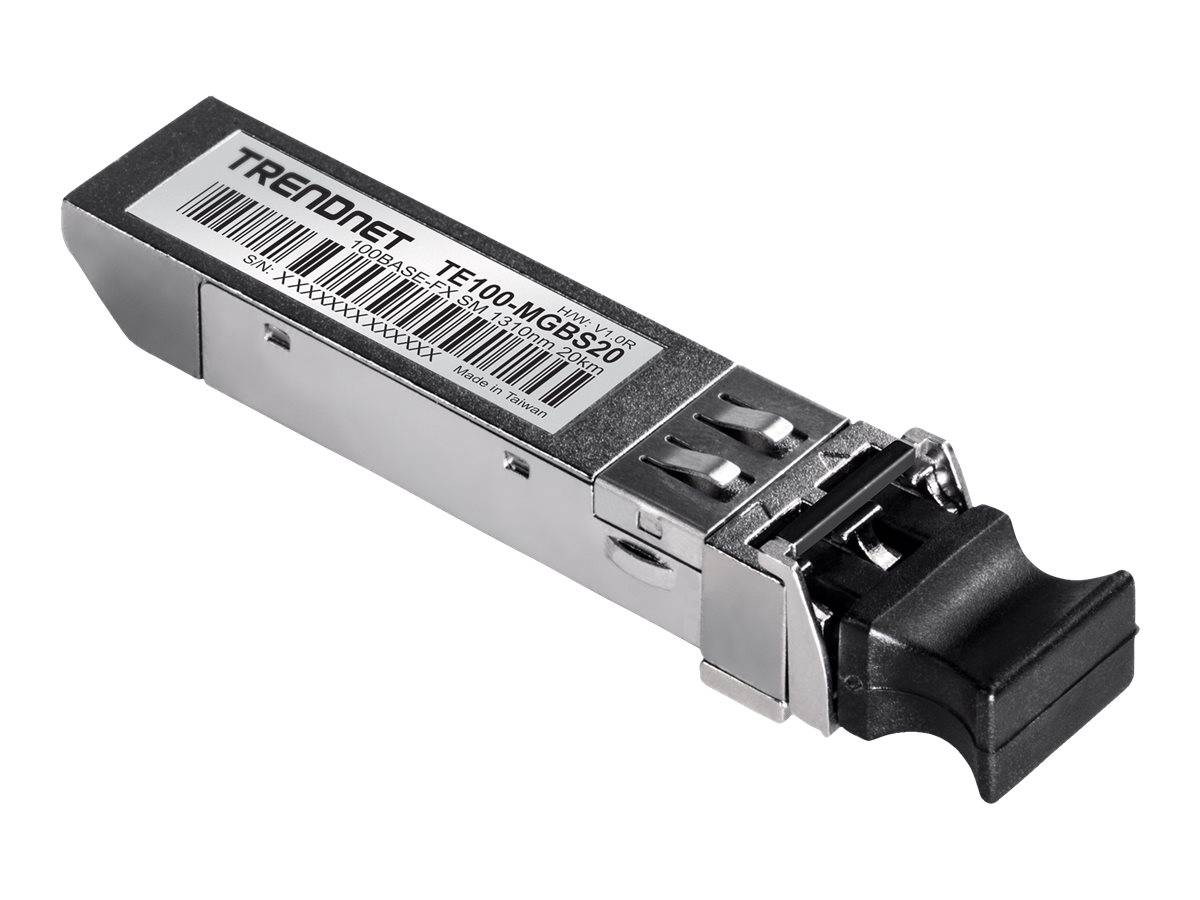

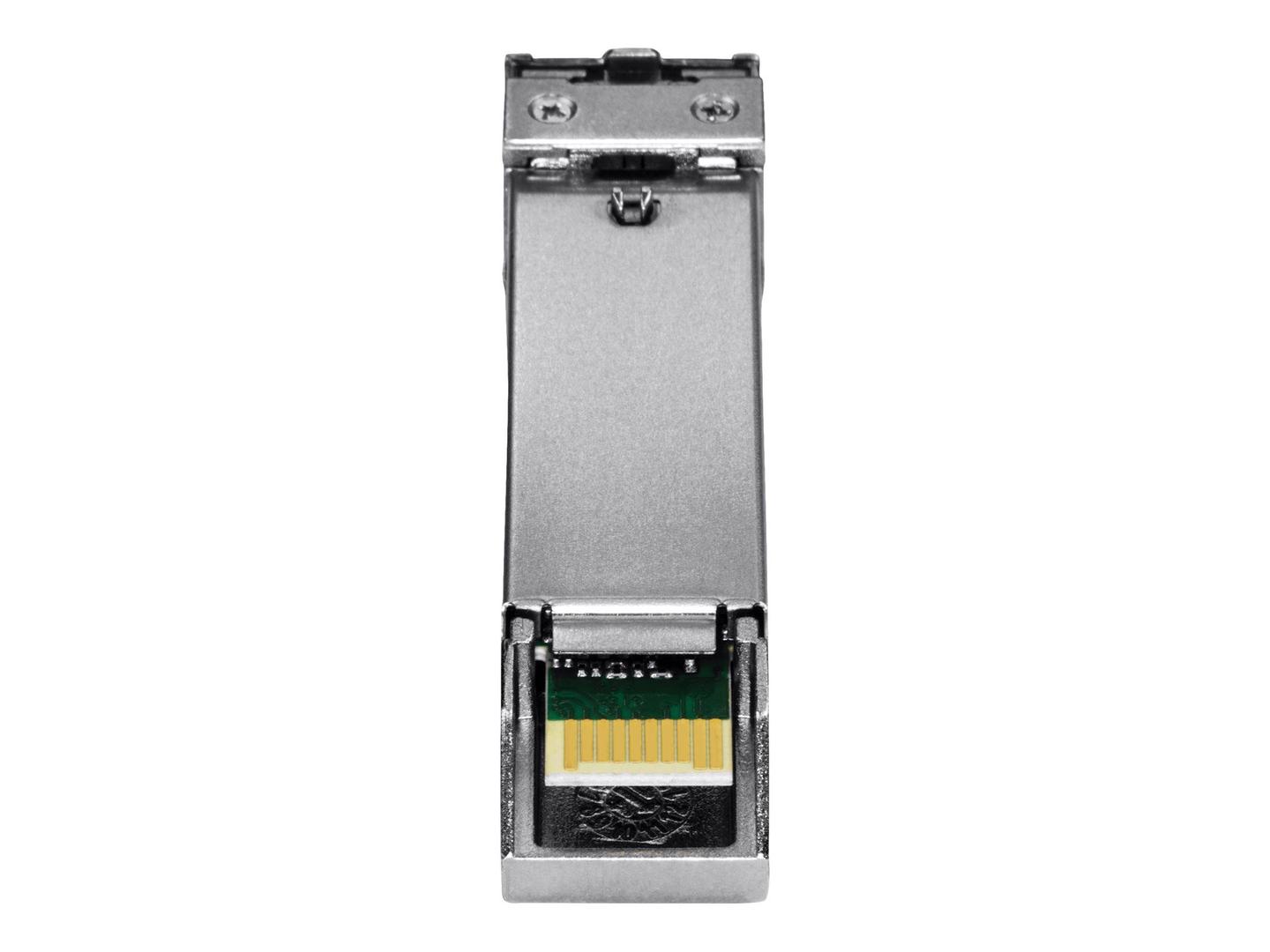

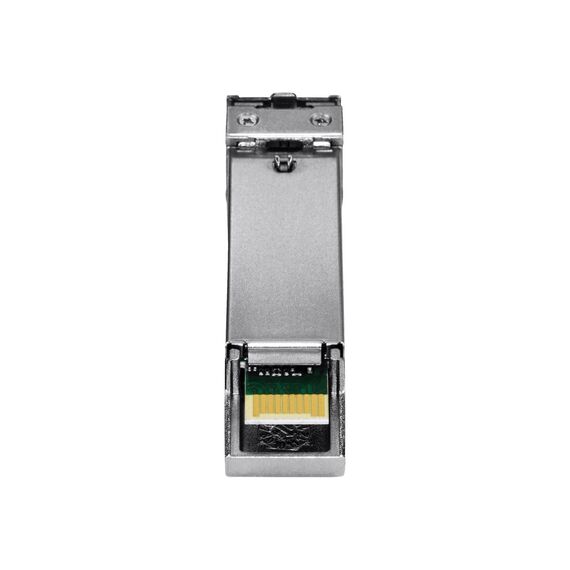

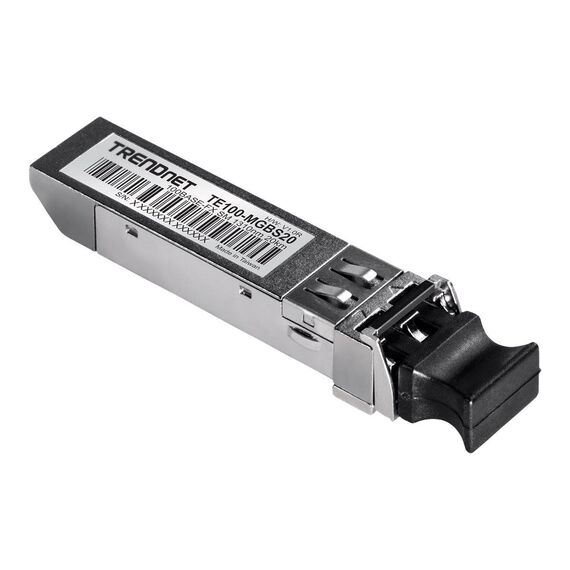

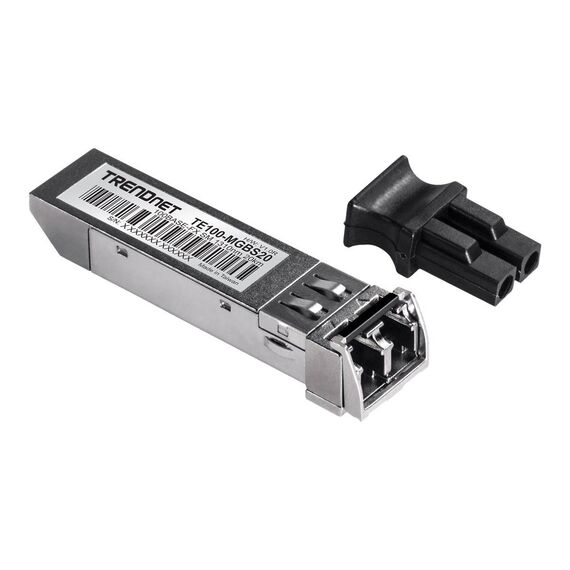

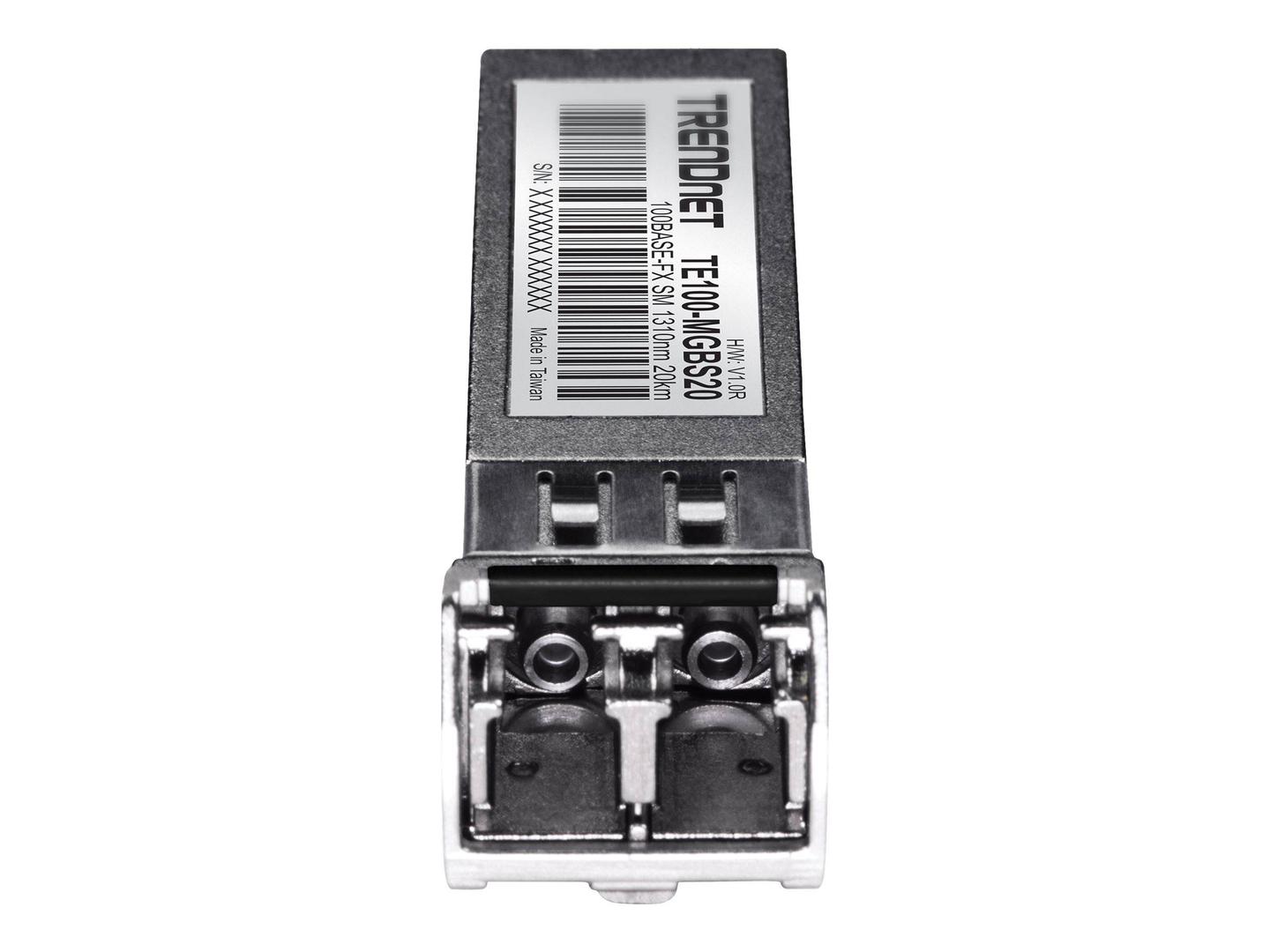

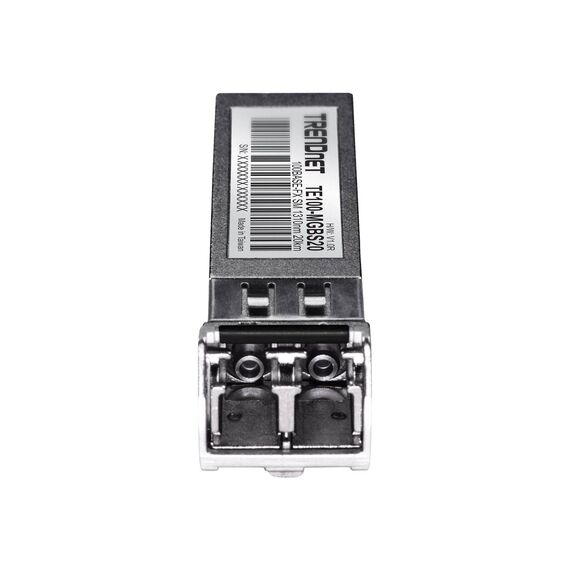

TRENDnet TE100-MGBS20 — 100BASE-FX Single-Mode SFP, 20 km
100 Mbps100BASE-FXSingle-modeUp to 20 km
The TRENDnet TE100-MGBS20 is a Fast Ethernet SFP module: 100BASE-FX at 1310 nm over single-mode fibre, up to 20 km, through a duplex LC connection. It is for switches and media converters whose SFP slots run 100 Mbps optics, typically for long links to older equipment, cameras and industrial devices. It is not a Gigabit module, despite some listings describing it as 1000BASE-LX. In practice, single-mode optics are the choice when a link leaves the building or runs more than a few hundred metres: the 9/125 µm fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.
Compatibility — check before buying:
This is a 100 Mbps module. It works only in SFP ports that support 100BASE-FX — most Gigabit SFP ports do not — and the far end must also be 100BASE-FX single-mode. It will not link to a Gigabit LX module such as the TEG-MGBS10. If you need Gigabit on single-mode fibre, the TEG-MGBS10 is the part to order. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your switch model and the cable run and we check it before you order.
Best For
✓ 100 Mbps links over long fibre
✓ Media converters with 100M SFP slots
✓ Older Fast Ethernet switches
✓ Cameras and controllers far away
✓ Industrial and utility networks
✓ Replacing a failed TE100-MGBS20
Key Features
Fast Ethernet over 20 km
A 1310 nm 100BASE-FX optic that carries a 100 Mbps link over single-mode fibre up to 20 km.
Single-mode fibre, long reach
Built for single-mode (9/125 µm) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.
Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.
Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end module, the patch cords and any spares in one go and the link works on day one.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We fit the TE100-MGBS20 for Fast Ethernet fibre links where the host port only takes 100 Mbps optics. Check the port first: if both ends can run Gigabit, the TEG-MGBS10 gives ten times the speed over the same fibre. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers or the switches they plug into.
Buyer’s Guide
Buy it if
You need a 100 Mbps single-mode link up to 20 km on a port that supports 100BASE-FX SFPs.
Skip it if
Your port is Gigabit-only, the far end is a Gigabit LX module, or you want Gigabit speed.
Also consider
TRENDnet TEG-MGBS10 for Gigabit single-mode.
