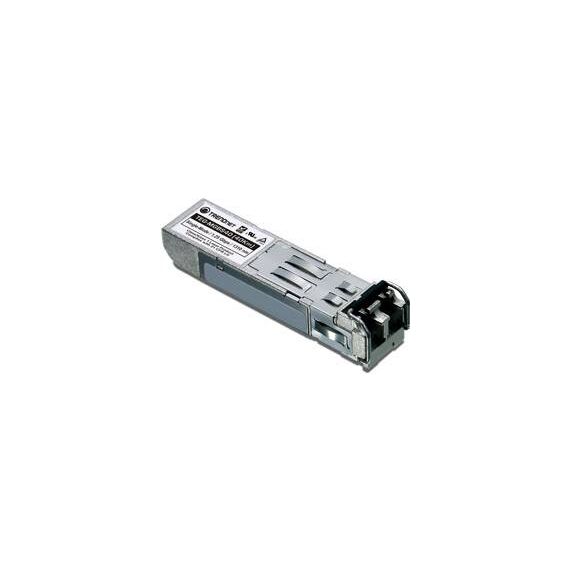

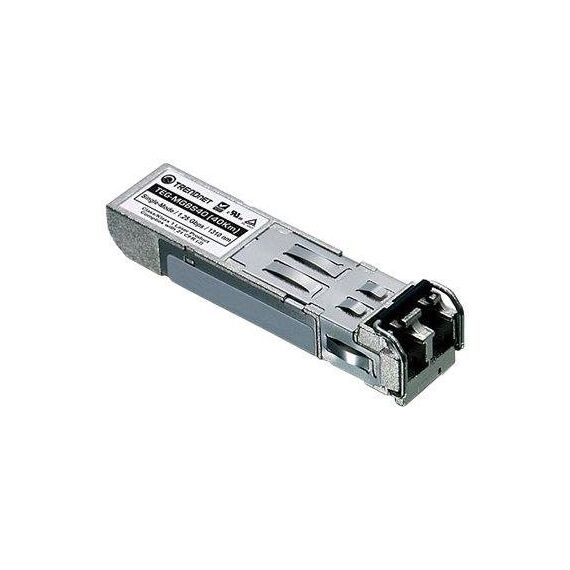

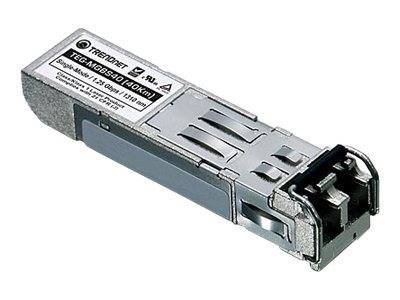

TRENDnet TEG MGBS40 / SFP (mini-GBIC) transceiver module / GigE / 1000Base-LX / LC single-mode / up to 40 km / 1310 nm | TEG-MGBS40
Please sign in so that we can notify you about a reply
Special Features
- Mini-GBIC module for single-mode fiber with an LC connector-type
- For distances up to 40km
- Designed to connect with a standard Mini-GBIC slot
- Compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel Standards
- Industry standard SFP package
- Duplex LC connector
- 1.0625Gbps Fiber Channel Compliant
- 1.25Gbps Gigabit Ethernet Compliant
- Single 3.3V Power Supply Voltage
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-LX |
| Data Link Protocol | GigE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 40 km |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 1000Base-LX - LC single-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
Features - Trendnet - TEG-MGBS40
More Details
Product Code
04:190302
EAN Code
0710931501940
Manufacturer
Trendnet
