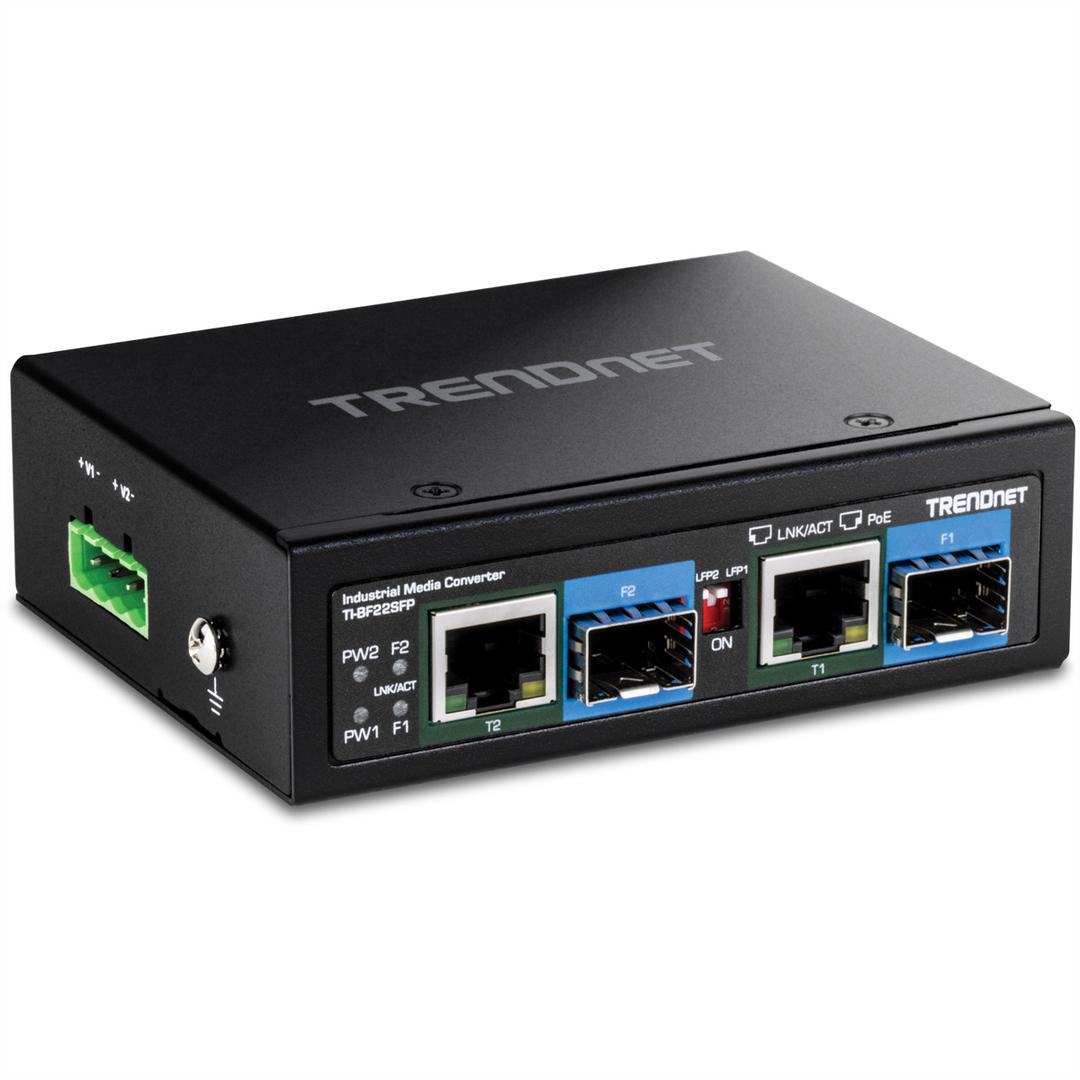

TRENDnet TI-BF22SFP Industrial 2-Port SFP to Gigabit PoE++ Media Converter, 90W Budget, DIN-Rail, IP30
Brand:
Trendnet
TRENDnet TI-BF22SFP Industrial 2-Port SFP to Gigabit PoE++ Media Converter, 90W Budget, DIN-Rail, IP30
€215.76 inc. VAT
TI-BF22SFP
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
TRENDnet TI-BF22SFP — Industrial 2-Port SFP to Gigabit PoE++ Media Converter
2 channels802.3bt PoE++90 W budget-40 to 75°C
The TRENDnet TI-BF22SFP is an industrial media converter with two independent fibre-to-copper channels: two Gigabit SFP slots paired with two Gigabit RJ45 ports that deliver IEEE 802.3bt PoE++ power from a shared 90 W budget.
In one hardened IP30 DIN-rail unit it can bring two cameras or access points onto fibre — for example on a pole, a perimeter fence or a factory wall — at -40 to 75°C.
Before you order: No SFP modules and no power supply are included. You need two 1000 Mbps SFPs (one per channel) and a 48–56V DC supply on the terminal block — TRENDnet's TI-S15052 is the matching PSU. Without it nothing powers up.
What's in the Box
- TI-BF22SFP media converter
- Removable terminal block
- DIN-rail and wall-mount kit
- Quick installation guide
What It Means in Practice
- Each SFP is paired with one PoE++ port, so you get two separate fibre links in one box.
- The 90 W PoE budget is shared: one 802.3bt device at high power plus a smaller one, or two PoE+ cameras with room to spare. TRENDnet does not publish a per-port limit.
- A 2-position DIP switch enables Link Fault Pass-through per port (default off).
- Compatible TRENDnet SFPs include TI-MGBSX (multimode 550 m) and TI-MGBS10/20/40 (single-mode 10/20/40 km).
What Will Not Work
- Without a 48–56V DC supply — a 12/24V PLC supply will not run it.
- 100 Mbps (100FX) SFP modules — the slots are Gigabit.
- Two devices each drawing the full 802.3bt maximum at the same time.
- Management or VLAN configuration.
Key Features
Two channels
2x SFP + 2x RJ45 PoE++ in one DIN-rail unit.
802.3bt PoE++
af/at/bt devices, 90 W total budget, overload protection.
Hardened
IP30 metal, -40 to 75°C, tested to IEC 60068-2-27/-32/-6.
LFP per port
DIP-selectable link fault pass-through, 16 KB jumbo frames.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The TI-BF22SFP is efficient when two powered devices share one cabinet at the end of fibre: one DIN-rail unit, one 48V supply, two links. Plan the 90 W budget across both ports and order the PSU and SFPs together. For larger cabinets, an industrial PoE switch scales better; see our industrial and desktop switches.
✓ Buy it if you need two fibre-fed PoE++ devices in an industrial or outdoor cabinet.
✕ Skip it if you only need one link, or you have only 12/24V DC available.
→ Also consider LevelOne IGC-0101 (single channel, PoE+) or LevelOne GVT-2016 (desktop, 90 W).
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - Trendnet - TI-BF22SFP
More Details
Product Code
04:496228
EAN Code
0710931162684
Manufacturer
Trendnet
