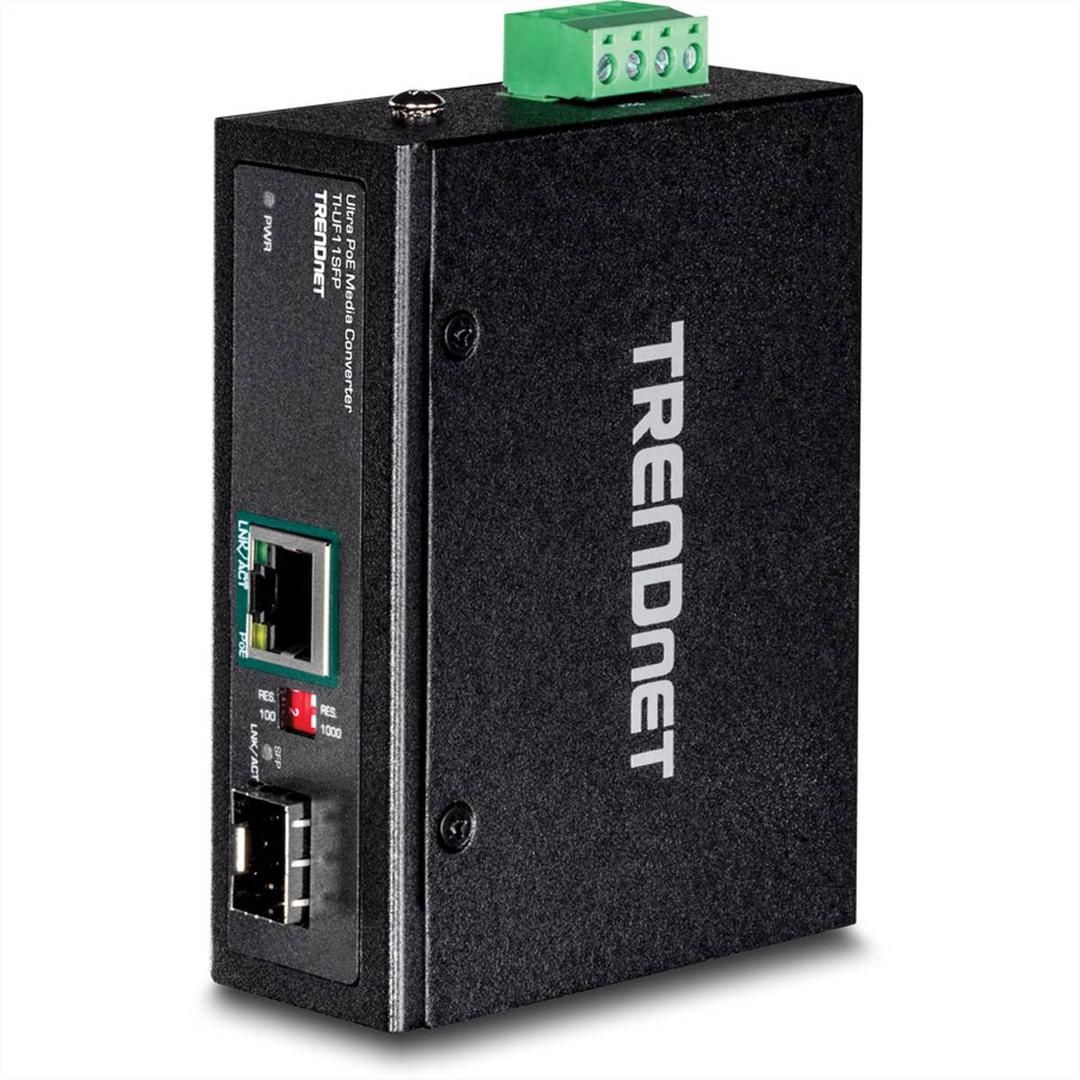

TRENDnet TI-UF11SFP / Fibre media converter / GigE / 10Base-T, 100Base-TX, 1000Base-T / RJ-45 / SFP (mini-GBIC) / up to 40 km | TI-UF11SFP

TRENDnet TIUF11SFP Fibre media converter TIUF11SFP

Description
Features

Special Features

Hardened IP30 rated SFP to Gigabit UPoE converter
Provides up to 60W for PoE, PoE+ and UPoE compliant devices
Wide operating temperature range -40 to 75 °C (-40 to 167 °F)
Overload current protection

Product Specification

Device Type	Fibre media converter
Form Factor	DIN rail mountable
Networking	Networking
Connectivity Technology	Wired
Cabling Type	10Base-T, 100Base-TX, 1000Base-T
Data Link Protocol	10Mb LAN, 100Mb LAN, GigE
MAC Address Table Size	2K entries
Max Transfer Distance	40 km
Features	Auto-negotiation, wall mountable, built-in DIP switch, chassis ground lug
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt (draft)
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x Ethernet 1000Base-T (PoE) - RJ-45 female Â¦ 1 x Ethernet 1000 - SFP
Miscellaneous	Miscellaneous
Included Accessories	DIN-rail mounting kit, wall mounting kit, removable terminal block
Mounting Kit	Included
MTBF	510,304 hours
Compliant Standards	FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, LVD 60950-1
Power	Power
Power Over Ethernet (PoE)	UPOE
Power Device	External power adapter
Voltage Required	DC 48 - 56 V
Power Consumption Operational	72 Watt
Dimensions & Weight	Dimensions & Weight
Width	10.35 cm
Depth	8.15 cm
Height	3.2 cm
Weight	153 g
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-40 Â°C
Max Operating Temperature	75 Â°C
Humidity Range Operating	0 - 95% (non-condensing)
