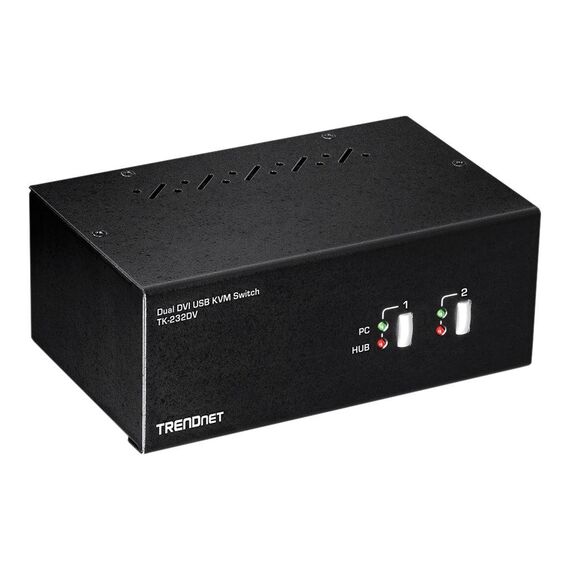

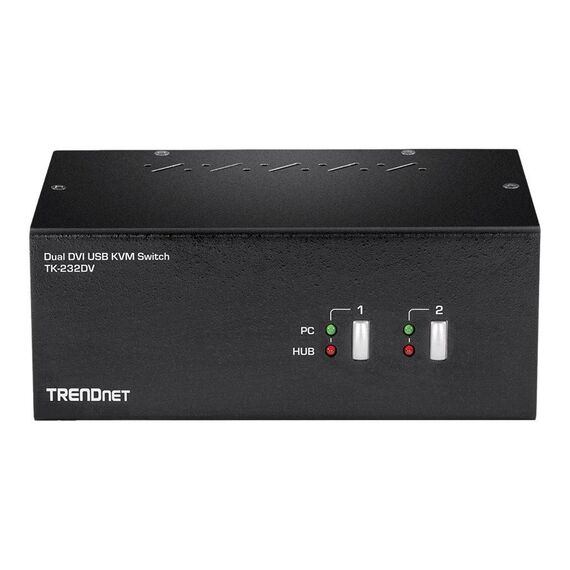

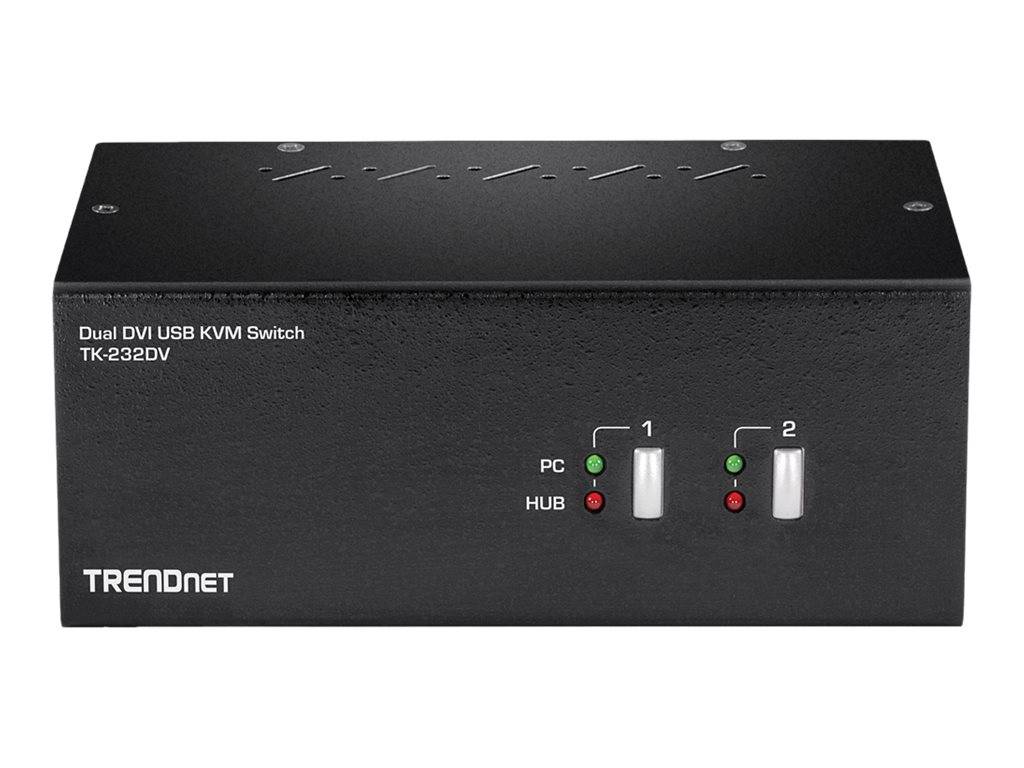

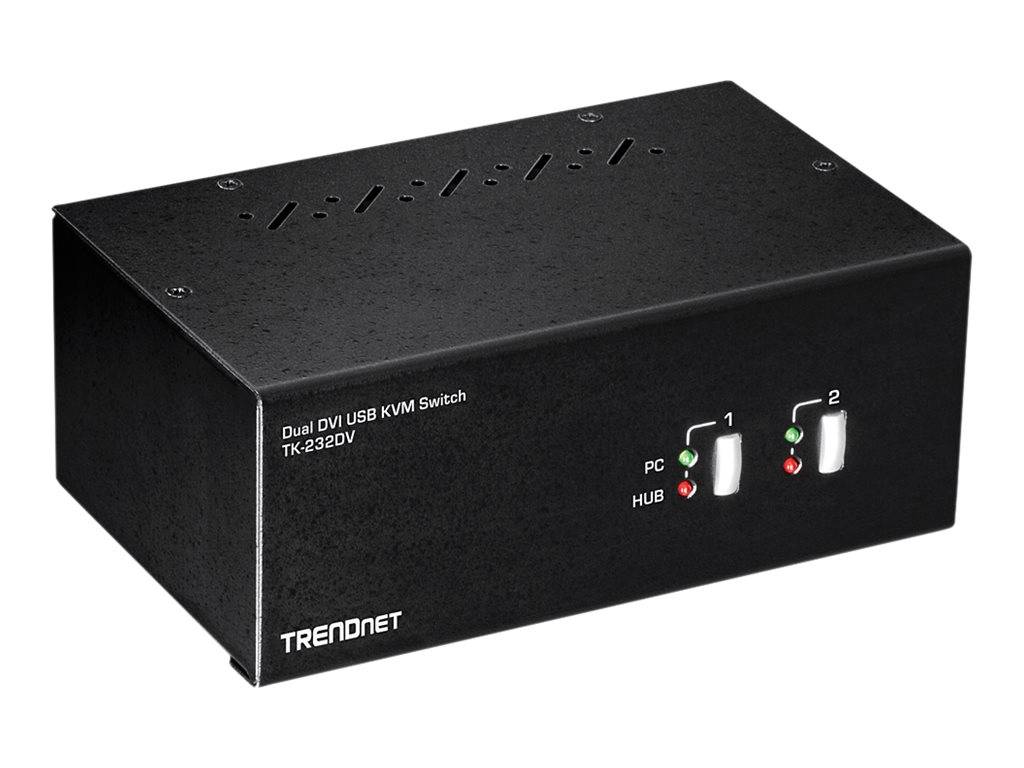

TRENDnet TK-232DV / KVM / audio / USB switch / 2 x KVM / audio / USB / 1 local user / desktop | TK-232DV
Please sign in so that we can notify you about a reply
Special Features
- Dual-monitor DVI-I KVM switch
- Designed for use with dual DVI-I systems
- 3.5mm speaker and microphone connections
- Supports digital resolutions up to 1920 x 1200
- Supports analog resolutions up to 2048 x 1536
- 2-port USB 2.0 hub for storage devices and printers
Product Specification
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 2048 x 1536 |
| Features | Input selection buttons, Pushbutton/Hotkey switching |
| Compliant Standards | USB 2.0 |
| Built-in Devices | USB 2.0 hub |
| Status Indicators | PC, hub |
| Expansion / Connectivity | Expansion / Connectivity |

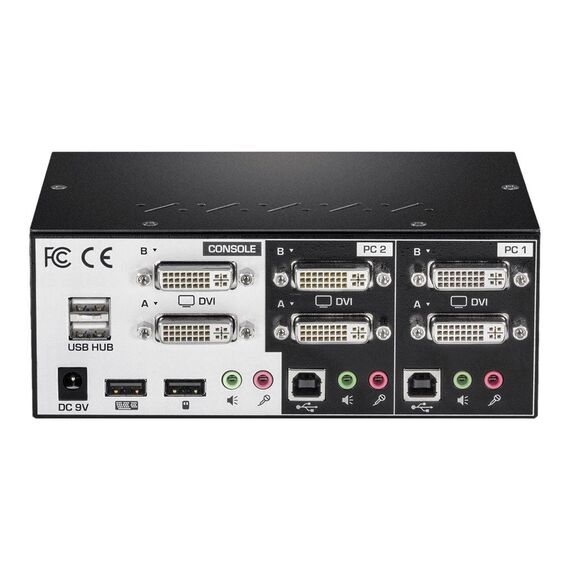

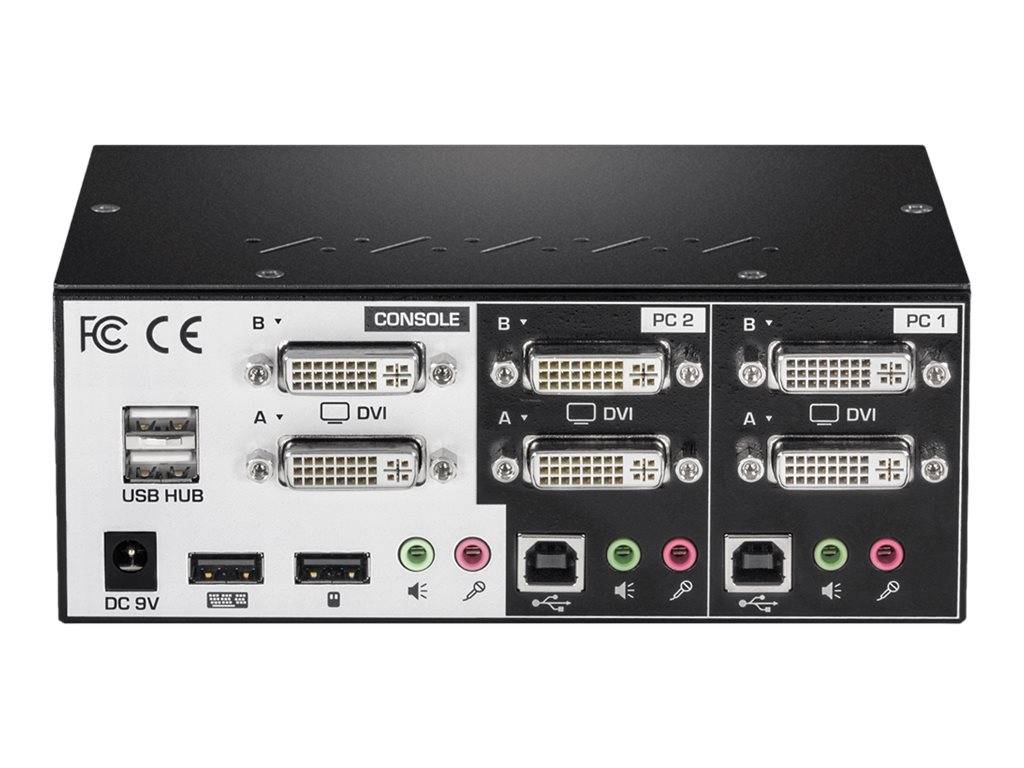

| Interfaces | 4 x DVI-I input ¦ 2 x microphone input mini-jack ¦ 2 x headphones input mini-jack ¦ 2 x USB 2.0 input Type B ¦ 2 x DVI-I output ¦ 1 x microphone output mini-jack ¦ 1 x headphones output mini-jack ¦ 2 x keyboard (USB) / mouse (USB) Type A ¦ 2 x USB 2.0 Type A |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 9 V - 2 A |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 0.7 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16.3 cm |
| Depth | 10 cm |
| Height | 6.6 cm |
| Weight | 760 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% (non-condensing) |
Features - Trendnet - TK-232DV
More Details
Product Code
04:285860
EAN Code
0710931170146
Manufacturer
Trendnet
