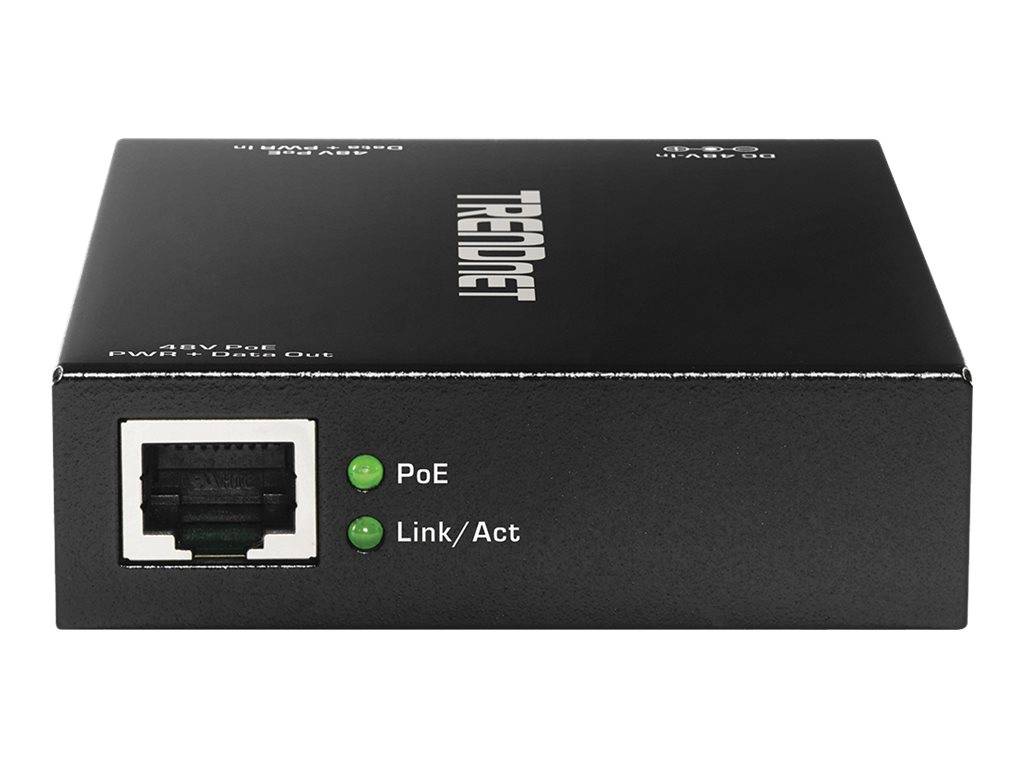

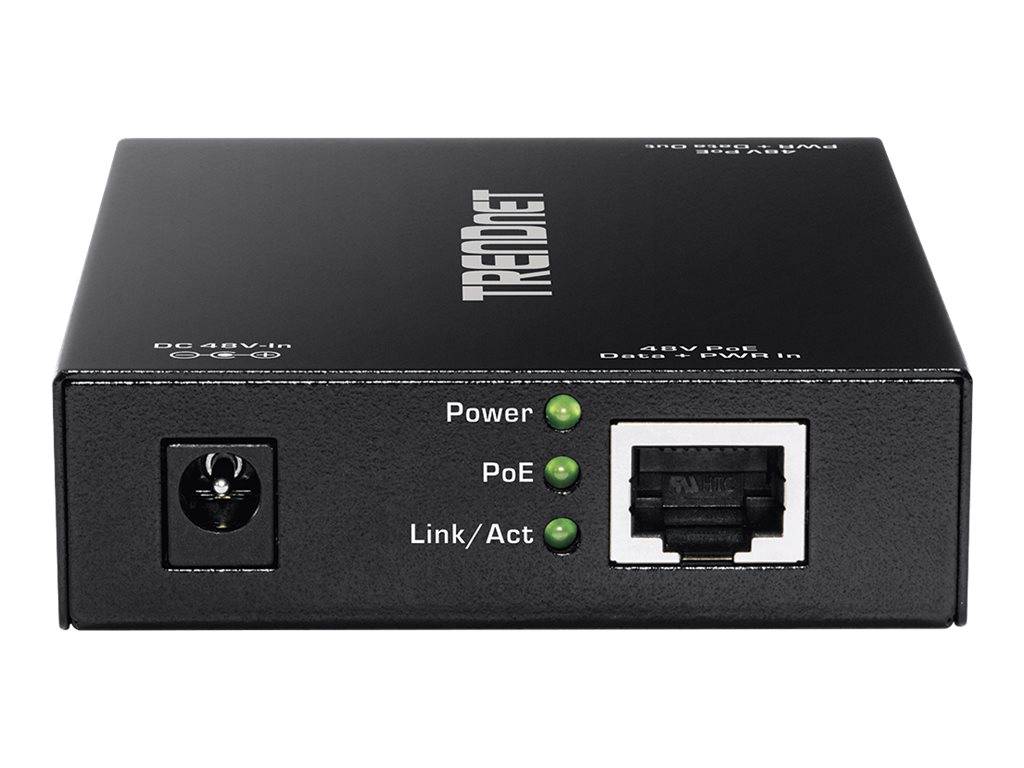

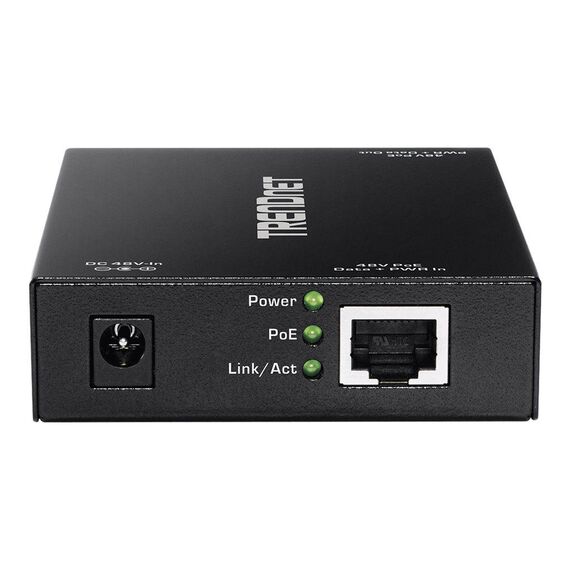

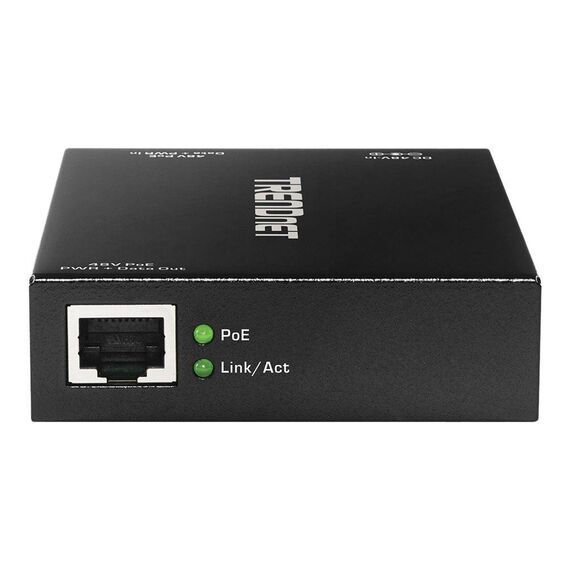

TRENDnet TPE-E100 / Repeater / GigE / 10Base-T, 100Base-TX, 1000Base-T / RJ-45 / RJ-45 / up to 100 m | TPE-E100

Description
Features

Special Features

Extension distance
Auto detects a network connection
Gigabit ports extend a high performance wired connection
Plug and Play
No external power required - saves installation time and cost
Wall mounting points for remote installations
LED indicators

Product Specification

Device Type	Repeater
Form Factor	External
Networking	Networking
Connectivity Technology	Wired
Cabling Type	10Base-T, 100Base-TX, 1000Base-T
Data Link Protocol	10Mb LAN, 100Mb LAN, GigE
Data Transfer Rate	2 Gbps
MAC Address Table Size	2K entries
Max Transfer Distance	100 m
Status Indicators	PoE, link/activity
Features	IGMP snooping, half duplex mode, full duplex mode, wall mountable, cascadable, rugged, 96KB packet buffer, metal housing
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ input) - RJ-45 female Â¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+ output) - RJ-45 female
Miscellaneous	Miscellaneous
Compliant Standards	FCC
Power	Power
Power Over Ethernet (PoE)	PoE+
Power Device	External power adapter
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	36 Watt
Dimensions & Weight	Dimensions & Weight
Width	10 cm
Depth	7.5 cm
Height	2.2 cm
Weight	228 g
Manufacturer Warranty	Manufacturer Warranty
Service & Support	Limited warranty - 3 years
Environmental Parameters	Environmental Parameters
Min Operating Temperature	0 Â°C
Max Operating Temperature	45 Â°C
Humidity Range Operating	0 - 90% (non-condensing)
