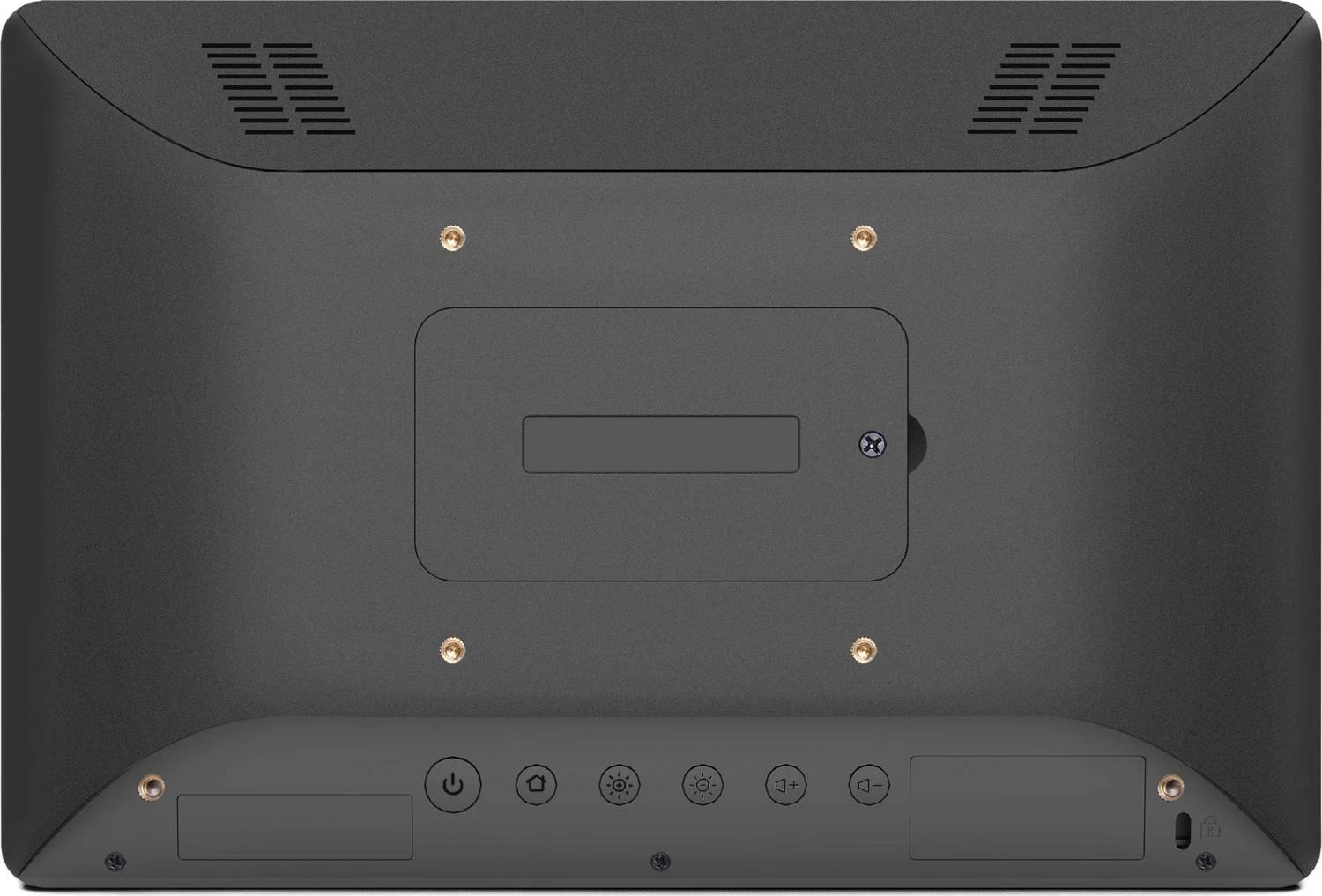

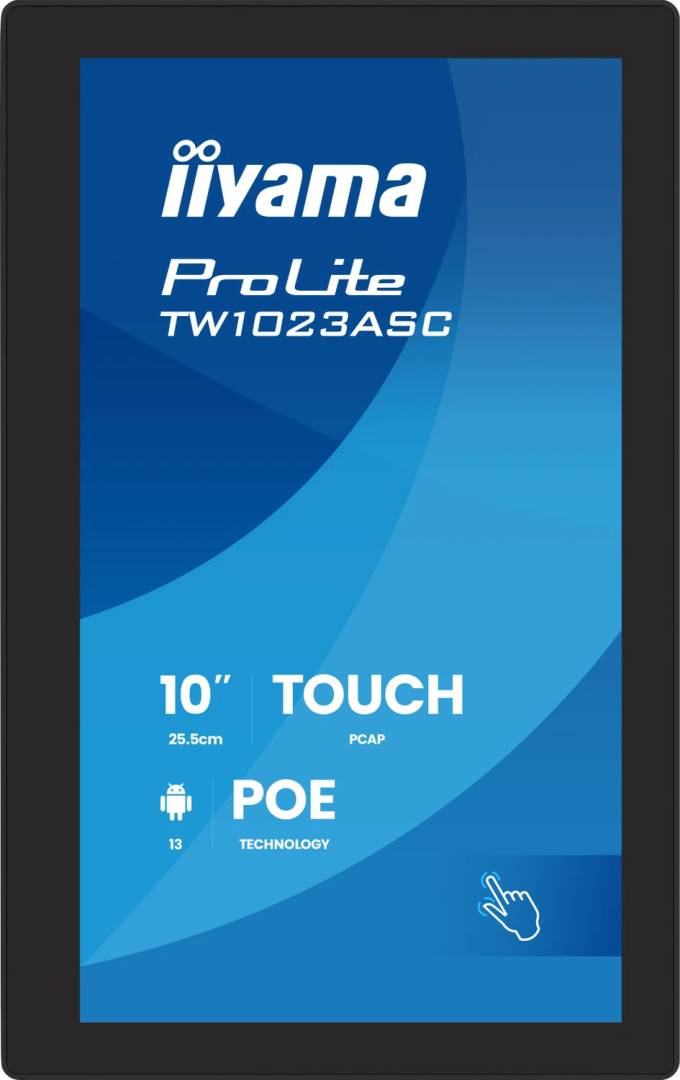

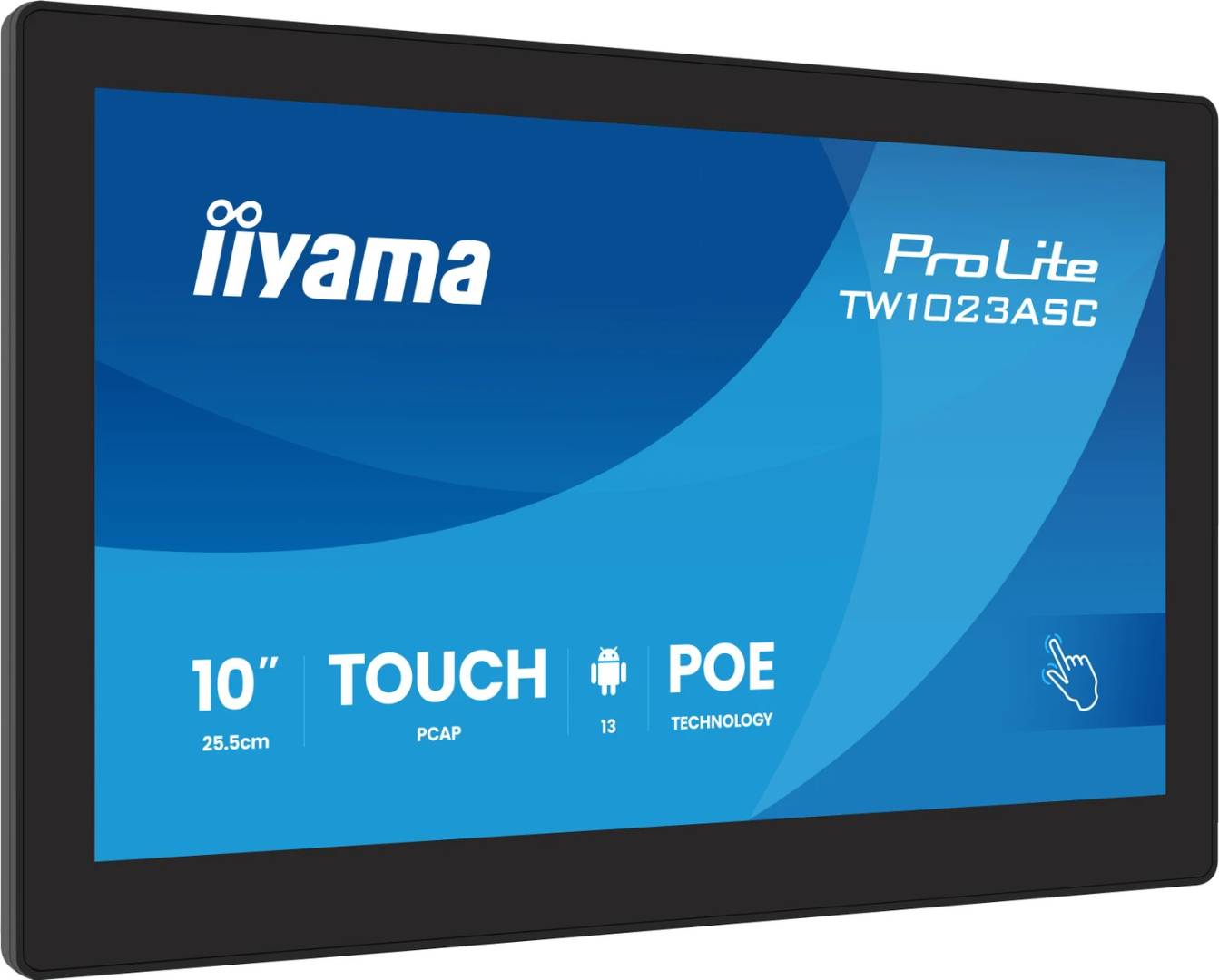

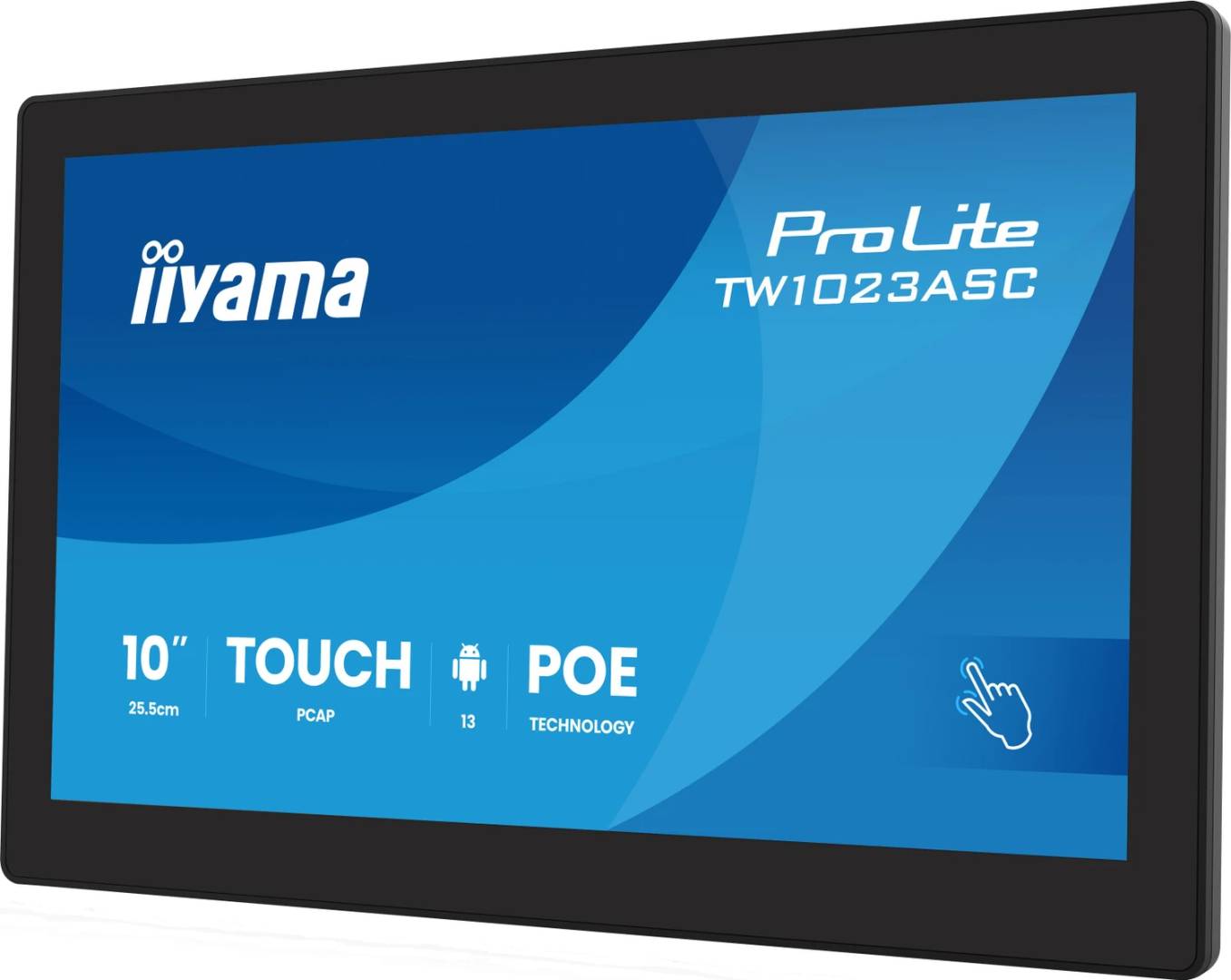

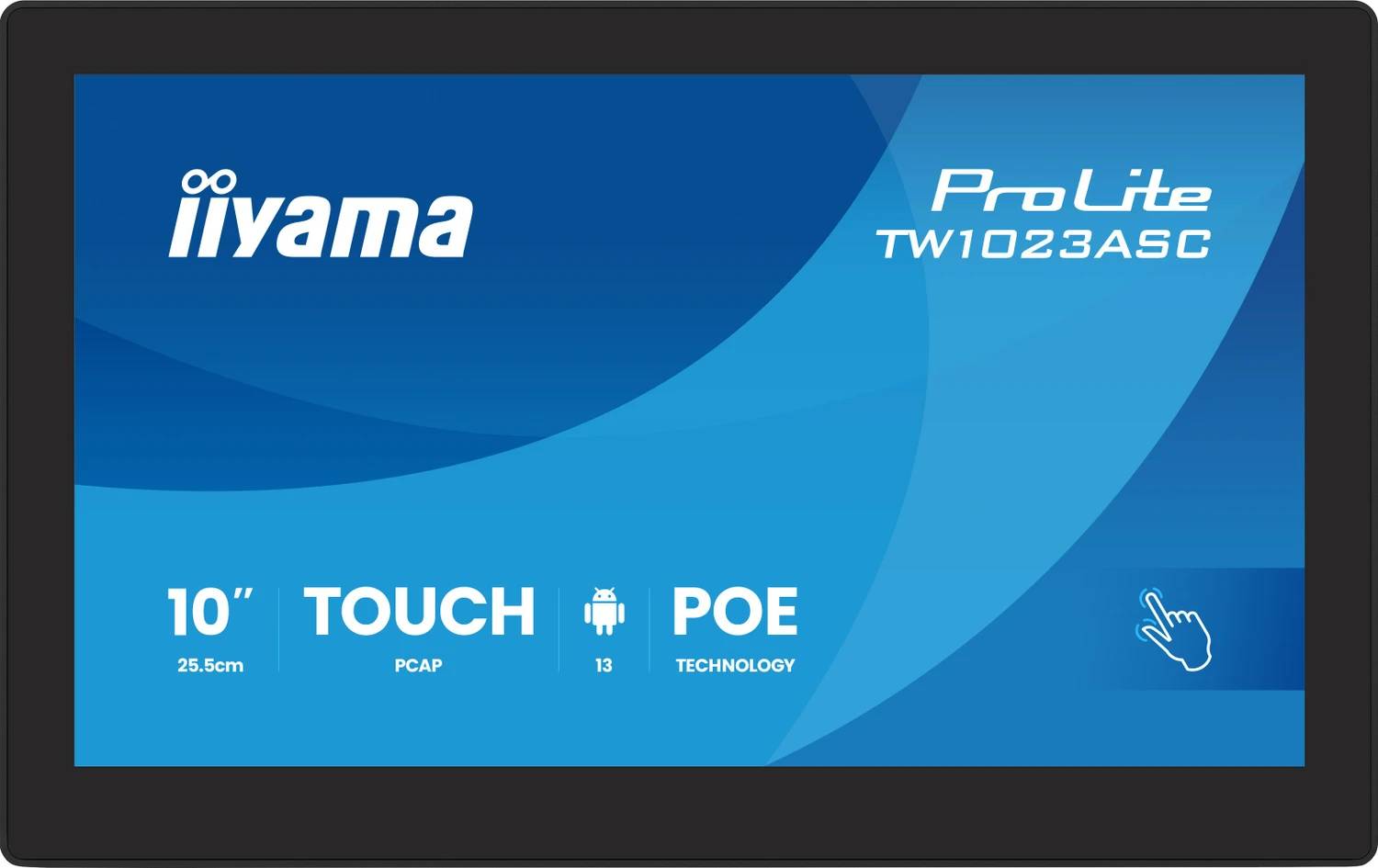

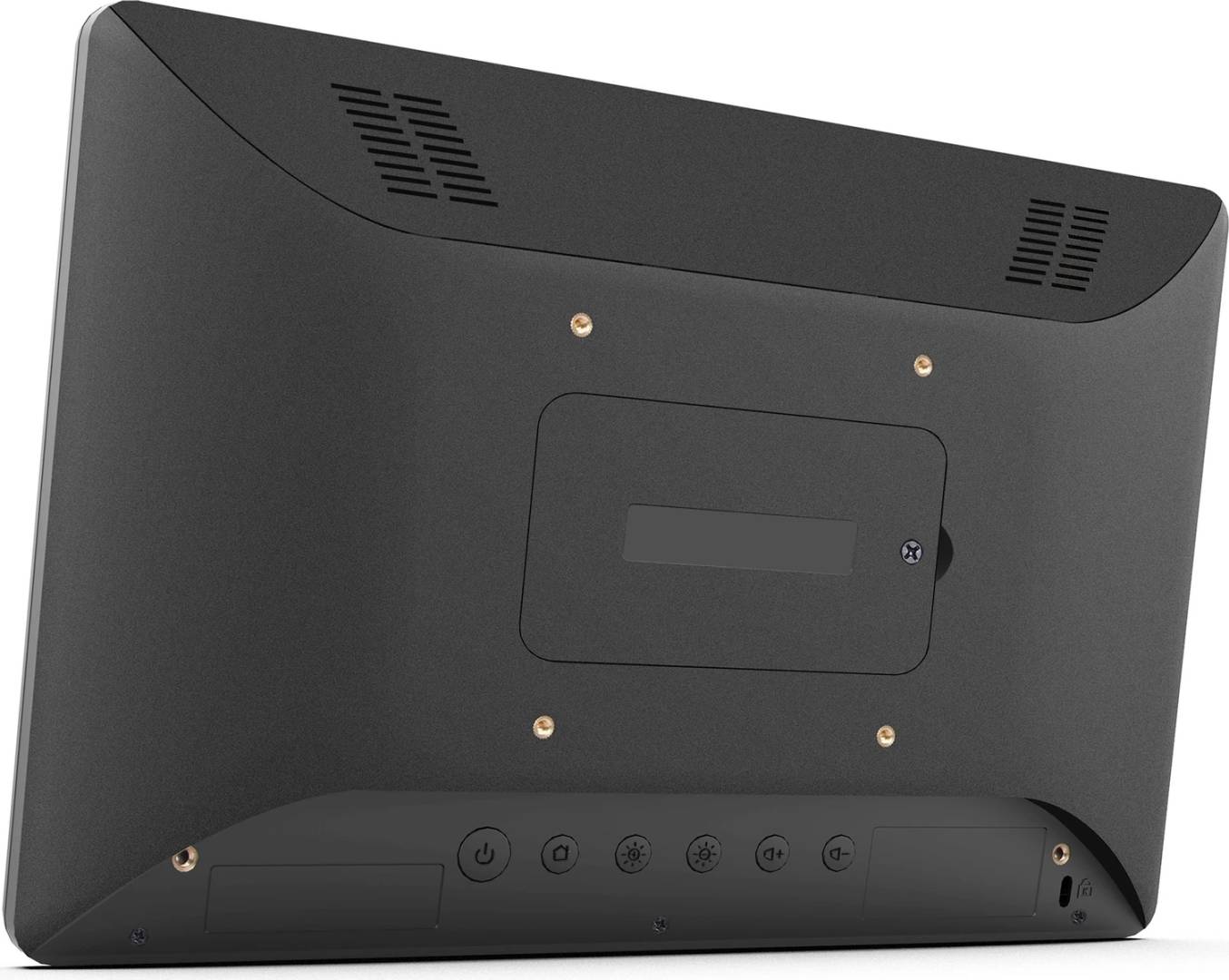

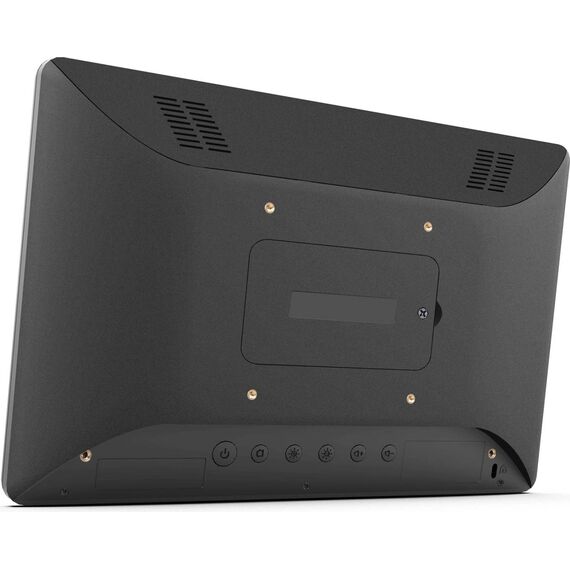

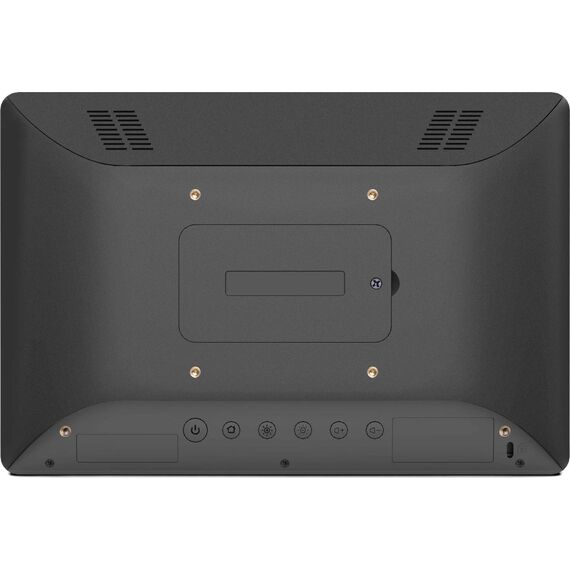

iiyama ProLite TW1023ASC-B3P — 10.1" Android Touch Panel with PoE, Camera and Microphone
10.1" IPS · 1280x80010-point PCAP touchAndroid 16 · PoE 802.3at5MP camera · mic · 24/7
The iiyama ProLite TW1023ASC-B3P is a 10.1-inch Android touch panel with a built-in media player, PoE power, 5MP camera, microphone and speakers, designed for meeting-room booking, door signs, reception check-in, small kiosks and interactive signage that runs 24/7.
It runs Android 16 on a quad-core RK3568 with 4GB RAM and 32GB storage, has Google Play and kiosk mode, and comes with iiyama's iiSignage² preinstalled. The 10-point projected capacitive touch works with fingers, latex gloves or a capacitive stylus through 6H anti-fingerprint glass. A single network cable with PoE (IEEE 802.3at) powers it and connects it; Wi-Fi and Bluetooth 5.2 are also built in.
Before you order: For PoE power the switch or injector must support IEEE 802.3at (PoE+). It is not a monitor: there is no HDMI input, only a mini-HDMI output. Multi-touch works with the built-in Android OS; an external operating system gets single touch only.
What's in the Box
- iiyama TW1023ASC-B3P touch panel
- AC adapter with EU and UK plugs
- Power cable 2.5 m
- Cable cover with 2 screws
- 5 x M4 VESA screws
- Quick start guide and safety guide
What It Means in Practice
- Mount it next to a meeting room, run a room-booking app from Google Play, and power it from the network switch — no socket needed at the door.
- Video calls or check-in apps can use the built-in 5MP camera, microphone and 2 x 1.5W speakers.
- It works in landscape, portrait or lying face-up on a counter, with auto-rotation.
- Kiosk mode locks the panel to one app so visitors cannot leave it.
What Will Not Work
- It will not work as a PC monitor — there is no HDMI input, and HDMI-CEC is not supported.
- A standard 802.3af PoE switch is not enough; it needs 802.3at.
- An external OS (for example via USB) gets single-touch only.
- NFC/RFID reader and LED light bar are not listed in iiyama's specifications for this model — do not count on them.
- Touch can take about 15 seconds to become active after boot.
Key Features
All-in-one Android panel
Android 16, RK3568, 4GB/32GB, Google Play, kiosk mode, iiSignage² preinstalled.
PoE single-cable install
IEEE 802.3at PoE (max 30W) or the supplied 12V adapter.
10-point PCAP touch
6H anti-fingerprint glass, works with gloves and capacitive stylus.
Camera, mic and speakers
5MP camera, microphone, 2 x 1.5W speakers for check-in and calls.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Small Android panels like the TW1023ASC-B3P are the tidy way to put booking, check-in or information at a door or counter with one PoE cable. Check that your switch is 802.3at and that the app you want runs on Android. For larger signage screens see our commercial displays.
✓ Buy it if you need a 24/7 wall or desk touch panel for room booking, check-in or small kiosks, powered by PoE.
✕ Skip it if you need a monitor with HDMI input or a touchscreen for a Windows PC.
→ Also consider An 802.3at PoE injector if your switch has no PoE+.
Tell us which booking or signage software you use and we will check it before you order.
