Ubiquiti UniFi Access Magnetic Lock 540 kg UA-Lock-Magnetic-540kg Fail-Safe Electromagnetic Door Lock 12 V Door Position Sensor

Brand:
Ubiquiti
Ubiquiti UniFi Access Magnetic Lock 540 kg
Ubiquiti UniFi Access Magnetic Lock 540 kg UA-Lock-Magnetic-540kg Fail-Safe Electromagnetic Door Lock 12 V Door Position Sensor
€327.49 inc. VAT
Buy
UACC-Lock-Magnetic-540kg
€275.20
€327.49 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:504277
EAN Code
0810010076519
Manufacturer
Ubiquiti

Quick Specs

Holding Force
540 kg (1,200 lb)
Power
12 V DC · 500 mA
Type
Fail-safe · with DPS
Doors
Single wood or metal door
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

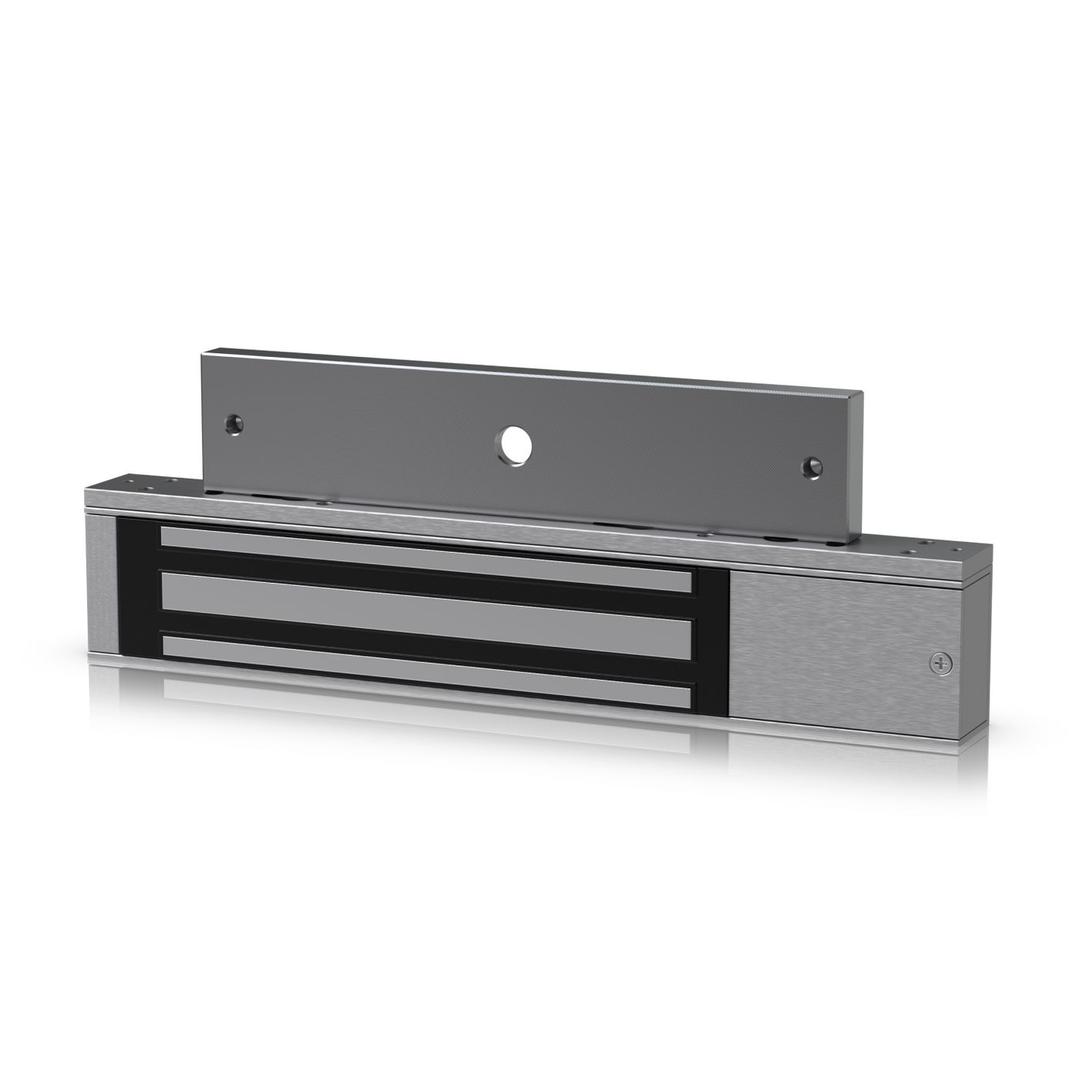

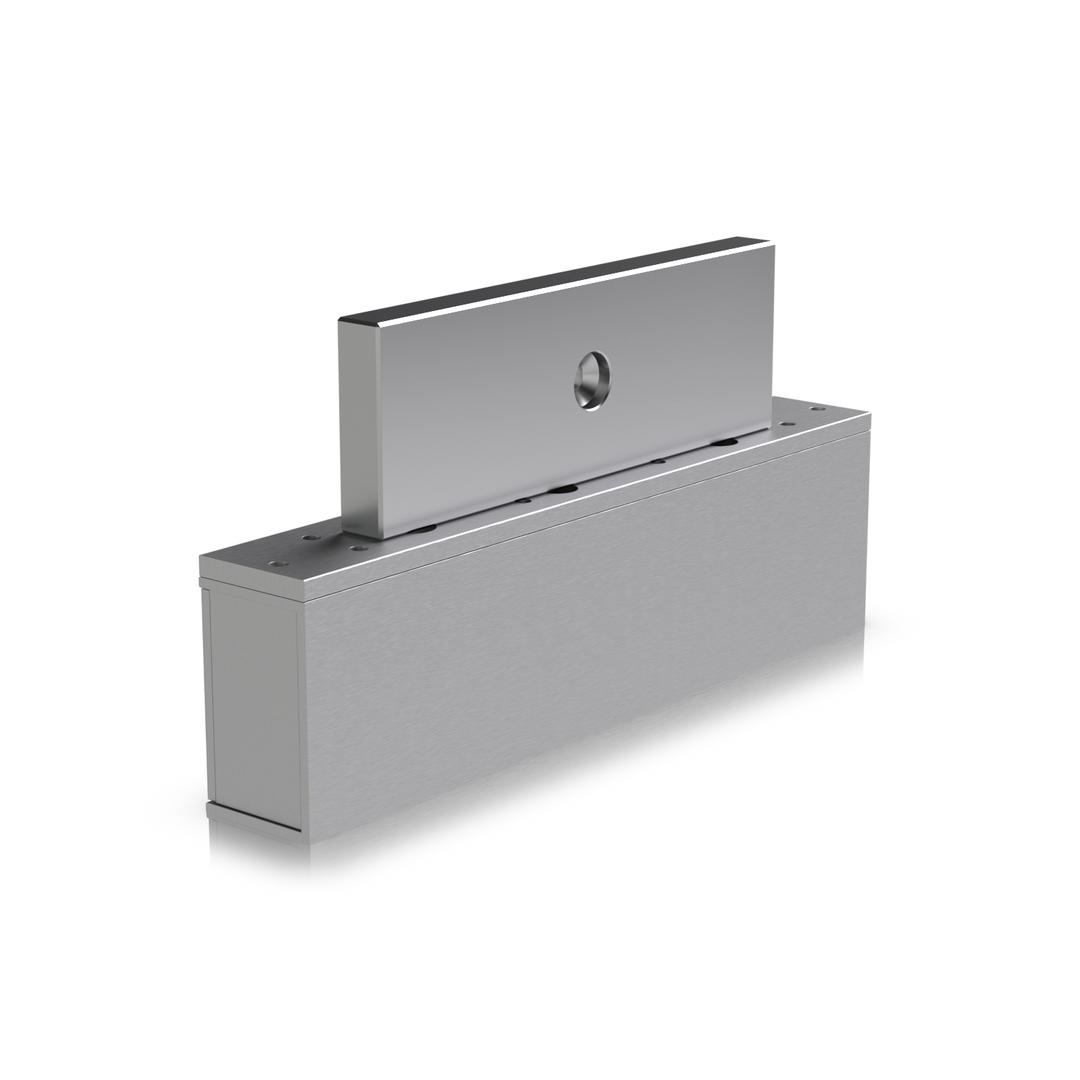

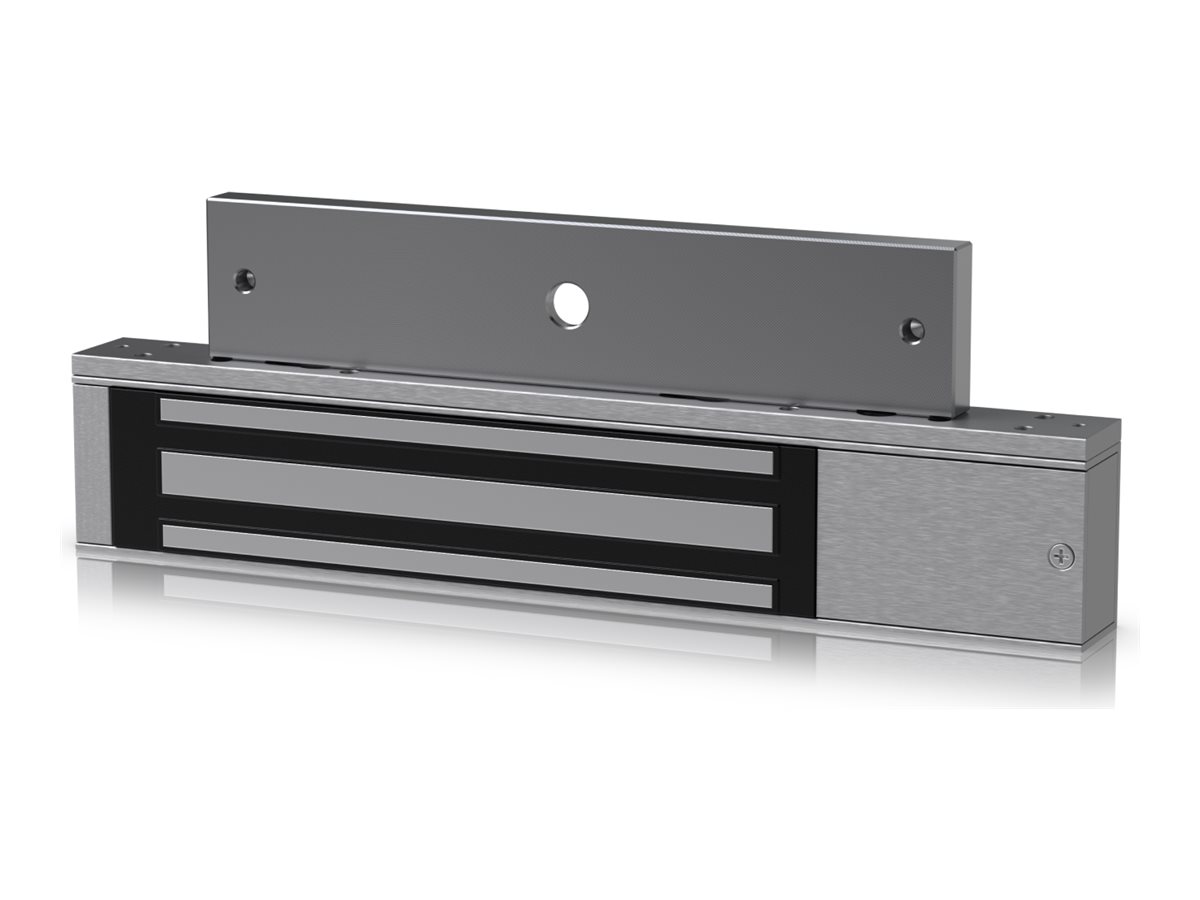

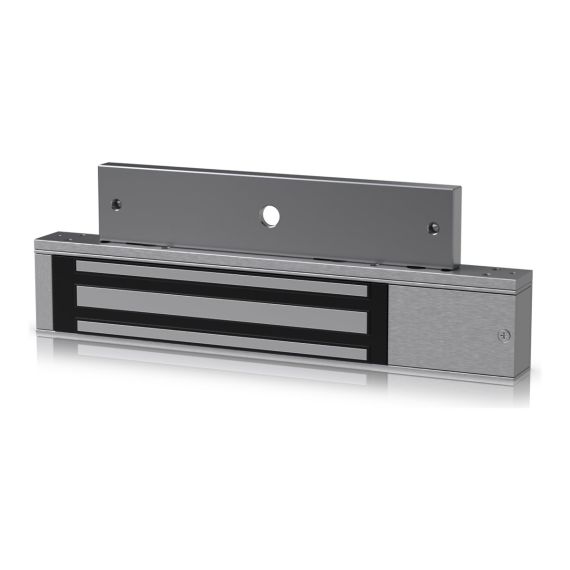

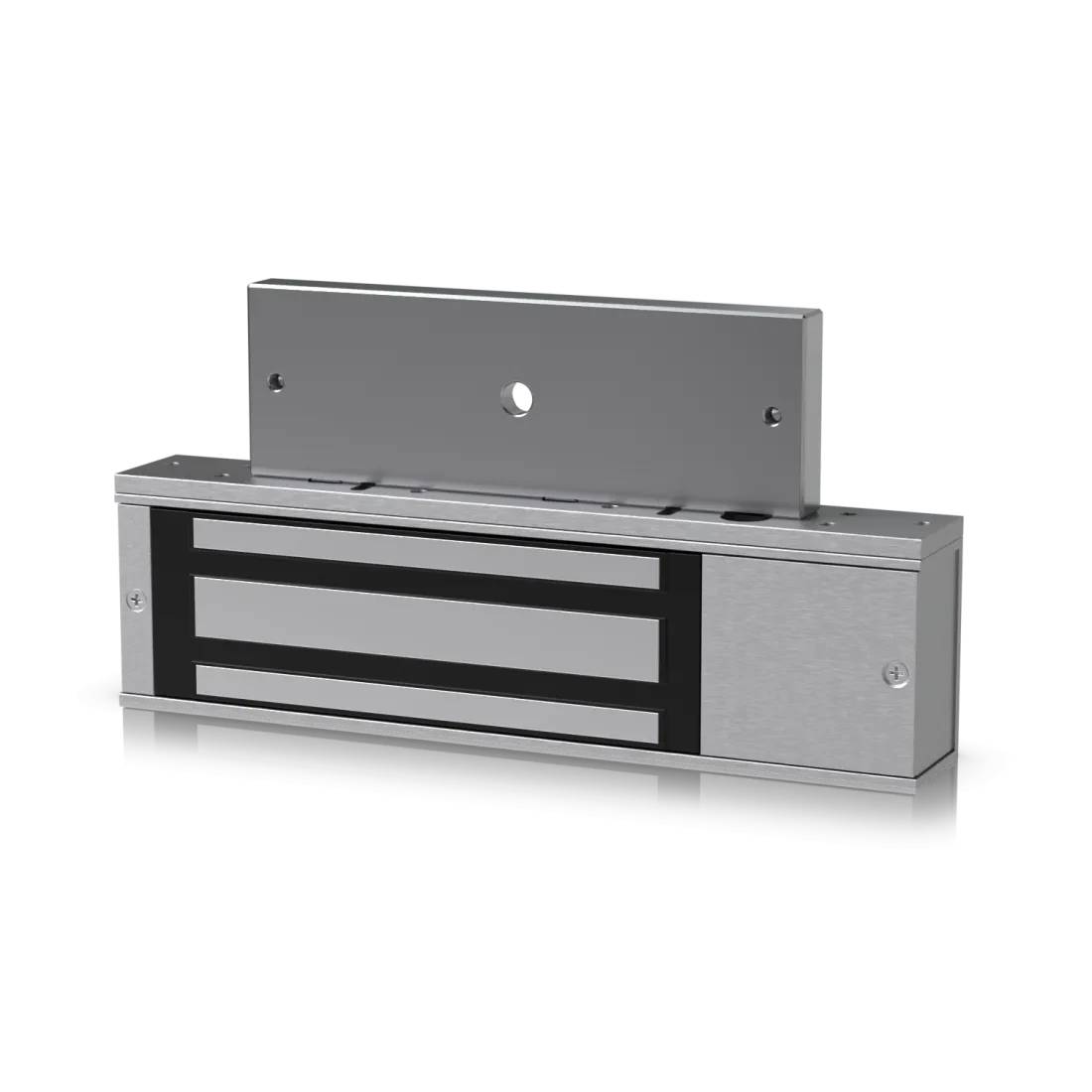

Ubiquiti UniFi Access Magnetic Lock — 540 kg Fail-Safe

540 kg holdFail-safeDoor position sensor12 V from the hub

The Ubiquiti UniFi Access Magnetic Lock 540 kg (UA-Lock-Magnetic-540kg) is an electromagnetic lock that holds a door closed with 540 kg of force until a UniFi Access reader or hub releases it. It runs on 12 V DC at 500 mA, so it can be powered directly from the powered lock relay of a UniFi Door Hub, and a built-in door position sensor reports whether the door is open or closed. L and Z brackets suit inward and outward opening doors. In practice it is the lock you pair with UniFi readers on glass-free office, shop and server-room doors.

Compatibility — check before buying:
It is fail-safe: it releases when power is lost, which suits escape routes but not rooms that must stay locked during a power cut — plan a UPS if needed. The 540 kg version is for wood or metal doors; for glass doors Ubiquiti points to the 270 kg version. Outward-opening doors need the L bracket (door under 42 mm thick), inward-opening doors the L and Z brackets. It needs a UniFi Access hub to control it. Ubiquiti does not publish the box contents — ask us and we confirm the brackets with the order.

Best For

✓ Office and shop doors
✓ Server and stock rooms
✓ Escape-route doors
✓ Metal or timber frames
✓ UniFi Access installations
✓ Doors that need open/closed status

Key Features


Strong hold
540 kg (1,200 lb) of magnetic holding force on a single door.

Powered by the hub
12 V DC at 500 mA fits the powered lock relay of the UniFi Door Hub.

Knows if the door is open
An embedded door position sensor reports open and closed state to UniFi Access.

Fits in or out
L bracket for outward-opening doors, L plus Z bracket for inward-opening doors.

Technical Specifications

Identification
Brand Ubiquiti UniFi
Product UniFi Access Magnetic Lock 540 kg
Part Number UA-Lock-Magnetic-540kg
EAN / GTIN 0810010076519
Lock
Holding Force 540 kg (1,200 lb)
Type Fail-safe electromagnetic lock
Door Sensor Embedded door position sensor
Door Type Single wooden or metal door
Power
Voltage 12 V DC ±10%
Current 500 mA ±10%
Controlled By UniFi Access hub (powered lock relay)
Physical
Lock Body 266 × 67.5 × 40 mm, 2.9 kg
Install Plate 266 × 40 × 6 mm, 145 g
Armature 185 × 61 × 16 mm, 1.4 kg, steel
Material Aluminium body and brackets

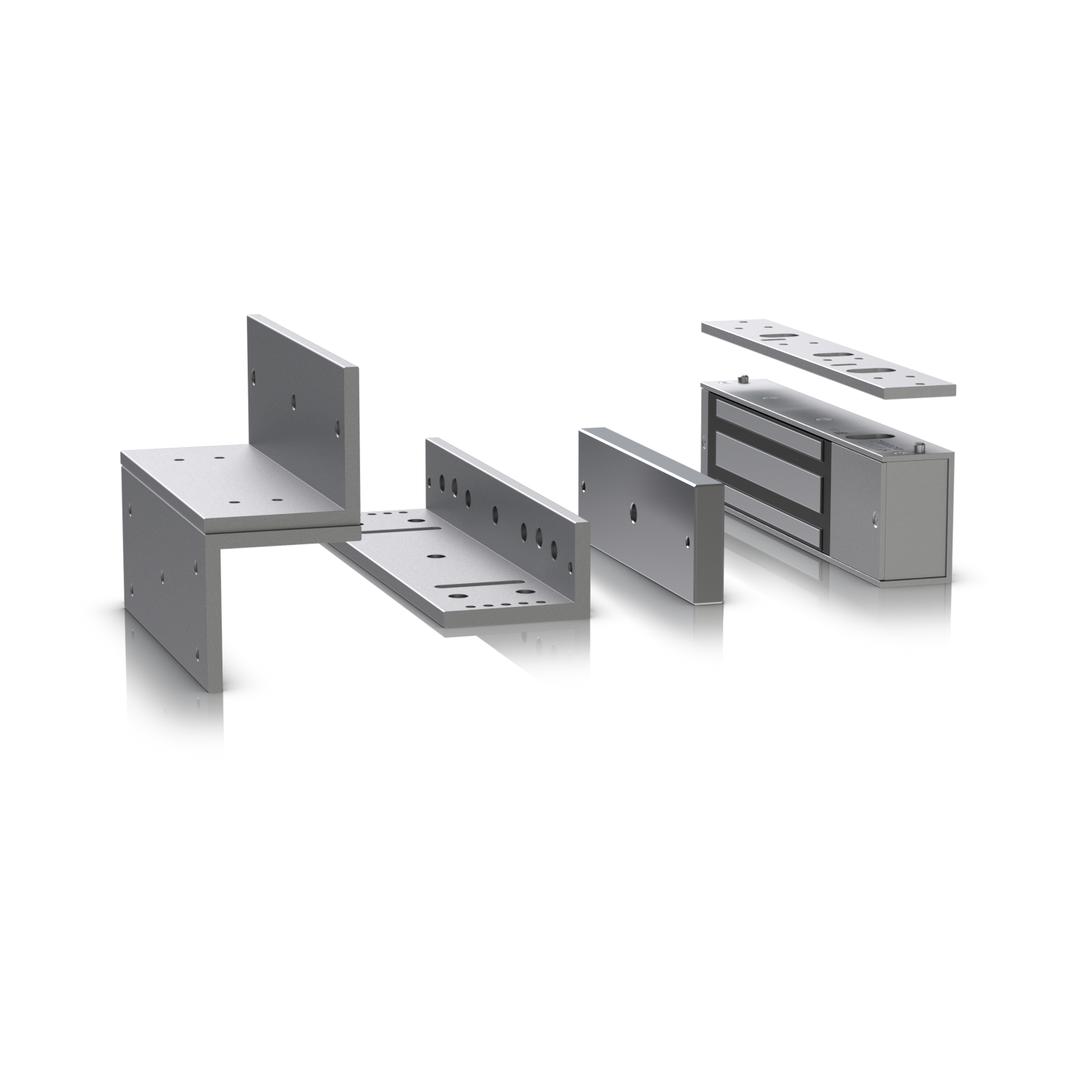

Brackets L bracket (outswing, door <42 mm); Z bracket with L (inswing)
Operating Temperature −10 to 60 °C
In the Box
Included Magnetic lock with armature; Ubiquiti does not publish the full box contents
Not Included UniFi Access hub, readers, UniFi console, cabling, UPS
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Ubiquiti publishes a two-year warranty for products bought directly from its web store and one year from the date of shipment to an authorised distributor or reseller. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

What happens in a power cut?
It is fail-safe, so it releases and the door opens. That is required on many escape routes. If the door must stay locked, add a UPS or choose a fail-secure strike.
Can I use it on a glass door?
Ubiquiti specifies the 540 kg version for wood and metal doors. For glass doors it points to the 270 kg version.
Does it need its own power supply?
Not with a UniFi Door Hub: its powered 12 V 1 A lock relay drives the lock’s 500 mA directly.
Which bracket do I need?
Outward-opening doors use the L bracket, for doors thinner than 42 mm. Inward-opening doors use the Z bracket together with the L bracket.
Singular Expert Insight
We pair the 540 kg magnetic lock with a UniFi Door Hub on most office doors: no extra supply, and the door sensor shows forced or held-open doors in UniFi Access. On glass doors, use the 270 kg model. See our smart home and access range for hubs and readers.

Buyer’s Guide

Buy it if

You need a strong fail-safe lock for a wood or metal door on UniFi Access.

Skip it if

The door is glass, or it must stay locked during power cuts.

Also consider

UniFi Access Door Hub (UA-Hub-Door) to power and control it.
