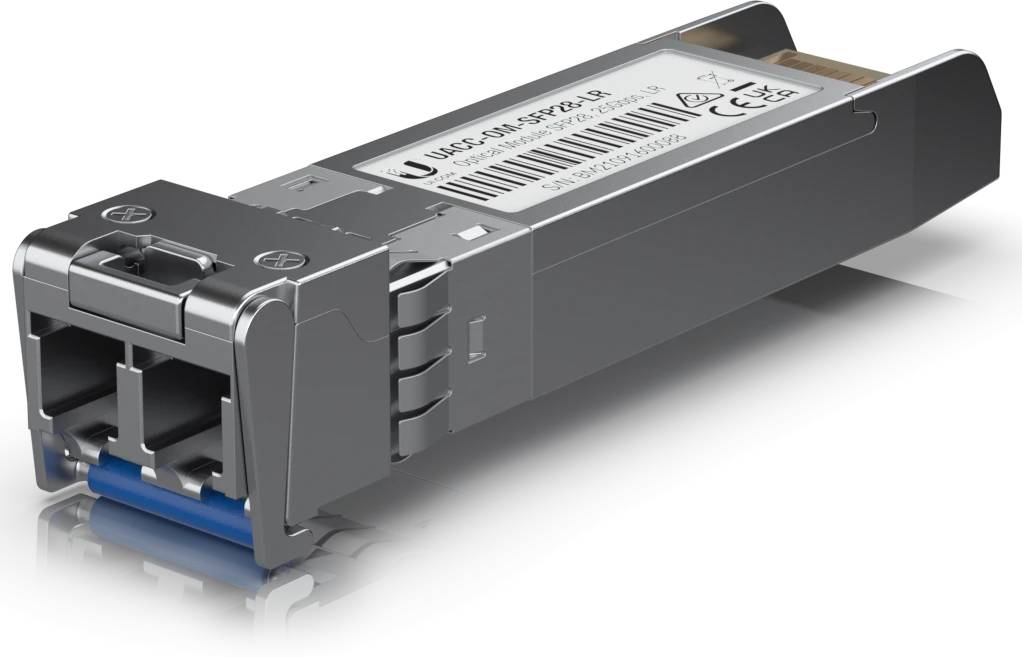

Ubiquiti UniFi UACC-OM-SFP28-LR SFP28 Transceiver 25G 10G 1G 1310 nm Duplex LC Single-Mode up to 10 km

Brand:
Ubiquiti

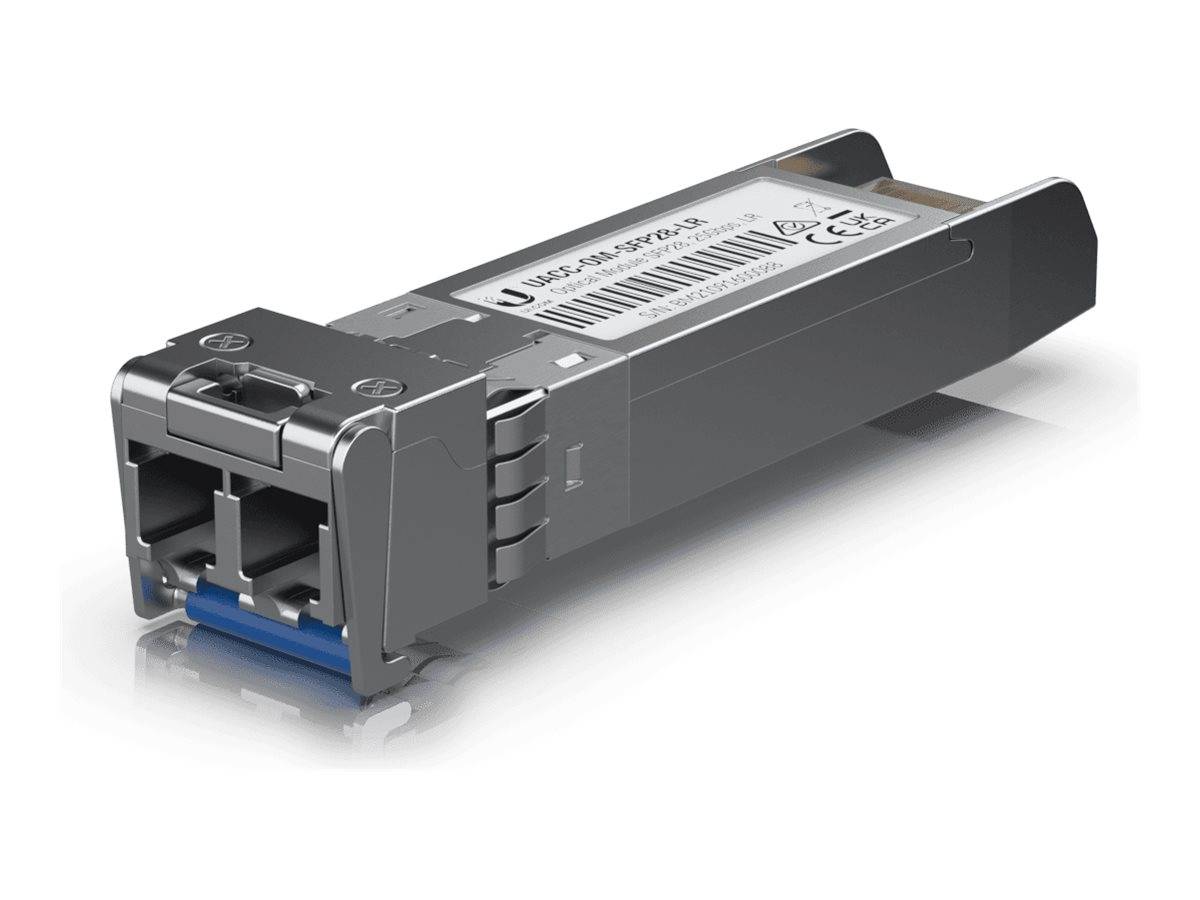

Ubiquiti SFP28 transceiver module LC UACCOMSFP28LR
Ubiquiti UniFi UACC-OM-SFP28-LR SFP28 Transceiver 25G 10G 1G 1310 nm Duplex LC Single-Mode up to 10 km
€175.28 inc. VAT
Buy
UACC-OM-SFP28-LR
€147.29
€175.28 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:438086
EAN Code
0810010078797
Manufacturer
Ubiquiti

Quick Specs

Speed
25 / 10 / 1 Gbps
Fibre & Reach
Single-mode · up to 10 km
Connector
Duplex LC/UPC · 1310 nm
Power
1.3 W max.
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti UACC-OM-SFP28-LR — 25G Single-Mode, 10 km

25G / 10G / 1GSFP28Single-mode 10 kmUniFi

The Ubiquiti UACC-OM-SFP28-LR is a 25 Gbit SFP28 optical module for single-mode fibre, running at 1310 nm up to 10 km over a duplex LC/UPC connection. It also runs at 10 Gbps and 1 Gbps, so it works in the SFP28, SFP+ and SFP ports of UniFi switches and gateways. It suits links between buildings or floors in a UniFi network. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.

Compatibility — check before buying:
It needs single-mode fibre and a matching 1310 nm LR module at the far end running at the same speed; it is a duplex optic, not BiDi. In an SFP+ port it drops to 10G, in an SFP port to 1G. For multimode fibre inside a building, the UACC-OM-SFP28-SR is the short-reach version. The fibre cable is sold separately. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your switch model and the cable run and we check it before you order.

Best For

✓ 25G links between UniFi switches
✓ Building-to-building UniFi backbones
✓ Single-mode runs up to 10 km
✓ Mixed 25G and 10G UniFi ports
✓ Uplinks between UniFi switches with SFP28 ports
✓ Future-proofing 10G fibre links

Key Features


One module, three speeds
Runs 25G, 10G or 1G, so it can go into a 10G port today and a 25G port after the next switch upgrade.

Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Plan both ends together
A link only comes up when both ends use the same standard, speed and media. Order the far-end optic, the patch cord and any spares in one go and the link works on day one.

Technical Specifications

Identification
Brand Ubiquiti (UniFi)
Model 25G Single-Mode Optical Module
Part Number UACC-OM-SFP28-LR
EAN / GTIN 0810010078797
Pack Size Single unit
Interface
Form Factor SFP28
Standard 25G LR, backward-compatible to 10G and 1G
Data Rate 25 / 10 / 1 Gbps
Connector Duplex LC/UPC
Optics & Reach
Wavelength 1310 nm (TX and RX)
Fibre Single-mode
Reach Up to 10 km
Laser Safety Class 1, IEC/EN 60825-1
Environment & Power
Operating Temperature 0 to 70 °C
Power Consumption 1.3 W max.
Host Ports SFP28, SFP+ and SFP (falls back to 10G or 1G)
Compatibility
Designed For UniFi switches, gateways and other devices with SFP28, SFP+ or SFP ports
Link Partner Another 1310 nm LR module on single-mode fibre at the same speed
In the Box
Included 1 module
Not Included Fibre patch cords, cleaning tools and attenuators
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Ubiquiti publishes two years for purchases from its own web store and one year, counted from shipment to the authorised distributor, for units sold through the channel, as ours are. Singular’s direct warranty is 1 year; beyond that we help you with any claim to the manufacturer.

Frequently Asked Questions

Will it work in an SFP+ port?
Yes. Ubiquiti states it works in SFP28, SFP+ and SFP ports, running at 25G, 10G or 1G. Both ends must run the same speed.
Is it a BiDi module?
No. It uses a duplex LC pair and transmits and receives at 1310 nm. For single-strand links Ubiquiti sells separate BiDi modules.
Are fibre patch cords included?
No. You get 1 module. The Duplex LC/UPC patch cord, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
Ubiquiti designs its UACC optics for UniFi devices. Ubiquiti does not publish operation in other brands’ devices, so we do not promise it — send us the model and we check it.
Singular Expert Insight
We fit the SFP28-LR where a UniFi network crosses to another building on single-mode fibre: it runs 10G today and 25G later without new optics. Inside one room on multimode fibre, the SFP28-SR is the cheaper fit. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status from the switch and we help you find out whether it is the optic, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need a UniFi single-mode link up to 10 km at 25G, 10G or 1G.

Skip it if

Your fibre is multimode or a single strand.

Also consider

Ubiquiti UACC-OM-SFP28-SR for multimode, or UACC-OM-SM-10G-S-2 for one strand.
