Ubiquiti USL-Relay SuperLink Relay I/O Module

Brand:
Ubiquiti

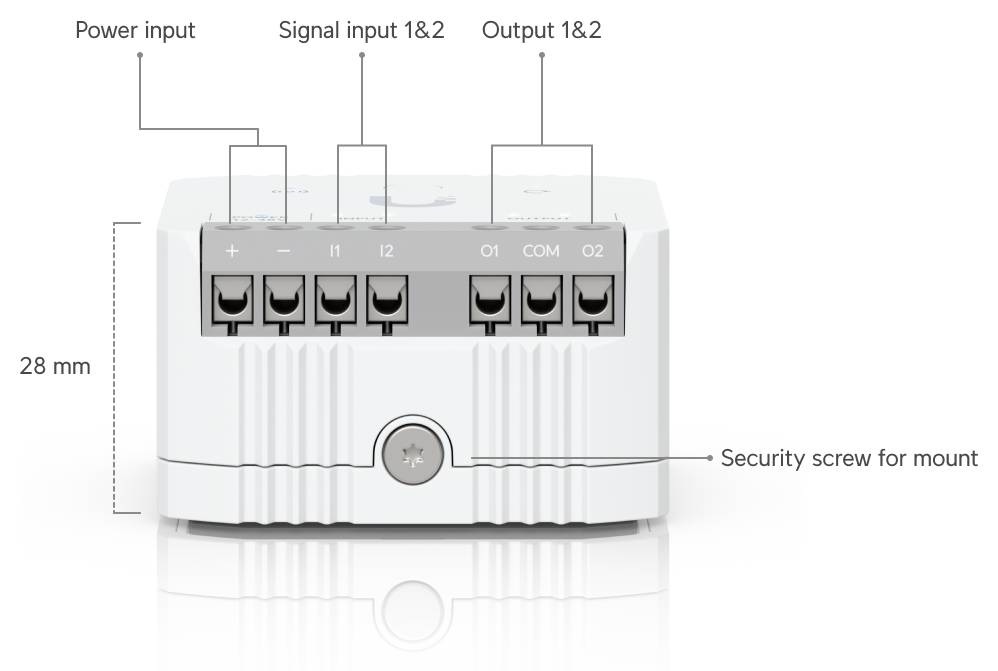

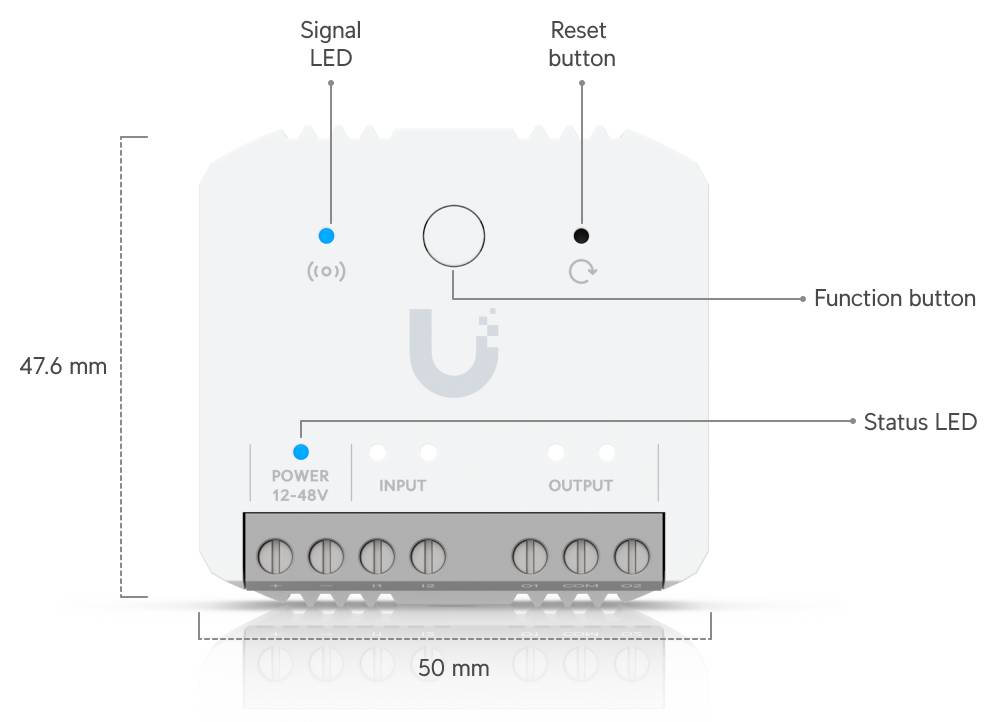

Ubiquiti USL-Relay front technical view with controls and dimensions
Ubiquiti USL-Relay SuperLink Relay I/O Module
€57.25 inc. VAT
Buy
USL-Relay
€48.11
€57.25 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:593693
Manufacturer
Ubiquiti
Quick Specs
Connection
Proprietary SuperLink
Power input
12–48 V DC supply required
Inputs
I1/I2 dry contact
Outputs
O1/COM/O2 dry contact
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Ubiquiti USL-Relay SuperLink Relay I/O Module

Proprietary SuperLink12–48 V DC supply requiredI1/I2 dry contactO1/COM/O2 dry contact

The Ubiquiti USL-Relay is a white SuperLink relay I/O module for integrating third-party dry-contact sensors and signalling devices with a UniFi Protect system. It requires a separate SuperLink Gateway and suitable 12–48 V DC supply.

Best For: For installations that need a SuperLink-connected dry-contact interface for third-party sensors or signalling devices, and where a separate Gateway, UniFi Protect system and suitable DC supply are available.
Before you order: A separate SuperLink Gateway, UniFi Protect system and 12–48 V DC supply are required. Check dry-contact compatibility and load voltage/current limits with a qualified installer. The relay switches an externally powered circuit; its DC power input and output load ratings are different.

What's in the Box

  • One Ubiquiti USL-Relay relay module
  • Wall/adhesive plate
  • DIN rail mount
  • Two wall plugs
  • Two M3 screws
  • L-shaped tool

What It Means in Practice

  • Choose a suitable 12–48 V DC supply for the VDD/GND power terminals; the output load ratings do not describe the device’s DC input.
  • The I1/I2 inputs accept dry contacts only. The O1/COM/O2 terminals switch an external circuit and do not supply voltage to that load.
  • Mounting options are adhesive, wall or DIN rail; check the installation location against the 0–40°C and 10–90% non-condensing operating limits.
  • The stated range is up to 2 km and is conditional on the environment; the EU and US frequency entries are separate regional options.

What Will Not Work

  • A separate SuperLink Gateway and UniFi Protect system are required; the module is not standalone.
  • A separate 12–48 V DC supply, external sensors or signalling loads, and connection wiring are not included.
  • Inputs and outputs are dry-contact only; the relay does not generate supply voltage for the external load.
  • Output rating: 10 A per port; UL total maximum 12 A, IEC total maximum 16 A. Respect the applicable aggregate limit.

Key Features


SuperLink interface
Connects with a separate SuperLink Gateway and UniFi Protect system; it is not an Ethernet, Wi-Fi or Bluetooth device.

Dry-contact I/O
Two dry-contact inputs and O1/COM/O2 dry-contact outputs support compatible external circuits within the stated ratings.

Flexible mounting
Supports adhesive, wall and DIN rail mounting.

Compact enclosure
Measures 50 × 47.6 × 28 mm and weighs 100 g.

Technical Specifications

ManufacturerUbiquiti
ModelRelay
ConnectivityProprietary SuperLink; not Ethernet, Wi-Fi or Bluetooth
Radio frequencyEU: 865.1–869.5 MHz; US: 915.6–927.6 MHz (separate regional entries)
Maximum transmitter power14 dBm
Radio rangeUp to 2 km, conditional on the environment
Power input12–48 V DC; stated methods: 12 V, 24 V or 48 V DC; max. 48 V at VDD/GND
Maximum power consumption0.83 W
Power protectionIntegrated over-temperature protection at 85°C
InputsI1/I2 dry contact only; open/short to GND; integrated 5 V TVS protection
OutputsO1/COM/O2 dry contacts only; load range 12–48 V DC or 12–240 V AC
Output current rating10 A per port; UL total maximum 12 A; IEC total maximum 16 A
Operating temperature0–40°C
Operating humidity10–90% non-condensing
Enclosure and mount materialPolycarbonate
MountingAdhesive, wall or DIN rail
Controls and indicatorsFactory reset and test buttons; status, signal-input and relay-output LEDs
Dimensions50 × 47.6 × 28 mm
Weight100 g
Application requirementsUniFi Protect web application or iOS/Android app; separate SuperLink Gateway and UniFi Protect system required

Frequently Asked Questions

Can it work without a gateway?
No. A separate SuperLink Gateway and UniFi Protect system are required.
Is a power supply included?
No DC supply is listed in the confirmed package contents. The module requires a separate 12–48 V DC supply.
Does the relay power the connected load?
No. Its outputs are dry contacts that switch an external circuit; the relay does not generate the load’s supply voltage.
What is included?
One relay module, wall/adhesive plate, DIN rail mount, two wall plugs, two M3 screws and an L-shaped tool. The Gateway, DC supply, external devices and wiring are separate.
Singular Expert Insight

Its dry-contact inputs and outputs provide an interface between compatible external circuits and a UniFi Protect system over proprietary SuperLink. The rated output load voltage is separate from the relay’s 12–48 V DC power input.

Buyer’s Guide

✓ Buy it if For installations that need a SuperLink-connected dry-contact interface for third-party sensors or signalling devices, and where a separate Gateway, UniFi Protect system and suitable DC supply are available.
✕ Skip it if A separate SuperLink Gateway, UniFi Protect system and 12–48 V DC supply are required. Check dry-contact compatibility and load voltage/current limits with a qualified installer. The relay switches an externally powered circuit; its DC power input and output load ratings are different.
