Intellinet 561952 Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit up to 1 km IP67 802.3af/at/bt Input Pair of 2

Brand:
Intellinet

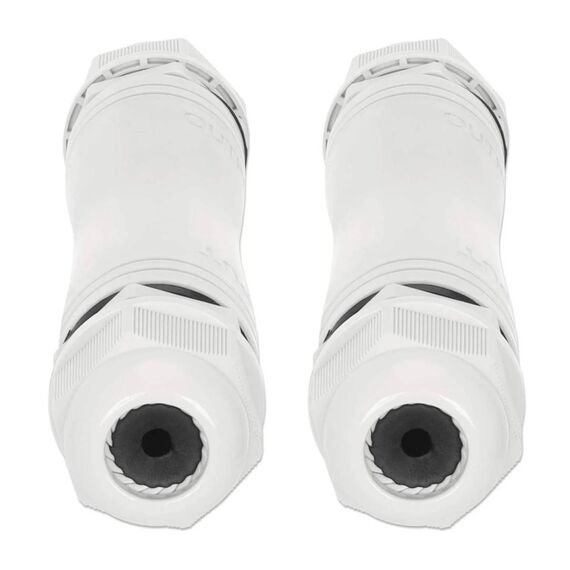

Intellinet 561952 Outdoor PoE+ Extender Kit up to 1 km
Intellinet 561952 Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit up to 1 km IP67 802.3af/at/bt Input Pair of 2
€158.72 inc. VAT
Buy
561952
€133.38
€158.72 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:433147
EAN Code
0766623561952
Manufacturer
Intellinet

Quick Specs

Reach
Adds up to 1,000 m
Data
10/100 Mbps
PoE out
30 W @ 300 m; 15.4 W @ 800 m
Housing
IP67 outdoor
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Outdoor Fast Ethernet PoE+ Extender Kit — up to 1 km

Up to 1,000 mIP67PoE poweredPair of 2

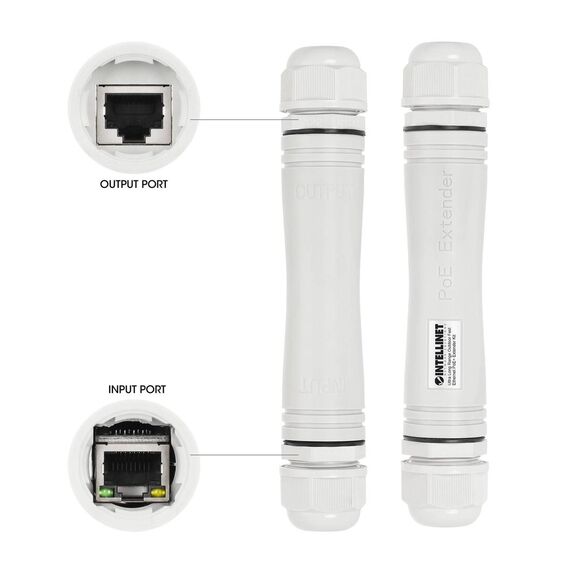

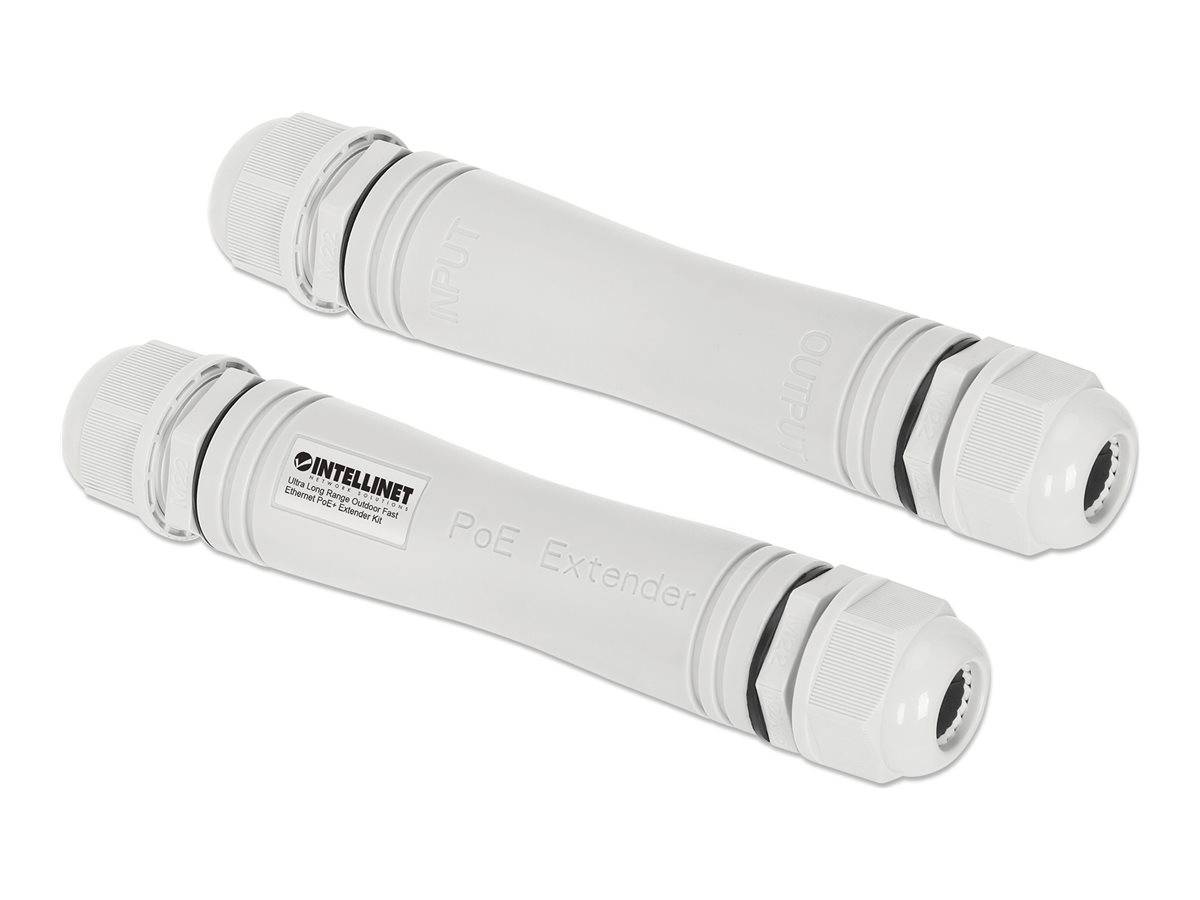

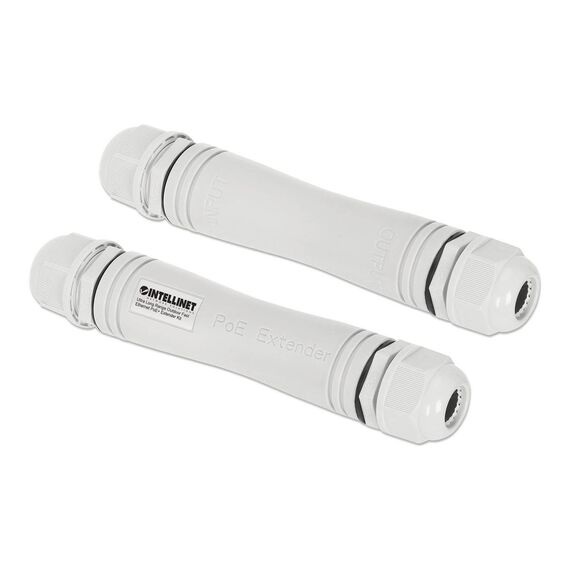

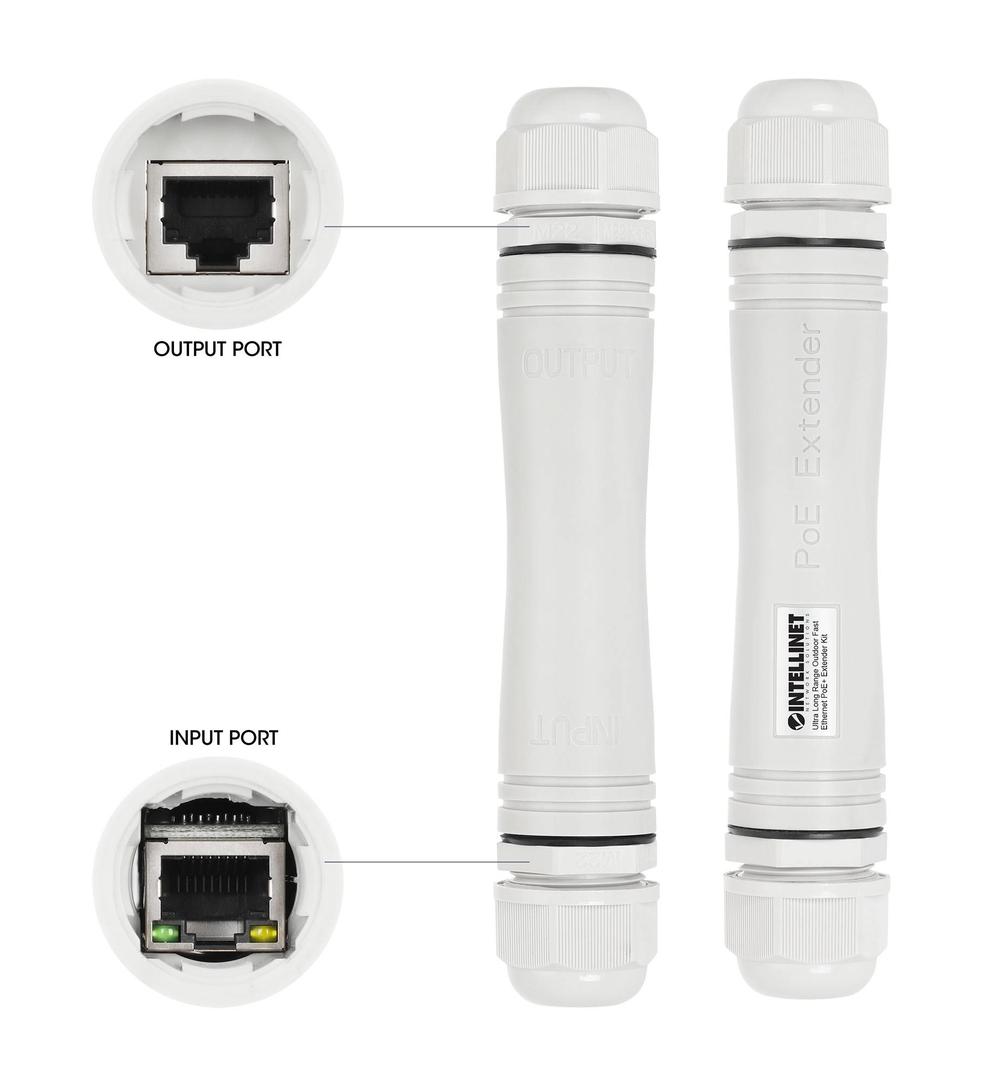

The Intellinet 561952 (model IPE-ODFE30) is an Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit: two IP67 units that are always used together to carry a 10/100 Ethernet and PoE link far beyond the normal 100 m limit. Intellinet states that the pair adds up to 1,000 m, and that it needs no local power — both units are powered from the PoE source. The published output is up to 30 W at 100 Mbps over 300 m, and up to 15.4 W at 10 Mbps over 800 m. In practice it brings a PoE camera or access point to a gate, car park or pole that is far from the nearest switch.

Compatibility — check before buying:
Fast Ethernet only. Data runs at 100 Mbps over shorter distances and drops to 10 Mbps on the longest runs, and the power that reaches the device falls with distance. You need a PoE source (802.3af/at/bt switch or injector) at the head end — it is not included. The two units must be used as a pair. Check your device’s power draw against the distance before ordering. Not sure? Tell us your model and we check it for you.

Best For

✓ PoE cameras at gates and poles
✓ Car parks and yards
✓ Access points in remote buildings
✓ Agricultural and industrial sites
✓ Replacing fibre on low-bandwidth links
✓ Outdoor runs without local power

Key Features


Up to 1 km reach
The pair extends a PoE link up to 1,000 m.

No local power
Both units run on PoE from the head end.

IP67 outdoor housing

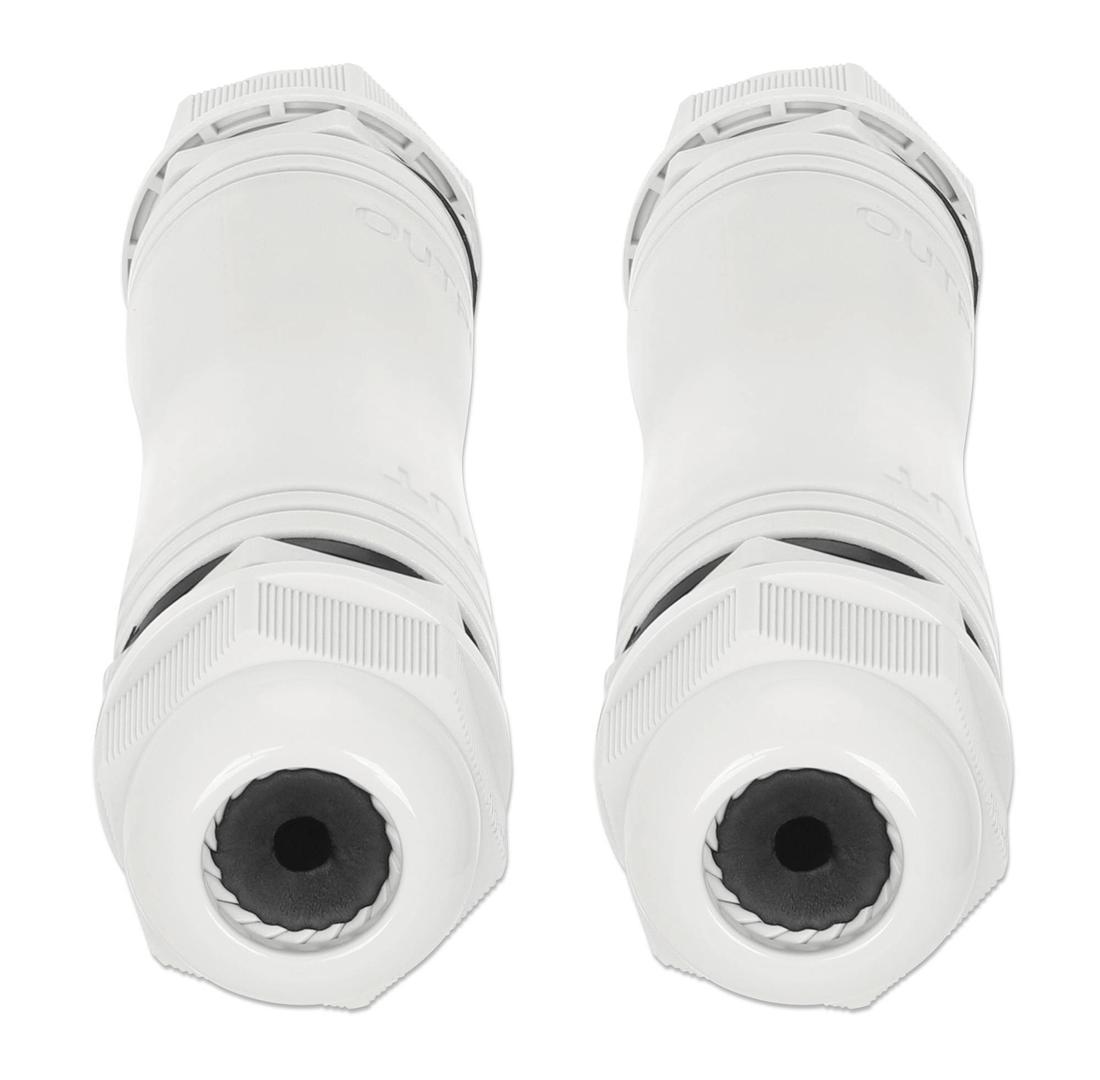

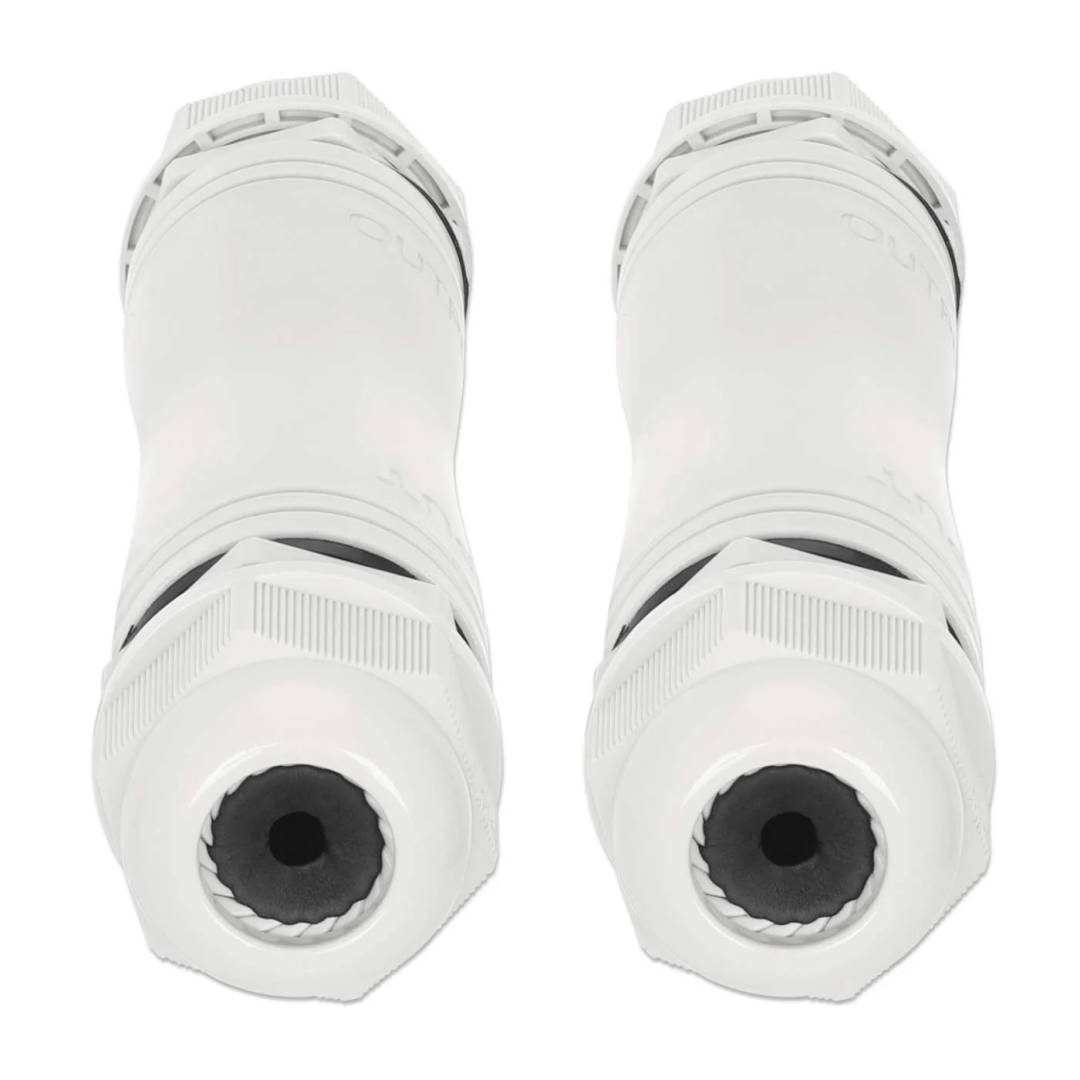

Four IP67 cable glands included.

PoE+ output
Up to 30 W at 300 m, 15.4 W at 800 m.

Technical Specifications

Identification
Brand Intellinet
Product Ultra Long Range Outdoor Fast Ethernet PoE+ Extender Kit (IPE-ODFE30)
Part Number 561952
EAN / GTIN 0766623561952
Model IPE-ODFE30
Product Type Outdoor PoE extender kit (pair)
Network
Standards IEEE 802.3 10Base-T, 802.3u 100Base-TX, 802.3x
Ports RJ45
Cable (10 Mbps) Cat3/4/5/5e/6/6a UTP/STP
Cable (100 Mbps) Cat5/5e/6/6a UTP/STP
Cascading Supported
PoE
PoE input IEEE 802.3af/at/bt, up to 95 W, Alternative A & B
PoE output IEEE 802.3af/at, Alternative A
Output power Up to 30 W at 100 Mbps over 300 m; up to 15.4 W at 10 Mbps over 800 m
Own consumption 0.4 W no load, 0.7 W full load
Protection Short circuit and overload, auto-sensing
Physical & Environment
Dimensions (per unit) 157 × 29 × 29 mm
Weight 155 g net
Housing IP67 plastic
Colour Grey
Operating temperature −10 to 55 °C, 10–90% RH
Storage temperature −40 to 70 °C
Certifications FCC, CE, RoHS, UKCA, NDAA
Before You Order
Head-end PoE Switch or injector 802.3af/at/bt required
Bandwidth Fine for cameras; not for Gigabit links
Distance Check device wattage against the run length
In the Box

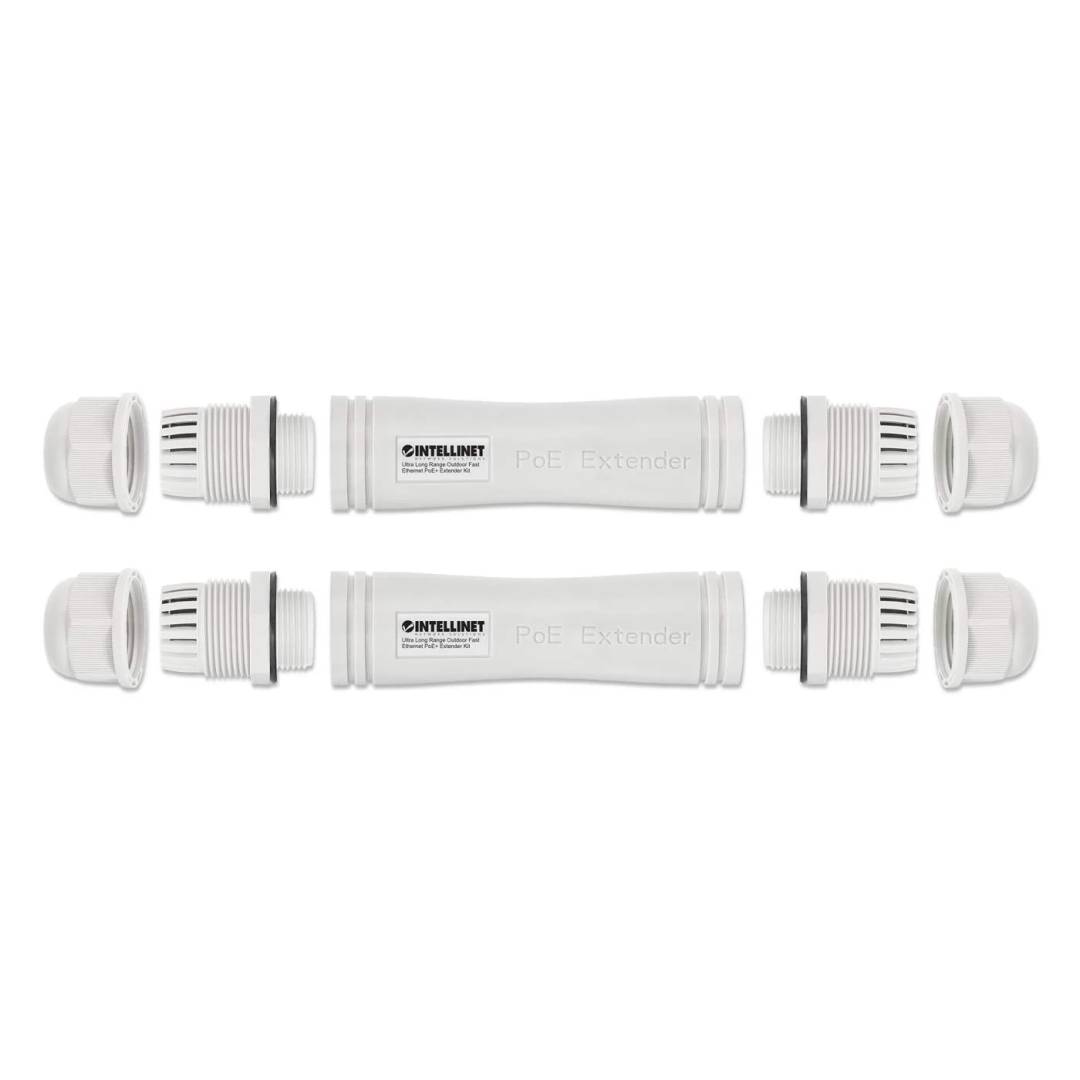

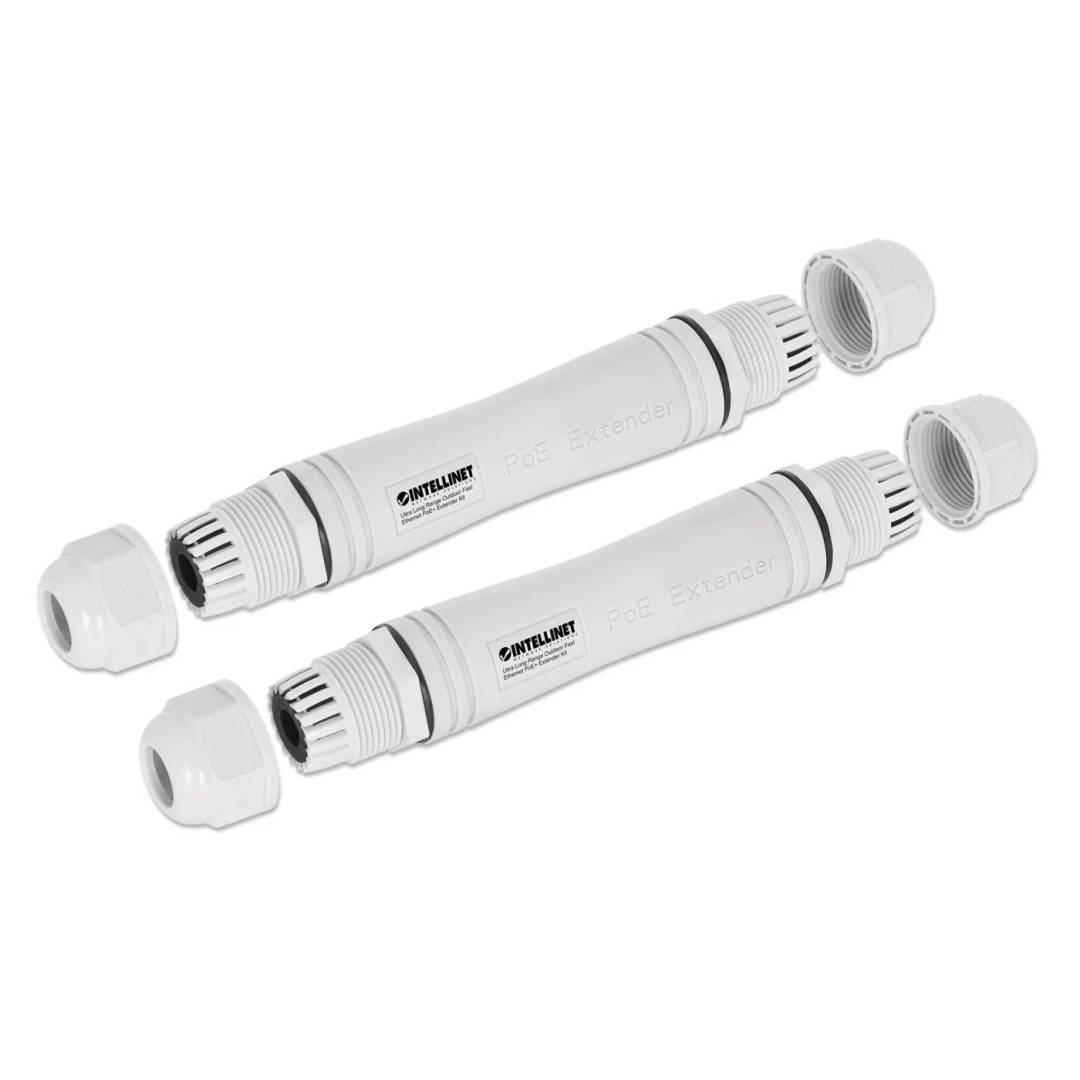

Included 2 extender units, 4 IP67 cable glands, instructions
Not Included PoE switch or injector; Ethernet cables; powered device
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term Intellinet publishes a 3-year warranty for this product in its datasheet. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process for its full duration.

Frequently Asked Questions

Do the units need a power socket?
No. Both are powered over PoE from the switch or injector.
How far can it reach?
Intellinet states up to 1,000 m added, with speed and power falling as distance grows.
Is it Gigabit?
No. It is Fast Ethernet (10/100 Mbps).
Can it be installed outdoors?
Yes. Both units have IP67 housings and cable glands are included.
Singular Expert Insight
We use long-range PoE extenders for cameras at gates and poles where fibre would be overkill. Calculate the device wattage at the far end first: a 12 W camera is comfortable, a 25 W PTZ needs the shorter distance. For the head-end PoE, see our network switches.

Buyer’s Guide

Buy it if

You need PoE and 10/100 data at a point up to 1 km from your switch.

Skip it if

You need Gigabit speed at the far end.

Also consider

A fibre link with media converters for Gigabit over long distances.
