Wera Kraftform Kompakt VDE 17 RA 1 — insulated ratchet handle and 15 VDE blades for work up to 1000 V
17 pieces1000 V, tested at 10,000 VIEC 60900Ratchet handle, 40 teeth, 9°
The Wera Kraftform Kompakt VDE 17 RA 1 (part number 05006618001) puts a ratchet inside an insulated screwdriver handle. It pairs the 837 i RA blade-holding handle, which carries an integrated 40-tooth ratchet with a 9 degree return angle, with a standard 817 VDE handle and fifteen interchangeable VDE blades at 157 mm. Every piece is individually tested in a water quench at 10,000 V in accordance with IEC 60900 for approved working at 1,000 V, so the ratchet advantage is available on live-adjacent work rather than only on the bench. Typically in stock with fast delivery across Cyprus.
Compatibility — check before buying:
The ratchet handle itself is insulated — the i in 837 i RA means exactly that, and Wera tests it individually at 10,000 V per IEC 60900 like every blade in the set. The whole set is insulated. Note the blade mix: fourteen of the fifteen blades are standard diameter (i) and only one is the reduced-diameter slim type (iS), the 0.6 x 3.5 mm slotted, so this is not the set to buy if reaching deep into recessed spring terminals is your main problem. The two blades marked number 1 and number 2 are PZ/S PlusMinus combinations, not plain slotted, which many listings get wrong. VDE blades keep their rating only in a VDE handle.
Best For
✓ Electrical installation with repetitive screw runs
✓ Control cabinets, switchgear and distribution boards
✓ Terminal work where the wrist cannot rotate freely
✓ Electricians wanting a ratchet without losing the VDE rating
✓ Confined panel spaces
✓ Teams standardising on one blade system
Key Features
Insulated ratchet handle, 40 teeth at 9 degrees
The 837 i RA has the ratchet fully embedded in the handle, with fine 40-tooth toothing giving a 9 degree return angle. Switching is intuitive between clockwise, anticlockwise and a neutral 0 position, and the handle still allows free spinning while driving.
Individually tested at 10,000 V to IEC 60900
Wera tests every handle and blade piece by piece in a water quench at 10,000 V, which is what licenses the 1,000 V working rating. Both handles are insulated, so there is no uninsulated weak point in the pouch.
Fifteen blades across five profile families

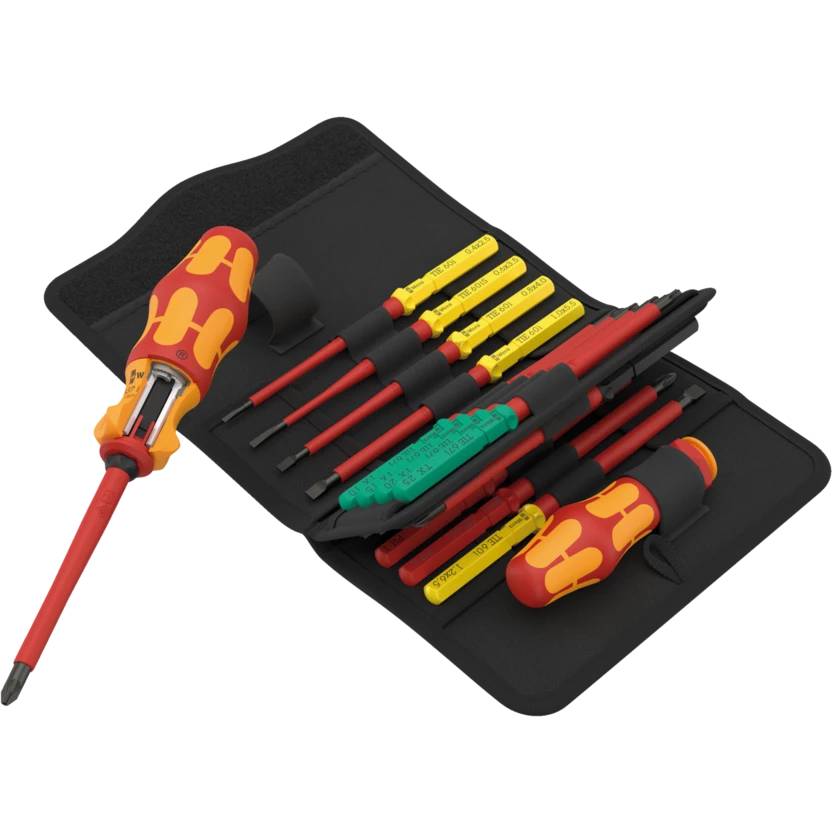

Slotted 2.5, 4, 5.5 and 6.5 mm plus one slim 3.5 mm, Phillips PH 1 and PH 2, Pozidriv PZ 1 and PZ 2, PZ/S PlusMinus number 1 and number 2, and TORX TX 10, TX 15, TX 20 and TX 25, all 157 mm.
Second handle and Take it easy coding
A standard 817 VDE blade-holding handle sits alongside the ratchet handle, so a second profile stays loaded while the ratchet works. Colour coding by profile with laser-engraved sizes speeds up selection, and the hex anti-roll blades stay put on a sloping panel.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The reason to pay for a ratchet in a VDE handle is the same reason cabinet work is slow: you cannot rotate your wrist inside a panel, so every turn becomes a re-grip. Forty teeth at 9 degrees is coarser than the 80-tooth mechanisms Wera puts in its mechanical ratchets, but the constraint here is the insulation moulding, and a 9 degree bite is still transformative compared with none. Read the blade mix carefully before choosing between this and the extra slim set: only one blade here is reduced diameter, so if your problem is reaching into recessed terminals rather than turning in a tight space, the other set is the right one. Browse our Cable Tools and Testers range for the rest of the electrical hand-tool line-up, or the wider Cables and Accessories section for cable and terminals.
Buyer’s Guide
Buy it if
You do panel and cabinet work where the wrist cannot rotate, and you want a ratchet handle that is itself individually tested to IEC 60900 for 1,000 V working.
Skip it if
Your problem is reaching into recessed terminals rather than turning, you need pliers or torque control in the same pouch, or you never work near live equipment.
Also consider
The Wera Kraftform Kompakt VDE 17 extra slim 1 with twelve of fourteen blades reduced diameter and Knipex VDE pliers, or the VDE Big Pack 1 with two handles and 24 blades.
Features - Wera - 05006618001
More Details
Product Code
04:494280
EAN Code
4013288229694
Manufacturer
Wera
