Zebra ZD510-HC Wristband Printer, 300 dpi, Direct Thermal, USB, USB Host and Ethernet, White

Brand:
Zebra
Zebra ZD510-HC ZD51013-D0ER00FZ white wristband printer
Zebra ZD510-HC Wristband Printer, 300 dpi, Direct Thermal, USB, USB Host and Ethernet, White
€916.49 inc. VAT
Buy
ZD51013-D0ER00FZ
€770.16
€916.49 inc. VAT
Ships from EU stock: 39 item(s)
+ −
Add to wish list Ask a question
Product Code
CQ37291
EAN Code
5715328205550
Manufacturer
Zebra

Quick Specs

Printing
300 dpi direct thermal
Media
Zebra Z-Band cartridges
Connections
USB / USB Host / Ethernet
Print speed
Up to 51 mm/s healthcare; 102 mm/s Fun/Splash
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Zebra ZD510-HC 300 dpi USB Ethernet Wristband Printer

300 dpiZ-Band cartridgesUSB + EthernetWired EMEA

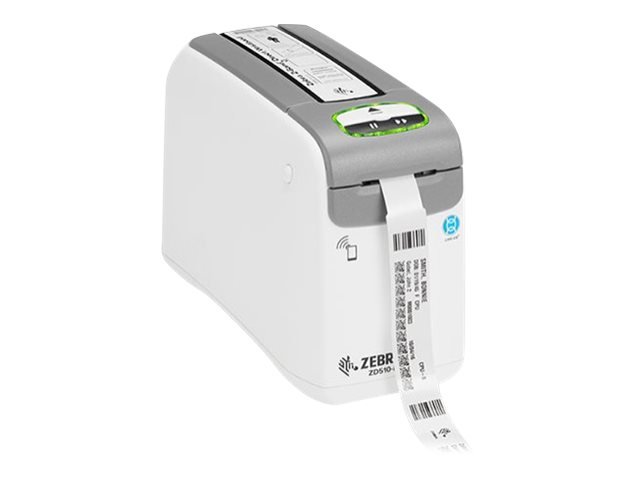

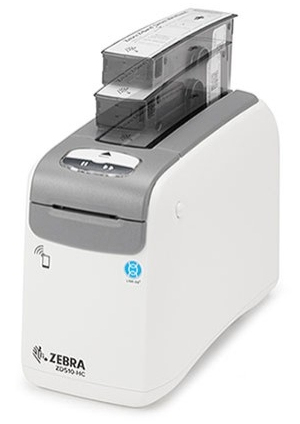

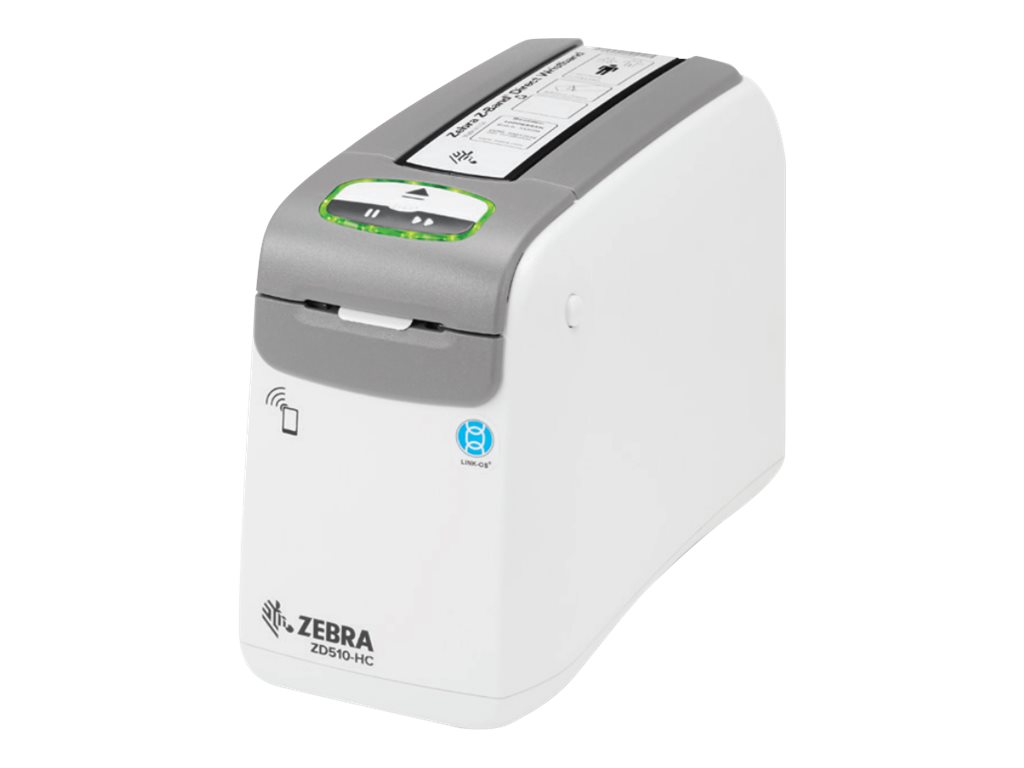

The Zebra ZD510-HC is a specialised cartridge-fed wristband printer for patient identification and guest admission. This ZD51013-D0ER00FZ configuration connects through USB or Ethernet; it does not include Wi-Fi or Bluetooth. It prints text, graphics and barcodes directly onto compatible heat-sensitive Z-Band wristbands, without a ribbon. The printer, medical-grade power supply and EU/UK power cords are included.

Before you order:
Choose the correct Z-Band cartridge, wristband size and closure for the application, and verify your host software/driver integration. No wristband cartridge is confirmed in this SKU’s package. Leave 153 mm above the printer to load a cartridge. The healthcare speed limit is 51 mm/s; 102 mm/s applies to Z-Band Fun and Splash.

What's in the Box

  • Zebra ZD510-HC printer, ZD51013-D0ER00FZ
  • Power supply
  • EU and UK power cords

What It Means in Practice

  • For example, insert the selected wristband cartridge, connect the printer to a compatible workstation or network, and send a wristband format from your application. The cartridge smartchip handles media calibration; the application supplies the patient or guest data.
  • USB Host is a peripheral connection, not a replacement for your admission software. System integration and the correct cartridge remain essential.

What Will Not Work

  • This wired EMEA configuration cannot provide the Wi-Fi/Bluetooth/NFC functions advertised for other configurations.
  • This is a Z-Band cartridge wristband printer, not a general-purpose shipping-label roll printer.

Key Features


Cartridge-based loading
The cartridge smartchip enables automatic media calibration and sets speed for the fitted cartridge. Choose healthcare or hospitality wristbands for the actual task.

Wired integration
USB, USB Host and 10/100 Ethernet are supplied. ZPL, ZPL II and XML support compatible workflows; check your specific application rather than assuming a plug-and-play hospital integration.

Designed for healthcare cleaning
The UV-resistant, disinfectant-ready housing and IEC 60601-1 power supply suit healthcare deployment. Follow Zebra’s cleaning guidance for approved agents and procedures.

Technical Specifications

Identity
Manufacturer / model Zebra ZD510-HC
MPN ZD51013-D0ER00FZ
EAN 5715328205550
Colour White
Print engine and cartridges
Print method Direct thermal; no ribbon
Resolution 300 dpi / 12 dots per mm
Print widths 19.05 / 25.4 / 30.16 mm
Print length 76–558 mm
Maximum speed Healthcare: 51 mm/s (2 ips); Z-Band Fun / Splash: 102 mm/s (4 ips), automatically set by cartridge
Media system Zebra Z-Band wristband cartridges with smartchip automatic calibration
Wristband options Healthcare: adult, child and infant; adhesive or clip closure. Hospitality: one-day or multi-day Fun/Splash options
Sensors / indicators Head-up sensor; illuminated low/out-of-media indicator; print-length odometer
Connections and software
Installed interfaces USB, USB Host, 10/100 Ethernet
Wireless configuration EMEA wired-only SKU; no Wi-Fi, Bluetooth LE or NFC
Memory 256 MB SDRAM / 512 MB Flash
Operating system Link-OS
Languages ZPL / ZPL II / XML
Clock Real Time Clock (RTC)
Linear barcodes Codabar, Code 11/39/93/128, EAN-8/13/14, GS1 DataBar, Industrial/Interleaved/Standard 2-of-5, Logmars, MSI, Plessey, Postnet, UPC-A/E and 2/5-digit extensions
2D barcodes Aztec, Codablock, Code 49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code
Fonts and graphics Zebra bitmap and scalable fonts; Unicode; user fonts and logos; scalable font up to 1500 × 1500 dots
Software tools ZebraDesigner Essentials, Zebra setup utilities and PrintSecure; optional enterprise management and ZBI 2.0
Construction and environment
Housing Dual-wall impact-resistant plastic; disinfectant-ready, UV-resistant
Service access Tool-less printhead and platen replacement
Dimensions (W × H × D) 127 × 178 × 242 mm
Loading clearance above printer 153 mm
Operating temperature 4.4–40 °C
Storage temperature −40–60 °C
Operating humidity 20–85% RH, non-condensing
Storage humidity 5–85% RH, non-condensing
Cartridge storage 0–21 °C; 35–50% RH, non-condensing
Cartridge service temperature −40–60 °C
Power and package
Power input 100–240 V AC, 50–60 Hz; PFC
Power supply compliance IEC 60601-1:2012
Certification ENERGY STAR
Included items Printer, power supply, EU and UK power cords
Manufacturer term Minimum 2 years from shipment against defects in materials/workmanship; varies by region; Zebra terms apply

Frequently Asked Questions

Does this SKU include Wi-Fi or Bluetooth?
No. ZD51013-D0ER00FZ is the EMEA USB/USB Host/Ethernet-only configuration. The wireless capabilities of other ZD510-HC models do not describe this package.
Will healthcare wristbands print at 102 mm/s?
Zebra specifies up to 51 mm/s for healthcare wristbands and up to 102 mm/s for Z-Band Fun/Splash. Speed is set according to the installed cartridge.
Do I need ink or a ribbon?
No ribbon is required for direct thermal printing. You need a suitable Z-Band wristband cartridge and compatible host software; a cartridge is not confirmed as included.
Singular Expert Insight
Choose this wired configuration for a fixed admissions desk where the correct wristband cartridge and software integration are already planned. Its cartridge system simplifies media loading, but it does not replace the application that creates and sends wristband data. Compare label and wristband printers

Buyer’s Guide

✓

Buy it if

 you need 300 dpi Z-Band wristbands at a wired workstation.
✕

Skip it if

 you require built-in wireless networking or ordinary shipping-label rolls.
→

Also consider

 a verified wireless ZD510-HC configuration if cabling is impractical, or a roll-label printer for packaging labels.
Tell us your software, wristband type and connection requirements so we can check the configuration.
