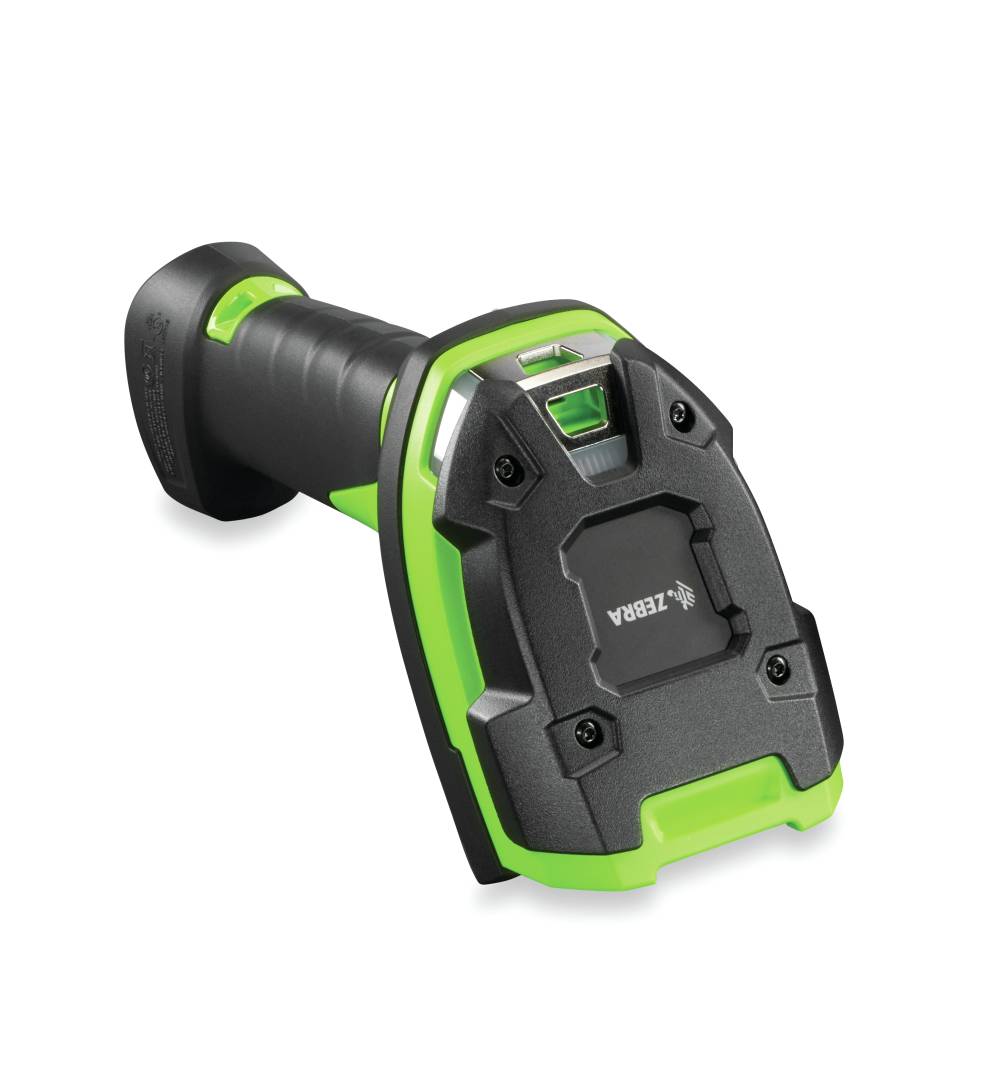

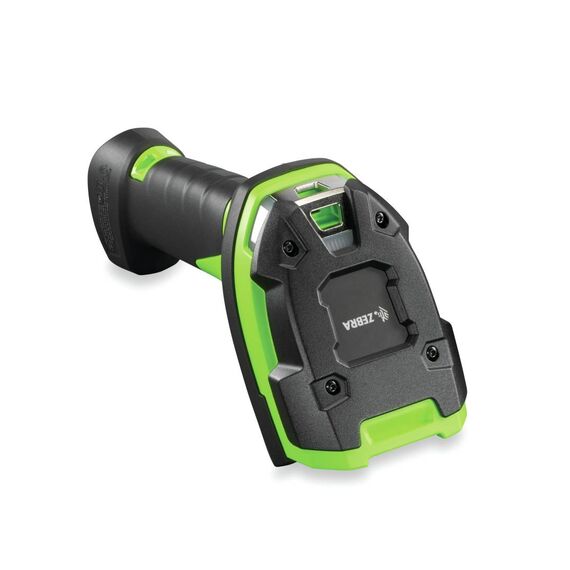

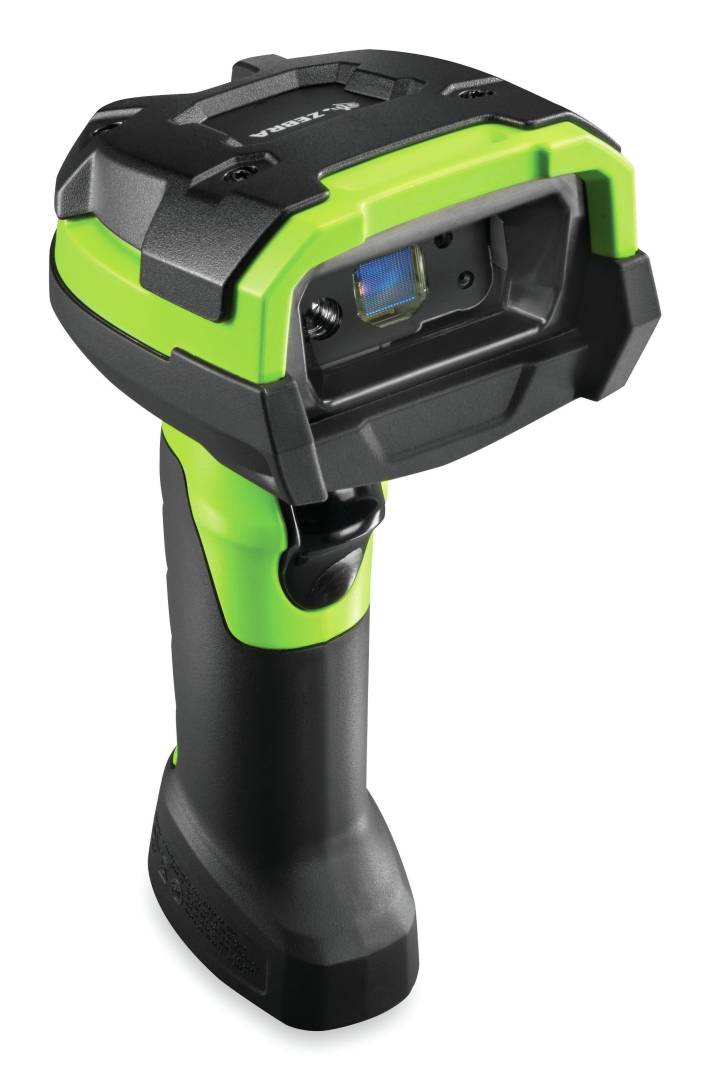

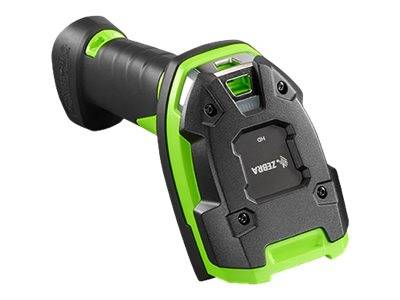

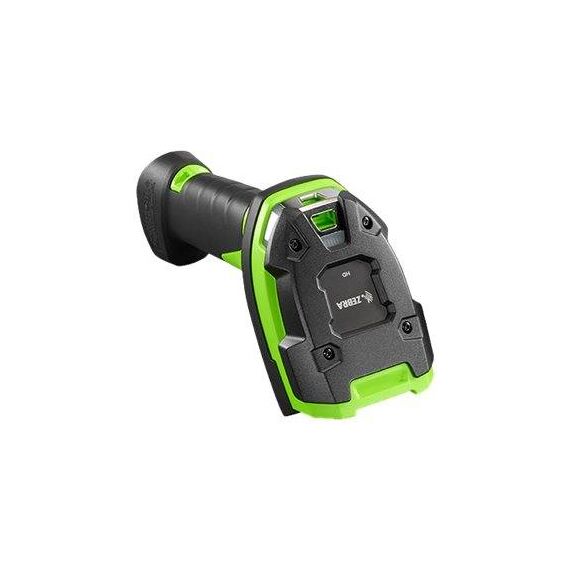

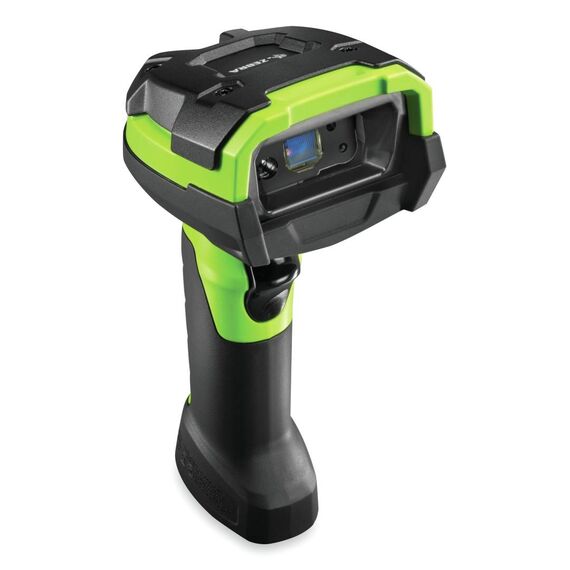

Zebra DS3608-DP Direct Part Marking 1D/2D Imager | Scanner Only | IP65 | DPM Dot Peen Laser Etch | Industrial Green | DS3608-DP20003VZWW
Μάρκα: Zebra
Zebra DS3608-DP Direct Part Marking 1D/2D Imager | Scanner Only | IP65 | DPM Dot Peen Laser Etch | Industrial Green | DS3608-DP20003VZWW
€1908.49 inc. VAT
DS3608-DP20003VZWW
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Zebra DS3608-DP – Ultra-Rugged Direct Part Marking Scanner for Aerospace & Manufacturing
The Zebra DS3608-DP is a corded ultra-rugged 1D/2D imager built specifically for Direct Part Marking (DPM) applications in aerospace, automotive and precision manufacturing environments. Unlike standard area imagers, the DS3608-DP features advanced multi-angle illumination that captures virtually every DPM type — dot peen, laser etch, inkjet and chemical etch — on any surface, including metal, plastic, curved, high-reflective or low-contrast. It also reads all standard 1D and 2D barcodes displayed on a screen or printed on a label, providing a single device for the entire production and quality control workflow. This listing is for the scanner unit only; a cable must be ordered separately.
Specifications
| Parameter | Value |
|---|---|
| Part Number | DS3608-DP20003VZWW |
| EAN | 5704174856405 |
| Scanner Type | Corded DPM 1D/2D Area Imager |
| Series | Zebra 3600 Ultra-Rugged — Direct Part Marking |
| DPM Methods Supported | Dot peen, laser etch, inkjet, chemical etch — on metal, plastic, curved or irregular surfaces |
| Illumination | Advanced multi-angle — handles low contrast, high-reflective, irregular and curved surfaces |
| Interfaces | USB, RS232, Keyboard Wedge, Industrial Ethernet (EtherNet/IP, Profinet, Modbus TCP) |
| IP Rating | IP65 — dustproof and spray-proof |
| Drop Rating | Multiple 2.4m (8ft) drops to concrete |
| Tumble Rating | 7,500 tumbles |
| Operating Temperature | -30°C to +50°C |
| Feedback | Vibration motor, red/green LED, beeper |
| Colour | Industrial Green |
| Management | Zebra 123Scan2, Scanner Management Service (SMS), DataCapture DNA |
| Contents | Scanner only — cable must be ordered separately |
| Warranty | 3-year Zebra manufacturer warranty |
Barcode & DPM Support
| Type | Detail |
|---|---|
| DPM | DataMatrix DPM, QR Code DPM — dot peen, laser etch, inkjet, chemical etch; any surface including metal, reflective, curved |
| 1D | Code 39, Code 128, Code 93, Codabar, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, GS1 DataBar, Korean 3 of 5, Base 32 |
| 2D | QR Code, Micro QR, DataMatrix, PDF417, Micro PDF417, Aztec, MaxiCode, Han Xin, Postal Codes, Composite Codes, Digimarc |
★ Singular Recommends
For who
Aerospace, automotive and precision manufacturing operations that require end-to-end component traceability via Direct Part Marks — serial numbers etched directly onto parts, not on labels that can fall off or be removed.
The real reason to buy it
Standard scanners — including the DS3608-SR — cannot reliably read DPM codes because dot peen and laser etch marks lack the contrast of printed barcodes. The DS3608-DP's advanced multi-angle illumination solves this. One scanner covers DPM traceability, label scanning and screen scanning across the entire factory floor.
Know before you buy
Scanner only — no cable included; order CBA-U46-S07ZAR (USB) separately. IP65 rated — splash and dust proof, but not immersible like the DS3608-SR (IP67). If your environment does not require DPM scanning, the DS3608-SR is the more cost-effective choice.
