Zebra DS4608-SR7U2100SGW 1D/2D USB Barcode Scanner Kit, Stand Included, Black

Brand:
Zebra

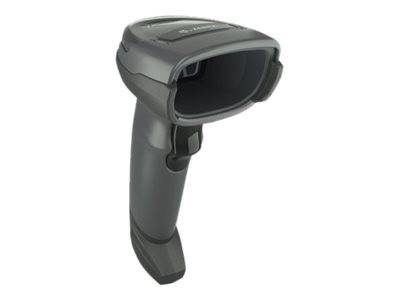

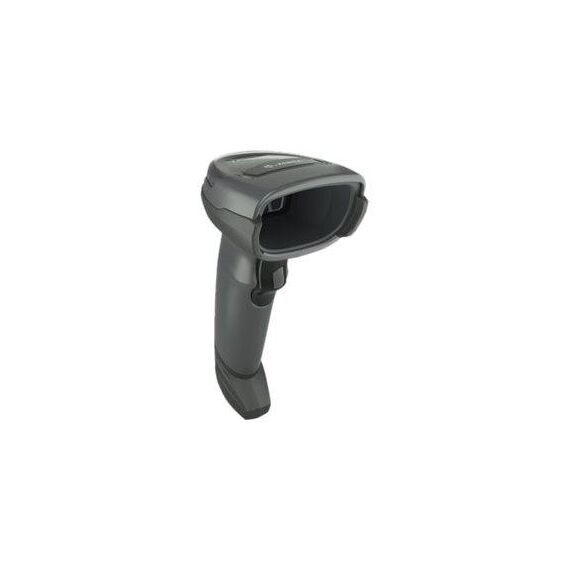

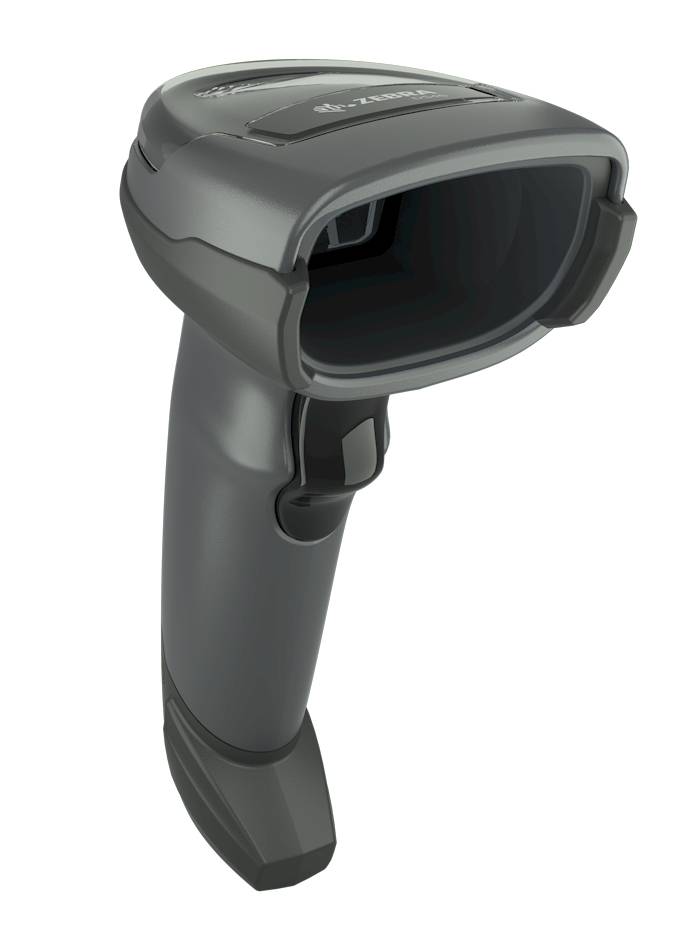

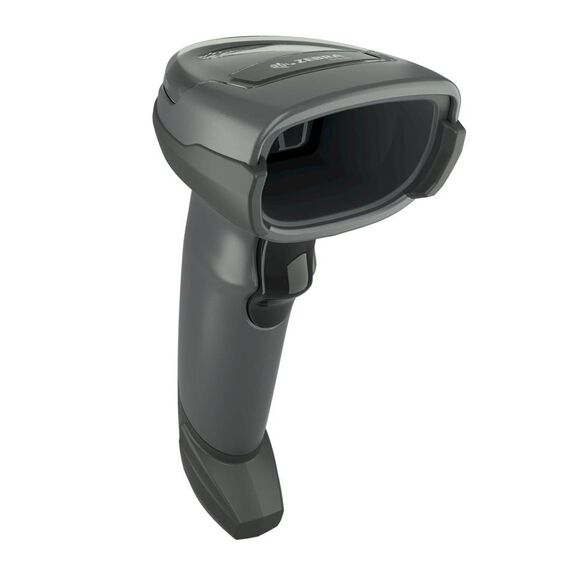

Zebra DS4608-SR black corded 1D/2D USB barcode scanner with stand
Zebra DS4608-SR7U2100SGW 1D/2D USB Barcode Scanner Kit, Stand Included, Black
€173.98 inc. VAT
Buy
DS4608-SR7U2100SGW
€146.20
€173.98 inc. VAT
Ships from EU stock: 30 item(s)
+ −
Add to wish list Ask a question
Product Code
03:280455
EAN Code
5704174084235
Manufacturer
Zebra

Quick Specs

Reading
1D / 2D Standard Range
Sensor
1280 × 800 pixels
Connection
Wired USB
Stand
Included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

A complete counter kit with a presentation stand

Standard Range1280 × 800Stand included

The black DS4608-SR uses a 1280 × 800 area imager and PRZM processing for printed and screen-based 1D/2D barcodes. This exact DS4608-SR7U2100SGW kit includes a shielded USB cable and presentation stand. Its higher-resolution sensor and longer specified UPC reach distinguish it from the DS2208 family.

Before you order:
This SGW kit includes stand 20-71043-04R and cable CBA-U21-S07ZBR. Do not confuse it with the AZW USB kit, which omits the stand.

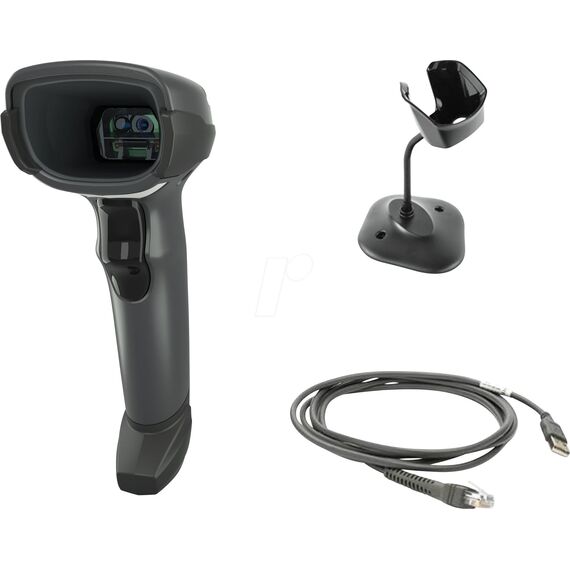

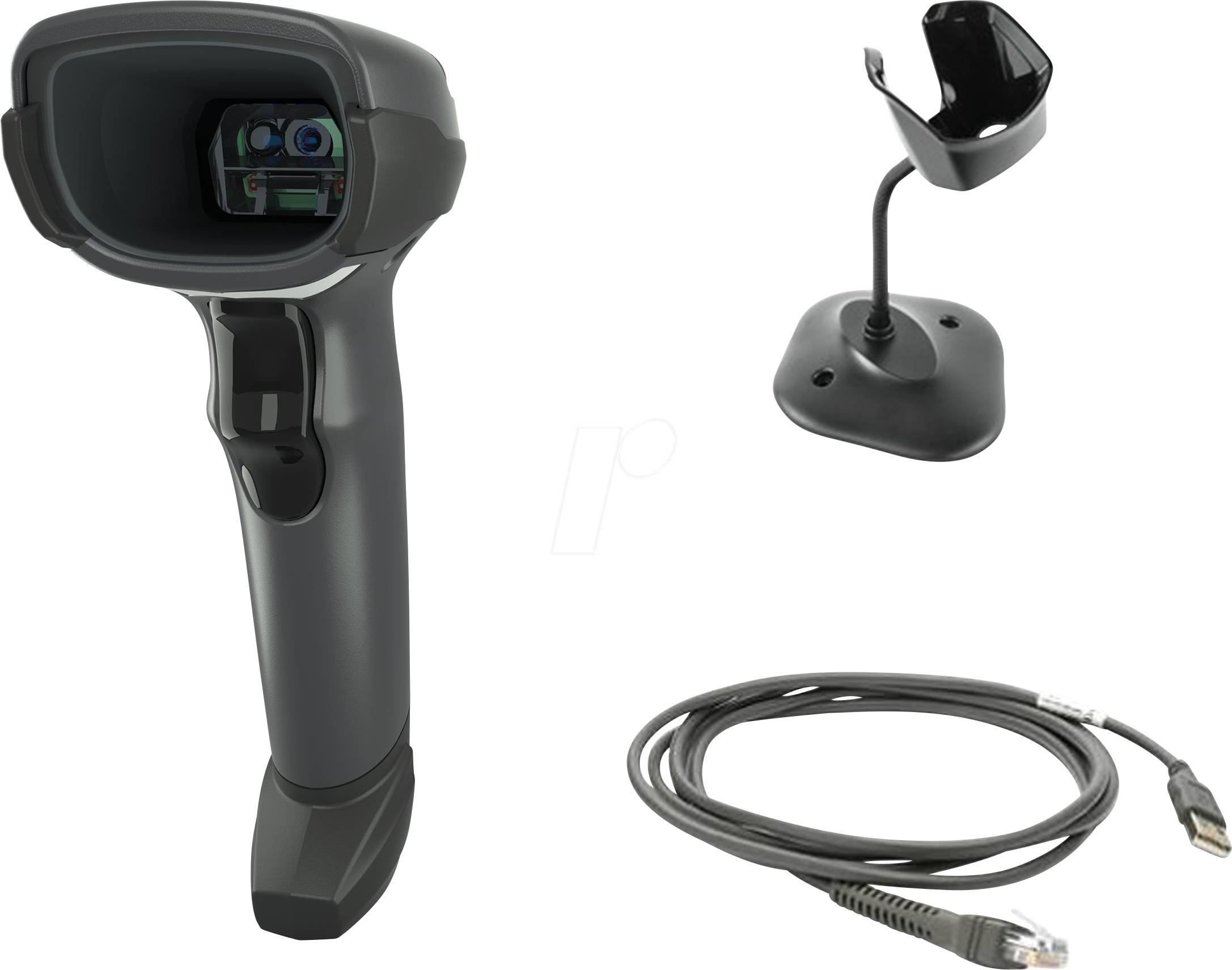

What's in the Box

  • DS4608-SR00007ZZWW scanner, Twilight Black
  • CBA-U21-S07ZBR shielded USB cable
  • 20-71043-04R presentation stand

What It Means in Practice

  • Omnidirectional decoding reduces alignment steps.
  • Reads customer phone codes and product labels.
  • 123Scan supports configuration and firmware deployment.

What Will Not Work

  • This is corded DS4608, not Bluetooth DS4678.
  • SR does not include the DL/HL driver-license parsing option or HD/HL optional Checkpoint EAS capability.
  • Decode distance depends on barcode size, print quality and lighting.

Key Features


Reach for ordinary UPC labels
The SR table lists 0–71.1 cm for a 13 mil UPC and 0–44.5 cm for a 20 mil QR. These are code-specific typical ranges.

More than basic barcode entry
Supports OCR-A/B, MICR and US currency OCR, multiple-code formatting and GS1 label parsing. Host software and scanner settings must match the workflow.

Designed for daily handling
IP52 sealing, a recessed scan window, multiple 1.8 m concrete drops and 2000 tumbles at 0.5 m are manufacturer specifications.

Technical Specifications

Identification
Manufacturer SKU DS4608-SR7U2100SGW
EAN / GTIN 5704174084235
Exact kit
Scanner DS4608-SR00007ZZWW
USB cable CBA-U21-S07ZBR, shielded
Stand 20-71043-04R included
Scanning
Engine Standard Range 1D/2D area imager
Processor 800 MHz
Sensor 1280 × 800 pixels
Aiming / illumination 617 nm amber LED circle / 2 × 660 nm red LEDs
Field of view 31.6° H × 22.6° V
Minimum contrast 15%
Skew / pitch / roll ±60° / ±60° / 0–360°
SR minimum resolution Code 39: 3 mil / Data Matrix: 5 mil
1D examples Code39/128/93/11, Codabar, MSI, UPC/EAN, I2of5, GS1 DataBar, Base32
2D examples PDF417, MicroPDF417, Composite, TLC39, Aztec, Data Matrix, MaxiCode, QR/MicroQR, HanXin, Postal, SecurPharm, DotCode, Dotted DataMatrix
OCR OCR-A, OCR-B, MICR, US Currency
Image export Bitmap, JPEG, TIFF
A4 image quality SR 96 PPI
Typical SR decode ranges
Code39, 3 mil 5.6–13.7 cm
Code39, 5 mil 1.8–27.9 cm
Code39, 20 mil 0–111.8 cm
Code128, 5 mil 6.9–13.7 cm
PDF417, 6.7 mil 3.3–25.4 cm
UPC, 13 mil 0–71.1 cm
Data Matrix, 10 mil 2.5–29.2 cm
QR, 20 mil 0–44.5 cm
Range conditions Print resolution, contrast and ambient light dependent
Interfaces and power
Host interfaces USB, RS232, Keyboard Wedge, TGCS IBM46XX RS485
USB certification USB 2.0 Full Speed
Keyboard layouts Over 90
Input voltage 4.5–5.5 VDC
Operating current 340 mA typical at 5 V
Standby current 150 mA typical at 5 V
Feedback Direct Decode Indicator, LEDs, adjustable beeper
Physical and environmental
Colour Twilight Black
Dimensions H × W × D 165 × 67 × 98 mm
Weight 161.9 g
Protection IP52
Drop specification Multiple 1.8 m drops to concrete
Tumble specification 2000 tumbles at 0.5 m
Operating / storage temperature 0–50 °C / −40–70 °C
Humidity 5–95% RH, non-condensing
ESD ±15 kV air / ±8 kV direct and indirect
Ambient light 0–107000 lux
Management tools 123Scan, Scanner SDK, SMS

Frequently Asked Questions

What differs between AZW and SGW kits?
Both listed kits use the black DS4608-SR reader and CBA-U21-S07ZBR USB cable. SGW adds stand 20-71043-04R; AZW omits it.
Is 71.1 cm the range for every code?
No. It is the listed far distance for a 13 mil UPC. The same table gives different ranges for QR, Data Matrix and smaller linear codes.
Does it connect wirelessly?
No. DS4608 is corded. Choose an appropriate cordless model when movement away from the workstation is required.
Singular Expert Insight
Choose the DS4608-SR for its code-specific reach, megapixel imaging and data-capture tools. Then choose the bundle: SGW adds a stand for a ready counter setup. A similar body shape does not make it equivalent to a DS2208 or a DS4608-HD. Compare barcode scanners

Buyer’s Guide

✓

Buy it if

 You need corded 2D capture with greater UPC reach and data-formatting tools.
✕

Skip it if

 You need cordless roaming or a specialised HD/DL/HC variant.
→

Also consider

 Compare DS2208 for simpler 2D work and DS2278 for Bluetooth mobility.
Tell us your POS model, application and barcode examples so we can check the connection requirements.
