Zebra DS8108-SR Corded 1D/2D Scanner, Shielded USB Cable and Intellistand Kit, Twilight Black

Brand:
Zebra
Zebra DS8108 SR Twilight Black 2D Scanner USB Kit with Stand
Zebra DS8108-SR Corded 1D/2D Scanner, Shielded USB Cable and Intellistand Kit, Twilight Black
€360.01 inc. VAT
Buy
DS8108-SR7U2100SGW
€302.53
€360.01 inc. VAT
Ships from EU stock: 73 item(s)
+ −
Add to wish list Ask a question
Product Code
V368800
EAN Code
0005271047136
Manufacturer
Zebra

Quick Specs

Reading
1D / 2D · Standard Range
Imaging
1280 × 960 · PRZM
Connection
Corded USB kit
Package
Scanner + shielded USB + stand
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

The wired SR USB kit with its presentation stand included

Standard RangeTwilight BlackShielded USBStand included

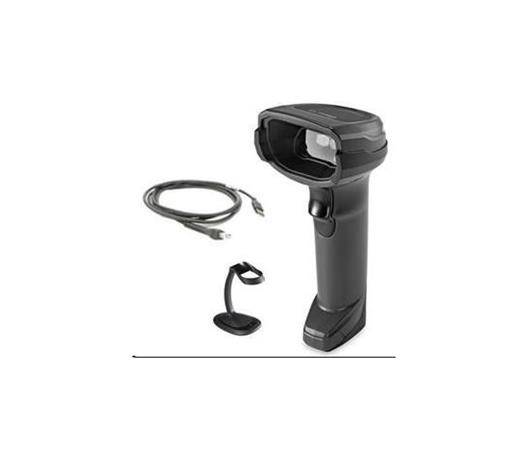

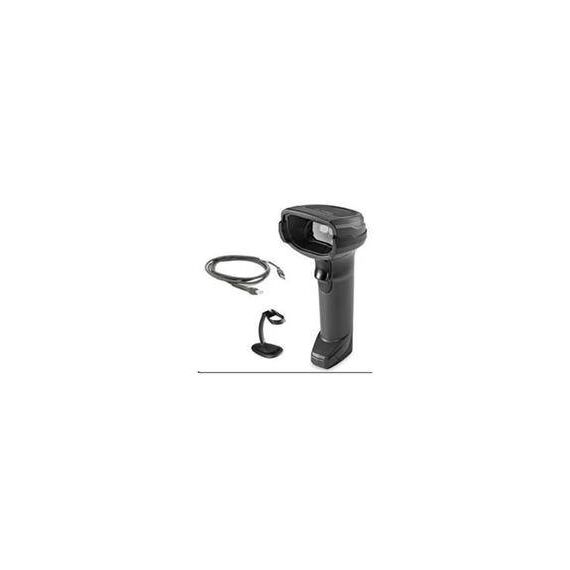

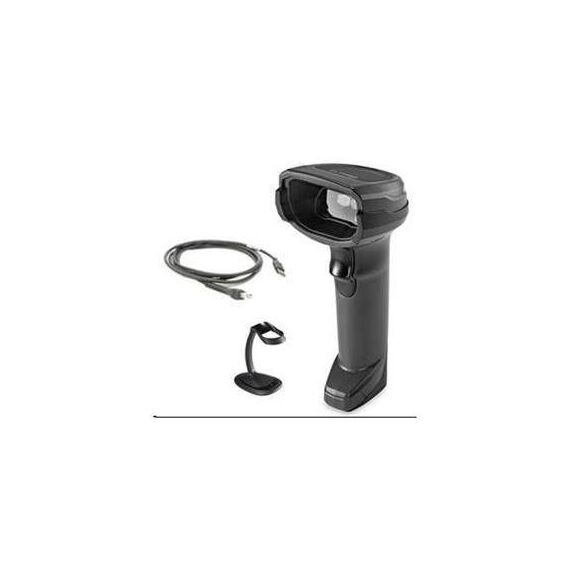

This Twilight Black DS8108-SR kit includes the corded 1D/2D scanner, shielded CBA-U21-S07ZBR USB cable and 20-71043-04R Intellistand. The included stand is its practical difference from the AZW USB kit: a new countertop position has both host connection and support. Scan product labels or phone codes and let the configured host application perform price lookup or validation.

Before you order:
SGW adds the 20-71043-04R stand to the same black SR scanner and shielded USB cable supplied in AZW. DS8108 is corded: this stand is a support, not a charging cradle. Other host interfaces need the appropriate cable and setup.

What's in the Box

  • DS8108-SR00007ZZWW Twilight Black scanner
  • CBA-U21-S07ZBR shielded USB cable
  • 20-71043-04R Intellistand

What Will Not Work

  • No Bluetooth, battery or charging function in the included stand.
  • General-purpose SR is not the separately identified healthcare HC or extended-range engine.

Key Features


Print and phone codes
PRZM imaging with the 1280 × 960 sensor supports 1D/2D codes, including difficult printed labels and dim displays. Validate your actual barcode samples and application configuration.

Distance depends on the label
Typical UPC 13 mil reaches 61.0 cm, while QR 20 mil is 0.3–44.7 cm. Do not treat one headline range as a guarantee for every small or dense label.

Complete support package
The SGW kit supplies the scanner, shielded USB and gooseneck stand. AZW omits the stand; the reading engine is shared.

Technical Specifications

Identity & installation
MPN DS8108-SR7U2100SGW
EAN 0005271047136
Colour / engine Twilight Black / Standard Range
Package DS8108-SR00007ZZWW + CBA-U21-S07ZBR shielded USB + 20-71043-04R stand
Supported interfaces USB Certified, RS232, Keyboard Wedge, TGCS(IBM)46XX over RS485
International keyboards Over 90 layouts
Dimensions / weight 16.8 × 6.6 × 10.7 cm / 154 g
Processing 800 MHz, PRZM Intelligent Imaging
Optical performance
Sensor 1280 × 960 pixels
Aimer / illumination Circular amber LED 617 nm / two red LEDs 645 nm
Field of view 48° H × 37° V nominal
Contrast 16% minimum reflectance difference
Skew / pitch / roll ±60° / ±60° / 0–360°
1D Code39, Code128, Code93, Codabar/NW7, Code11, MSI Plessey, UPC/EAN, I2of5, Korean3of5, GS1 DataBar, Base32 Italian Pharma
2D PDF417, MicroPDF417, Composite, TLC39, Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, Postal, SecurPharm, DotCode, Dotted DataMatrix
Digimarc Digital watermark decoding support; configure for actual application
Minimum element Code39 / Code128 3.0 mil; Data Matrix / QR 6.0 mil; PDF 5.0 mil
Image capture BMP, JPEG, TIFF; 109 PPI on A4
Feedback Direct decode indication, good-read/rear LEDs, adjustable beeper
Typical decode ranges
Conditions Printing resolution, contrast and ambient light dependent
Code39 3 mil 5.6–12.7 cm
Code39 20 mil 0–93.5 cm
Code128 3 mil 6.6–11.4 cm
Code128 5 mil 4.1–21.3 cm
Code128 15 mil 0–68.8 cm
PDF417 5 mil 5.8–16.3 cm
PDF417 6.7 mil 4.6–21.6 cm
UPC 13 mil (100%) 0–61.0 cm
Data Matrix 7.5 mil 5.3–17.5 cm
Data Matrix 10 mil 2.8–25.1 cm
QR 20 mil 0.3–44.7 cm
Power & environment
Input 4.5–5.5 V DC
Operating current at 5 V 450 mA
Protection / drops IP52; multiple 1.8 m drops to concrete
Tumbles 2,000 at 0.5 m; one tumble = 0.5 cycle
Operating / storage 0–50 °C / −40–70 °C
Humidity 5–95% RH, non-condensing
ESD ±15 kV air / ±8 kV direct and indirect
Ambient light 0–96,840 lux
Tools 123Scan, Scanner SDK, SMS, Zebra DNA; application integration required
Compliance RoHS EN50581; EN/IEC/UL60950-1, CAN/CSA-C22.2; IEC62471; EN55022/55032 ClassB, EN55024, EN61000-3-2/-3-3, FCC15B, ICES003
Manufacturer term 5 years from shipment under Zebra hardware warranty terms

Frequently Asked Questions

What differs from AZW?
This SGW kit adds the 20-71043-04R stand. Both kits use the same black SR scanner and shielded USB cable.
Does DS8108 have a battery?
No. Battery and Bluetooth specifications on the family sheet apply to cordless DS8178.
Can it read QR from a phone?
It supports QR and screen-code reading. The host application must accept and interpret the data.
Singular Expert Insight
Choose SGW for a new wired counter when both USB cable and stand are required. If compatible support is already installed, compare AZW. Do not pay for a different bundle expecting better reading performance: the scanner optics are shared. Compare corded scanner kits

Buyer’s Guide

✓

Buy it if

 You need a black corded 2D kit with shielded USB and stand supplied.
✕

Skip it if

 You require Bluetooth, a charging cradle or healthcare-specific construction.
→

Also consider

 AZW when support is already available, or a verified cordless/HC kit for different requirements.
Confirm host port, data format, barcode samples and stand requirement before ordering.
