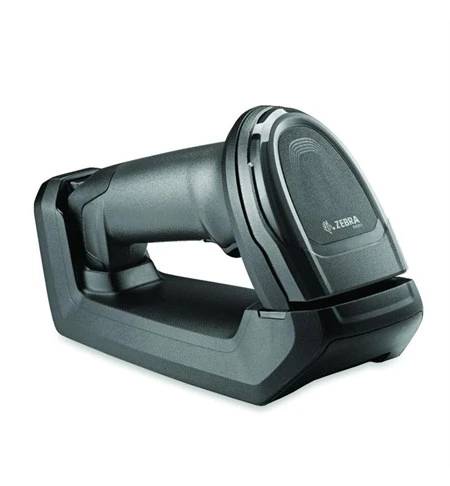

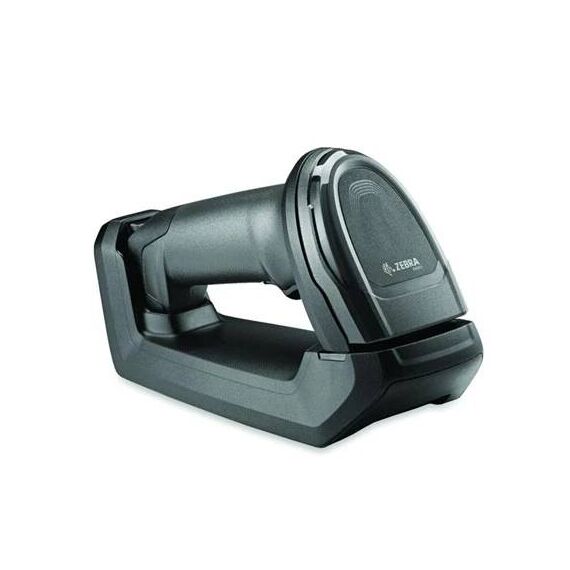

Zebra DS8178-SR | 2D Cordless Scanner | Bluetooth 4.0 | Standard Cradle | (Cable Not Incl.)
The Zebra DS8178-SR is a cordless Bluetooth 4.0 barcode scanner built for reliable 1D/2D scanning in retail, warehouse, and distribution environments. This configuration includes the scanner and standard cradle — the USB cable is sold separately, making it the right choice when you already have the cable or need to specify a particular cable length and type for your installation. The PRZM Intelligent Imaging engine, IP52 sealing, and 6 ft drop resistance provide the performance and durability expected from the DS8100 series.
PRZM Intelligent Imaging — Reliable 1D/2D
The PRZM engine with 1,280 × 960 pixel sensor reads all major 1D and 2D symbologies — QR Code, Data Matrix, PDF417, Aztec, GS1, and mobile screen barcodes — in a single scan. True Green LED aiming provides accurate targeting. Bluetooth 4.0 with BLE supports wireless range up to 100 m (330 ft) to the cradle.
Standard Cradle Included — Cable Separately
This kit includes the DS8178-SR scanner and standard single-slot cradle. The cradle charges the scanner battery and communicates to the host system via cable — USB cable is not included in this configuration and must be ordered separately. This is ideal for IT teams sourcing cables independently, replacing a scanner in an existing cradle deployment, or needing a specific cable specification not covered by a standard kit.
IP52 and 6 ft Drop — Built for Daily Use
IP52-rated against dust and water splashes. Withstands 6 ft (1.8 m) drops to concrete and 2,000 tumble cycles. Operating temperature 0°C to 50°C. At 235 g, well-suited for sustained handheld use across a full shift.
| Specification | Detail |
|---|---|
| Model | DS8178-SR700000SFW |
| Scan Engine | PRZM Intelligent Imaging — 1,280 × 960 px |
| Connectivity | Bluetooth 4.0 with BLE — up to 100 m range |
| IP Rating | IP52 |
| Drop Spec | 6.0 ft (1.8 m) to concrete |
| Tumble Spec | 2,000 × 0.5 m tumbles |
| Operating Temp | 0°C to 50°C |
| Weight | 235 g |
| Aimer | True Green LED 528 nm |
| Kit Contents | Scanner + standard cradle (cable not included) |
Frequently Asked Questions
Why doesn't this kit include a cable?
Some deployments require a specific cable length, shielding type, or connector variant not covered by the standard kit. This configuration lets you source the correct cable separately — or reuse an existing cable when replacing a scanner in an active installation.
Which cable do I need?
The DS8178-SR cradle uses a standard USB Type A cable. Zebra's CBA-U21-S07ZBR (2.1m shielded) is the recommended option for most installations. Check your host system's USB port type before ordering.
Is this the PowerPrecision+ or PowerCap version?
This configuration includes the standard DS8178-SR scanner unit. Check the included scanner part number on the product packaging to confirm the power source variant if this is critical to your deployment.
Does the DS8178-SR read barcodes from mobile screens?
Yes — the PRZM imager reads QR codes and barcodes on mobile phone screens reliably, supporting loyalty programmes, digital coupons, and e-tickets.
