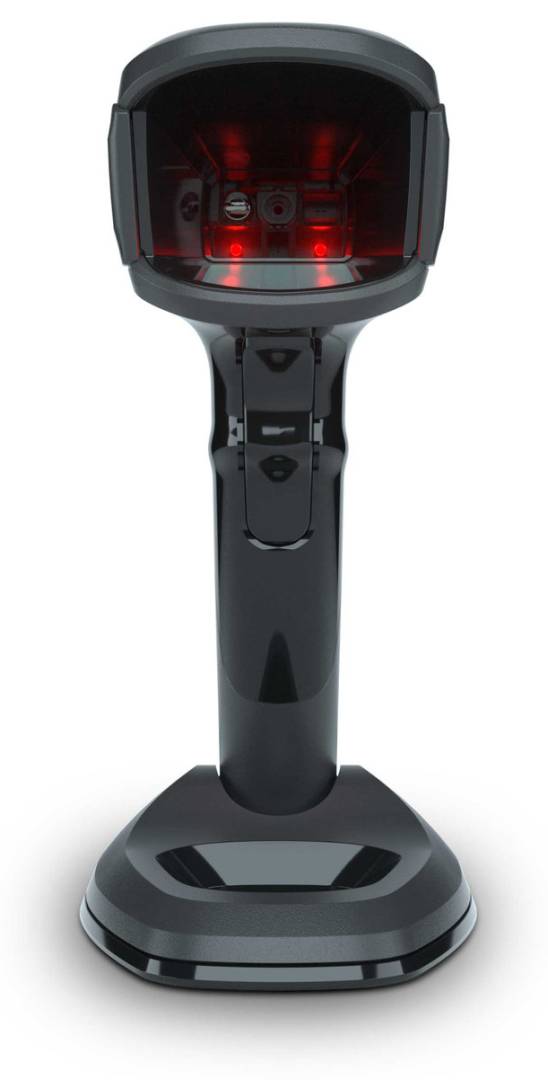

Zebra DS9908-SR Hybrid 1D/2D Barcode Scanner USB Kit, Handheld and Hands-Free, Shielded Cable, Midnight Black

Brand:
Zebra
Zebra DS9908 SR Hybrid USB Barcode Scanner Kit Midnight Black
Zebra DS9908-SR Hybrid 1D/2D Barcode Scanner USB Kit, Handheld and Hands-Free, Shielded Cable, Midnight Black
€404.27 inc. VAT
Buy
DS9908-SR4U2100AZW
€339.72
€404.27 inc. VAT
Ships from EU stock: 18 item(s)
+ −
Add to wish list Ask a question
Product Code
V36B063
EAN Code
0843715114231
Manufacturer
Zebra

Quick Specs

Operation
Handheld + hands-free
Capture
1D / 2D / Digimarc
Sensor / protection
1280 × 800 · IP52
Package
USB kit · shielded cable included
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

DS9908-SR USB kit: counter presentation and handheld scanning

1D / 2D / DigimarcHybrid operationIP52USB cable included

The Zebra DS9908-SR4U2100AZW combines the Midnight Black DS9908-SR00004ZZWW scanner and CBA-U21-S07ZBR shielded USB cable. Leave the integrated adjustable stand on the counter for hands-free presentation, or pick up the reader to scan a bulky item. Touch sensing and an accelerometer automatically switch operation. Connect the supplied USB cable to a suitable POS or computer; the receiving application uses the scanned data. This is the wired Standard Range USB kit, rather than the scanner-only package.

Before you order:
USB cable is included. Other host interfaces require suitable alternative cables and configuration. This SR model is distinct from HD, healthcare and DS9908R RFID variants. The handheld and presentation reading distances differ by barcode type and size.

What's in the Box

  • 1 × DS9908-SR00004ZZWW Midnight Black scanner with integrated adjustable stand.
  • 1 × CBA-U21-S07ZBR shielded USB cable.

What It Means in Practice

  • Connect the supplied USB cable, configure host mode and keyboard layout with 123Scan or programming barcodes, then test the receiving POS application.
  • At checkout, present a small packaged item to the reader, then lift it to reach the barcode on a larger item. Put it down to resume presentation scanning.
  • For 13 mil UPC, typical range changes from 0–24.1 cm hands-free to 0–62.7 cm handheld; a different symbol has a different range.

What Will Not Work

  • No Bluetooth roaming or standalone stock database is provided.
  • RFID requires the separate DS9908R model; EAS deactivation requires the appropriate optional Checkpoint setup.

Key Features


Automatic hybrid operation
The integrated stand, capacitive touch sensing and accelerometer suit both counter presentation and handheld scanning.

Printed and screen codes
PRZM processing and a 1280 × 800 sensor support 1D, 2D and Digimarc capture, including challenging labels and electronic codes.

Controlled data collection
Multi-Code Data Formatting and Preferred Symbol help configure which barcode data reaches the application.

Retail durability
IP52 sealing, multiple 1.5 m concrete drops and 2000 tumbles at 0.5 m are manufacturer test specifications, not protection against immersion.

Technical Specifications

Identity and package
Model Zebra DS9908-SR
MPN DS9908-SR4U2100AZW
EAN 0843715114231
Package 1 × DS9908-SR00004ZZWW scanner with integrated stand; 1 × CBA-U21-S07ZBR shielded USB cable
Colour Midnight Black
Capture and processing
Engine 800 MHz · PRZM Intelligent Imaging
Sensor 1280 × 800 pixels
Swipe speed Up to 610 cm/s (240 in/s), hands-free, 13 mil UPC, optimized mode
Field of view (H × V) 48° × 30.6° nominal
Aimer Circular amber LED, 617 nm
Illumination Red LED
Minimum print contrast 16% reflective difference
Skew / pitch / roll ±60° / ±60° / 0–360°
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32
2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, Data Matrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes
Additional formats Digimarc; OCR-A, OCR-B, MICR, US Currency
Minimum elements Code 39: 3 mil; Code 128: 3 mil with Decode Range Limit disabled; Data Matrix and QR: 6 mil
Document images Bitmap, JPEG, TIFF; Intelligent Document Capture
Data features Multi-Code Data Formatting, Preferred Symbol, ScanSpeed Analytics
Typical handheld ranges
Code 39, 3 mil 2.8–7.6 cm
Code 128, 3 mil 3.6–8.9 cm
Code 128, 5 mil 2.5–18.0 cm
PDF417, 6.7 mil 3.0–20.3 cm
UPC, 13 mil 0–62.7 cm
Data Matrix, 10 mil 3.3–23.6 cm
QR, 20 mil 2.5–45.7 cm
Typical hands-free ranges
Code 39, 3 mil 2.8–7.6 cm
Code 128, 5 mil 2.0–6.4 cm
PDF417, 6.7 mil 3.0–20.3 cm
UPC, 13 mil 0–24.1 cm
Data Matrix, 10 mil 2.5–23.6 cm
QR, 20 mil 0–24.1 cm
Range conditions Typical manufacturer figures depend on printing resolution, contrast and ambient light
Connection and power
Host interfaces USB, RS-232, Keyboard Wedge, TGCS IBM 46XX over RS-485; USB kit supplied
Keyboard layouts Over 90 international layouts
Voltage 4.5–5.5 V DC, host or external supply
Typical current at 5 V 321 mA operating; 70 mA idle (handheld)
Feedback Direct Decode Indicator, Good Decode LEDs, adjustable speaker
Management 123Scan, Scanner Management Service, Scanner SDK
Optional accessories Multi-Mount Bracket; alternative interface cables; Checkpoint EAS system for EAS functionality
Physical and environment
Dimensions (H × W × D) 203 × 94 × 132 mm
Weight 330 g
Sealing IP52
Drop Multiple 1.5 m drops to concrete
Tumble 2000 tumbles at 0.5 m; one tumble = 0.5 cycles
Operating temperature 0°C to +50°C
Storage temperature −40°C to +70°C
Humidity 5–95% RH, non-condensing
Ambient light 0–107600 lux
ESD ±15 kV air; ±8 kV direct and indirect
Safety / EMC IEC / EN 62368-1; IEC / EN 62471; EN 55032 Class B, EN 55024, EN 55035; FCC Part 15 Class B; ICES-003 Class B
Environmental compliance EN 50581:2012; TAA
Manufacturer warranty 5 years from shipment, subject to Zebra hardware warranty; seller terms separate

Frequently Asked Questions

What does this USB kit include?
It includes one DS9908-SR00004ZZWW scanner and one CBA-U21-S07ZBR shielded USB cable. The adjustable stand is integrated into the scanner.
Does it read RFID tags?
This DS9908-SR is a barcode scanner. RFID belongs to the separate DS9908R variant.
Does OCR automatically verify an ID?
OCR captures supported text formats; the receiving application must interpret and validate that data. No complete age-verification system is included.
Singular Expert Insight
Choose this kit when you want the shielded USB cable supplied with the hybrid reader. The integrated stand and handheld operation suit checkout lanes handling both small goods and larger items. Compare scanner formats here: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need both presentation and handheld scanning with a supplied USB cable.
✕

Skip it if

 you need cordless roaming, RFID or a high-density healthcare variant.
→

Also consider

 the scanner-only SKU if you already own a verified suitable cable.
Confirm the host, suitable cable and sample barcodes with Singular.
