Zebra DS9908-SR | Hybrid Handheld & Hands-Free 1D/2D Scanner | USB Kit | PRZM Imaging | Midnight Black
Overview

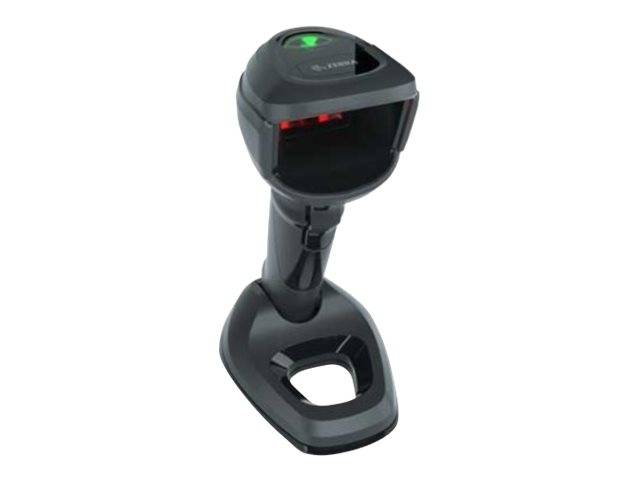

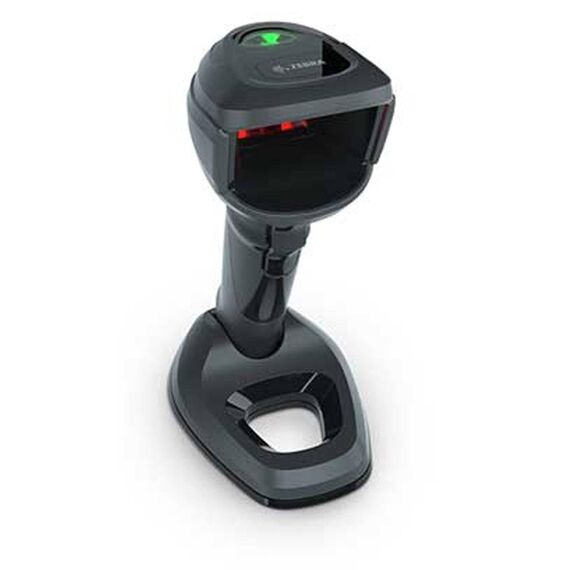

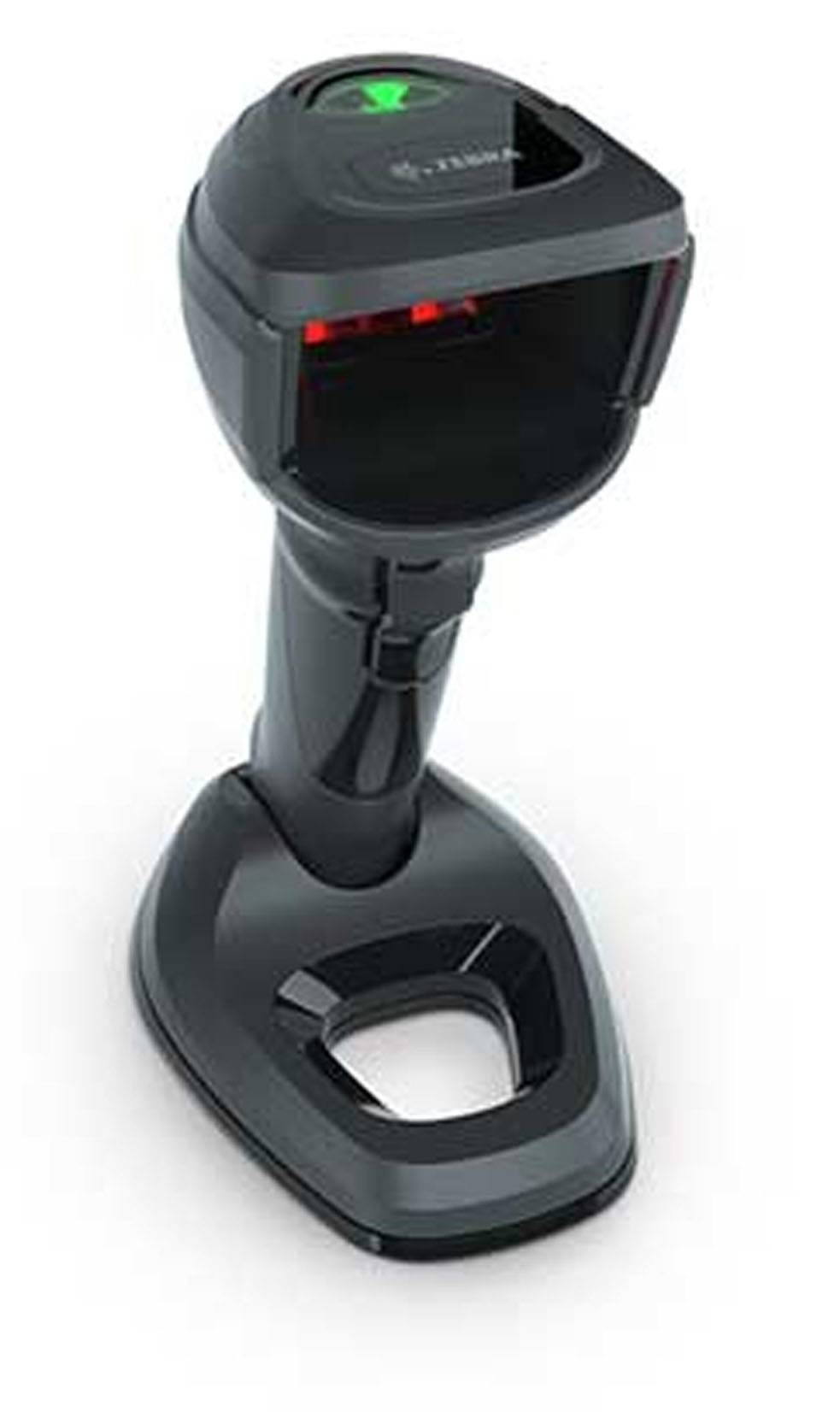

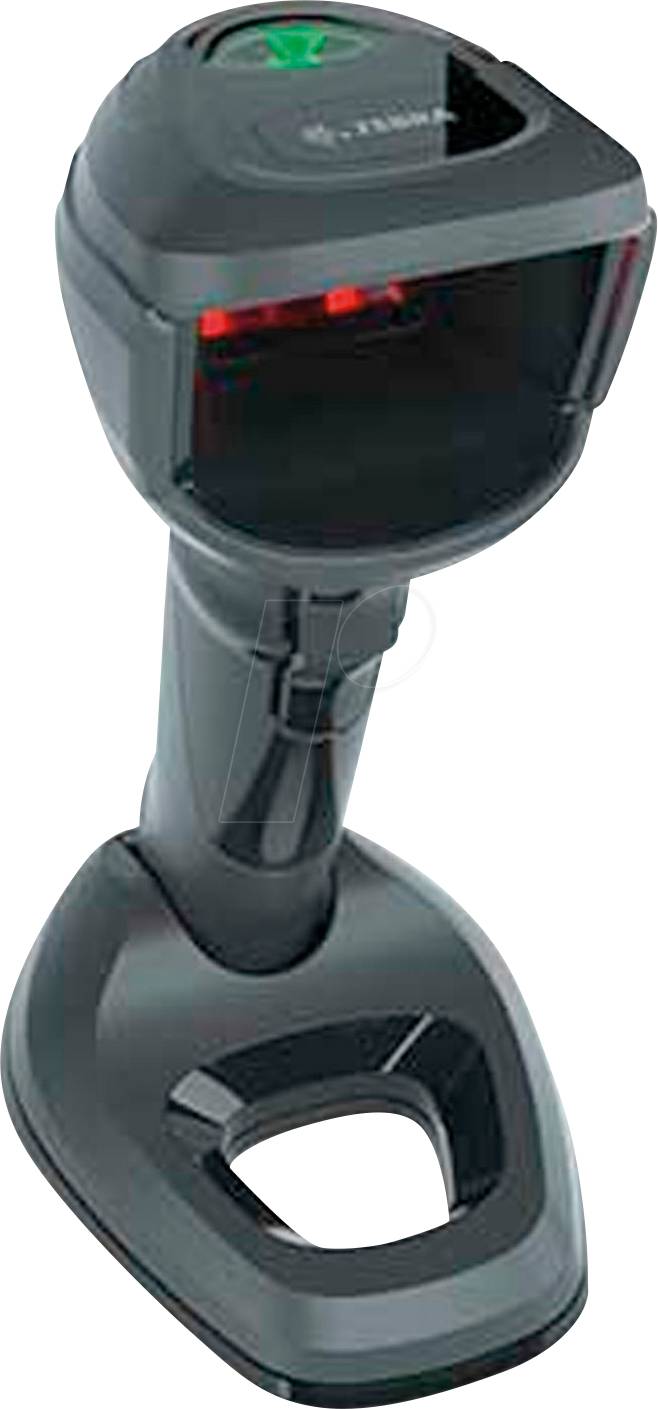

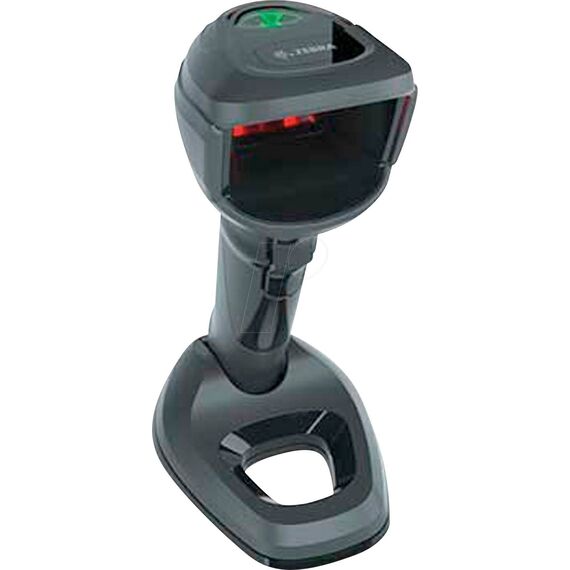

The Zebra DS9908-SR is a hybrid handheld/presentation barcode scanner purpose-built for retail point-of-sale. Unlike scanners retrofitted with a stand, the DS9908 was designed from the ground up for both modes — it switches seamlessly between handheld scanning of items in carts and hands-free presentation scanning as customers pass products across the counter.
Powered by an 800 MHz processor and Zebra's PRZM Intelligent Imaging technology, it delivers first-pass read rates up to 240 in./sec on virtually any barcode — including dense, poorly printed, damaged, crinkled, faded, glossy, and mobile-screen codes. The DS9908-SR4U2100AZW is the USB kit in Midnight Black, including the scanner and a 7 ft shielded USB cable.
Note: The EAN provided by the distributor for this SKU is 5706998778536.
Key Specifications
| Scanning Technology | PRZM Intelligent Imaging | 800 MHz processor | Megapixel sensor | Standard Range |
| Scan Speed | Up to 240 in./sec (610 cm/sec) |
| Symbologies | 1D, 2D, Digimarc® barcodes, OCR, electronic barcodes on mobile screens |
| Scanning Modes | Hybrid: Handheld + Hands-Free (Presentation) — seamless automatic switching |
| Connectivity | USB (kit includes CBA-U21-S07ZBR shielded 7 ft cable) | RS232 also supported |
| Sealing | IP52 — dust and drip proof; elevated electronics for spill protection |
| Drop Specification | Multiple 5 ft (1.5 m) drops to concrete |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -40°C to +70°C |
| Dimensions (Scanner) | 203 × 66 × 132 mm (8 × 2.6 × 5.2 in) |
| Weight | 330 g (11.6 oz) |
| Color | Midnight Black |
| Management | Zebra DataCapture DNA — 123Scan, Remote Diagnostics, Scanner Management Service (SMS) |
| Warranty | 5-year manufacturer warranty |
| In the Box | DS9908-SR00004ZZWW scanner + CBA-U21-S07ZBR shielded USB cable (7 ft) |
| Part Number | DS9908-SR4U2100AZW |
| EAN | 5706998778536 |
Use Cases
Retail Checkout (POS): The primary use case — hybrid mode eliminates the need for two separate scanners at a checkout lane. Associates pick it up for large or awkward items and set it back down for standard presentation scanning.
Mobile Payments & Loyalty: Reads electronic barcodes on dimly lit phone screens — supports digital coupons, loyalty cards, mobile wallets, and QR-code-based payments.
Age Verification & ID Scanning: Intelligent Document Capture reads 2D barcodes on driving licenses and ID cards for age verification workflows in grocery, pharmacy, and liquor retail.
RFID (optional model): The DS9908R variant adds RFID reading for stores already using RFID tags in the supply chain, closing the loop at POS checkout.
Frequently Asked Questions
What is the difference between handheld and hands-free mode on the DS9908?
In hands-free (presentation) mode the scanner sits on the counter and automatically scans items passed in front of it, with the scan range limited to prevent accidental reads of nearby items. In handheld mode the range extends so associates can reach items in a shopping cart or on a counter. The DS9908 switches between modes automatically and seamlessly.
Does the DS9908-SR scan barcodes on smartphones?
Yes. PRZM Intelligent Imaging reads electronic barcodes on mobile phone displays, including dimly lit screens — essential for digital coupons, loyalty apps, and mobile wallet payments.
What does Digimarc® barcode support mean?
Digimarc barcodes are invisible watermarks embedded across an entire product label. The DS9908 can read them even when a customer covers the traditional barcode with their hand — eliminating the most common cause of checkout delays.
What is included in the DS9908-SR4U2100AZW kit?
The kit includes the DS9908-SR00004ZZWW scanner (Midnight Black) and the CBA-U21-S07ZBR shielded USB cable (7 ft/2.1 m). An optional stand, wall mount, and power supply are available separately.
