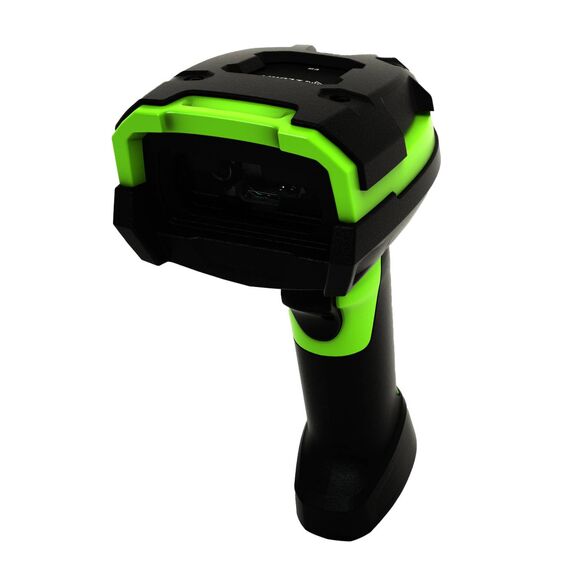

Zebra LI3608-ER | Ultra-Rugged Corded 1D Linear Imager | Extended Range to 17m | USB | (USB Kit — Scanner + Cable Incl.)

The Zebra LI3608-ER is an ultra-rugged corded 1D linear imager built for the most demanding warehouse, manufacturing, and cold-storage environments where reading distance matters as much as durability. Part of Zebra's 3600 Ultra-Rugged Series, it reads 1D barcodes from as close as 5 cm to as far as 17 metres — covering everything from handheld item scanning to high-rack label capture and conveyor-mounted applications. The LI3608-ER3U4600ZVW is the USB kit configuration including the scanner with vibration motor and a 7-foot shielded USB cable.

17-Metre Extended Reading Range

The defining capability of the LI3608-ER is its extended reading range: 5 cm to 17.1 metres (0.5 in to 56 ft) on standard 1D barcodes. This covers an extraordinary range of applications — from close-contact scanning of small product labels to reading barcodes on high-rack shelving from floor level, overhead conveyor labels, and large-format labels on containers and pallets at distance. Zebra states 30% more working range than competitive devices in the same class. The linear scan line provides a precise, easy-to-align read pattern that operators can direct accurately even at extended distances, reducing misses that a 2D area imager would suffer at equivalent range.

Ultra-Rugged 3600 Series Construction

The LI3608-ER shares the 3600 Ultra-Rugged Series platform with the LI3678-ER cordless model — IP67 rated (dust-proof, submersible to 1 metre for 30 minutes), surviving 8 ft (2.4m) drops onto concrete and 5,000 tumble cycles. Zebra claims 23% greater durability than any other scanner in its class. The corded form factor eliminates battery failure as a downtime risk — the scanner draws power from the host via USB and remains operational without charging interruptions. This makes the LI3608-ER particularly well-suited to fixed-station and conveyor-mounted applications where a cable run is practical and maximum uptime is required.

USB & Industrial Interface Support

The LI3608-ER3U4600ZVW is the USB interface variant, supplied with a 7-foot (2.1m) shielded USB cable that connects directly to any USB host without drivers — standard HID keyboard emulation is supported out of the box. Additional interface options available on the LI3608-ER platform include RS-232, Keyboard Wedge, Industrial EtherNet/IP, and Profinet, making the scanner compatible with PLCs and industrial automation systems on factory floors. Zebra's 123Scan utility provides cable-free configuration for all interface parameters. The scanner is also compatible with Zebra's industry-leading scanner management and remote configuration tools via USB host.

Freezer-Ready: -30°C to 50°C Operating Range

The LI3608-ER is rated for operation from -30°C to 50°C — covering frozen food storage facilities, blast freezers, outdoor dock-door environments, and high-temperature manufacturing areas in a single device. Most standard corded scanners are limited to 0°C minimum; the LI3608-ER's freezer rating removes the need for specialist cold-storage scanning hardware. The IP67 submersion rating also means the scanner can be washed down during facility cleaning cycles, a key requirement in food production and pharmaceutical environments where cleaning-in-place protocols are routine.

Vibration Motor & Triple Good-Read Feedback

The LI3608-ER3U4600ZVW includes a vibration motor (the V in the SKU), providing tactile confirmation of every successful scan alongside audible beep tones and LED indicator lights. In high-noise environments — manufacturing lines, noisy docks, or areas requiring hearing protection — the vibration motor delivers unambiguous scan confirmation without depending on audio feedback. Operators can mix and match feedback modes to suit their environment. The scanner's precise linear aiming pattern makes accurate targeting straightforward even at extended distances, reducing the number of scan attempts required per label.

Frequently Asked Questions

Does the LI3608-ER read 2D barcodes like QR Code or Data Matrix?

No. The LI3608-ER is a 1D linear imager and cannot read 2D symbologies. It is optimised for speed and extended range on 1D barcodes. If 2D scanning is required in the same ultra-rugged platform, consider the Zebra DS3608-ER which adds 2D area imaging at equivalent ruggedness and range.

What is the maximum reading distance of the LI3608-ER?

The LI3608-ER reads standard 1D barcodes from 5.1 cm (0.5 in) up to 17.1 metres (56 feet), depending on barcode size and print quality. Larger barcodes are readable at greater distances. This extended range makes it suitable for high-rack warehouse scanning, conveyor label reading, and fixed-mount long-range applications without requiring a dedicated long-range scanning station.

What is the difference between the LI3608-ER and LI3678-ER?

Both scanners share the same extended-range 1D linear imager and 3600 Ultra-Rugged Series durability (IP67, 2.4m drops, 5,000 tumbles, -30°C to 50°C). The LI3608-ER is corded — it connects via USB, RS-232, or industrial Ethernet and draws power from the host. The LI3678-ER is cordless, using Bluetooth 4.0 BLE with a PowerPrecision+ battery. Choose the LI3608-ER for fixed or semi-fixed stations where cable management is practical; choose the LI3678-ER for mobile scanning throughout a facility.

Can the LI3608-ER be used in a freezer or cold storage environment?

Yes. The LI3608-ER is rated for operation from -30°C to 50°C, making it one of the few corded USB scanners in its class that can be deployed directly in frozen food storage, blast freezer environments, and cold-chain logistics areas without specialist cold-temperature hardware.
