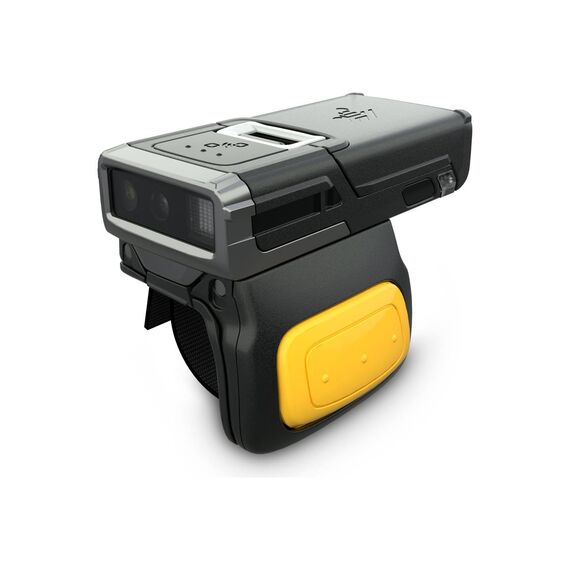

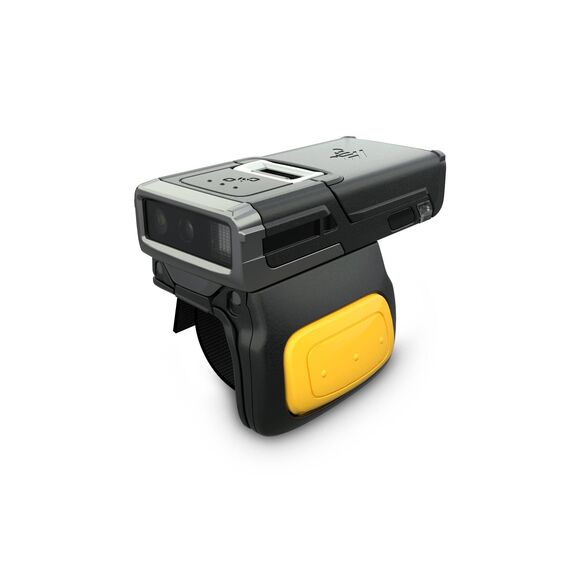

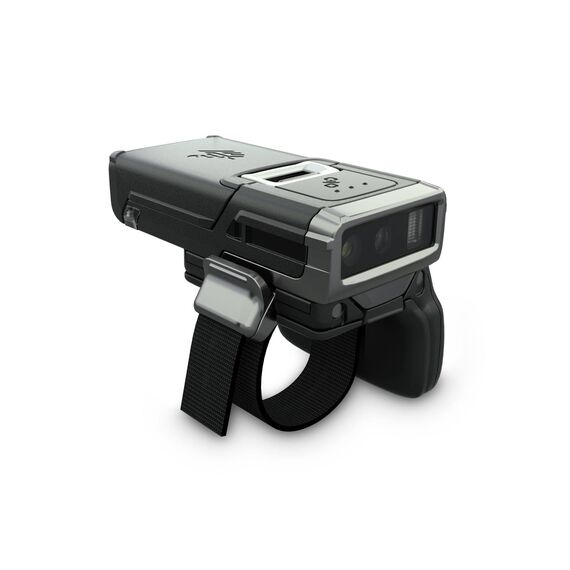

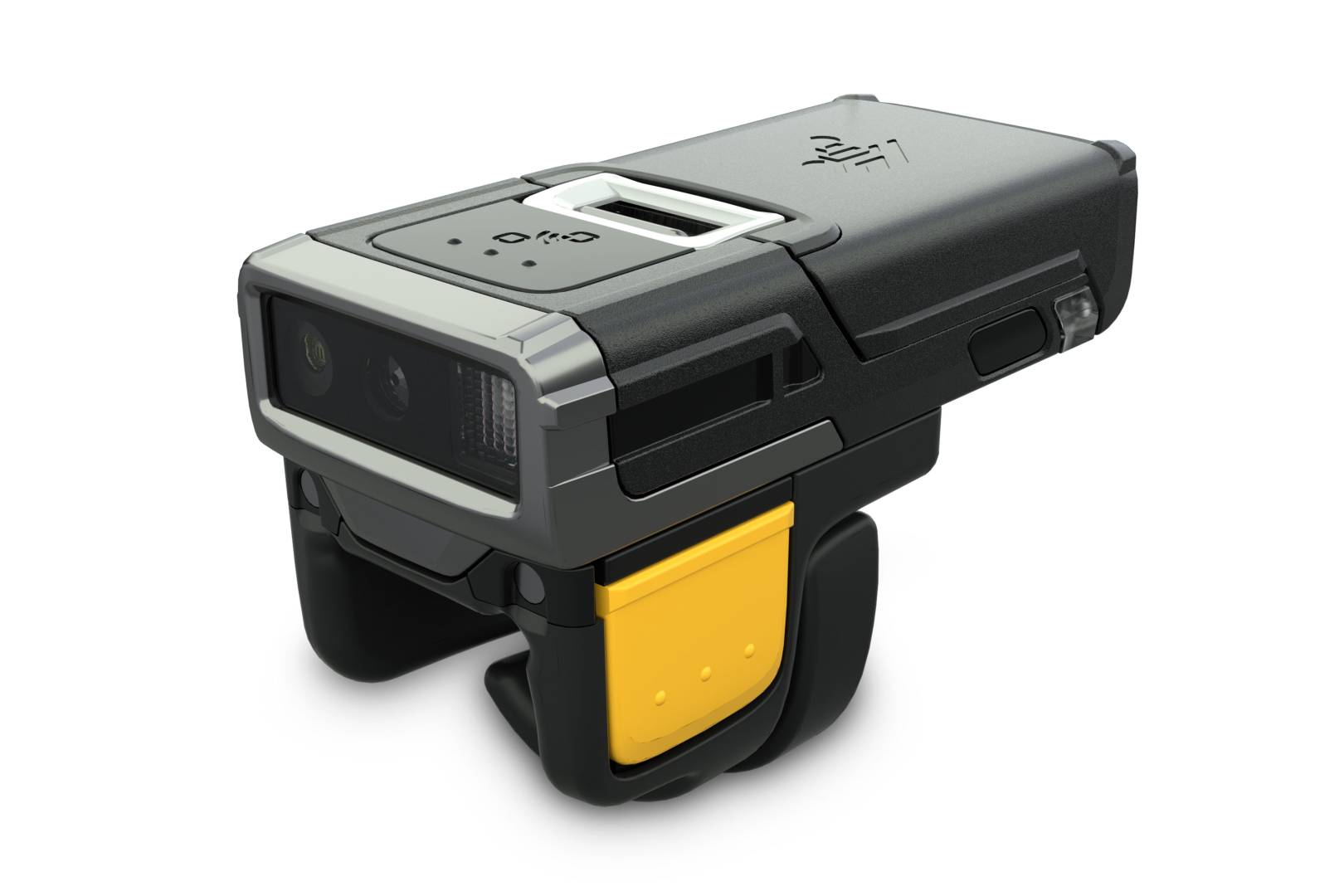

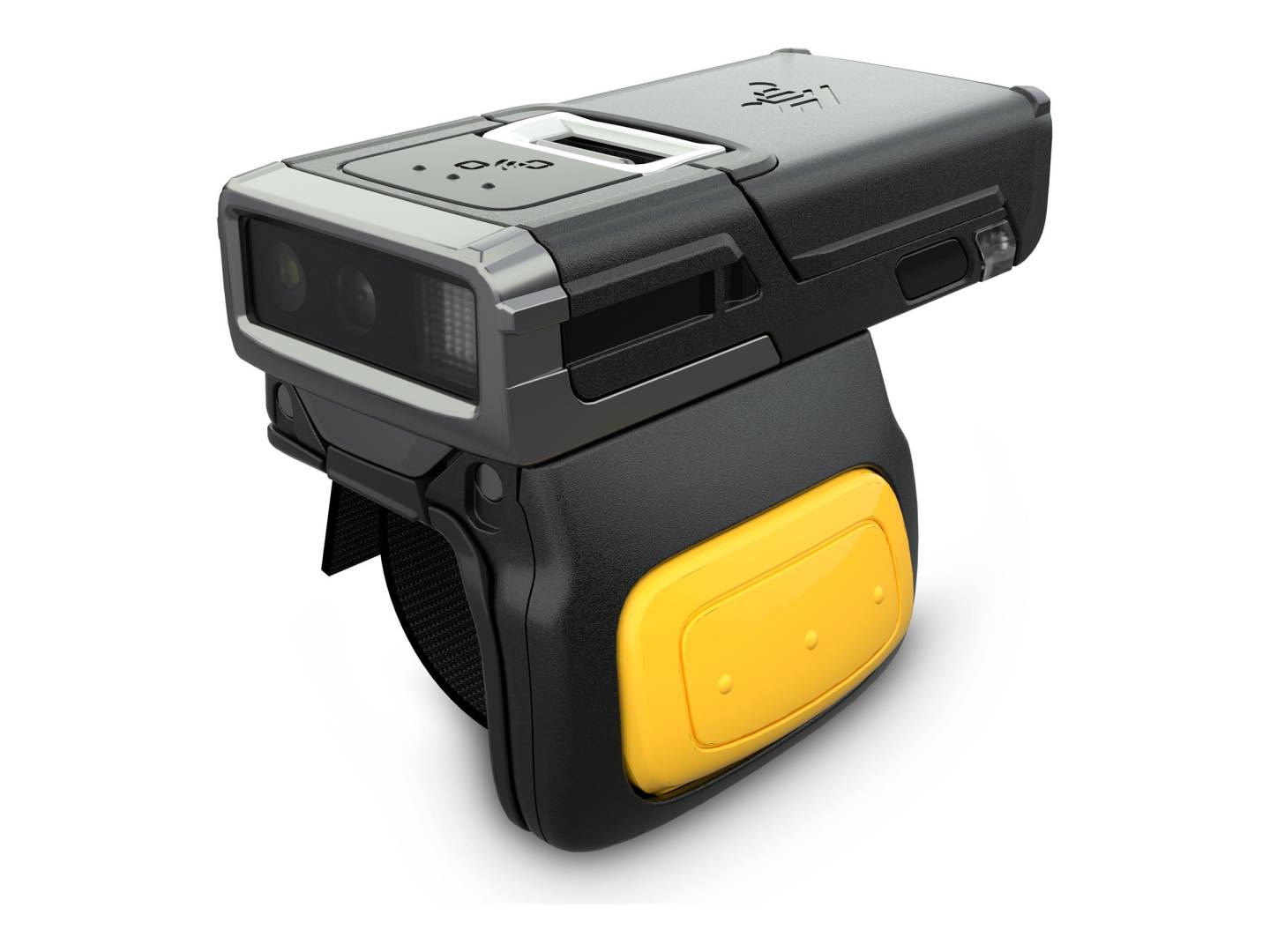

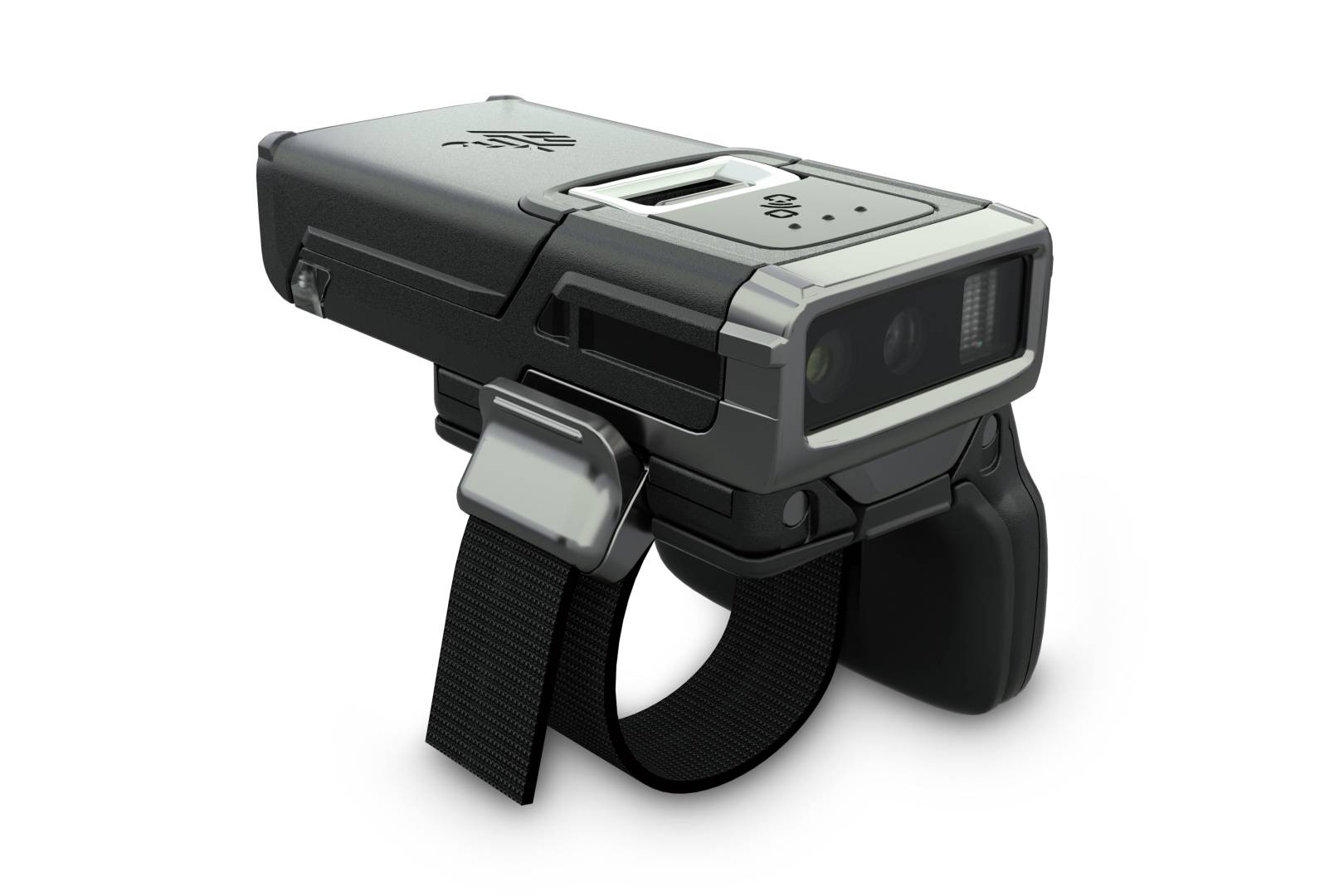

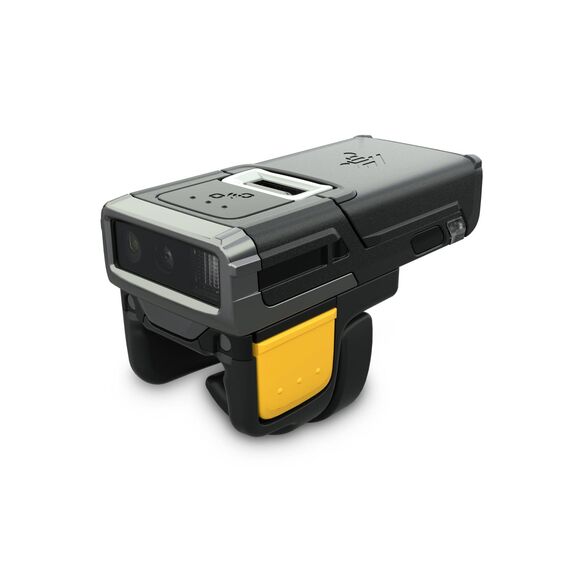

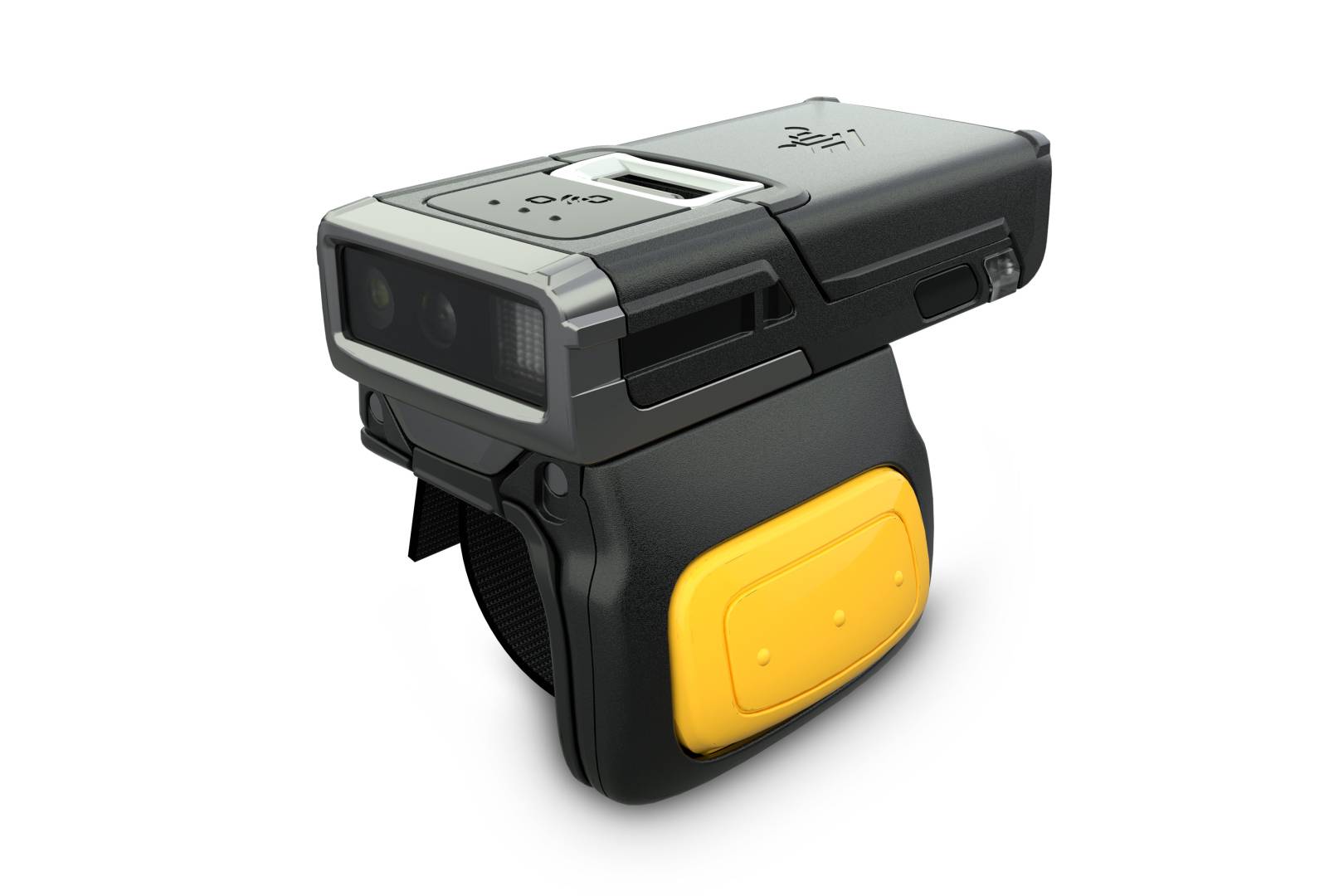

Zebra RS5100 | Wearable Ring Scanner | SE4770 1D/2D | Bluetooth 5.2 | Double Trigger | 480 mAh Battery | IP65
Μάρκα: Zebra
RS51C0-TBDNWR
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Overview
The Zebra RS5100 (RS51C0-TBDNWR) is a ready-to-deploy single-finger Bluetooth ring scanner combining the SE4770 Advanced Range 1D/2D imager with a Double Trigger assembly and 480 mAh standard battery. The double trigger — side physical button plus top pressure-sensitive trigger — allows workers to switch between standard ring orientation and side-of-finger scanning without changing grip. Featherlight and IP65-rated, it is designed for all-day wear in warehouse, retail, logistics, and distribution environments.
Technical Specifications
| Specification | Detail |
|---|---|
| Part Number | RS51C0-TBDNWR |
| EAN | 0663056031994 |
| Scan Engine | SE4770 1D/2D Imager with PRZM Intelligent Imaging |
| Sensor Resolution | 1280 × 960 pixels |
| Field of View | Horizontal 48° / Vertical 30° |
| Connectivity | Bluetooth 5.2 (Class 1 & 2) + NFC; BLE support |
| Bluetooth Range | Up to 91.4 m / 300 ft (Class 1) |
| Trigger Assembly | Double Trigger (side physical + top pressure-sensitive); ambidextrous |
| Battery | 480 mAh Li-Ion PowerPrecision+ (standard, included) — ~12 h / 14,400 scans per charge |
| USB | No USB on this SKU — charging via cradle required |
| IP Rating | IP65 |
| Dimensions | 61 × 28 × 21 mm (2.67 × 1.1 × 0.83 in) |
| Weight | ~70 g / 2.47 oz (with standard battery) |
| Operating Temperature | -20°C to +50°C |
| Warranty | 1 Year Zebra Manufacturer Warranty |
Key Features
Double Trigger — maximum flexibility: Side physical trigger for standard ring scanning plus top pressure-sensitive trigger for side-of-finger use. The double-sided design is inherently ambidextrous — no rotation needed to switch hands, unlike single-trigger models.
SE4770 Advanced Imager: Red laser cross-hair aimer with global shutter sensor and PRZM Intelligent Imaging captures even damaged, dirty, and poorly printed 1D and 2D barcodes with superior motion tolerance.
Full-shift battery included: The 480 mAh PowerPrecision+ standard battery delivers approximately 12 hours of operation and 14,400 scans per charge. Battery is removable — swap for a spare to extend coverage to back-to-back shifts.
NFC tap-to-pair: Tap against any NFC-enabled Zebra device (WT6300, TC52, TC57 and others) for instant pairing — no barcode scanning or Bluetooth settings required.
Long-range Bluetooth 5.2: Class 1 Bluetooth reaches up to 91.4 m / 300 ft — compatible with vehicle-mount computers and Bluetooth dongles for wide-area scanning without a tethered host device.
✦ Singular Recommends
For who
Operations managers deploying ring scanners in high-cycle picking, sorting, or packing environments where workers need to switch scanning hand or orientation throughout a shift — and want a complete, ready-to-use unit without separately sourcing battery and trigger.
The real reason to buy it
The Double Trigger eliminates the need to rotate the trigger when switching hands, reducing downtime and user frustration in mixed left/right-hand environments. Combined with the SE4770's superior motion tolerance, this is the strongest RS5100 configuration for intensive picking operations where speed and accuracy both matter. Battery and trigger are included — it ships ready to pair and scan.
Know before you buy
This SKU has no USB port — a charging cradle (CRD-RS51-4SCHG-01 or CRD-RS51-20SCHG-01) is required to charge the battery. No hand mount is included; compatible mounts (finger, back-of-hand, lanyard, Enterprise Hand Mount) are sold separately. For shifts exceeding 12 hours, consider adding the 735 mAh extended battery (BTRY-RS51-7MA-01) as a spare.
Χαρακτηριστικά
Product Code
CG41021
EAN Code
0663056031994
Manufacturer
Zebra
