Zebra SP7201-SH4U2100ZDW | SP72-H Horizontal Single-Plane Scanner | USB Kit | Checkpoint EAS | Diamond-Like Glass
Μάρκα: Zebra
Zebra SP7201-SH4U2100ZDW | SP72-H Horizontal Single-Plane Scanner | USB Kit | Checkpoint EAS | Diamond-Like Glass
€592.63 inc. VAT
SP7201-SH4U2100ZDW
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Overview

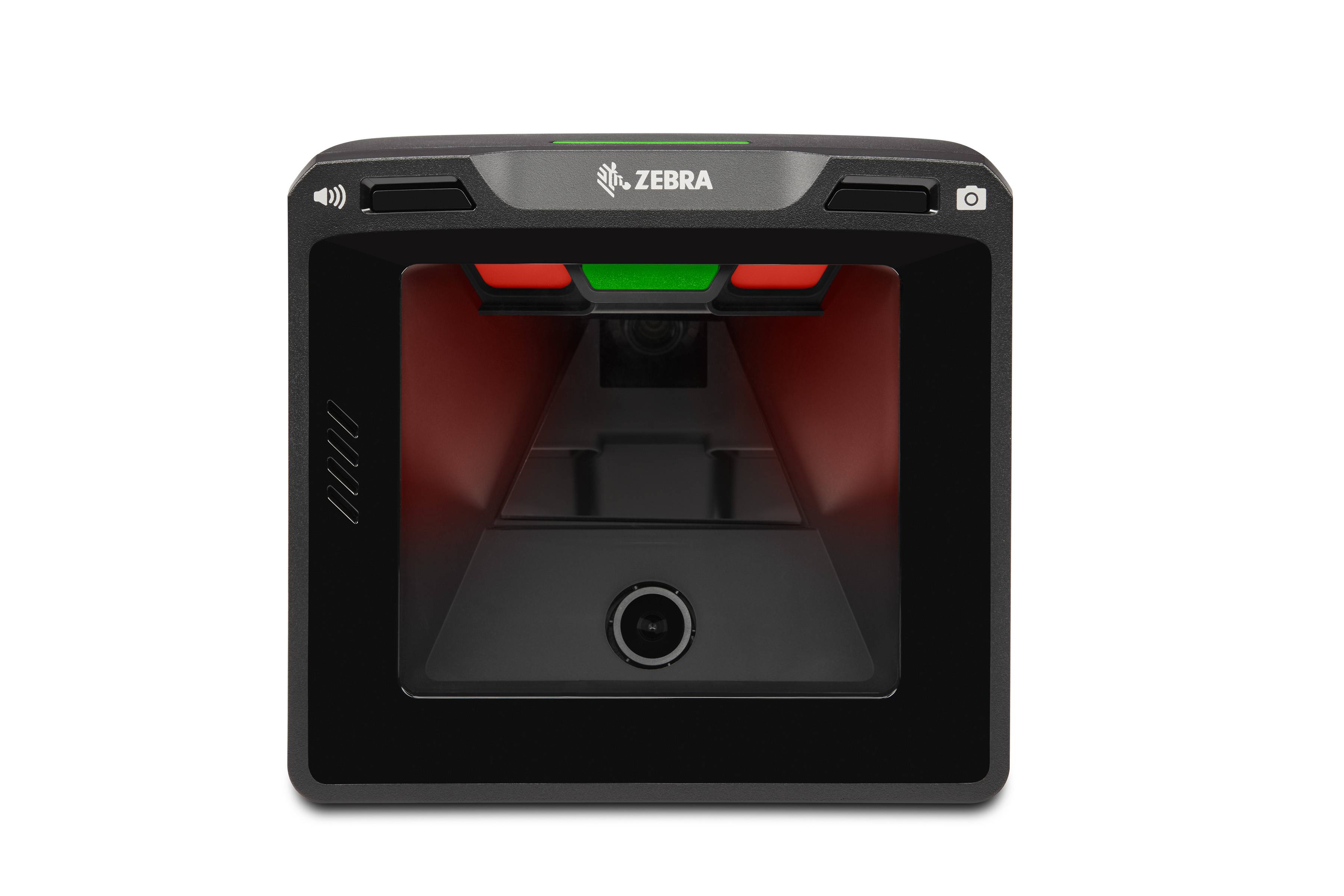

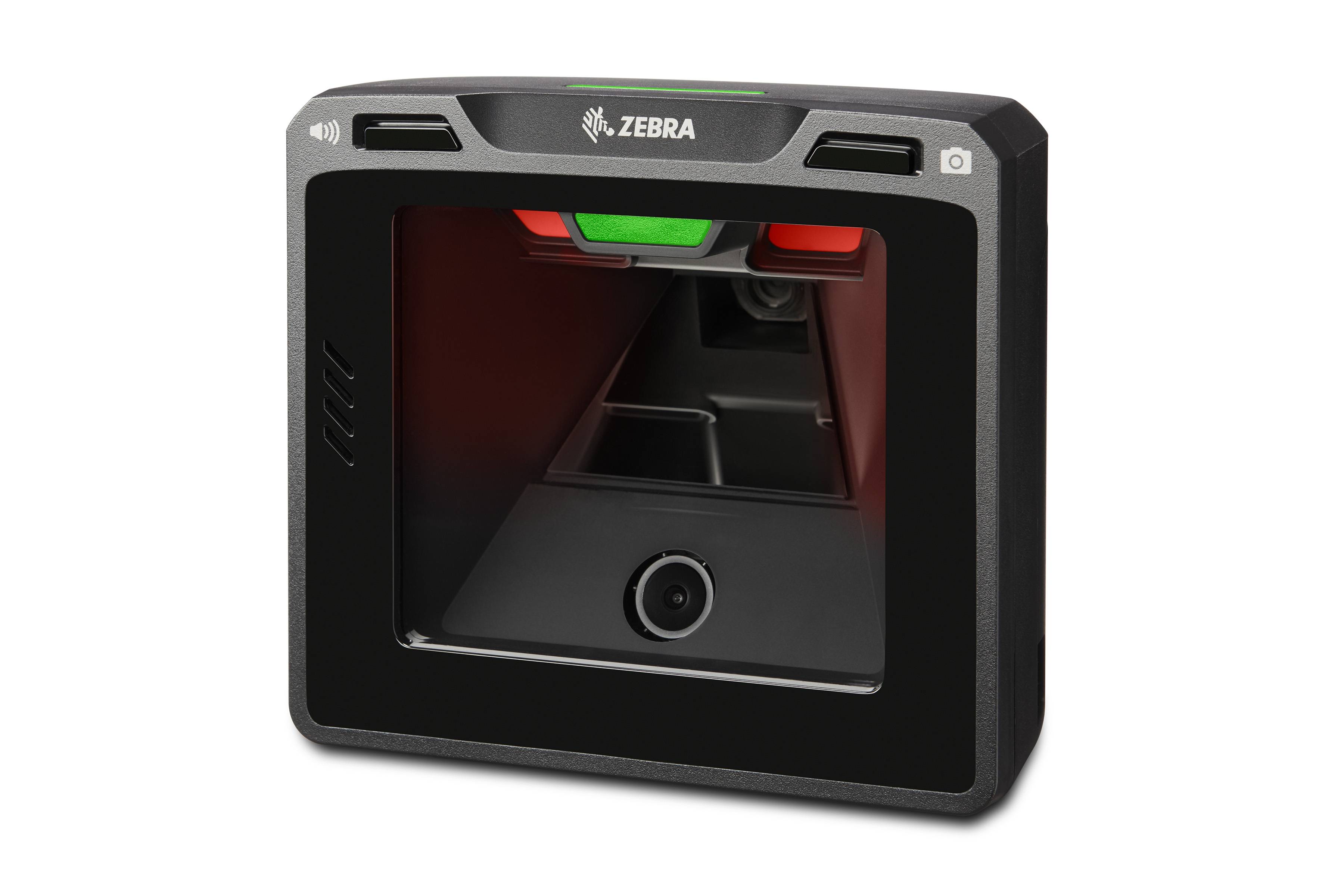

The Zebra SP7201-SH4U2100ZDW is a high-performance horizontal single-plane in-counter barcode scanner designed for demanding retail POS environments — grocery, pharmacy, convenience and specialty stores. Part of the SP72 Series, it combines Zebra's exclusive PRZM Intelligent Imaging technology with a 2.3 MP sensor to deliver fast, reliable scanning of virtually every 1D, 2D and Digimarc barcode, including damaged, faded or mobile-screen barcodes. This kit ships ready to deploy: scanner unit (SP7201-SH00004DCWW) + 7ft shielded USB cable (CBA-U21-S07ZBR).
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | SP7201-SH4U2100ZDW |
| Form Factor | Horizontal (SP72-H), In-Counter |
| Interface | USB (also RS232, Keyboard Wedge, TGCS IBM 46XX / RS485) |
| Imaging Sensor | 2.3 MP (1920 × 1200), PRZM Intelligent Imaging |
| Barcode Support | All major 1D & 2D (incl. PDF417, QR, DataMatrix, Aztec) + Digimarc |
| Swipe Speed | Up to 305 cm/sec (13 mil UPC, optimized mode) |
| Illumination | 4× 660 nm Deep Red LEDs (recessed, eye-friendly) |
| Field of View (imager) | 54° H × 35.5° V |
| Glass Type | Diamond-Like Coating (DLC) |
| EAS | Checkpoint EAS (Sensormatic compatible) |
| Environmental Sealing | IP52 |
| Operating Temp | 0°C to 50°C |
| Dimensions (H×W×D) | 15.2 × 15.2 × 8.6 cm |
| Weight | 834 g (DLC glass) |
| Power | USB bus-powered (5 VDC ±10% @ 480 mA avg) |
| Color | Midnight Black |
| Kit Contents | Scanner SP7201-SH00004DCWW + Shielded USB Cable 7ft CBA-U21-S07ZBR |
| Warranty | 3 Years |
Key Features
The SP72-H is a zero-footprint in-counter design — a direct drop-in replacement for popular legacy scanners. PRZM Intelligent Imaging handles poorly printed, damaged, crinkled and reflective barcodes (glass bottles, cellophane, mobile screens) without hesitation. Integrated Checkpoint EAS deactivation eliminates a separate deactivation step at checkout, reducing sweethearting risk. Deep-red recessed illumination activates only when an item enters the scan zone, minimising eye strain for cashiers. The scanner is USB bus-powered — no external power supply required. Zebra DataCapture DNA software (123Scan, Advanced Data Formatting, Remote Diagnostics) is built-in for easy deployment and fleet management.
Singular Recommends
For who Retailers, supermarkets, pharmacies and convenience stores upgrading legacy in-counter scanners — or building new POS lanes that need proven high-throughput single-plane performance with Checkpoint EAS support built in.
The real reason to buy it PRZM imaging plus a 305 cm/sec swipe speed means virtually zero missed scans, even at a busy checkout. Combined with integrated EAS deactivation and USB bus power, this is the lowest-friction upgrade path for any manned or self-checkout lane.
Know before you buy This is the SP7201 (essential) model — no auxiliary scanner port, no color camera. If you need handheld add-on or vision-based loss prevention, look at the SP7208. The kit includes DLC (Diamond-Like Coating) glass, not Sapphire — equally durable for most installations.
Χαρακτηριστικά
Product Code
CI73965
Manufacturer
Zebra
