Overview

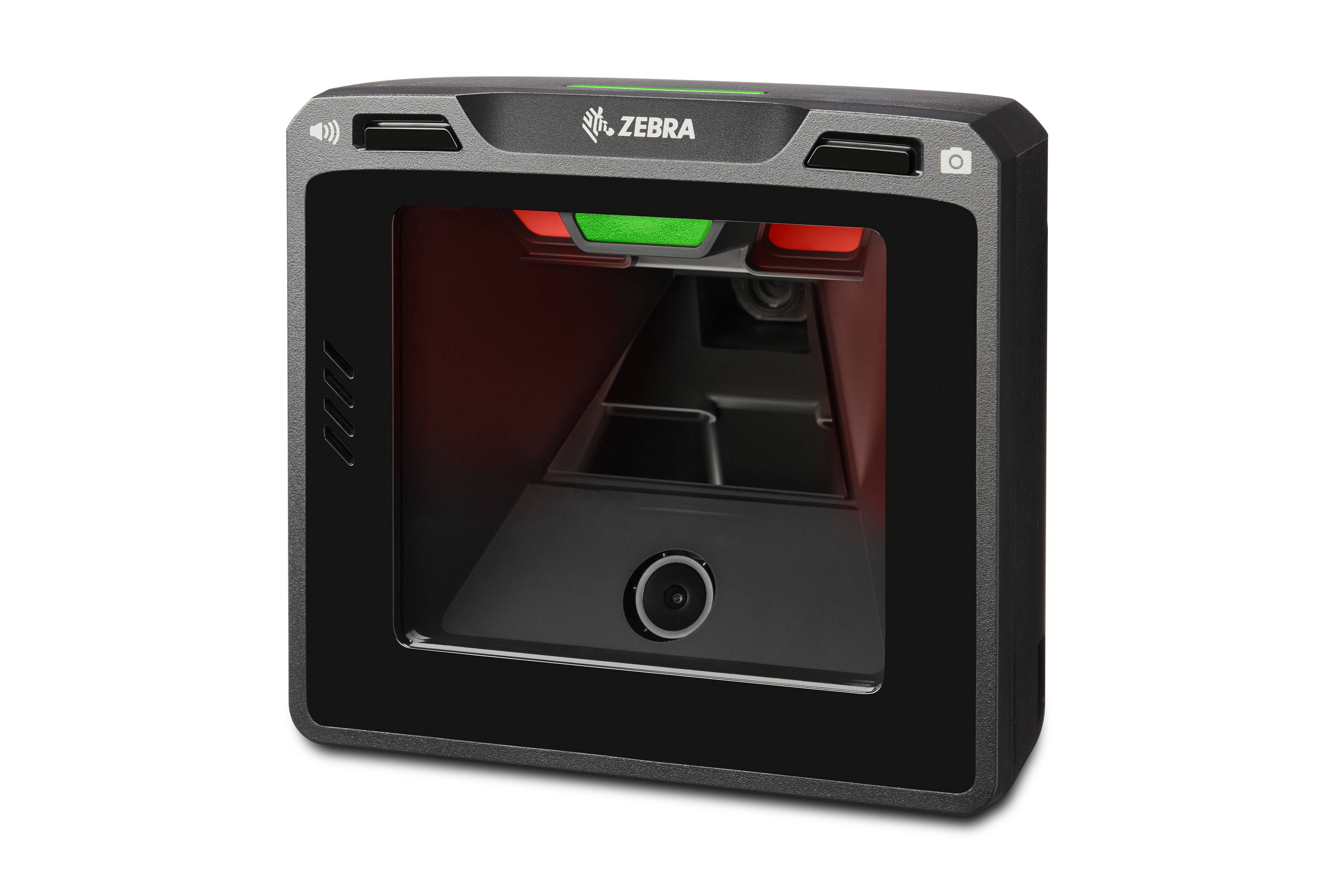

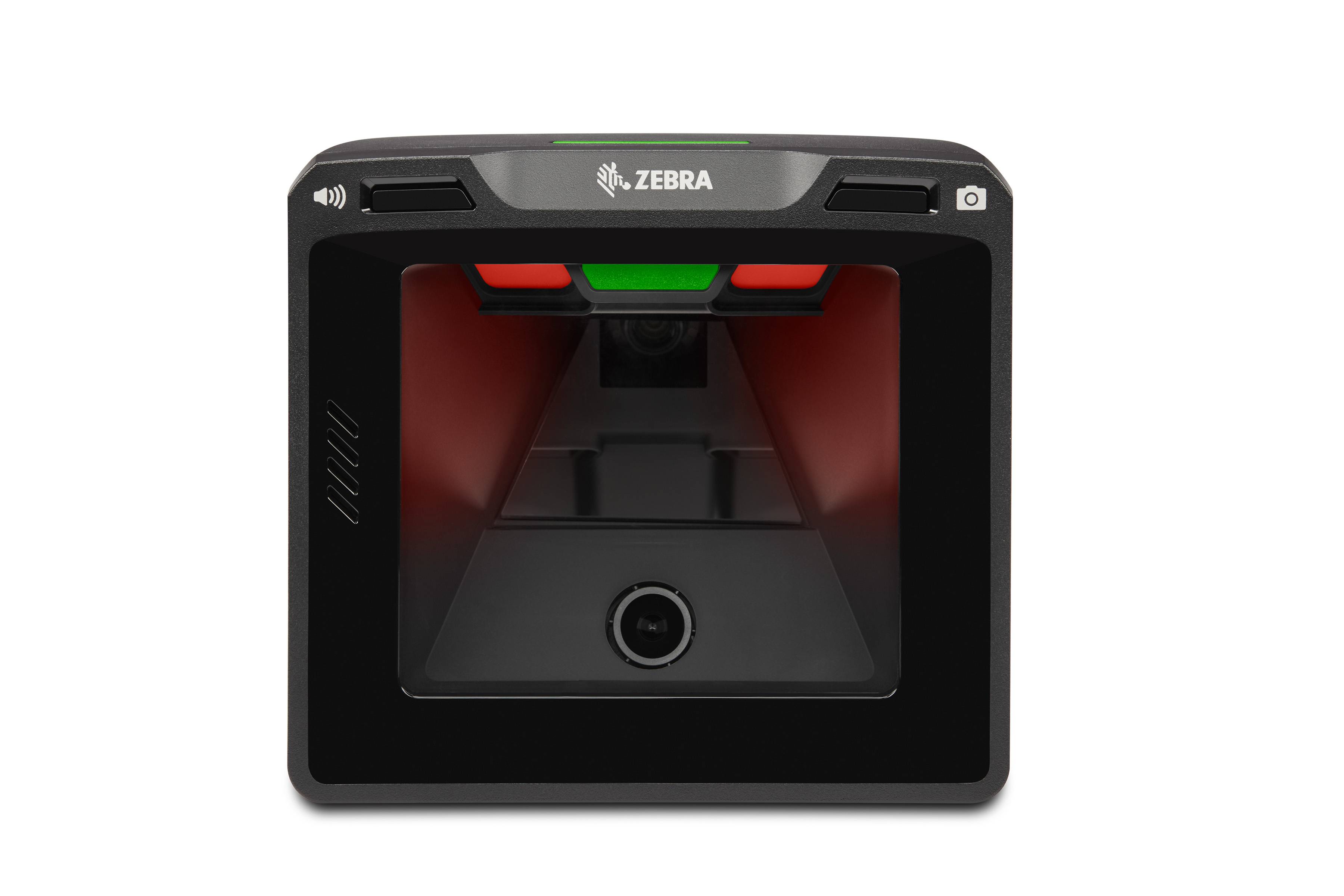

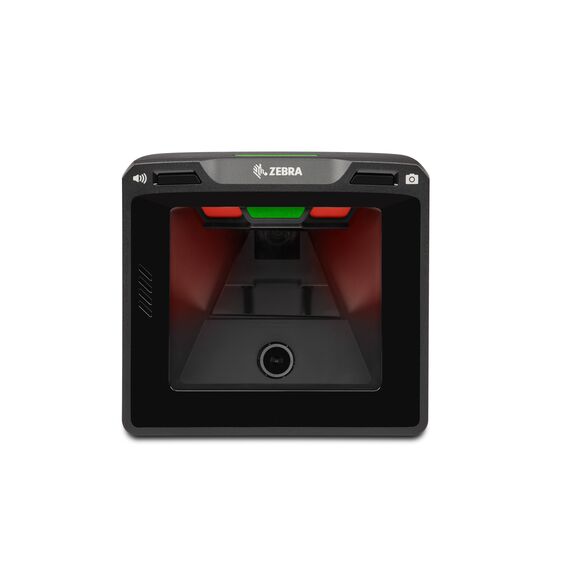

The Zebra SP7201-SH00004SCWW is a high-performance horizontal single-plane in-counter barcode scanner designed for demanding retail POS environments — grocery, pharmacy, convenience and specialty stores. Part of the SP72 Series, it combines Zebra's exclusive PRZM Intelligent Imaging technology with a 2.3 MP sensor to deliver fast, reliable scanning of virtually every 1D, 2D and Digimarc barcode, including damaged, faded or mobile-screen barcodes. This kit ships ready to deploy: scanner unit (SP7201-SH00004SCWW) + 7ft shielded USB cable (CBA-U21-S07ZBR) + Bucket Mount (BRKT-BM0072-00).
Technical Specifications
| Specification | Value |
|---|---|
| Model / Part Number | SP7201-SH00004SCWW |
| Form Factor | Horizontal (SP72-H), In-Counter |
| Interface | USB (also RS232, Keyboard Wedge, TGCS IBM 46XX / RS485) |
| Imaging Sensor | 2.3 MP (1920 x 1200), PRZM Intelligent Imaging |
| Barcode Support | All major 1D & 2D (PDF417, QR, DataMatrix, Aztec, Digimarc) |
| Swipe Speed | Up to 305 cm/sec (13 mil UPC, optimized mode) |
| Illumination | 4x 660 nm Deep Red LEDs (recessed, eye-friendly) |
| Field of View | 54 H x 35.5 V (degrees) |
| Glass Type | Sapphire Glass |
| EAS | Checkpoint EAS (Sensormatic compatible) |
| Environmental Sealing | IP52 |
| Operating Temperature | 0 to 50 degrees C |
| Dimensions (H x W x D) | 15.2 x 15.2 x 8.6 cm |
| Weight | 862 g (Sapphire glass) |
| Power | USB bus-powered (5 VDC +/-10% @ 480 mA avg) |
| Color | Midnight Black |
| Includes | Standalone scanner unit (cable and mount not included) |
| Warranty | 3 Years |
Key Features
The SP72-H is a zero-footprint in-counter design and a direct drop-in replacement for popular legacy scanners. PRZM Intelligent Imaging handles poorly printed, damaged, crinkled and reflective barcodes (glass bottles, cellophane, mobile screens) without hesitation. Integrated Checkpoint EAS deactivation eliminates a separate step at checkout, reducing sweethearting risk. Deep-red recessed illumination activates only when an item enters the scan zone, minimising eye strain for cashiers. The scanner is USB bus-powered with no external power supply required. Zebra DataCapture DNA (123Scan, Advanced Data Formatting, Remote Diagnostics) is built in for easy deployment and fleet management.
Singular Recommends
For who System integrators, IT departments and retailers replacing a scanner unit only — where cabling and mounting are already in place, or where a specific cable type is required for an existing installation.
The real reason to buy it PRZM imaging plus a 305 cm/sec swipe speed means virtually zero missed scans, even at a busy checkout. Combined with integrated EAS deactivation and USB bus power, this is the right unit when you already have cabling in place or are standardising on a specific cable type.
Know before you buy This is the SP7201 (essential) model with no auxiliary scanner port and no color camera. If you need a handheld add-on or vision-based loss prevention, look at the SP7208. The kit includes Sapphire glass, which is harder and more scratch-resistant than DLC.
