Zebra SP7201-SV — Vertical 1D/2D POS Barcode Scanner USB Kit
1D & 2D Barcode Scanning2.3MP Image SensorIP52 ProtectionUSB Cable Included

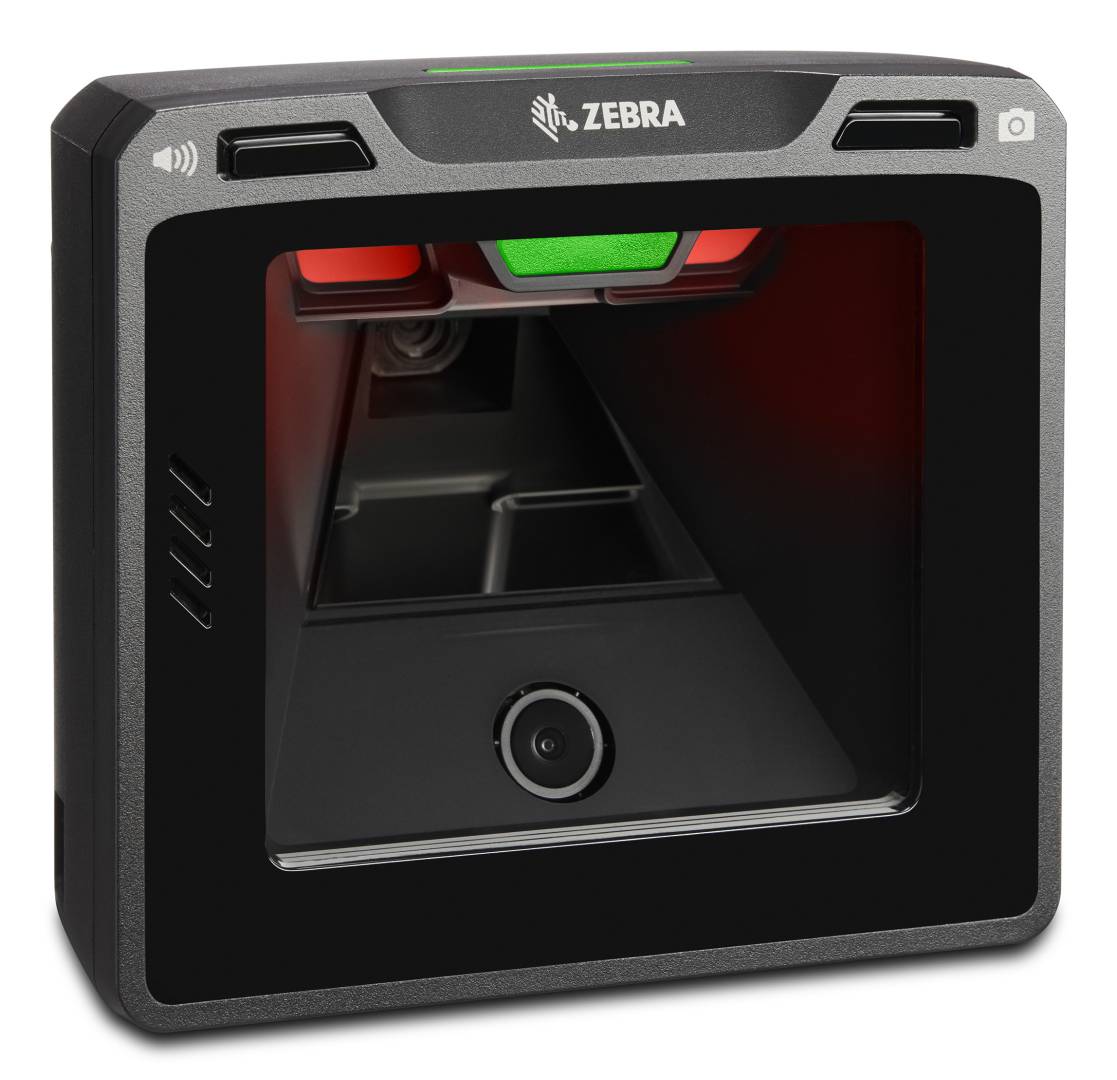

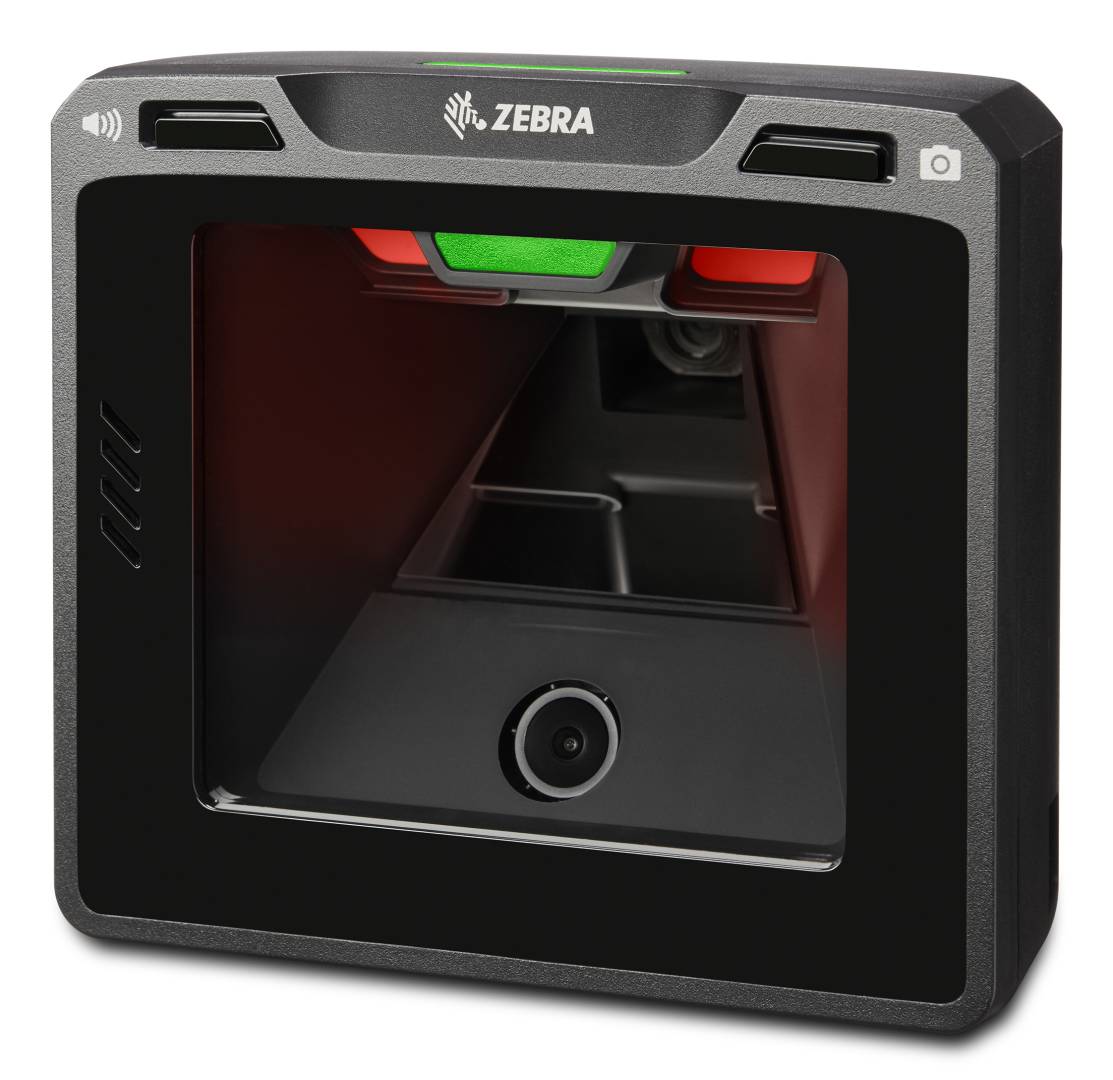

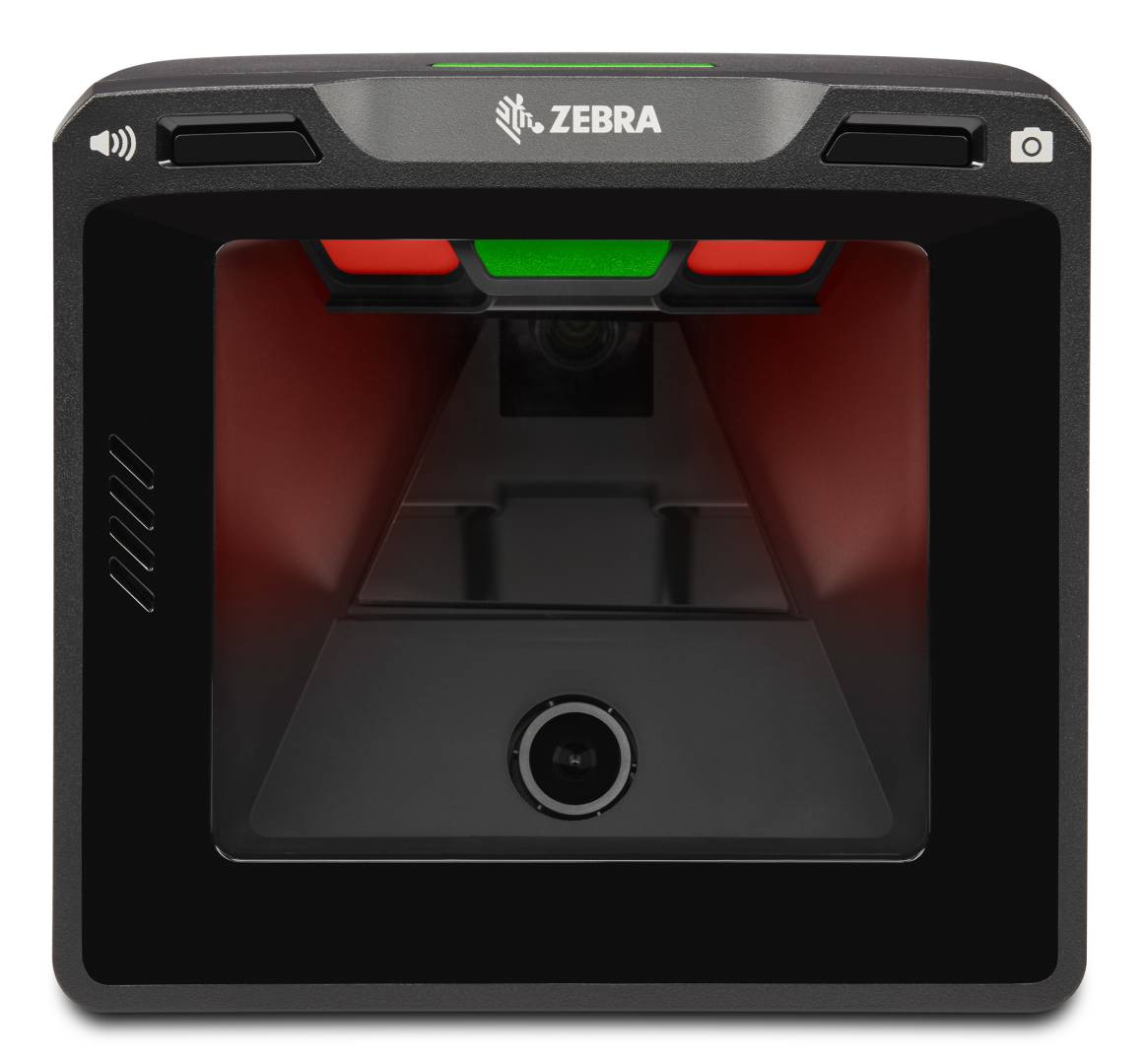

The Zebra SP7201-SV (SP7201-SV4U2100AZW) is a professional vertical, hands-free barcode scanner designed for retail checkout counters, grocery stores, pharmacies, convenience stores and self-checkout installations. Unlike a handheld barcode scanner, it remains positioned on a counter or suitable mounting surface while products are passed in front of its scanning window. Its 2.3-megapixel imaging sensor and Zebra PRZM Intelligent Imaging technology read supported 1D and 2D barcodes, including labels printed on products and barcodes displayed on smartphone screens. The compact vertical design, wide scanning area and IP52-rated housing make it suitable for everyday point-of-sale environments. This exact USB kit includes the Midnight Black scanner and a 7ft shielded USB cable.
Compatibility — check before buying:
Exact product configuration: SP7201-SV4U2100AZW is the SP7201-SV vertical, standard-range, USB-only kit in Midnight Black. The package includes scanner SP7201-SV00004ZZWW and shielded USB cable CBA-U21-S07ZBR. It is designed for fixed hands-free scanning rather than cordless handheld operation. Important model differences: this SP7201 version does not include an auxiliary handheld-scanner port, optional colour camera or electronic article surveillance (EAS) configuration. Those features are available only on other appropriately configured SP72 models. The USB kit is intended for connection to a compatible POS host; verify the required POS software, host interface and mounting arrangement before ordering. Wall and table mounting brackets are optional accessories and are not included in this kit.
Best For
✓ Supermarket and grocery checkout counters
✓ Pharmacy and convenience-store POS systems
✓ Self-checkout kiosk installations
✓ Hands-free product barcode scanning
✓ Reading QR codes and mobile barcodes
✓ Compact retail counters with USB-connected POS equipment
Key Features
Hands-free swipe-and-go scanning
The vertical scanning window allows products to be presented directly in front of the scanner without picking up a handheld reader. Its wide reading area helps reduce the need to align every barcode precisely. Zebra specifies swipe speeds of up to 305cm per second for a 13 mil UPC barcode in optimised operating mode, supporting rapid checkout workflows.
2.3MP PRZM Intelligent Imaging
The integrated 1920 × 1200-pixel imaging sensor uses Zebra PRZM Intelligent Imaging technology to capture supported 1D, 2D and Digimarc barcodes. It is designed to handle challenging printed labels, including damaged, faded or poorly printed barcodes, as well as supported barcodes displayed on mobile devices. Actual reading distance varies with barcode type, size and printing quality.
Wide barcode format compatibility
Supported barcode families include UPC/EAN, Code 39, Code 128, GS1 DataBar, PDF417, Data Matrix, QR Code, Micro QR and several other retail and identification formats. The scanner supports barcode presentation at different orientations, with 360-degree roll tolerance, making it useful for products that cannot always be presented in the same position.
Compact vertical installation
The SP72-V measures 137mm high, 152mm wide and 84mm deep, allowing installation on a retail counter or integration into a suitable self-checkout enclosure. Optional mounting accessories support other fixed installation arrangements. The vertical format is designed to save counter space compared with larger multi-plane checkout scanner systems.
IP52 protection and clear scan feedback
The IP52-rated enclosure provides limited protection against dust ingress and dripping water under the applicable test conditions. Elevated internal electronics help protect the vertical scanner from accidental counter spills. Front and top good-decode LED indicators and an adjustable audible speaker provide confirmation when a barcode is read successfully.
USB connectivity and Zebra management tools
This kit includes a 7ft shielded USB host cable for connecting the scanner to compatible POS equipment. The SP7201 can operate using suitable host USB power without a separate external power supply. Zebra 123Scan and Scanner Management Service support scanner configuration, firmware maintenance and remote device management, helping businesses administer multiple scanners across retail locations.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
The Zebra SP7201-SV is a specialist checkout scanner, not an ordinary handheld barcode reader. Its main advantage is that the operator can pass products across the reading window without holding or aiming a scanner. This makes it particularly relevant for grocery stores, pharmacies and retail counters processing many small or medium-sized products. The SP7201-SV4U2100AZW part number is important because it identifies the USB kit with its 7ft shielded cable already supplied. The scanner-only version and EAS-equipped versions have different part numbers. Another distinction is between the SP7201 and the higher-specification SP7208: this SP7201 cannot accept an auxiliary scanner or optional colour camera. Those features should not be advertised for the product. Its 2.3MP imaging sensor, PRZM Intelligent Imaging technology and support for mobile QR codes make it useful for retail environments that handle both traditional product labels and electronic barcode formats. Before choosing it, confirm that your POS system supports the required USB scanner interface and that the physical mounting arrangement is suitable. For a conventional retail checkout requiring fixed hands-free 1D and 2D scanning without advanced camera or EAS features, this USB kit is the appropriate configuration.
Buyer's Guide
Buy it if
You need a compact, fixed vertical barcode scanner for a retail POS checkout, want hands-free 1D/2D barcode reading and require the USB connection cable included in the package.
Skip it if
You need a cordless handheld scanner, an auxiliary scanner connection, a colour-camera-based vision system or EAS integration in the supplied scanner configuration.
Also consider
A suitably configured Zebra SP7208-SV if you require auxiliary-scanner or optional colour-camera capabilities, or a Zebra handheld scanner if you need to move the reader to bulky products instead of passing products across a fixed scanning window.
